LILYGO T-Display ESP32 WiFi BLE 1.14 inch ST7789V Development Board

LILYGO T-Display ESP32 WiFi BLE 1.14 inch ST7789V Development Board

LILYGO T-Display ESP32 WiFi BLE Development Board is a small yet capable microcontroller board tailored for IoT, wearables, and embedded solutions. Powered by the ESP32 dual-core LX6 CPU, it integrates Wi-Fi 802.11 b/g/n and Bluetooth 4.2 + BLE for reliable wireless links. A key highlight is its bright 1.14 inch ST7789V IPS LCD. With support for Arduino IDE and Micropython, it enables fast prototyping and flexible coding. Onboard buttons, battery level sensing, and interfaces like SPI, I2C, ADC, plus the CH9102 USB-to-serial chip and SD card expansion, make this board a versatile choice that combines performance and visual feedback in one compact design.



Specifications of LILYGO T-Display

MCU ESP32 Xtensa dual-core LX6 processor, optimized for IoT and embedded projects
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth V4.2 + BLE for seamless ESP32 communication
Programming Platform Works with Arduino IDE and Micropython, ideal for ESP32 T-Display development
Serial Chip CH9102 USB-to-Serial interface for dependable flashing and communication
Optional Flash Available in 4MB / 16MB Flash memory for firmware and data storage
Onboard Functions Buttons: IO06 + IO07, battery voltage monitoring for ESP32 power management



Description

1.14 inch ST7789V IPS LCD for LILYGO T-Display ESP32 WiFi BLE Development Board

  • Resolution: 135 × 240 pixels, tuned for ESP32 display use
  • 260 PPI full-color TFT with high pixel density
  • 4-Wire SPI interface for quick screen refresh
  • Operating Voltage: 3.3V, matches ESP32 requirements
  • 1.14" diagonal IPS LCD, perfect for compact projects
  • Driver IC: ST7789, supported by TFT_eSPI library



Product Display

1. Appearance

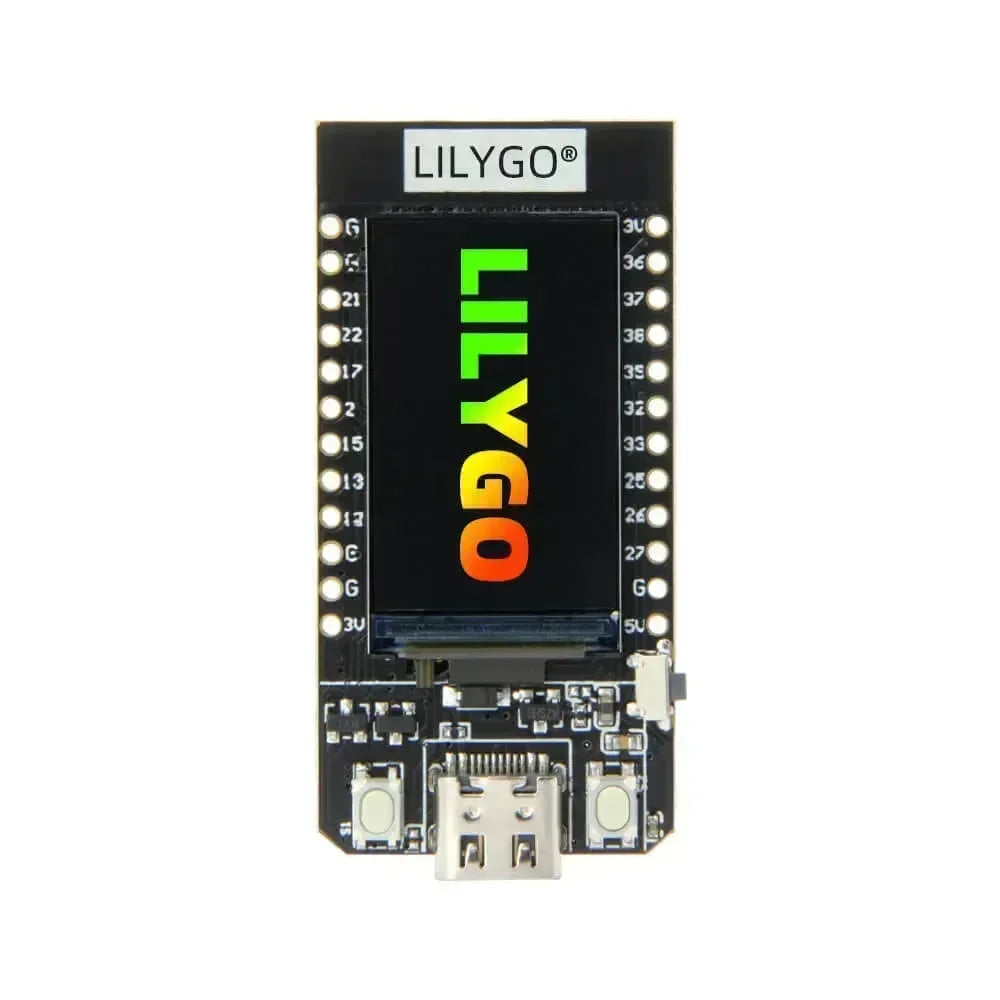

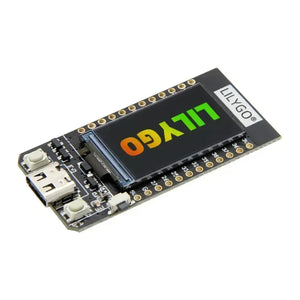

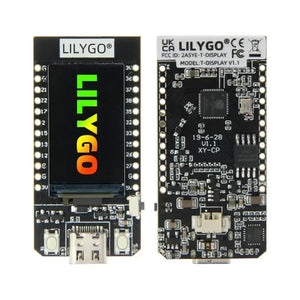

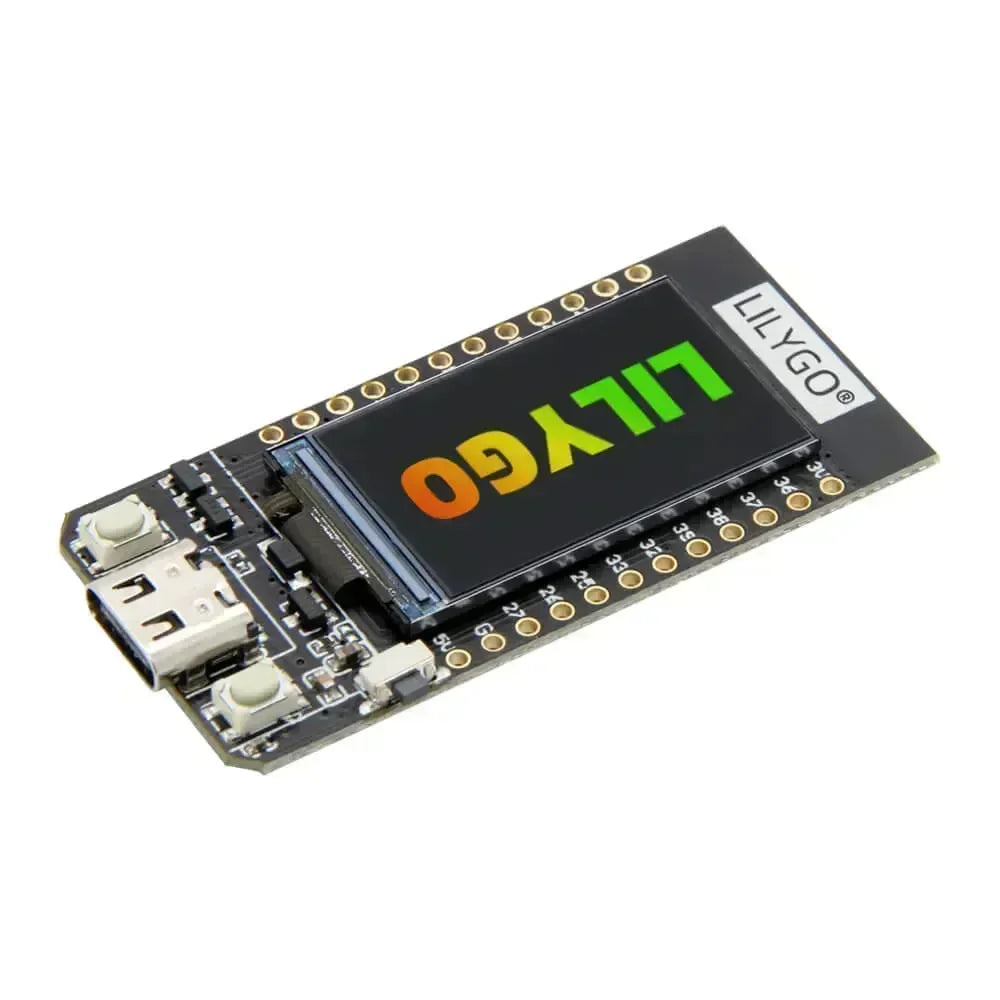

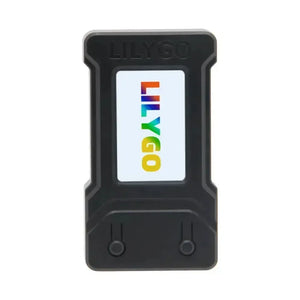

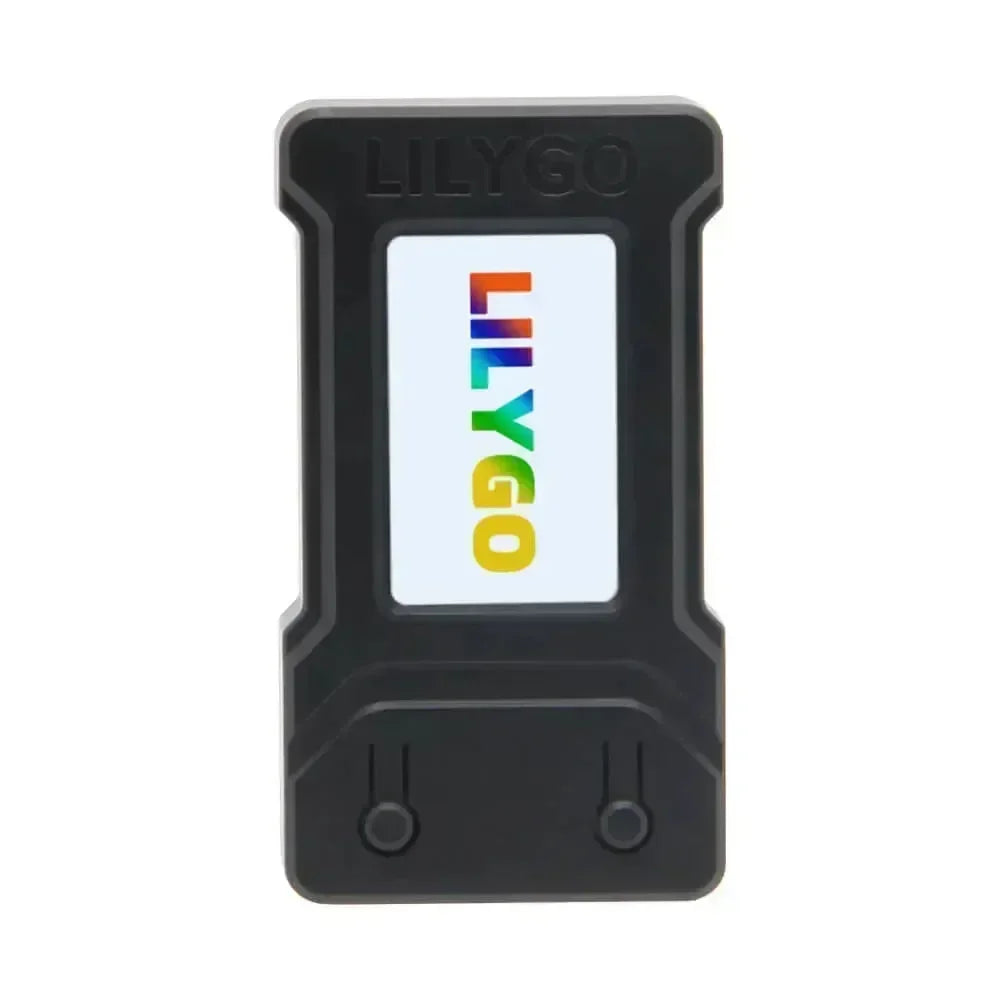

LILYGO T-Display ESP32 Appearance

2. Size

ESP32 T-Display Size Diagram

3. Pin Diagram

ESP32 T-Display Pinout



Technology Support

Access complete documentation and ESP32 sample projects on GitHub



Quick Start Guide for ESP32 Arduino IDE

  1. Copy the TFT_eSPI library into C:\Users\YourUserName\Documents\Arduino\libraries
  2. Open Arduino IDE, locate TFT_eSPI and run T-Display FactoryTest or other demos
  3. In Arduino IDE tools, choose board: ESP32 Dev Module, PSRAM: Disable, Flash Size: 4MB
  4. Select the correct COM port (CH9102), then click upload



SD Card Connection via ESP32 SPI

Example of using an SD card as a secondary SPI device with ESP32 T-Display

ESP32 SD Card SPI Demo

Name V18
TFT Driver ST7789
TFT_MOSI 19
TFT_SCLK 18
TFT_CS 5
TFT_DC 16
TFT_BL 4
I2C_SDA 21
I2C_SCL 22
ADC_IN 34
BUTTON1 35
BUTTON2 0
ADC Power 14



Shipping List

  • 1 × LILYGO TTGO T-Display ESP32 WiFi BLE Development Board (CH9102F, 4MB/16MB Flash)
  • 1 × USB Cable for ESP32 power and programming
  • 2 × Pin Headers for ESP32 GPIO access

ESP32 T-Display Shipping Contents
