M5Stack CoreMP135 w/ STM32MP135D
🖥️ CoreMP135 — Linux Industrial Control Host

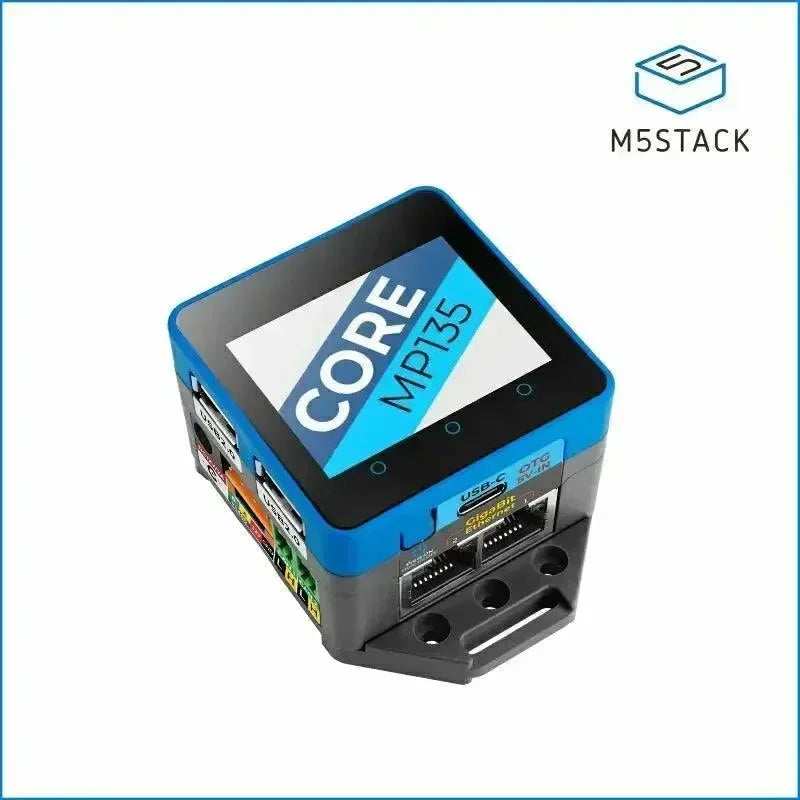

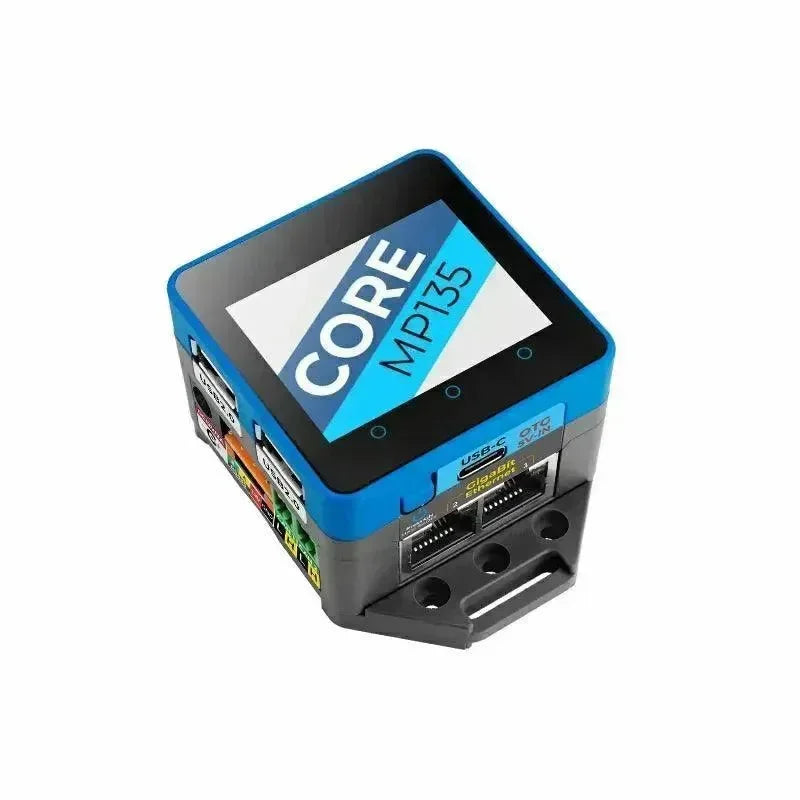

The CoreMP135 is a compact and powerful Linux industrial control host built on the STM32MP135DAE7 chip, featuring a single-core Arm Cortex‑A7 processor running at up to 1GHz. Equipped with 4Gb DDR3L SDRAM, it delivers efficient performance for industrial automation, IoT edge computing, and robotics.
With dual GbE ports, HD video output, USB‑A and USB‑C interfaces, CAN FD, RS485 (PWR485), Grove connectors, and a 2.0-inch IPS capacitive touch screen, CoreMP135 offers rich connectivity and human‑machine interaction. Its low‑power design integrates the AXP2101 PMU and BM8563 RTC for scheduled wake/sleep cycles, supporting rechargeable battery operation.
Preloaded with a Debian Linux system on MicroSD, CoreMP135 is ready to use out of the box. The DIN rail base plate ensures easy installation in industrial environments, making it ideal for automation systems, smart homes, multimedia devices, IoT edge gateways, and robot motion control hubs.
🔑Features
-
High Performance: STM32MP135DAE7 @ Arm Cortex‑A7, 1GHz.
-
Linux Platform: Preloaded Debian system for rapid deployment.
-

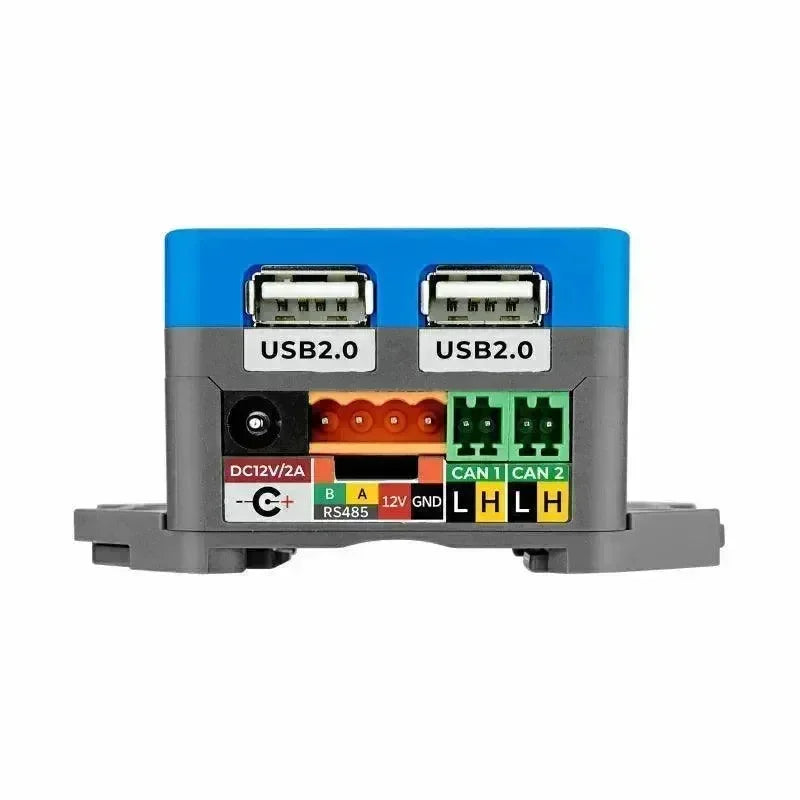

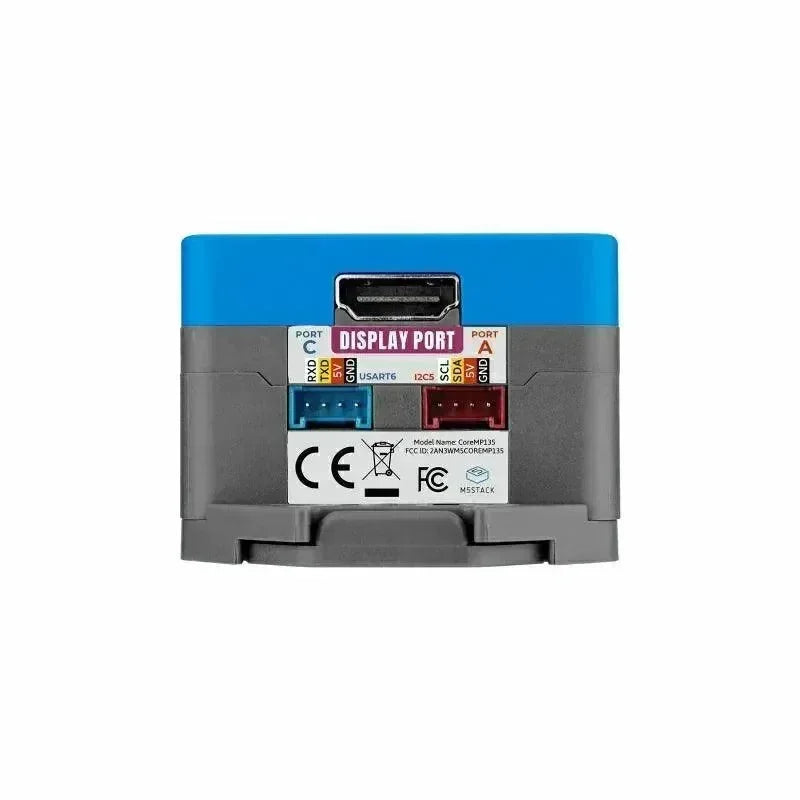

Rich Interfaces: Dual GbE, CAN FD, RS485, USB‑A, USB‑C (OTG + power), Grove I²C/UART.
-

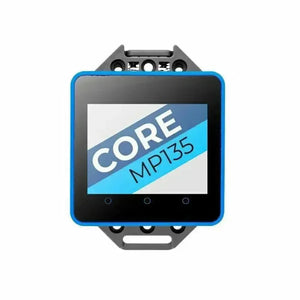

Human‑Machine Interaction: 2.0" IPS capacitive touch screen + 1W speaker.
-
Low Power Design: AXP2101 PMU + RTC BM8563 for scheduled wake/sleep.
-

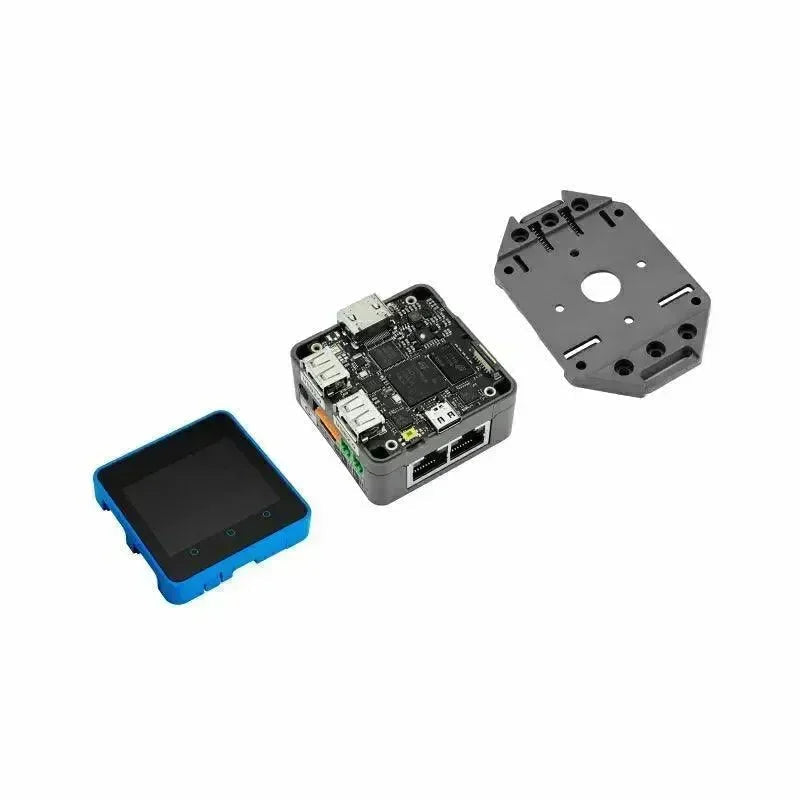

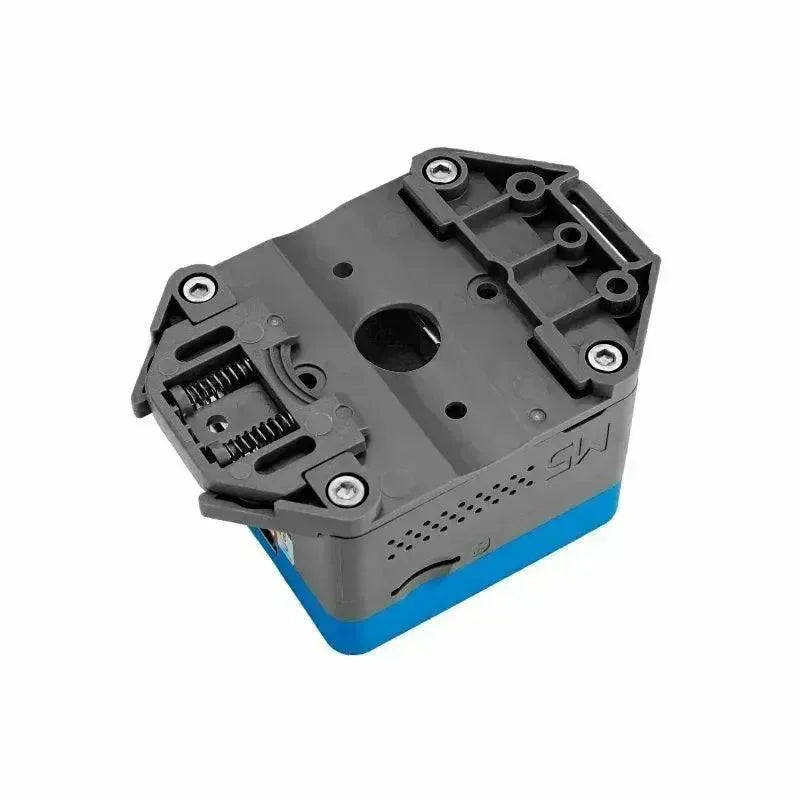

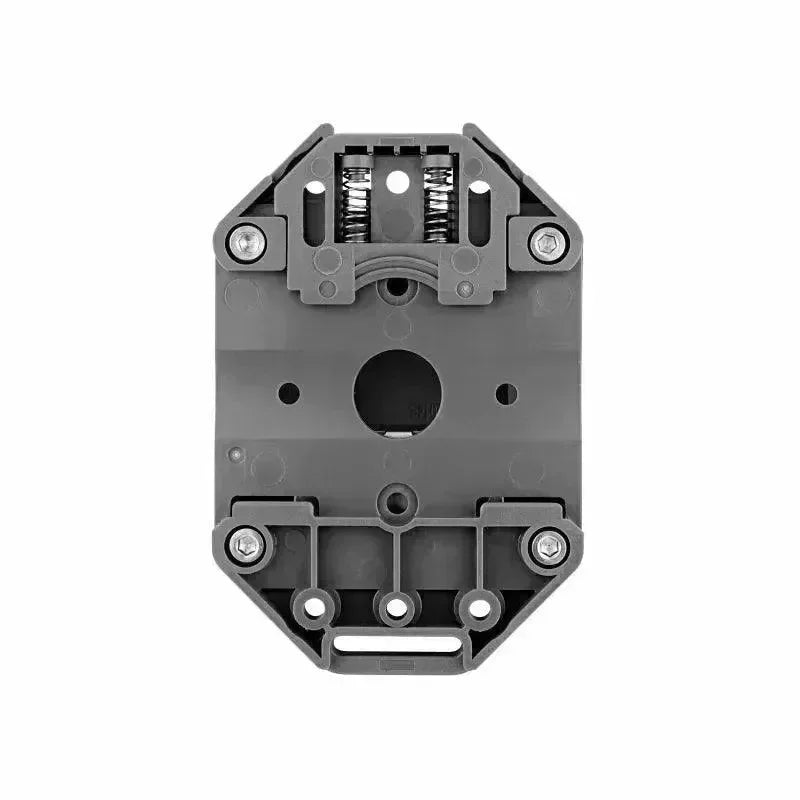

Flexible Installation: DIN rail base plate for wall mounting and screw fixing.
-
Out‑of‑Box Ready: Includes MicroSD card with Debian OS.
📦 Package Contents
-
1 × CoreMP135 Host
-
1 × M3 Hex Wrench
-
1 × VH3.96‑4P Connector
-
2 × Terminal 2.54mm‑2P (green)
-
1 × MicroSD Card (pre‑installed with Debian)
-
1 × Specification Manual
📌 Applications
-
Industrial Automation Systems
-
Smart Home Control
-
Industrial IoT Edge Gateways
-
Educational Development Platforms
-
Robot Motion Control Centers

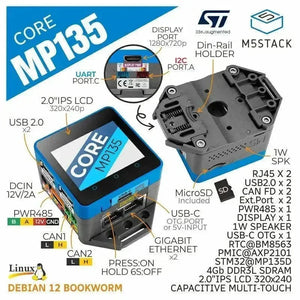

📊 Technical Specifications
| Resource | Parameters |
|---|---|
| MCU | STM32MP135DAE7, single-core Arm Cortex‑A7 @ 1GHz |
| Power Management | AXP2101 |
| RS485 | MAX3485 |
| CAN FD | Dual-channel SIT1051T/3 |
| USB Hub | GL852G (2× USB2.0), 1× USB‑C (OTG + power) |
| Video Output | LT8618SXB, HD, up to 24‑bit color depth |
| Memory | 4Gb DDR3L SDRAM |

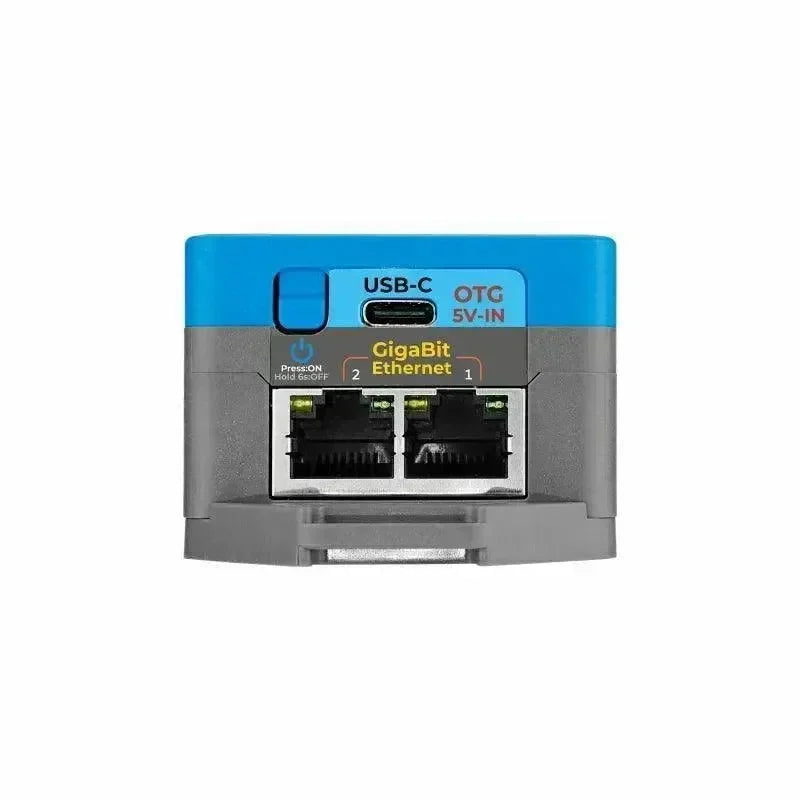

| Ethernet | RTL8211F, up to 1Gbps, 2× RJ45 |
| RTC | BM8563 |
| Display | ILI9342C, 2.0" IPS LCD, 240×320px |
| Touch | FT6336U Capacitive Touch |
| Audio | NS4168 Class D amplifier, I²S input, 1W @ 4Ω speaker |
| Power Input | DC12V/2A or USB‑C 5V/3A |
| Operating Temp | 0°C ~ 40°C |
| Product Size | 54 × 54 × 34.5mm |
| Package Size | 81 × 54 × 39.5mm |
| Net Weight | 99.5g |
| Package Weight | 155.9g |
