M5Stack ESP32-H2 Thread/Zigbee Gateway Module

M5Stack ESP32-H2 Thread/Zigbee Gateway Module

$12.59

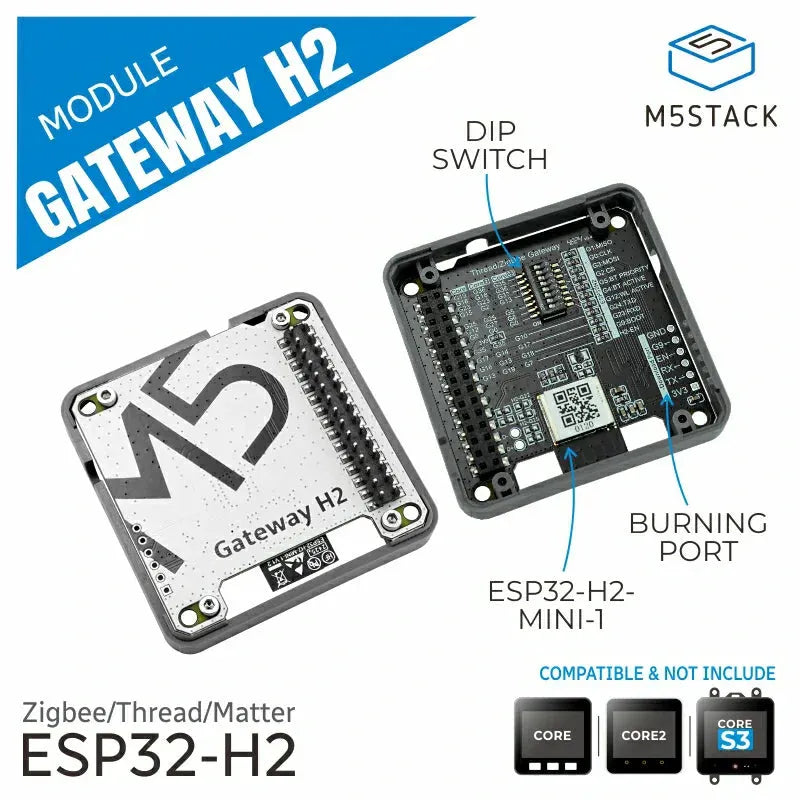

🌐 Module Gateway H2 – Stackable Zigbee/Thread/Matter Development Module

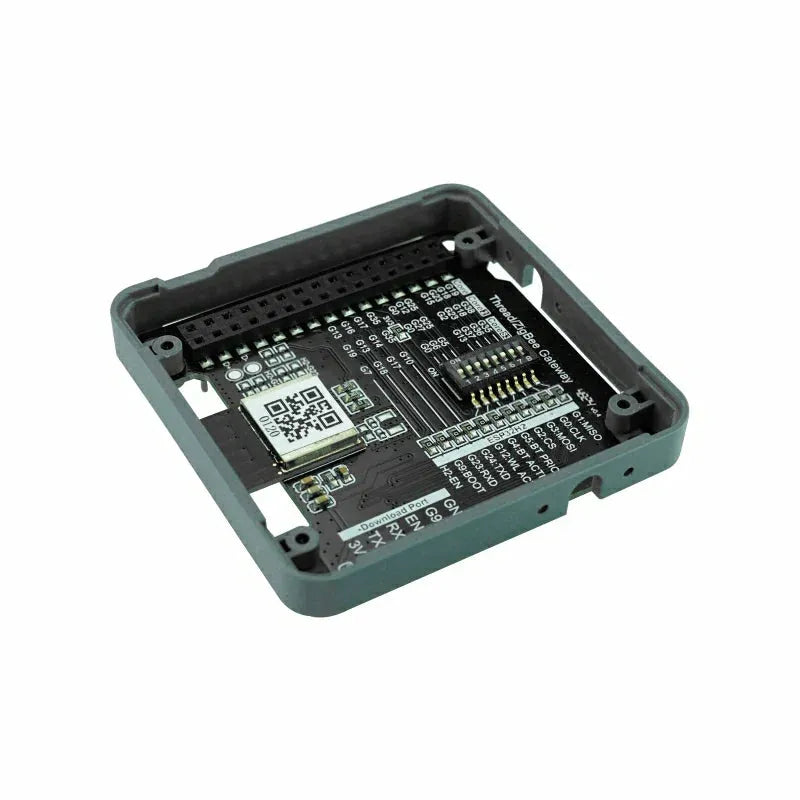

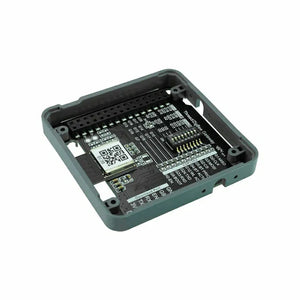

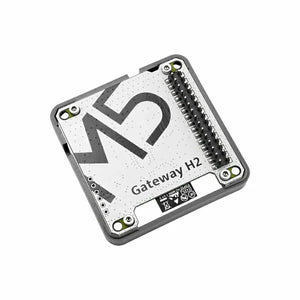

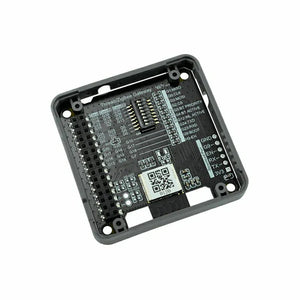

The Module Gateway H2 is a stackable development module designed for M5 series hosts, built on the ESP32‑H2‑MINI‑1. Featuring a low‑power 32‑bit single‑core RISC‑V MCU (96 MHz), it supports Zigbee, Thread, and Matter (based on Thread) protocols via IEEE 802.15.4 wireless communication.

With a hardware encryption engine for secure IoT applications, an 8‑position DIP switch for flexible interface configuration (UART/SPI), and a standard programming download interface for easy firmware flashing, the Gateway H2 is ideal for rapid prototyping. Its multi‑module stacking support makes it perfect for smart homes, sensor networks, and low‑power wireless communication nodes.



🔧 Key Features

  • ✅ Supports Zigbee, Thread, and Matter protocols

  • ✅ Integrated IEEE 802.15.4 wireless technology

  • ✅ ESP32‑H2 RISC‑V processor @ 96 MHz

  • ✅ Hardware encryption engine for secure IoT data

  • ✅ 8‑position DIP switch for UART/SPI interface switching & wireless control

  • ✅ Stackable expansion for multi‑module setups

  • ✅ Low power consumption (standby 8.55 mA, Thread networking 18.35 mA)

  • ✅ On‑board PCB antenna for stable connectivity

  • ✅ Compatible with UIFlow 2.0 & Arduino IDE

  • ✅Development Platforms:

UIFlow 2.0

Arduino IDE



📦 Package Contents

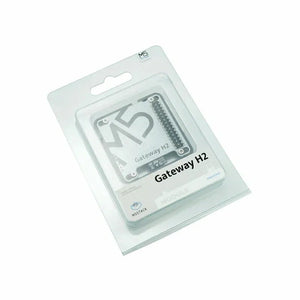

  • 1 × Module Gateway H2


🔧 Applications

  • 🏠 Smart home automation

  • 🏭 Industrial automation systems

  • 🩺 Healthcare IoT devices

  • 📱 Consumer electronics

  • 🌱 Smart agriculture monitoring


📊 Technical Specifications

Specification Parameters
SoC ESP32‑H2, 32‑bit single‑core RISC‑V, 96 MHz
Flash 2 MB
Antenna On‑board PCB antenna
Supported Protocols IEEE 802.15.4 (Zigbee 3.0, Thread 1.3, Matter)
Power Consumption Standby: 3.3V / 8.55 mA; Thread networking: 3.3V / 18.35 mA
DIP Switch 8‑position (UART/SPI switching, wireless control)
Operating Temperature 0–40 °C
Product Size 54 × 54 × 13.1 mm
Product Weight 11.8 g
Package Size 133 × 95 × 16 mm
Package Weight 25.1 g


Schematics

Module Gateway H2 Schematic PDF

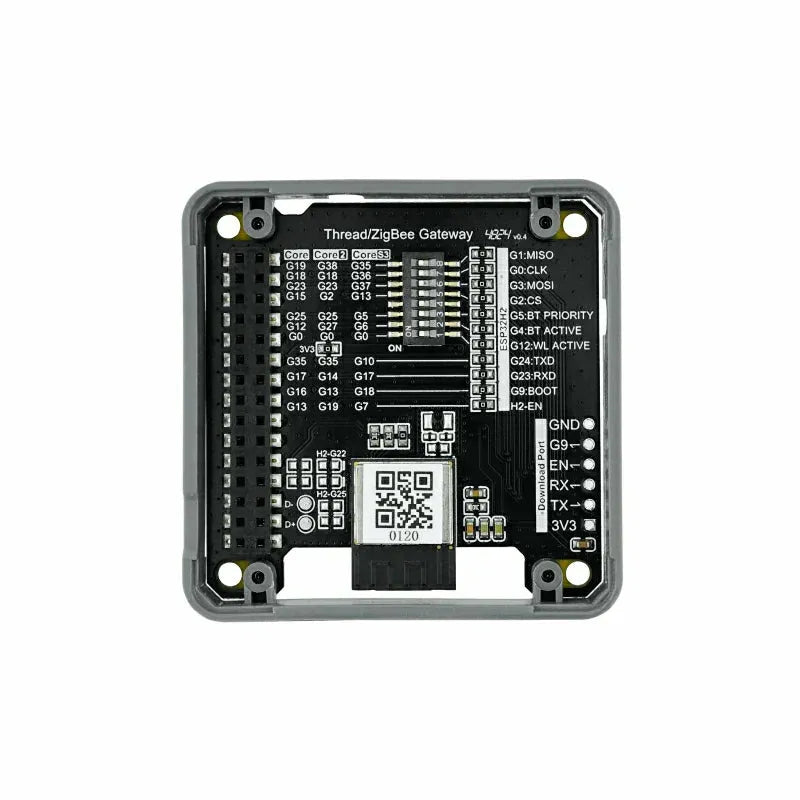

DIP Switch

Module Gateway H2 WL_ACTIVE BT_ACTIVE BT_PRIORITY SPI_CS SPI_MOSI SPI_CLK SPI_MISO
Basic GPIO0 GPIO12 GPIO25 GPIO15 GPIO23 GPIO18 GPIO19
Core2 GPIO0 GPIO27 GPIO25 GPIO2 GPIO23 GPIO18 GPIO38
CoreS3 GPIO0 GPIO6 GPIO8 GPIO13 GPIO37 GPIO36 GPIO35

UART Communication With M5 Host

Module Gateway H2 TX0 RX0 H2-EN G9
Basic GPIO35 GPIO17 GPIO13 GPIO16
Core2 GPIO35 GPIO14 GPIO19 GPIO13
CoreS3 GPIO10 GPIO17 GPIO7 GPIO18



ESP-IDF



Arduino
