M5Stack MQTT PoE Unit with PoE Port
🌐 MQTT PoE Unit – Ethernet Module with Power over Ethernet
The MQTT PoE Unit is a compact Ethernet communication module designed for MQTT protocol applications. It integrates the W5500 Ethernet chip for reliable 10/100 Mbps connectivity and supports Power over Ethernet (PoE), simplifying wiring and reducing installation costs.
Equipped with an ARM Cortex‑M3 processor, the module communicates via UART AT commands (9600 bps, 8N1) and supports subscription to four MQTT topics. With low latency (~10 ms) and high stability, it is ideal for industrial automation, security monitoring, measurement systems, and cloud‑based data applications.
The PoE version delivers up to 1.2 A @ 5 V (6 W) load capability, ensuring stable operation in demanding environments.
⚙️Features
-
✅ Embedded W5500 Ethernet chip for fast and stable networking
-

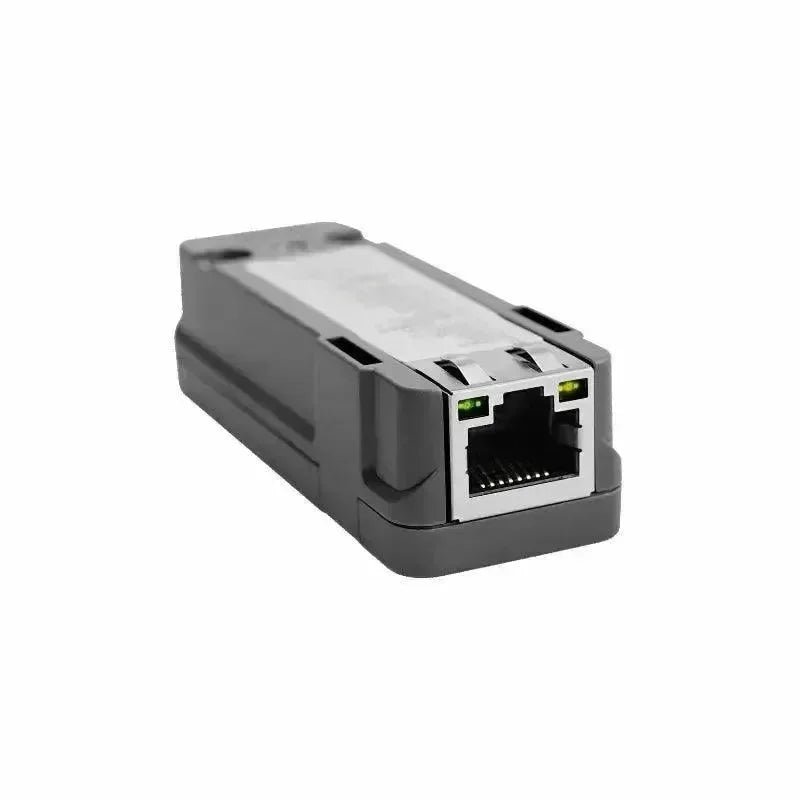

✅ RJ45 10/100 Mbps port for seamless Ethernet connectivity
-
✅ PoE IEEE802.3 AF support (1.2 A @ 5 V, 6 W)
-
✅ MQTT communication with support for 4 topic subscriptions
-
✅ Low latency (~10 ms) for real‑time data exchange
-

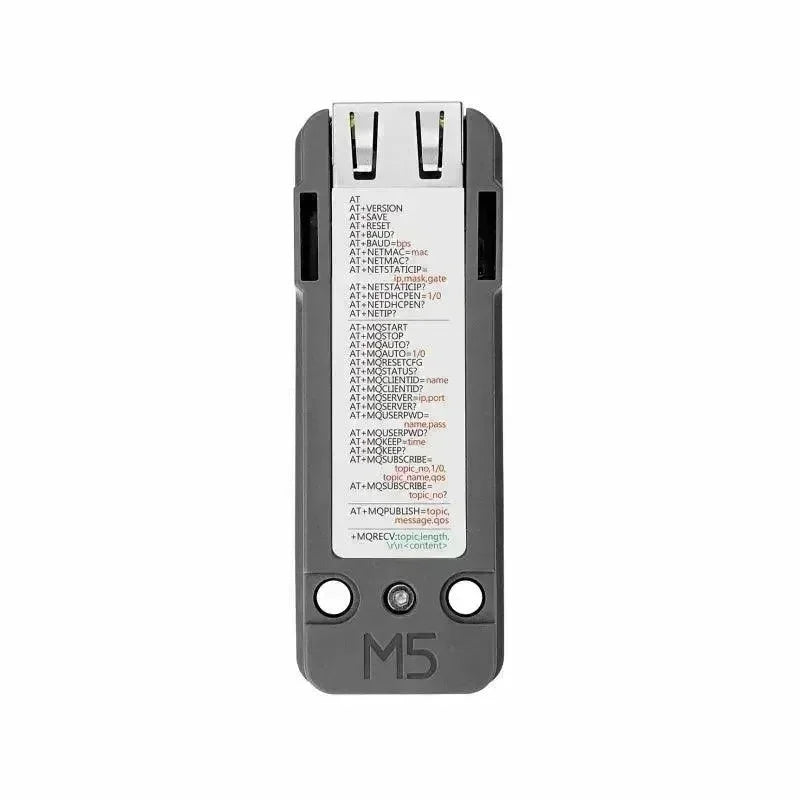

✅ UART AT command interface (9600 bps default)
-
✅ Compatible with Arduino & UIFlow development platforms
-
✅ Compact design for easy integration into automation systems
📦 Package Contents
-
1 × MQTT PoE Unit
-
1 × HY2.0‑4P cable (20 cm)
🔧 Applications
-
📡 Remote data collection to the cloud
-
🏭 Industrial automation systems
-
🔒 Security monitoring devices
-
📊 Automation measurement and IoT projects
📊 Technical Specifications
| Specification | Parameters |
|---|---|
| Processor | ARM Cortex‑M3 |
| Ethernet Chip | W5500 |
| Communication Interface | UART (9600 bps, 8N1, AT command) |
| MQTT Support | 4 topic subscriptions (no MQTTS) |
| Network Port | RJ45 adaptive 10/100 Mbps |
| Latency | ~10 ms |
| PoE Power Supply | 1.2 A @ 5 V (6 W), DC 37–57 V |
| Working Current | 190 mA |
| Standby Current | 130 mA |
| Net Weight | 27 g |
| Gross Weight | 34.2 g |
| Product Size | 72 × 26 × 19 mm |
| Package Size | 73 × 35 × 20 mm |
