M5Stack Station ESP32 IoT Development Kit
🏭 M5Station‑485 – Industrial‑Grade IoT Development Kit
The M5Station‑485 is a multifunctional industrial‑grade programmable embedded IoT development kit powered by the Espressif ESP32‑D0WDQ6‑V3 SoC. Featuring a dual‑core Xtensa® 32‑bit LX6 microprocessor running at up to 240 MHz, integrated Wi‑Fi, and 16 MB flash memory, it delivers robust performance for industrial and prototyping applications.

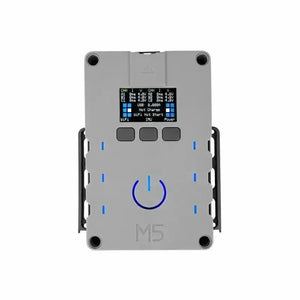

Equipped with a 1.14‑inch full‑color IPS display (240×135 px), three programmable keys, and seven programmable RGB LEDs, the M5Station‑485 provides an intuitive Human‑Machine Interface (HMI). Multiple power supply options (USB Type‑C, RS485, external battery) and a high‑power density boost DC/DC converter ensure stable operation in complex environments.
⚙️Features
-
✅ ESP32 dual‑core MCU (240 MHz, Wi‑Fi enabled)
-
✅ 16 MB flash memory for data storage
-
✅ 1.14” IPS LCD display (240×135 px)
-
✅ 3 programmable keys + ON/OFF button
-
✅ 7 programmable RGB LEDs (SK6812)
-

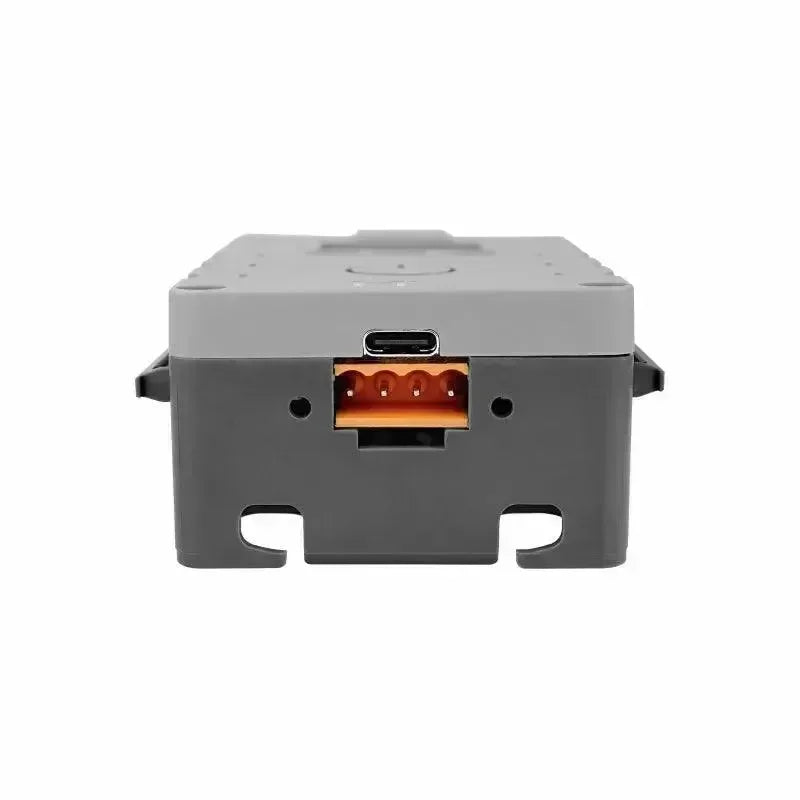

✅ Multiple power inputs: USB Type‑C, RS485 (9–24 V), external battery socket
-

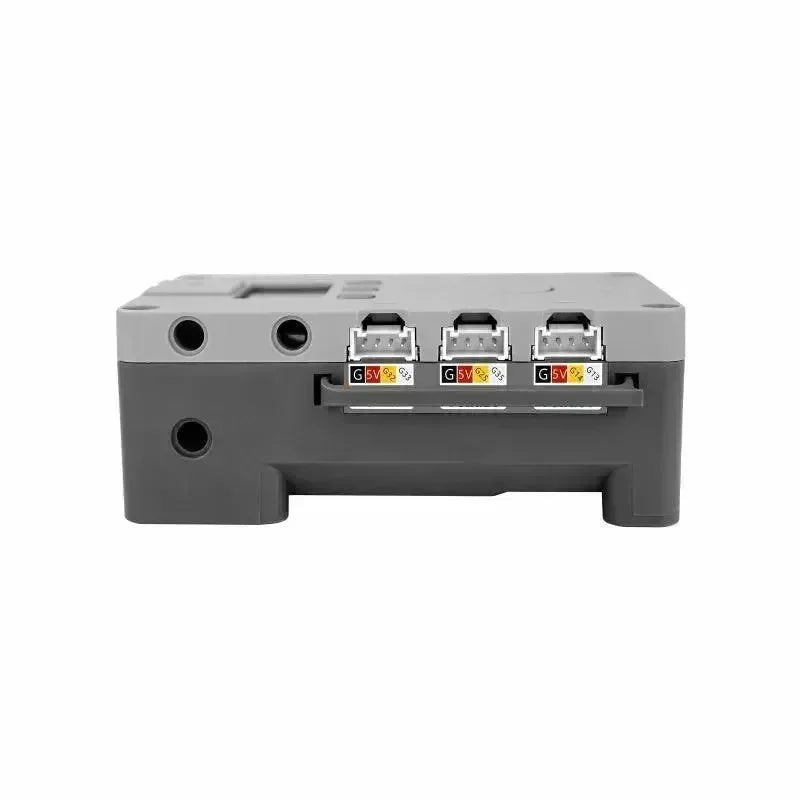

✅ 6 Grove expansion interfaces (I2C, UART, GPIO)
-
✅ RS485 communication port (PWR485)
-

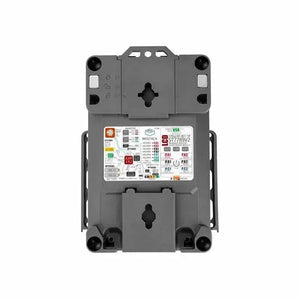

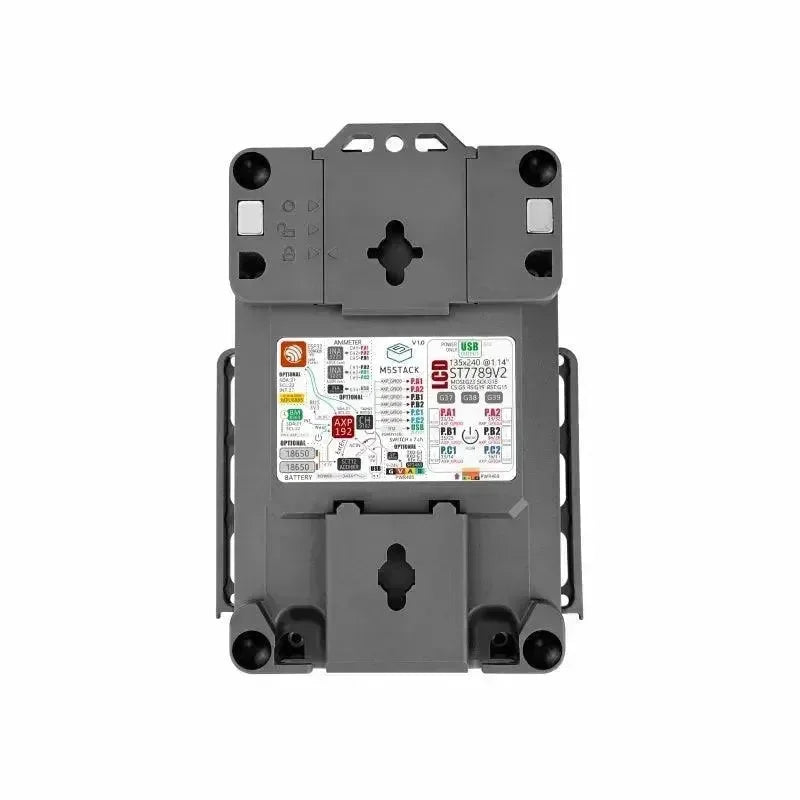

✅ Flexible mechanical mounting: DIN rail, magnet, wall mount, screws, ribbon
-
✅ Supports UIFlow, Arduino, ESP32‑IDF, FreeRTOS
📦 Package Contents
-
1 × M5Station‑485
-
1 × USB Type‑C cable (100 cm)
-
1 × HEX key
🔎Recommended Articles
M5Stack Beginner: Environment Setup
M5Stack Beginner: Arduino Library Management
M5Stack Beginner: M5Burner Burning
🔧 Applications
-
🏭 Industrial controllers
-
📡 Multi‑channel data acquisition nodes
-
🏠 Smart building automation
-
🛠️ IoT product prototyping
-
🎓 DIY and educational projects
📊 Technical Specifications
| Specification | Parameters |
|---|---|
| MCU | ESP32‑D0WDQ6‑V3, dual‑core 240 MHz, 600 DMIPS, 520 KB SRAM |
| Flash Memory | 16 MB |
| Display | 1.14” IPS LCD, 240×135 px (ST7789V2) |
| Buttons | 3 programmable + 1 power button |
| LEDs | 7 × SK6812 RGB LEDs |

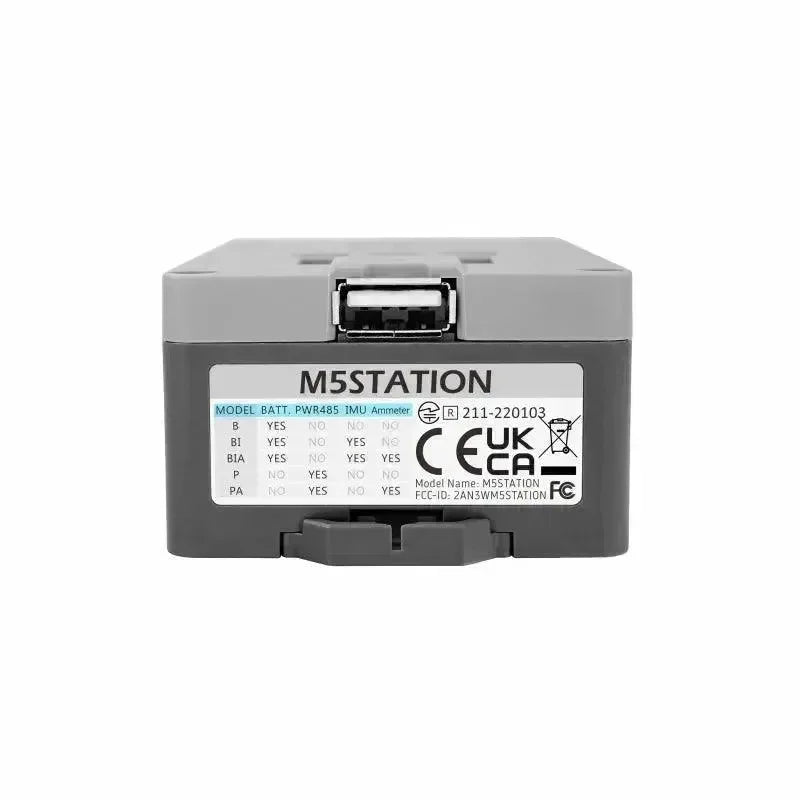

| Interfaces | 6 × Grove (I2C/UART/GPIO), RS485 (PWR485), USB Type‑C, USB Type‑A (power output only) |

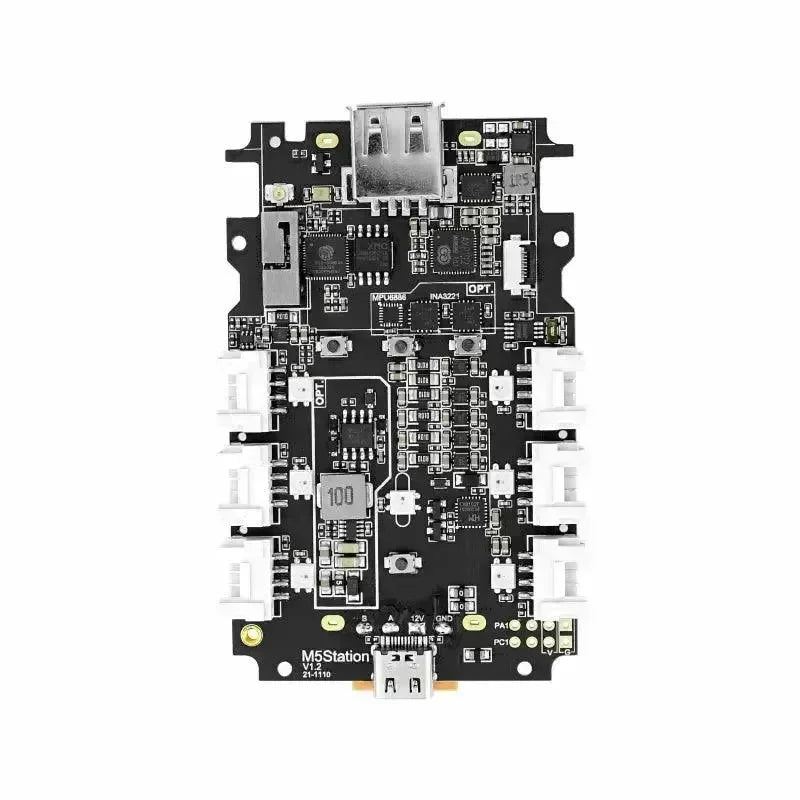

| Power Management | AXP192 PMU, SY8303 buck, SCT12A0DHKR boost, SGM2553D distribution switch |
| Voltage/Current Sensors | INA3221 (Grove), INA199 (USB‑A) |
| RTC | BM8563 |
| USB Chip | CH9102F |
| Antenna | 2.4G 3D antenna |
| Operating Temp. | 0 °C – 60 °C |
| Dimensions | 92 × 64.5 × 35 mm |
| Net Weight | 63.1 g |
| Gross Weight | 108.1 g |
| Case Material | ABS + PC |
