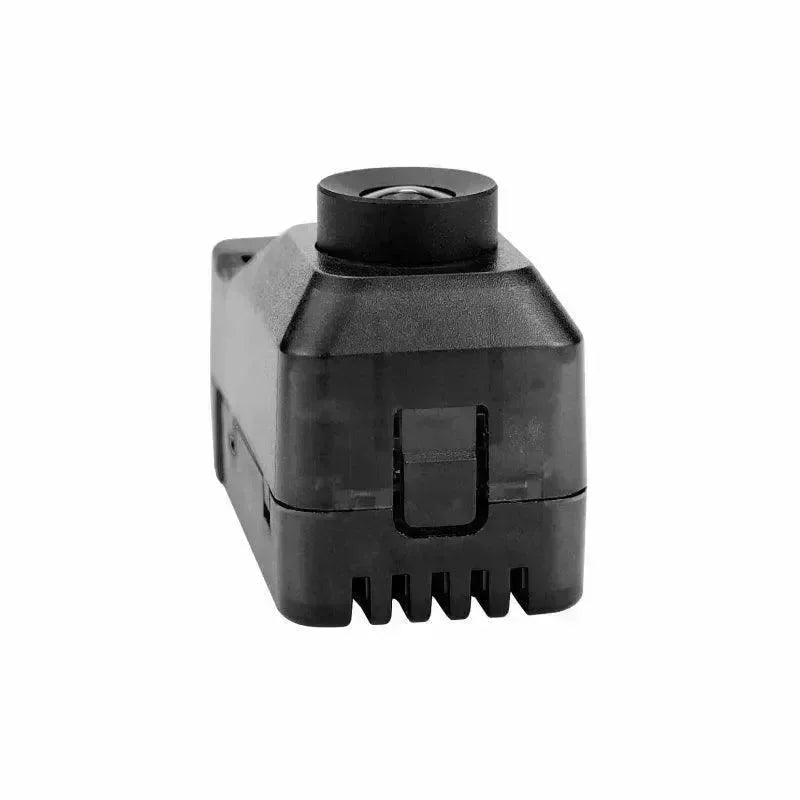

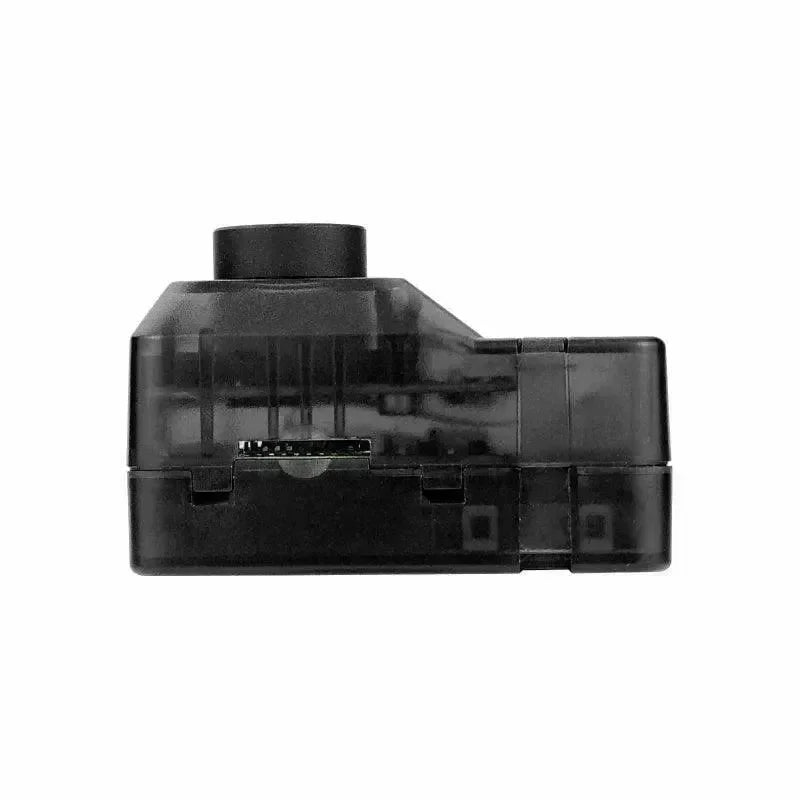

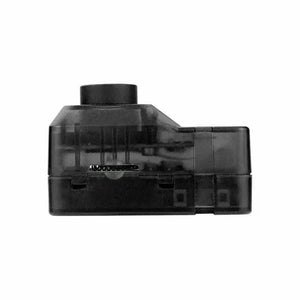

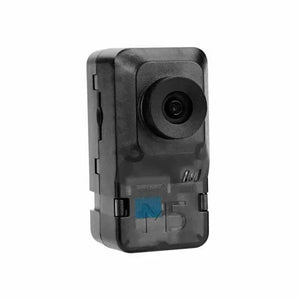

M5Stack UnitV2 M12 Version with Cameras
🌐 Product Introduction: M5Stack UnitV2 AI Recognition Module (M12)
The UnitV2 is a high-efficiency AI recognition module from M5Stack. Powered by the Sigmstar SSD202D dual-core Cortex-A7 1.2GHz processor, it integrates 128MB DDR3 memory, 512MB NAND Flash, and a GC2053 1080P color sensor camera.

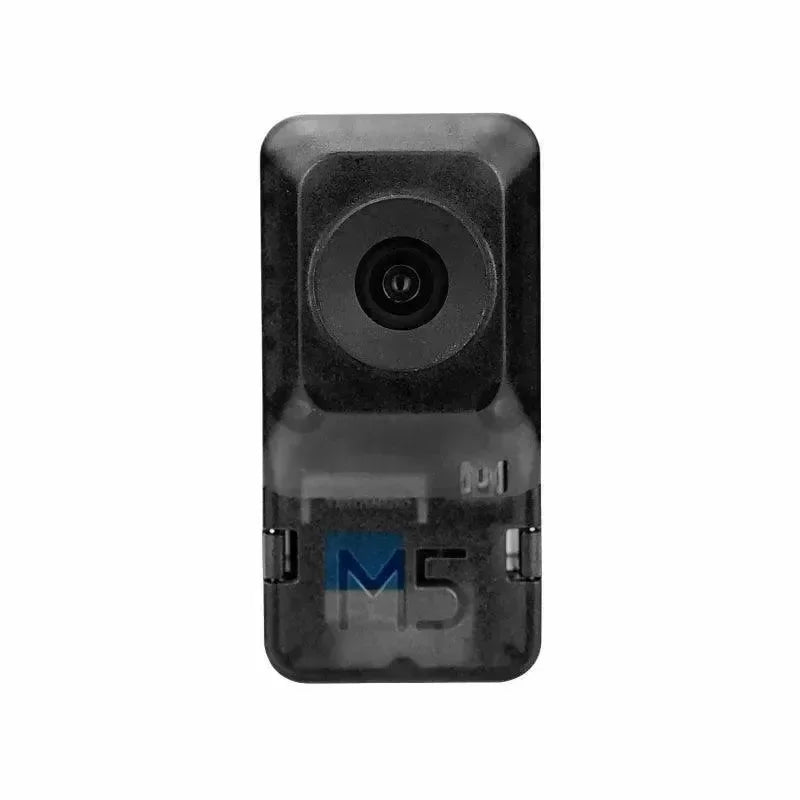

Equipped with dual M12 lenses — one regular focal length (FOV: 85°) and one wide-angle fisheye lens (FOV: 150°) — UnitV2 supports manual focus adjustment and delivers flexible vision capabilities. Running on an embedded Linux system, it comes preloaded with rich hardware/software resources and development tools, offering a plug-and-play AI development experience.
🔧 Features
-
Core Hardware
-
Sigmstar SSD202D dual-core Cortex-A7 1.2GHz processor
-
128MB DDR3 RAM, 512MB NAND Flash
-

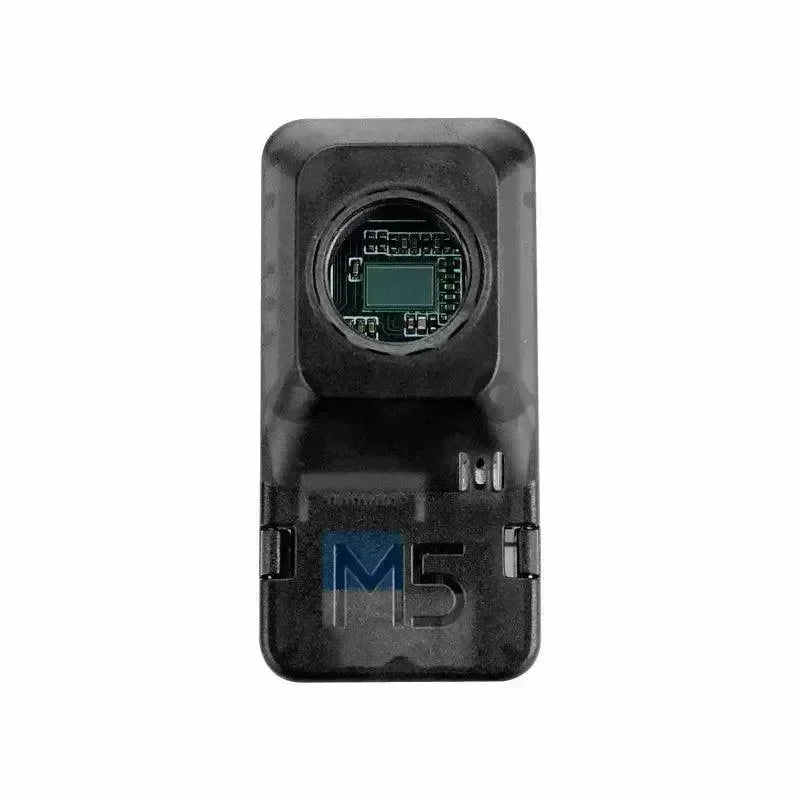

GC2053 1080P color sensor
-
Dual lenses: regular focal length (FOV: 85°) + wide-angle fisheye (FOV: 150°)
-
Built-in microphone
-
Active cooling fan
-
-
Connectivity
-
Wi-Fi 2.4GHz (802.11 b/g/n, 150Mbps)
-
Ethernet network card (SR9900)
-

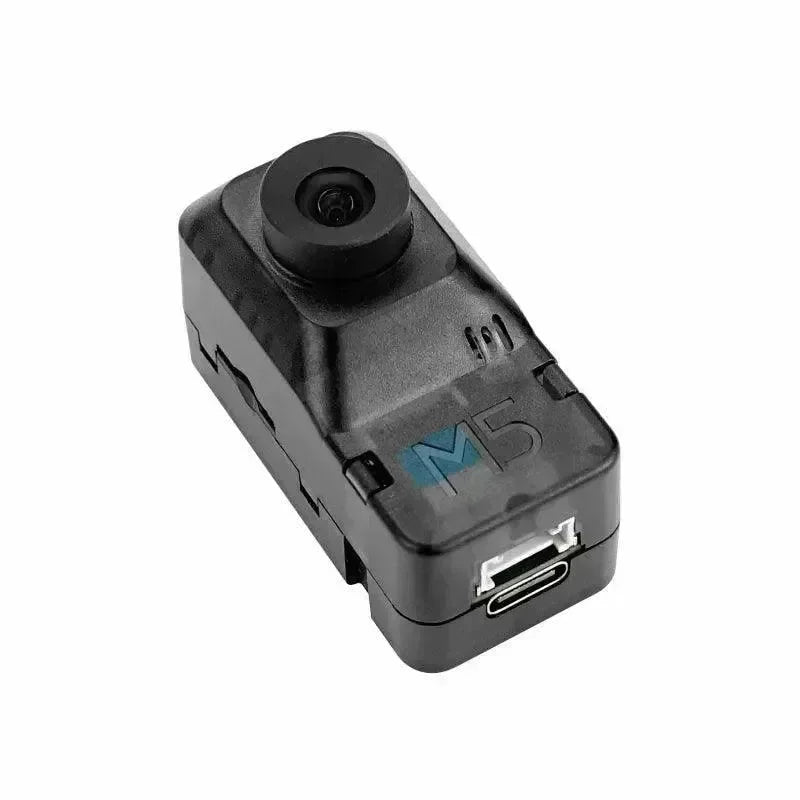

Type-C USB interface
-
UART interface
-
TF card slot
-
-
AI Image Functions (12 types)
-
QR code recognition
-
Face detection & recognition
-
Line tracking
-
Movement detection
-
Shape matching & detection
-
Image streaming
-
Classification
-
Color tracking
-
Target tracking
-
Custom object recognition
-
-
Development Ecosystem
-
Linux system with OpenCV, SSH, Jupyter Notebook
-
UIFlow support (serial JSON format)
-
Web-based preview and debugging
-
V-Training online AI model training service
-
📦 Package Contents
-
1× M5Stack UnitV2 M12
-
1× 16GB TF Card
-
1× USB-C cable (50 cm)
-

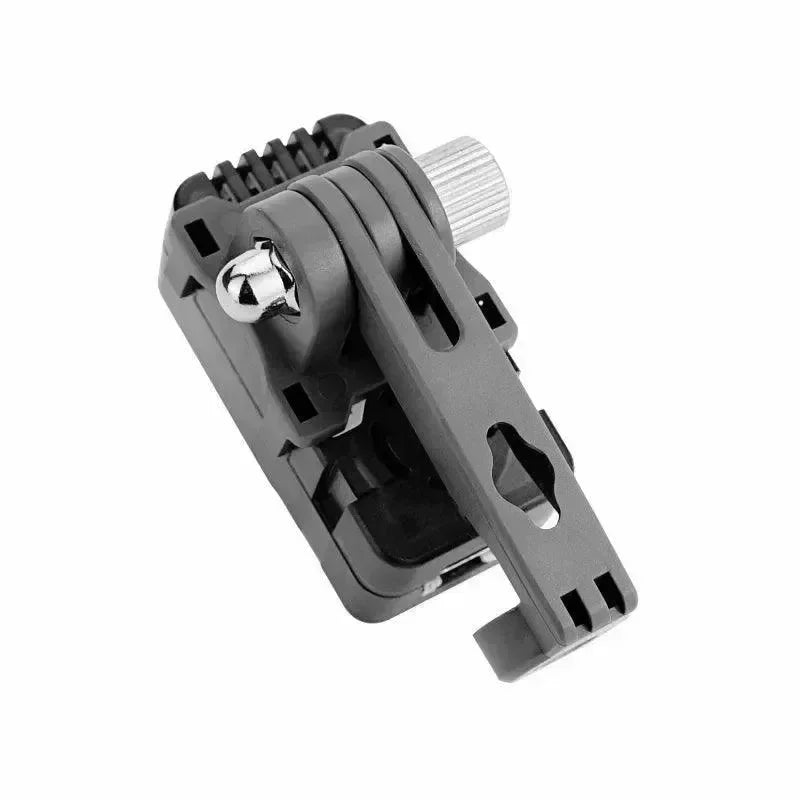

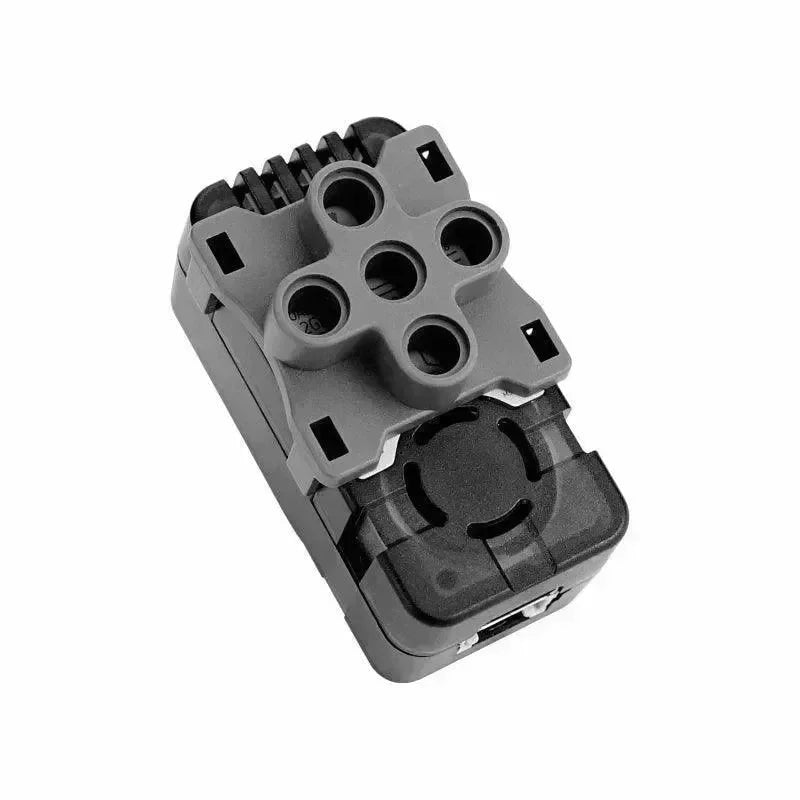

1× Bracket
-
1× Back clip
-

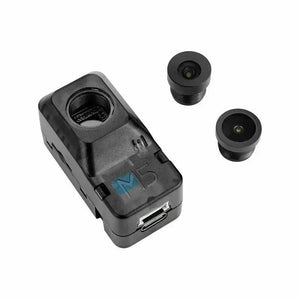

1× Regular focal length lens (FOV: 85°)
-
1× Wide-angle fisheye lens (FOV: 150°)

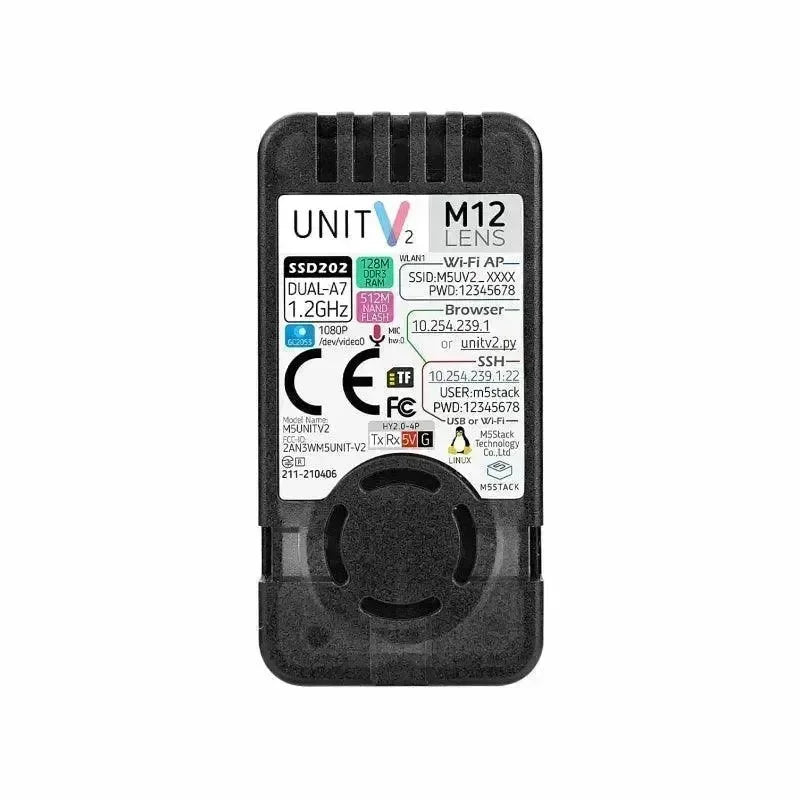

📊 Specifications
| Specifications | Parameters |
|---|---|
| Processor | Sigmstar SSD202D Dual Cortex-A7 1.2GHz |
| Flash | 512MB NAND |
| RAM | 128MB DDR3 |
| Camera | GC2053 1080P Color Sensor |
| Lens | 1× 85° regular focal length + 1× 150° fisheye |
| Input Voltage | 5V @ 500mA |

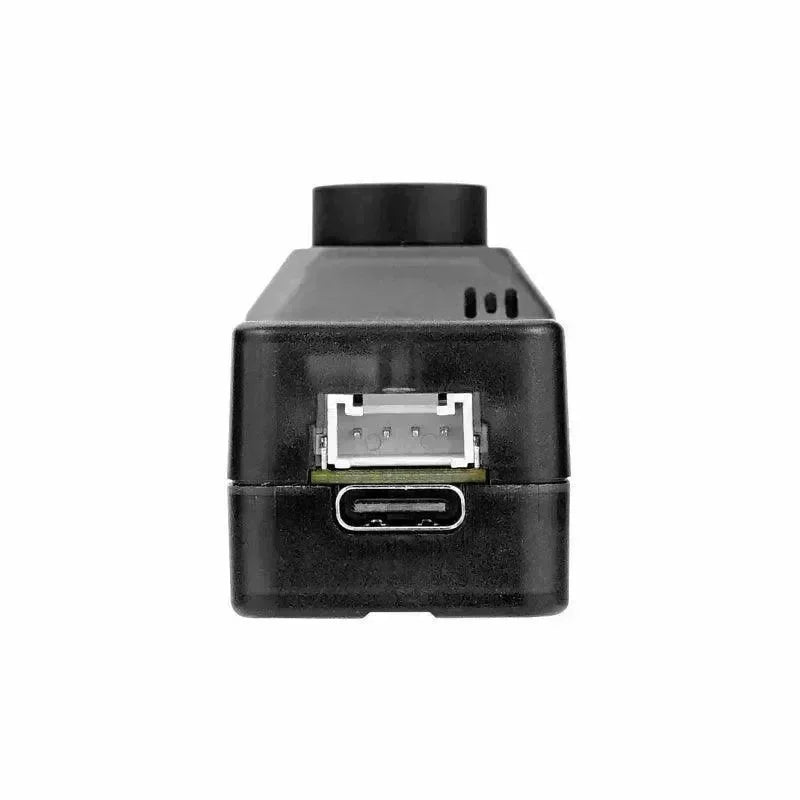

| Hardware Peripherals | Type-C ×1, UART ×1, TFCard ×1, Button ×1, Microphone ×1, Cooling fan ×1 |
| Indicator Lights | Red, White |
| Wi-Fi | 2.4GHz 802.11 b/g/n, 150Mbps |
| Ethernet | SR9900 |
| Package Size (with lens) | 48 × 24 × 32 mm |
📦 Applications
-
AI recognition function development
-
Industrial visual recognition & classification
-
Machine vision learning
-
Robotics and IoT projects
Windows
Extract the driver compressed package to the desktop path -> Enter the device manager and select the currently unrecognized device (named with SR9900) -> Right-click and select Custom Update -> Select the path where the compressed package is decompressed -> Click OK and wait for the update carry out.
MacOS
Unzip the driver package -> double-click to open the SR9900_v1.x.pkg file -> follow the prompts and click Next to install. (The compressed package contains a detailed version of the driver installation tutorial pdf)
- After the installation is complete, if the network card cannot be enabled normally, you can open the terminal and use the command below to re-enable the network card.
sudo ifconfig en10 down
sudo ifconfig en10 up
Out Of The Box AI Recognition Function
-
UnitV2 integrates not only the basic AI recognition developed by M5Stack, but also has built-in multiple recognition (such as face recognition, object tracking and other common functions), which can quickly help users build AI recognition applications.
-
All features! Plug and play! UnitV2 has a built-in wired network card. When you connect to a PC through the TypeC interface, it will automatically establish a network connection with UnitV2.Flexibly Connectable, it can also be connected and debugged via Wi-Fi.
-
UART serial port output, all identification content is automatically output in format through the serial port for convenient use.
JSON
Development Efficiency Improvement
-
UnitV2's factory setting Linux image integrates a variety of basic peripherals and development tools (such as Jupyter Notebook etc.)
-
Through SSH access, you can fully control the hardware resources of this camera
-
Easily build a custom recognition model through M5Stack's V-Training (AI model training service).
