M5Stack Voltage and Amperage Meter with M5StampS3
⚡ M5Stack Voltage and Amperage Meter with M5StampS3

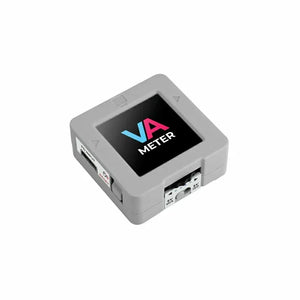

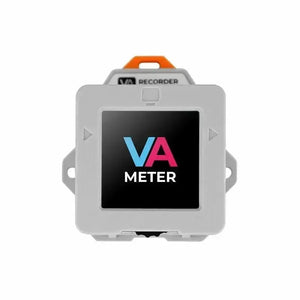

The M5Stack Voltage and Amperage Meter (VAMeter) is a compact, high‑accuracy digital multimeter module designed for IoT system integration and embedded projects. Built around the advanced ESP32‑S3 MCU (M5StampS3), it delivers precise DC voltage and current readings, making it perfect for power monitoring, diagnostics, and smart analytics in real time.
With Wi‑Fi and Bluetooth connectivity, developers can remotely acquire and analyze electrical data, integrate with cloud platforms, or build custom dashboards. Its plug‑and‑play design ensures seamless compatibility with the M5Stack ecosystem, enabling rapid prototyping and deployment.
🔑Features
-
Precision measurement of DC voltage and current
-
ESP32‑S3 MCU core via M5StampS3
-
Wireless connectivity: Wi‑Fi + Bluetooth 🌐
-
Plug‑and‑play integration with M5Stack ecosystem
-
Wide measurement range: 6V–36V, up to 5A
-
Compact design for easy embedding into systems
-
User interaction: rotary encoder, reset button, boot button
📦 What’s in the Box
-

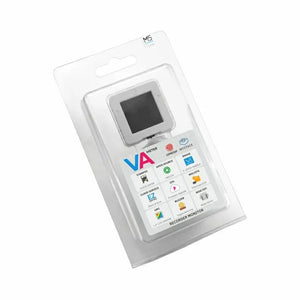

1 × M5Stack Voltage and Amperage Meter Module (with M5StampS3)
-
1 × GROVE connection cable
-
1 × Screw terminal
-
1 × Quick start manual
🎯 Applications
-
Smart device & appliance energy monitoring
-
IoT‑based remote metering & diagnostics
-
Industrial equipment testing ⚙️
-
DIY electronics & maker projects
-
Battery management & solar power systems ☀️
-
Edge intelligence prototyping
📐 Specifications
| Resource | Parameter |
|---|---|
| Detection Chip | INA226 (dual, I2C addresses 0x40/0x41) |
| SoC | ESP32S3FN8, Xtensa® 32‑bit LX7 dual‑core @ 240MHz |
| Flash | 8MB |
| Wi‑Fi | IEEE 802.11 b/g/n (2.4GHz) |
| Screen | 1.3‑inch TFT LCD, 240×240 pixels, ST7789 driver |

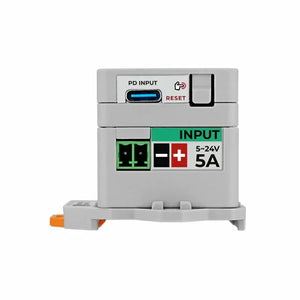

| PD Input/Output Power | 5–24V @ 0–5A |
| Current Resolution | 2.5µA / 250µA |
| Sampling Error | 1.01% (1–100mA), 0.94% (100mA–5A), 0.69% (µA‑level) |
| Relay | DC 5–24V @ 5A |
| Power Consumption | USB 5V/123.5mA; PD input: 5V/118mA, 12V/66.8mA, 24V/26mA |
| PD Output Capability | DC24V/3A (68℃), DC24V/5A (92℃) |
| Operating Temp. | 0–40℃ |

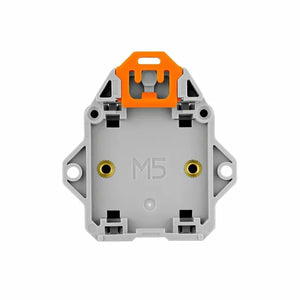

| Product Size | VAMeter: 36×36×14.7mm / 36×36×20.3mm; Rail fastening: 51.5×48×5.5mm |
| Package Size | 150×93×30mm |
| Weight | VAMeter: 17.7g; Base: 25.8g; Rail fastening: 4g; Package: 68.1g |
| Case Material | Plastic (PC) |
❓ FAQ
Q: What voltage/current range can this meter handle? A: DC voltage 6V–36V, current up to 5A.
Q: Is it programmable? A: Yes — supports Arduino IDE, MicroPython, ESP‑IDF.
Q: How does data transmission work? A: Wirelessly via Wi‑Fi/Bluetooth, or through UART output.
Q: Can I use this for industrial projects? A: Absolutely — suitable for both educational and industrial IoT scenarios.
Q: Is it plug‑and‑play with M5Stack products? A: Yes — fully compatible with the M5Stack ecosystem and GROVE connections.
💡 Why Choose This Meter?
-
-
Accurate readings + wireless data at your fingertips
-
Easy coding with mainstream development platforms
-
Build and monitor smart projects faster and smarter
-
💡 Tips – Entering Download Mode
To enter Download Mode on the M5Stack Voltage and Amperage Meter (VAMeter):
-
Press and hold the G0 button on the VAMeter.
-
Power up the device while keeping the button pressed.
-
Release the G0 button after powering up.
