Rotary Module Kit for PROVerXL 4030 V2 CNC Router (Pre-sale, back in 5-6 weeks)
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
Rotary Module Kit for PROVerXL 4030 V2 CNC Router (Pre-sale, back in 5-6 weeks)

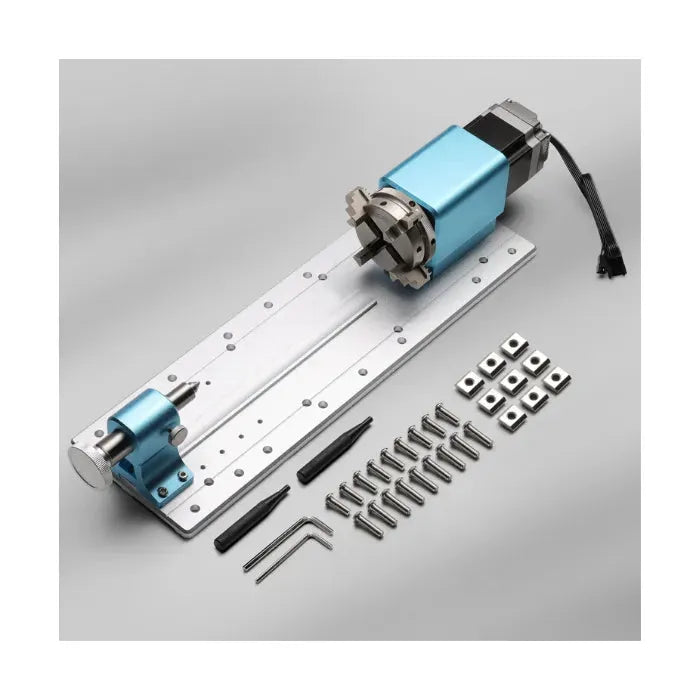

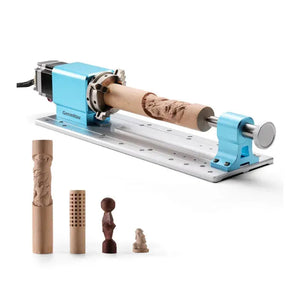

🔄 Genmitsu Rotary Kit for PROVerXL 4030 V2 – Unlock True 360° CNC Carving Power
Take your CNC capabilities to the next level with the Genmitsu Rotary Kit—an essential upgrade for the PROVerXL 4030 V2. Designed for full 360° rotary carving, this kit enables intricate 3D and 2D designs that go far beyond the limits of traditional 3-axis machines.
🚀 Key Benefits:
-

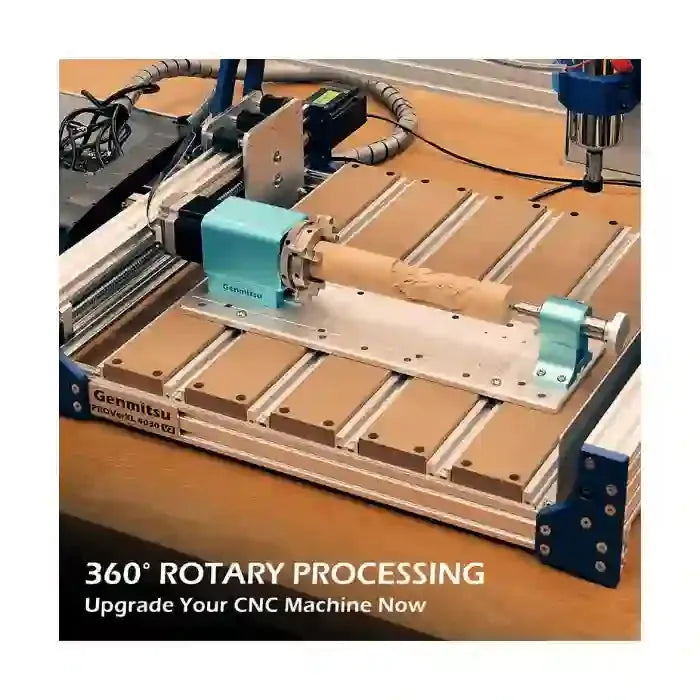

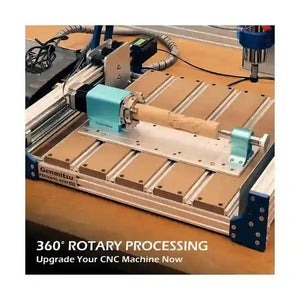

360° Rotary Carving: Create complex cylindrical and spherical designs with full rotational freedom.
-
Advanced Stepper Motor: Equipped with a NEMA23 closed-loop planetary gear stepper motor, delivering high torque and precision for smoother, more accurate rotations than belt-driven systems.
-

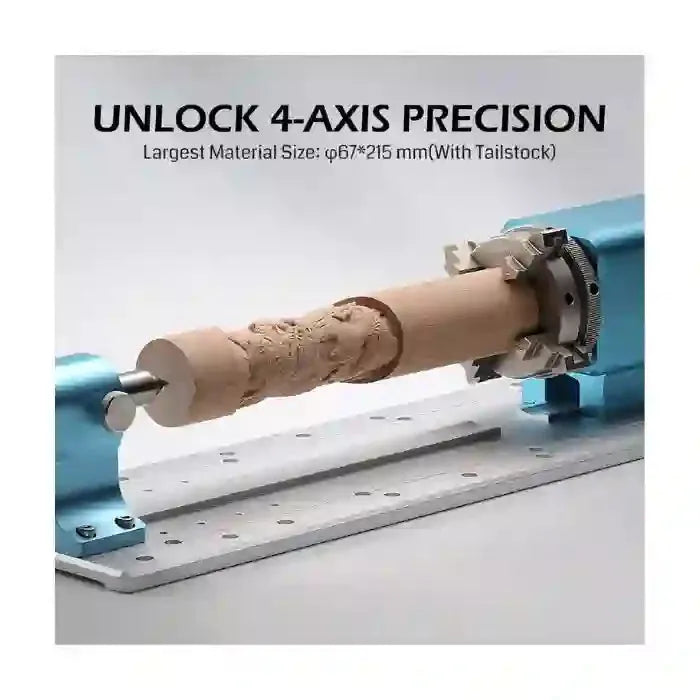

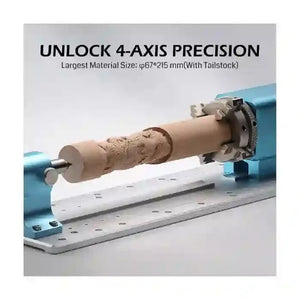

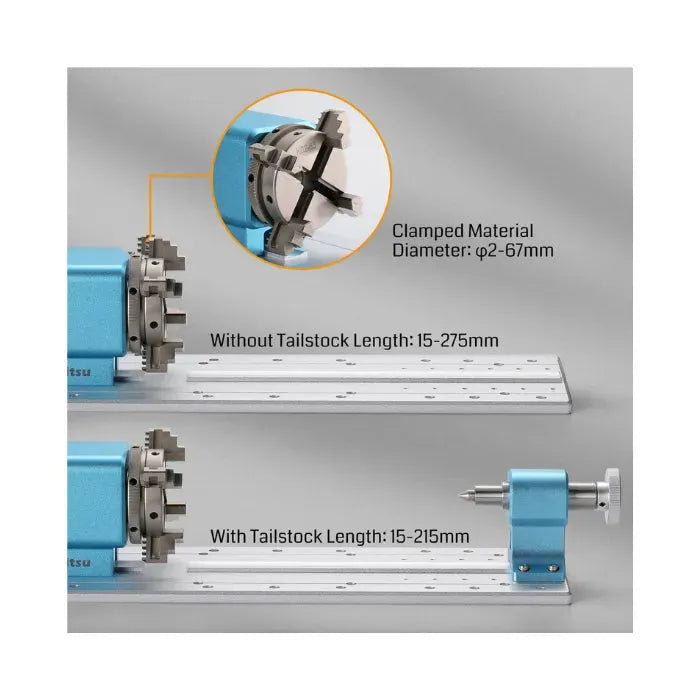

Wide Material Compatibility: Supports diameters from 2–67mm and lengths up to 275mm (without tailstock) or 215mm (with tailstock)—ideal for wood, acrylic, soft metals, and more.
-
Precision Engineering: Enjoy 0.1° angle control and a blazing-fast 480°/second rotation speed, thanks to the 10:1 reduction ratio for ultra-accurate, high-speed carving.
-

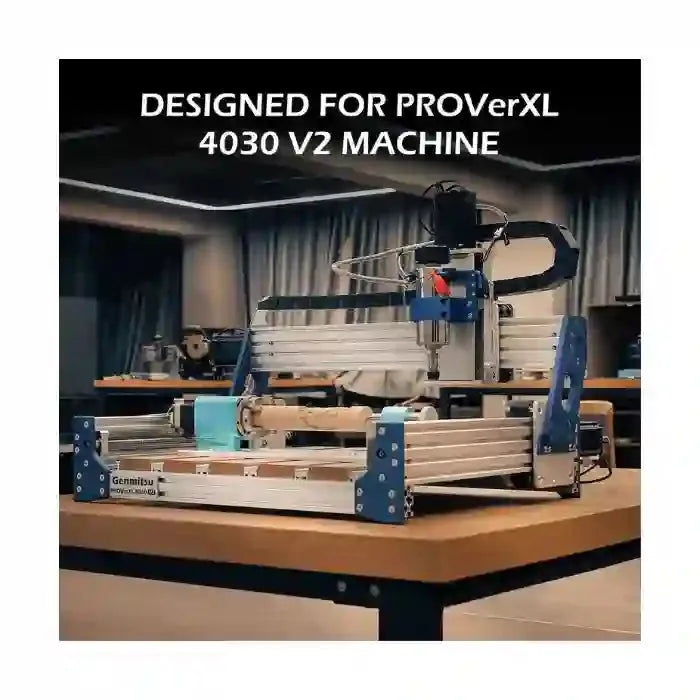

Plug-and-Play Installation: Seamlessly integrates with your 4030V2 CNC router—no complex setup required.
🌍 Global Reach, Local Support
Whether you're a hobbyist, educator, or small business owner, the Genmitsu Rotary Kit is backed by worldwide support and a thriving CNC community.
Expand your creative horizons with the Genmitsu Rotary Kit—engineered for precision, speed, and versatility. Perfect for engraving pens, cups, rings, and other cylindrical objects with professional-grade detail.
Superior Performance
Enhanced accuracy with the NEMA23 Planetary Geared Stepper Motor, outperforming other belt-driven rotary modules on the market
Precise Control
A 10:1 reduction ratio ensures precise control, delivering a minimum angle of 0.1° and a maximum angular speed of 480° per second
Simple Length Adjustment
Quick setup of the rotary module kit to various material lengths and diameters, ensuring optimal precision and flexibility in all your CNC projects

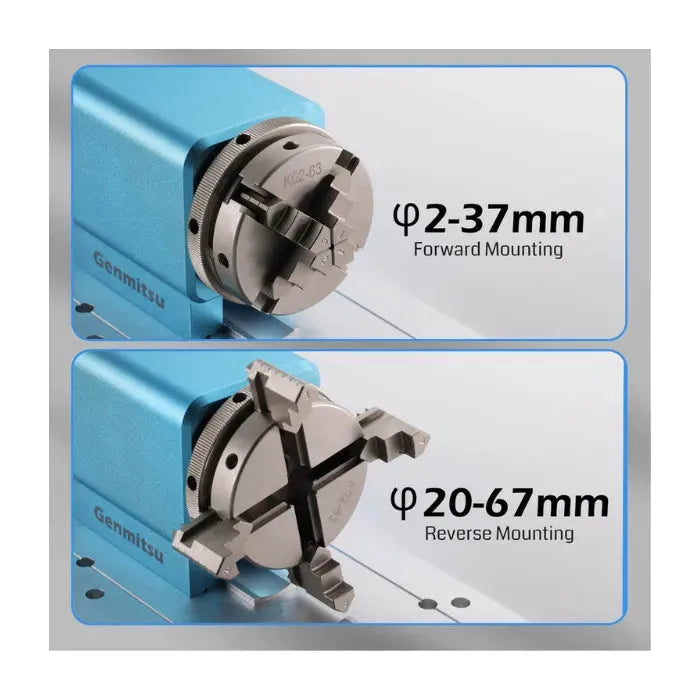

Flexible Mounting Solutions
The rotary module's clamp with forward and reverse mounting options for a wider range of sizes
Specifications
|
Compatible CNC Machine |
PROVerXL 4030 V2 |
|
Clamped Material Size |
With Tailstock Length: 15-215mm Without Tailstock Length: 15-275mm |
|
Clamped Material Diameter |
Forward Mounting: 2-37mm Reverse Mounting: 20-67mm |
|
Tailstock Spacing Adjustment |
5 installation positions, each position spacing is 16mm, and the range of adjustment is 16-81mm. |
|
Tailstock Center Adjustment Range |
0-30mm |
|
Direct Electric Motor |
NEMA23 Planetary Geared Stepper Motor |
|
Gear Ratio |
10:1 |
|
Max Rotate Speed |
480°/S |
|
Unidirectional Maximum Rotation Angle |
33512 x 360° |
|
Center Height |
60mm |
|
Size |
470 x 125 x 105 mm (18.50”x 4.92” x 4.13”) |
