Seeed Studio WM1302 Raspberry Pi Hat
🧩 WM1302 Raspberry Pi HAT – LoRaWAN Expansion for Pi-Based Gateways
The WM1302 Pi HAT is a streamlined expansion board for Raspberry Pi that enables direct connection to the WM1302 LoRaWAN module, built around the Semtech SX1302 LoRa concentrator chip. With support for the mini-PCIe interface, it simplifies hardware integration and speeds up LoRaWAN gateway development.
🔌 Designed to work with all Raspberry Pi boards up to 4B, this HAT offers a plug-and-play solution for long-range wireless connectivity—perfect for IoT systems, smart farming, and industrial telemetry.
🌟Features
-
📐 Standard HAT Layout – 40-pin female header ensures full GPIO compatibility
-
🍓 Broad Pi Support – Fully compatible with Raspberry Pi 4B and earlier models
-
📡 Integrated GPS Receiver – Improves timing synchronization and location tracking
-
🔐 Built-in LoRaWAN Security Chip – Provides secure authentication and identity protection
⚙️ Overview

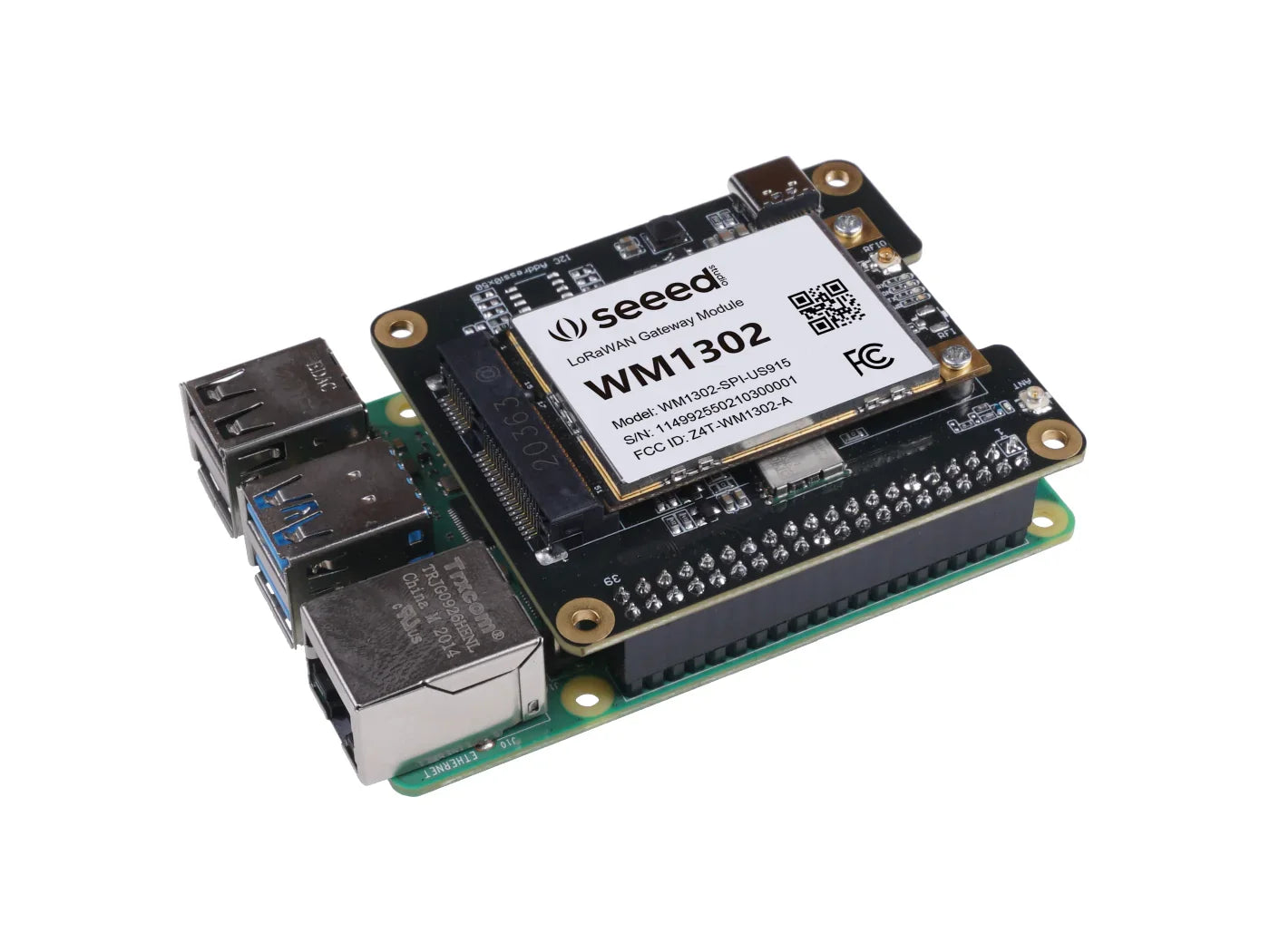

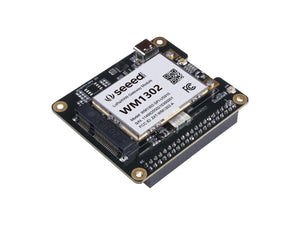

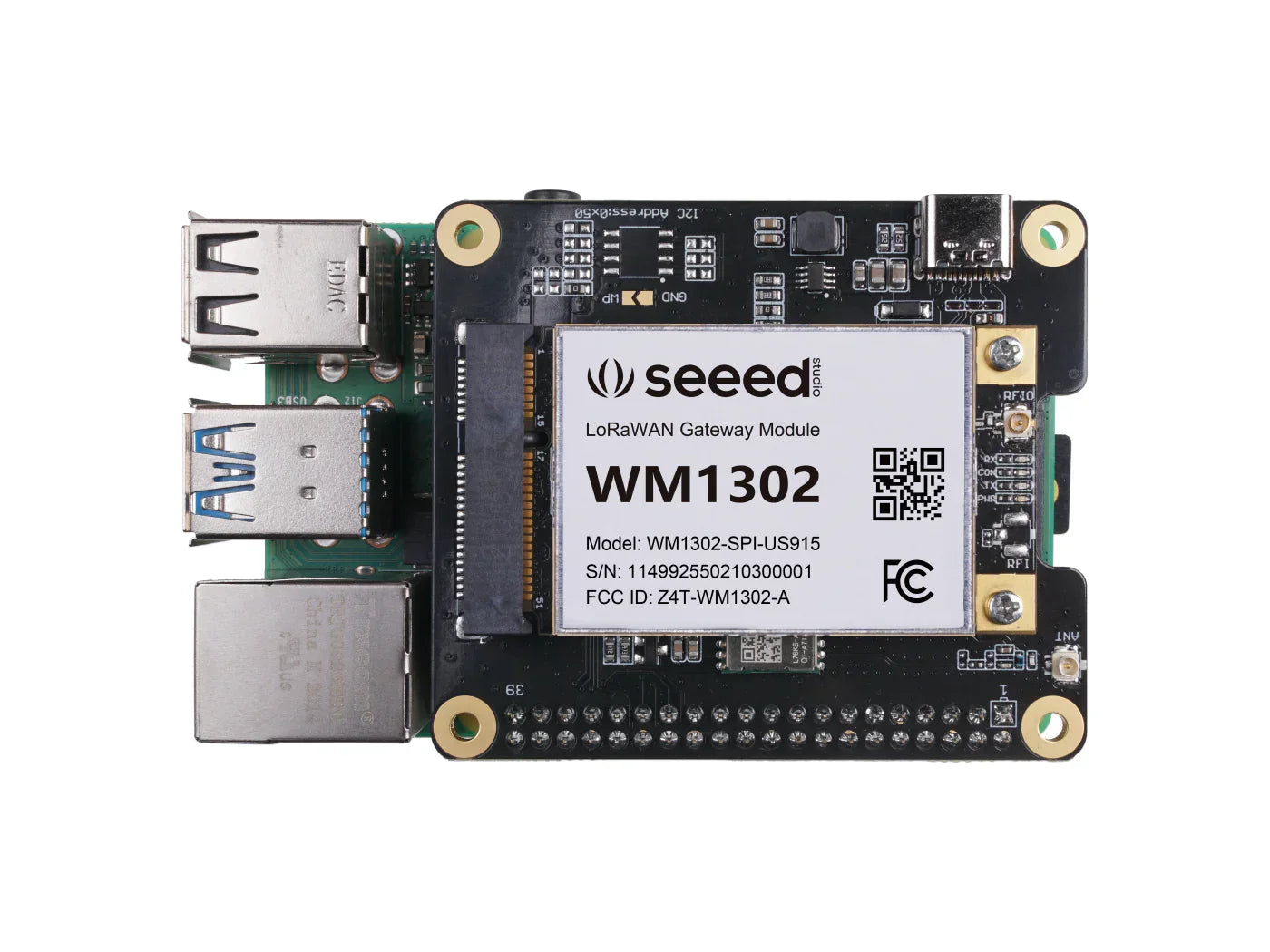

The WM1302 Pi HAT is a purpose-built adapter board that links the WM1302 LoRaWAN Gateway Module (SPI) to Raspberry Pi systems. Featuring the Semtech® SX1302 baseband processor, it delivers enhanced long-range communication with greater sensitivity, lower energy use, and better thermal efficiency than older chips like the SX1301/SX1308 🔋❄️.
🧠 With its mini-PCIe slot, the HAT maps the 52-pin connector directly to the Pi’s 40-pin GPIO, reducing wiring complexity and enabling native LoRa and LoRaWAN protocol support on Raspberry Pi-based gateways.
📍 The onboard GNSS module enhances timing accuracy and geolocation, making it ideal for precision agriculture, urban IoT infrastructure, and other wireless sensor networks 🌾🏙️📶.

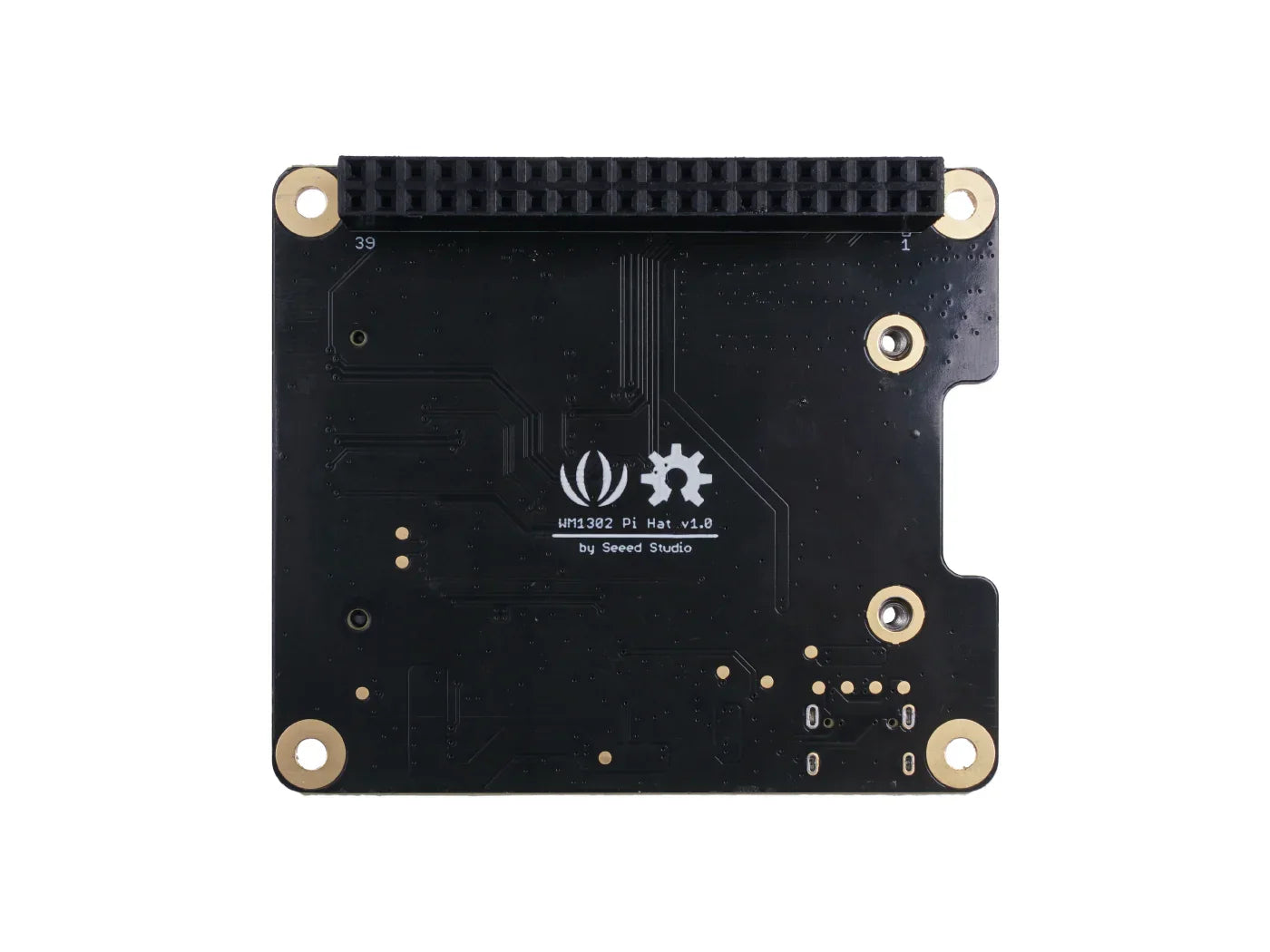

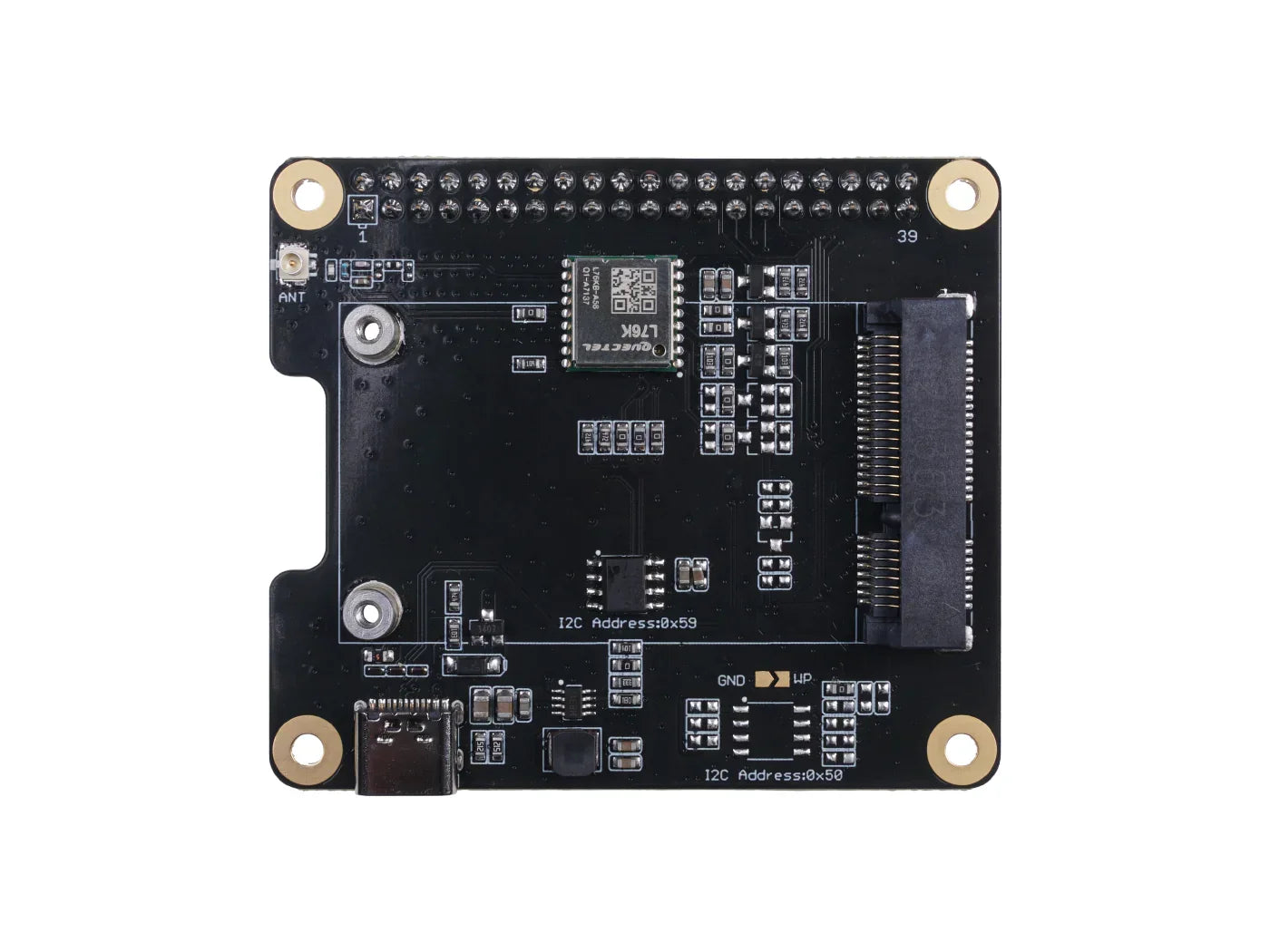

Hardware Overview
Specification
| Dimensions | 56*65mm |
| Weight | 0.501 |
| Operating Voltage | 5V |
| Power Interface | 40 Pin Header or USB |
| Raspberry Pi 40-Pin Headers | Support Raspberry Pi 4 B Support Raspberry Pi 3 A+/B/B+ Support Raspberry Pi 2 B Support Raspberry Pi A+/B+ Support Raspberry Pi Zero/Zero W |
| PCIe Header | 52 Pin Mini-PCIe Header |
| GNSS | Suport GPS L1, GLONASS L1, BeiDou B1 |
| Battery | Exclude |
| Part List: | |
|---|---|
|
WM1302 Pi Hat *1 GPS Antenna *1 |
|
| M2.5*6mm Screw *8 | |
| M2.5*11.0mm Stud *4 | |
| M2.0*H6.0mm Screw *2 |
Application
- LoRaWAN Gateway device/hotspot development
- Long-distance wireless communication application development
- Any learning and experimentation based on Raspberry Pi
- LoRa and LoRaWAN application learn and research
Dimensions
Documents
📦 Use Cases
- LoRaWAN Gateway Prototyping – Build and test custom hotspots using Raspberry Pi and WM1302
- Long-Range Wireless Projects – Ideal for remote sensing and telemetry applications
- Educational IoT Development – Great for learning LoRaWAN protocols and Raspberry Pi integration
- Smart Infrastructure Research – Deploy in smart city, agriculture, or industrial monitoring scenarios

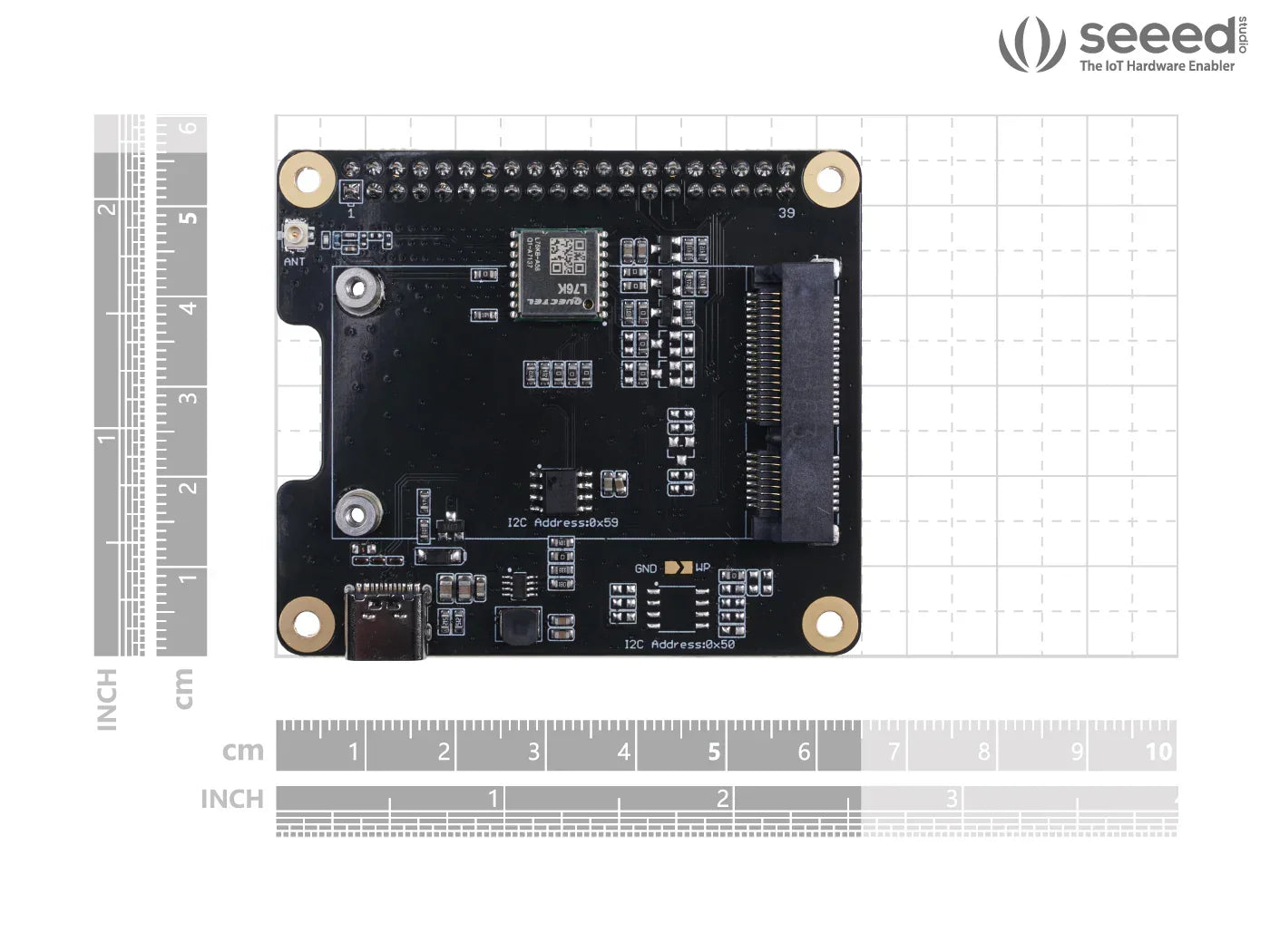

📏 Mechanical Dimensions
