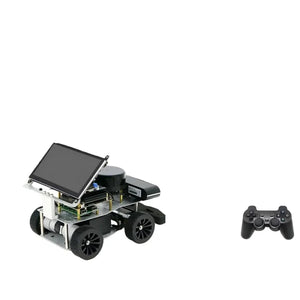

Wheeltec R550 AKM Orin NX 16GB M10P Touchscreen ROS Sandtable Kit
🚗 Wheeltec R550 AKM – ROS Sandtable Kit
The Wheeltec R550 AKM Sandtable Kit is a cutting-edge ROS-based educational robot platform built for autonomous driving, AI development, and university-level robotics research. Powered by the NVIDIA Jetson Orin NX (16GB) and equipped with a full suite of sensors, this system is ideal for sandtable simulations, perception experiments, and ROS curriculum integration.
✨ Key Features
-
R550 AKM Chassis with Integrated Hub Motors Offers smooth, precise movement with mechanical simplicity — ideal for indoor autonomous driving and motion control tasks.
-
🧠 NVIDIA Jetson Orin NX (16GB) Delivers powerful GPU-accelerated computing for deep learning, real-time perception, and ROS2-based algorithm development.
-
📡 M10P TOF LiDAR (30 m range) Enables accurate 3D mapping, obstacle detection, and SLAM — essential for autonomous navigation and environment modeling.
-
🎥 Depth and RGB Cameras Support visual SLAM, object recognition, and multi-modal sensor fusion for advanced robotics applications.
-
🖥️ Integrated Touchscreen Interface Provides intuitive control, real-time visualization, and interactive debugging — perfect for classroom demos and lab use.
-
🧩 Complete ROS Development Kit Includes ROS1/ROS2 packages, STM32 firmware, tutorials, and source code — ideal for teaching, customization, and research.
🏫 Recommended Applications
-

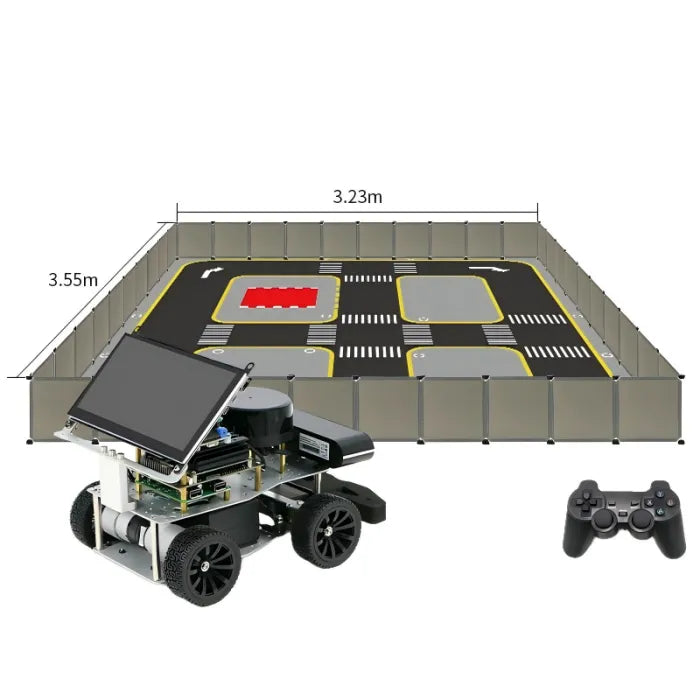

Autonomous driving sandtable simulations
-
AI and robotics curriculum in universities and technical institutes
-
ROS2 algorithm development and sensor fusion projects
-

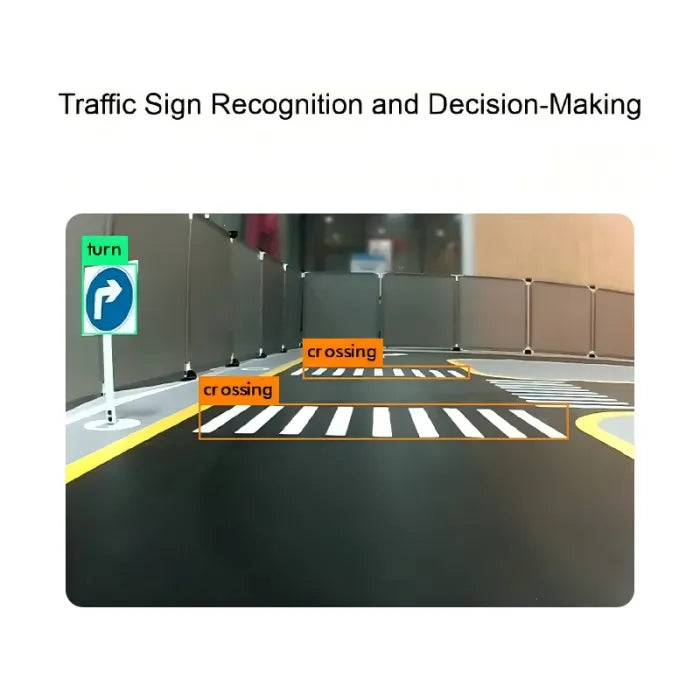

Visual perception, SLAM, and navigation experiments
📦 Ready to Deploy
Pre-configured and classroom-ready, the R550 Sandtable Kit empowers educators and students to explore real-world robotics, AI, and autonomous systems with hands-on experience.
🤖 R550 & V550 Robot Platform Comparison
| Specification | R550 Ackermann | R550 Mecanum | V550 Ackermann | V550 Mecanum |
| Drive Structure | Front-wheel steering, rear-wheel differential drive | Four-wheel Mecanum structure with swing suspension | Front-wheel steering, rear-wheel differential drive | Four-wheel Mecanum structure with swing suspension |
| Wheels | 65mm black rubber wheels | 75mm Mecanum wheels | 65mm blue rubber wheels | 75mm Mecanum wheels |
| Dimensions (L×W×H) | 271×189×151 mm | 266×230×202 mm | 280×189×226 mm | 260×233×227 mm |
| Weight | 1.8 kg | 2.9 kg | 3.3 kg | 4.2 kg |
| Payload Capacity | 3 kg | 6 kg | 4 kg | 4 kg |
| Max Speed | 1.2 m/s | 1.4 m/s | 1.0 m/s | 1.0 m/s |
| Battery Life (0.45 m/s) | 7 h | 5.5 h | 5 h | 5 h |
| Motor | MG513 metal gear reduction motor | |||
| Encoder | 500-line AB-phase high-precision GMR encoder (Utility Model Patent CN: 202122109210.2) | |||
| Control Interfaces | APP, USB wireless controller, CAN, UART | |||
| STM32 MCU | STM32F407VET6 | |||
| LiDAR | Leishen N10P, Leishen M10P (UART version) | |||
| ROS Controller Options | Jetson Nano 4GB, Orin Nano Super 8GB, Orin NX Super 8GB, Orin NX Super 16GB | |||
| Camera | Astra series RGBD depth camera | |||
| Operating System | ROS: ROS1-Melodic; STM32: FreeRTOS | |||
| Documentation | Full development manuals, video tutorials, ROS source code, STM32 source code, ROS images | |||
🧠 ROS Controller Specifications Comparison
| pecification | Jetson Nano 4GB | Orin Nano Super 8GB | Orin NX Super 8GB | Orin NX Super 16GB |
|---|---|---|---|---|
| CPU | Quad-core ARM Cortex-A57 64-bit @ 1.43GHz | 6-core Arm® Cortex® A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex® A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex® A78AE v8.2 64-bit, 2MB L2 + 4MB L3 |
| GPU | 128-core Maxwell @ 211MHz | 1024-core NVIDIA Ampere with 32 Tensor Cores | 1024-core NVIDIA Ampere with 32 Tensor Cores | 1024-core NVIDIA Ampere with 32 Tensor Cores |
| AI Performance | 0.5 TOPS | 67 TOPS | 117 TOPS | 157 TOPS |
| Memory | 4GB 64-bit LPDDR4 @ 1600MHz, 25.6 GB/s | 8GB 128-bit LPDDR5, 102 GB/s | 8GB 128-bit LPDDR5, 102 GB/s | 8GB 128-bit LPDDR5, 102 GB/s |
| USB Ports | 4 × USB 3.0 | 3 × USB 3.0 + 1 × USB 2.0 + 1 × Type-C | 3 × USB 3.0 + 1 × USB 2.0 + 1 × Type-C | 3 × USB 3.0 + 1 × USB 2.0 + 1 × Type-C |
| Camera Input | MIPI CSI | MIPI CSI | MIPI CSI | MIPI CSI |
| Display Output | 2 × HDMI 2.0 / DP 1.2 / eDP 1.2/2 × MIPI DSI | 1 × HDMI 2.0 | 1 × HDMI 2.0 | 1 × HDMI 2.0 |
| Video Encoding | H.264/H.265 (4Kp30) | 1080p@30, supported by 1–2 CPU cores | H.265 (4×4K60, 3×4K30, 6×1080p60, 12×1080p30) | H.265 (4×4K60, 3×4K30, 6×1080p60, 12×1080p30) |
| Video Decoding | H.264/H.265 (4Kp60, 2×4Kp30) | H.265 (1×4K60, 2×4K30, 5×1080p60, 11×1080p30) | H.265 (1×8K30, 2×4K60, 4×4K30, 9×1080p60, 18×1080p30) | H.265 (1×8K30, 2×4K60, 4×4K30, 9×1080p60, 18×1080p30) |
| Storage | 64GB USB 3.0 flash drive | 256GB SSD | 256GB SSD | 256GB SSD |
| Network Interface | Gigabit Ethernet / M.2 Key E | RJ45 (Gigabit Ethernet) / M.2 PCIe | RJ45 (Gigabit Ethernet) / M.2 PCIe | RJ45 (Gigabit Ethernet) / M.2 PCIe |
| GPIO Pins | 40 | 40 | 40 | 40 |
| Power Modes | 5W / 10W | 7W / 10W / 15W | 10W / 15W / 20W / 40W | 10W / 15W / 25W / 40W |
| Power Input | 5V | 9V–19V | 9V–19V | 9V–19V |
