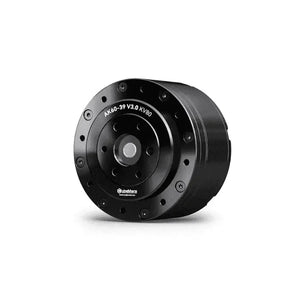

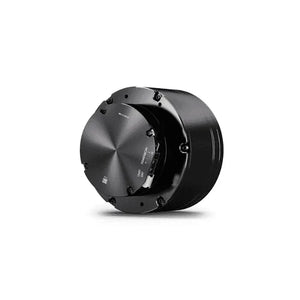

CubeMars AK60‑39 V3.0 KV80 Compact High‑Torque BLDC Actuator
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
CubeMars AK60‑39 V3.0 KV80 Compact High‑Torque BLDC Actuator
CubeMars AKSeries Module Driver User Manual
⚙️ CubeMars AK60-39 V3.0 KV80 – High-Torque Integrated BLDC Servo Motor for Robotics & Automation
The CubeMars AK60-39 V3.0 KV80 is a powerful, compact integrated BLDC actuator designed for robotic joints, industrial automation, and precision motion control. Featuring a 39:1 planetary gear reducer, it delivers up to 24 N·m rated torque and 72 N·m peak torque, making it ideal for high-load, space-constrained applications 💪.
🛡️ Equipped with dual encoders for absolute position retention (no origin return required) and strong anti-interference capability, it ensures accurate and stable feedback in dynamic environments.
🔌 The built-in portable driver supports both servo mode and motion mode, with adaptive PID three-loop control for smooth, plug‑and‑play brushless DC motor (BLDC) operation. Whether you're building collaborative robots, exoskeletons, or medical-grade actuators, the AK60-39 V3.0 offers unmatched precision, efficiency, and reliability 🤖🦾.
🔧 Features of CubeMars AK60‑39 V3.0 KV80
-
🧩 All-in-One Integration – Motor, planetary reducer, and driver combined for a compact footprint and effortless system integration
-
⚙️🔁 39:1 Two-Stage Gearbox – Delivers high torque density in a space-efficient design, ideal for robotic joints and automation
-
⚖️⚡️ Torque Performance – Rated at 24 N·m, with peak torque reaching 72 N·m for both continuous reliability and short-burst power
-
🧭🧲 Dual Magnetic Encoders – Inner + outer encoders provide redundant feedback for precise positioning and strong anti-interference
-

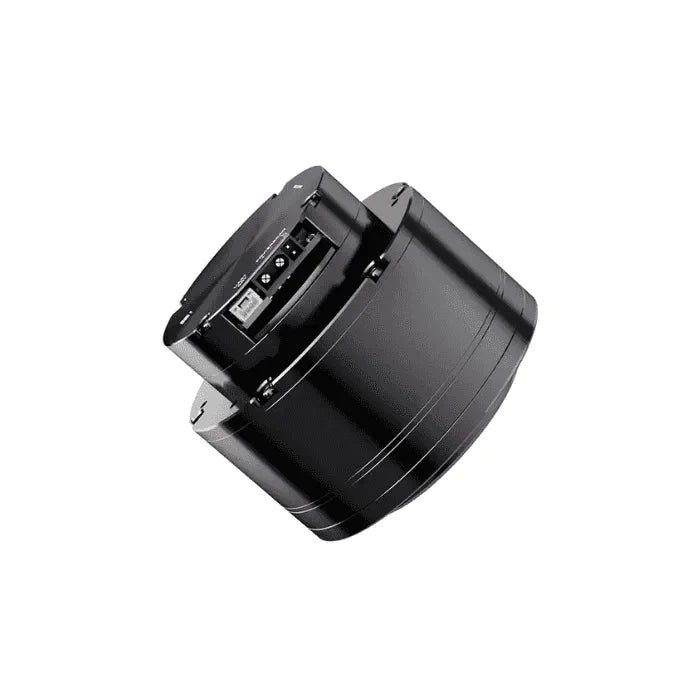

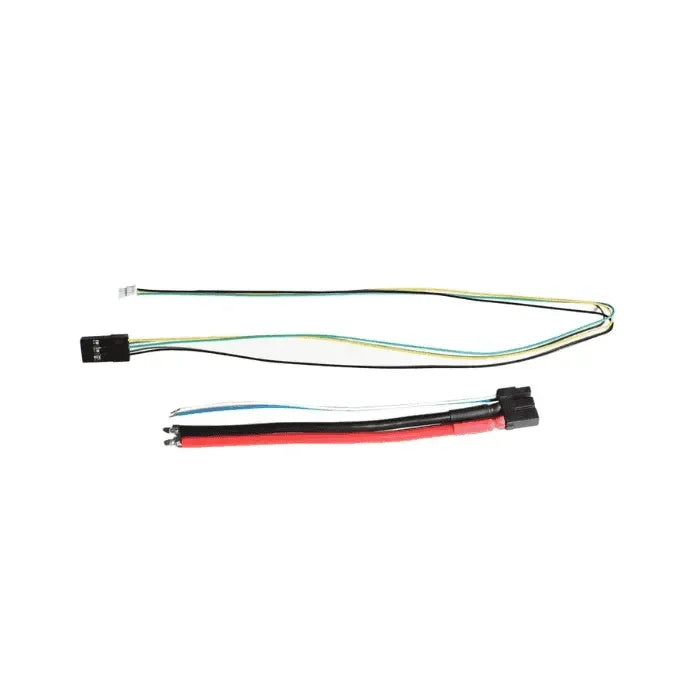

🔌 Dual Communication Ports – XT30 (power + CAN) and CJT‑3Pin (host control + tuning) for flexible connectivity
-
🔄🎯 Adaptive PID Control – Three-loop architecture (position / velocity / acceleration) ensures smooth, responsive motion
-
⚙️💻 Quick Setup – One-click parameter identification and seamless switching between Servo and MIT modes for fast commissioning
-
🌡️ Wide Temperature Range – Operates reliably from –20°C to +60°C, ready for demanding environments
⚙️ CubeMars AK60‑39 V3.0 KV80 – Technical Specifications
-
Model: AK60‑39 V3.0 KV80
-
Gear Reduction: 39:1 two-stage planetary gearbox for high torque density in compact designs 🔁
-
Torque Output:
-
Rated: 24 N·m ⚖️
-
Peak: 72 N·m ⚡️
-
-
Feedback System: Dual magnetic encoders (internal + external) for precise position tracking and enhanced interference resistance 🧲🧭
-
Communication Interfaces:
-
CAN bus via XT30 connector 🔌
-
Host PC via CJT‑3Pin for parameter tuning and diagnostics 💻
-
-
Control Modes:
-
Servo mode for precision actuation
-
MIT motion control mode for dynamic responsiveness 🤖
-
-
Control Algorithm: Adaptive PID with triple-loop architecture (position / velocity / acceleration) 🎯
-
Power Supply: 24 V DC
-
Operating Temperature Range: –20°C to +60°C 🌡️
Benefits Points
-
💪 High Torque Density – Optimized for collaborative robots and industrial manipulators, delivering powerful output in a compact form
-
🧭 Redundant Encoder Architecture – Dual feedback channels enhance safety-critical positioning and minimize downtime
-
🔌 Integrated Driver Module – Simplifies wiring and reduces system complexity with fewer external components
-
🔗 Flexible Communication – Supports both CAN bus and host PC interfaces, ensuring seamless integration with mainstream industrial controllers
-
⚙️💻 Fast Commissioning – One-click parameter identification enables rapid setup for production lines, R&D benches, and prototyping environments
Specifications
| Category | Parameter | Value |
|---|---|---|
| General | Model | AK60-39 V3.0 |
| General | Product type | Integrated power module (BLDC motor + planetary reducer + driver) |
| Environment | Operating temperature | -20°C ~ 50°C |
| Electrical insulation | Winding connection | Star (Y) |
| Electrical insulation | Insulation class | C |
| Electrical insulation | Dielectric withstand voltage | AC 500V, 5 mA, 2 s |
| Electrical insulation | Insulation resistance | DC 500V, 10 MΩ |
| Motor construction | Slots | 24 |
| Motor construction | Pole pairs | 14 |
| Gearbox | Reduction ratio | 39:1 (two-stage planetary) |
| Mechanical | Back-driving torque | 1.4 N·m |
| Mechanical | Backlash | 15 arcmin |
| Sensors | Temperature sensor | NTC MF51B / 103F3950 |
| Noise | Measurement note | Measured at 65 cm |
Applications
The AK60-39 Power Module is perfect for a variety of advanced applications, including:
- Collaborative robot joints 🤝🦾
- Precision medical devices 🩺⚙️
- Industrial automation 🏭🔧
- Autonomous vehicles 🚗🤖
- Robotics research and development 🔬🧠\
