M5StickC PLUS2 ESP32 Mini IoT Development Kit
The M5StickC PLUS2 is an enhanced version of the M5StickC PLUS. It features the ESP32-PICO-V3-02 chip as its main controller, incorporating built-in WiFi functionality. This compact device combines a variety of hardware resources in a small form factor, including infrared, RTC, microphones, LEDs, IMUs, buttons, and a buzzer. The 1.14-inch TFT screen with a resolution of 135 x 240 pixels is powered by the ST7789V2.
The M5StickC PLUS2 offers significant improvements over its predecessor. It features an increased battery capacity of 200 mAh and supports interfaces for products in the HAT and Unit series. This versatile development tool allows for greater creative freedom.
The M5StickC PLUS2 is the ideal tool for rapid prototyping of IoT products, making the development process more accessible. Even beginners can create interesting applications and easily apply them to real-world scenarios.
M5StickC Plus2 Project
M5StickC Bluetooth Speaker – OpenELAB
Mini Slot Machine Project with M5StickC Plus2
Mini Arcade Machine Project with M5StickC Plus2 -2
Mini Arcade Machine Project with M5StickC Plus2 -3
Features
-
Microcontroller: Equipped with an ESP32-PICO-V3-02 microcontroller, offering dual-core performance, Wi-Fi, and Bluetooth connectivity.
-

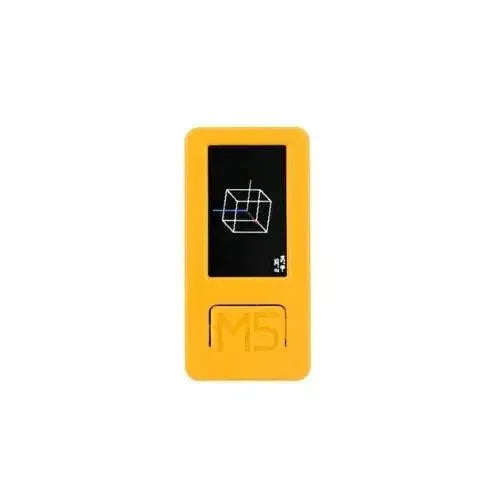

Display: Features a 1.14-inch TFT-LCD screen with a resolution of 135 x 240 pixels, providing clear and vibrant images.
-
Battery: Includes a built-in 200 mAh LiPo battery, which can be charged via the USB Type-C port.
-
IMU: Integrated MPU6886 6-axis IMU for motion detection and orientation recognition.
Recommended Articles
How do I turn my M5StickC PLUS2 on and off?
What is the difference between M5StickC PLUS and PLUS2?
Build a Bicycle Speed Detection System
M5Stack Beginner: Environment Setup
M5Stack Beginner: Arduino Library Management
M5Stack Beginner: M5Burner Flashing
M5Stack Beginner: PLUS2 Button User Guide
M5Stack Beginner: PLUS2 Infrared Capabilities
M5Stack Beginner Project: Implementing a Remote Control Function
M5Stack Beginner: Plus 2 Leveraging Sound and Display Features
M5StickC 18650C HAT: Solving the M5StickC Range Issue
5 Must-Have Accessories for M5StickC PLUS2
M5StickC Plus2: Build Your Own Bluetooth Speaker Project
M5StickC Plus2: Create a Mini Slot Machine Project-1
Included
-
1x M5StickC Plus2
Applications
-
Terminal controller for the Internet of Things
-
Wearable devices
-
STEM educational products
-
DIY creations
Download

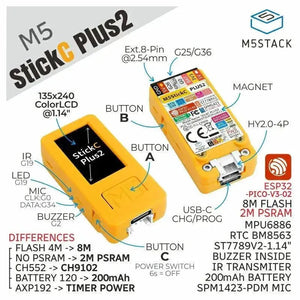

Specification
| Resources | Parameters |
|---|---|
| ESP32 |
ESP32-PICO-V3-02 240 MHz Dual Core, supports WiFi, 2 MB SPI PSRAM, 8 MB SPI Flash |
| PSRAM | 2 MB PSRAM |
| Flash | 8 MB Flash |
| Power Consumption | 5 V at 500 mA |

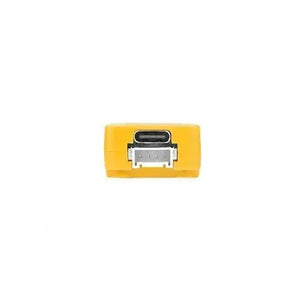

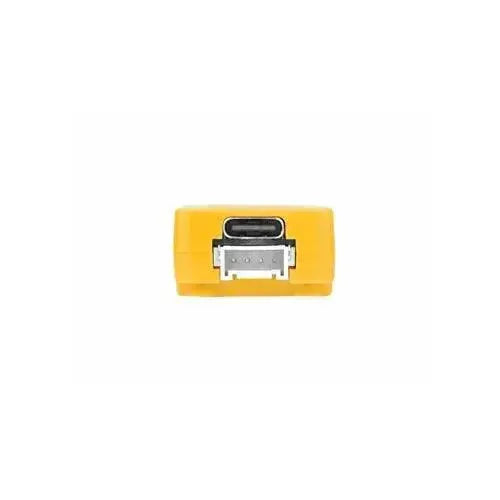

| Ports | TypeC x 1, GROVE(I2C+I/O+UART) x 1 |
| LCD Screen | 1.14 inch, 135 x 240 color TFT-LCD, ST7789v2 |
| Buttons | Custom buttons x 3 |
| LEDs | GREEN LED |
| MEMS | MPU6886 |
| Buzzer | Built-in buzzer |
| Microphone | SPM1423 |
| Real-time Clock | BM8563 |
| Battery | 200 mAh at 3.7 V |
| Antenna | 2.4G 3D antenna |

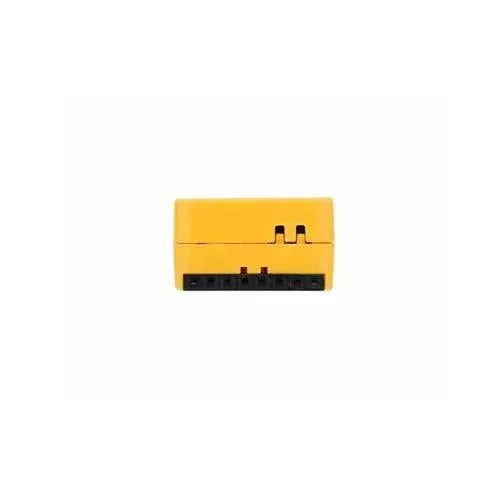

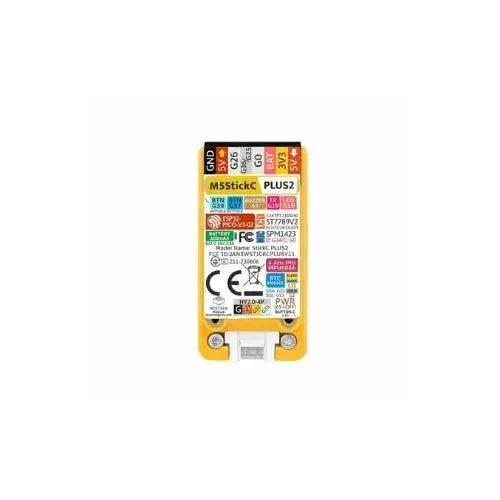

| PIN Connection | G0, G25/G36, G26, G32, G33 |
| Operating Temperature | 0 °C to 60 °C |
| Enclosure Material | Plastic (PC) |
| Product Size | 48*25*13 mm |
| Package Size | 114*64*23 mm |
| Product Weight | 17 g |
| Package Weight | 24.8 g |
