PowerHub is a versatile programmable controller designed for advanced multi-channel power management. Powered by the ESP32-S3-WROOM-1U-N16R8 module, it features a dual-core Xtensa LX7 processor running at 240MHz, with built-in 16MB Flash and 8MB PSRAM. A dedicated STM32G031G8U6 coprocessor works in tandem with multiple INA226 voltage and current sensors, enabling precise monitoring and control of power across multiple expansion ports. Its intelligent electronic switching architecture ensures accurate energy distribution and ultra-low-power wake-up capabilities.
The onboard USB Type-C port supports both firmware flashing and USB OTG. An internal USB switch system allows seamless routing from the bottom USB interface to the front-facing USB Type-A and Type-C ports—ideal for expanding USB peripherals. The PowerHub supports multiple power input methods, including DC (7–20V), 2S battery, and PWR485/PWR CAN, making it adaptable to a wide range of deployment scenarios.
With dual HY2.0-4P Grove connectors, RS485, and CAN interfaces, PowerHub is ready to integrate with a variety of sensors and industrial devices. Whether for industrial automation, smart home systems, or edge IoT applications, it delivers a robust, scalable, and developer-friendly solution.

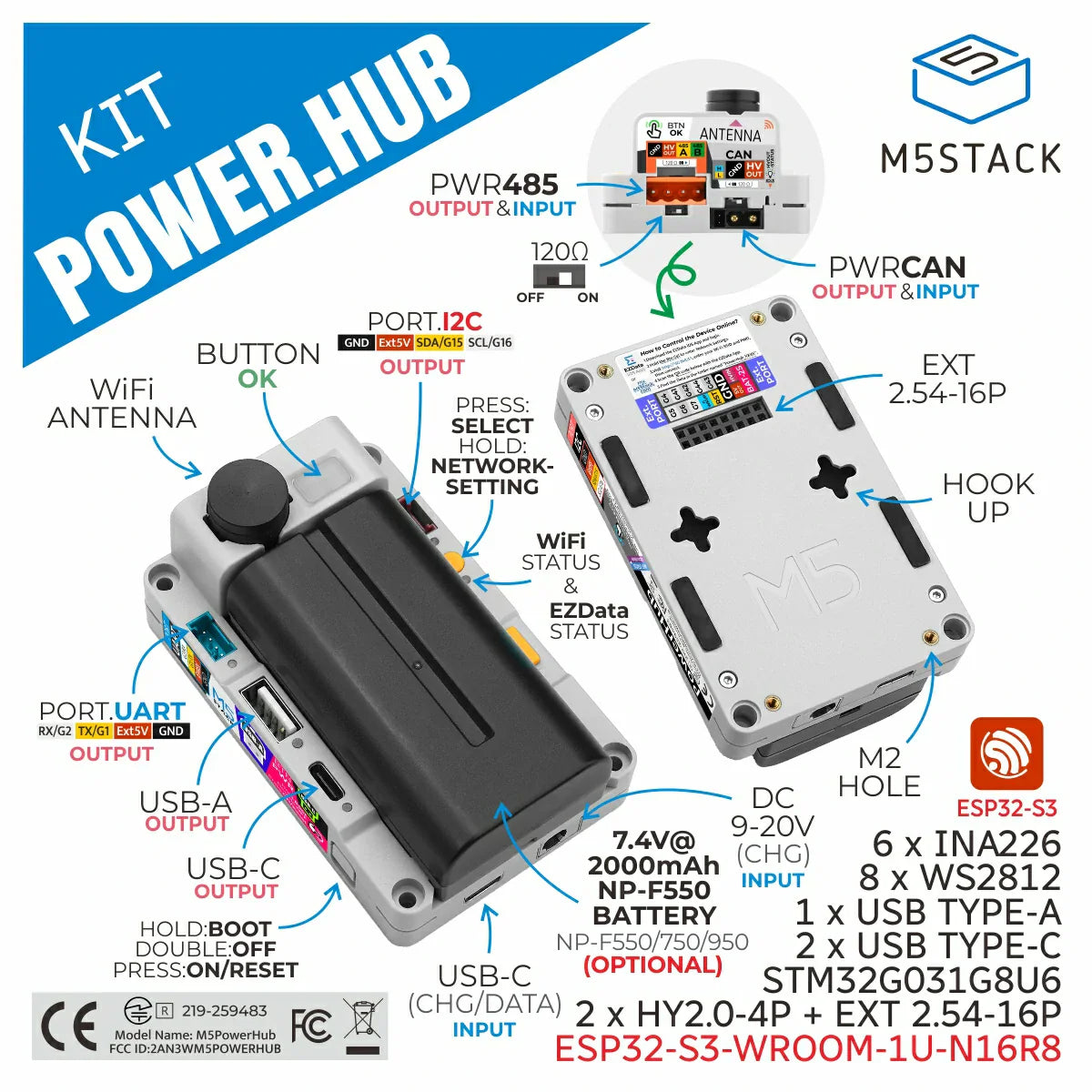

Key Features
- ESP32-S3-WROOM-1U-N16R8 core with dual-core Xtensa LX7 @ 240MHz
- Low-power timed wake-up support

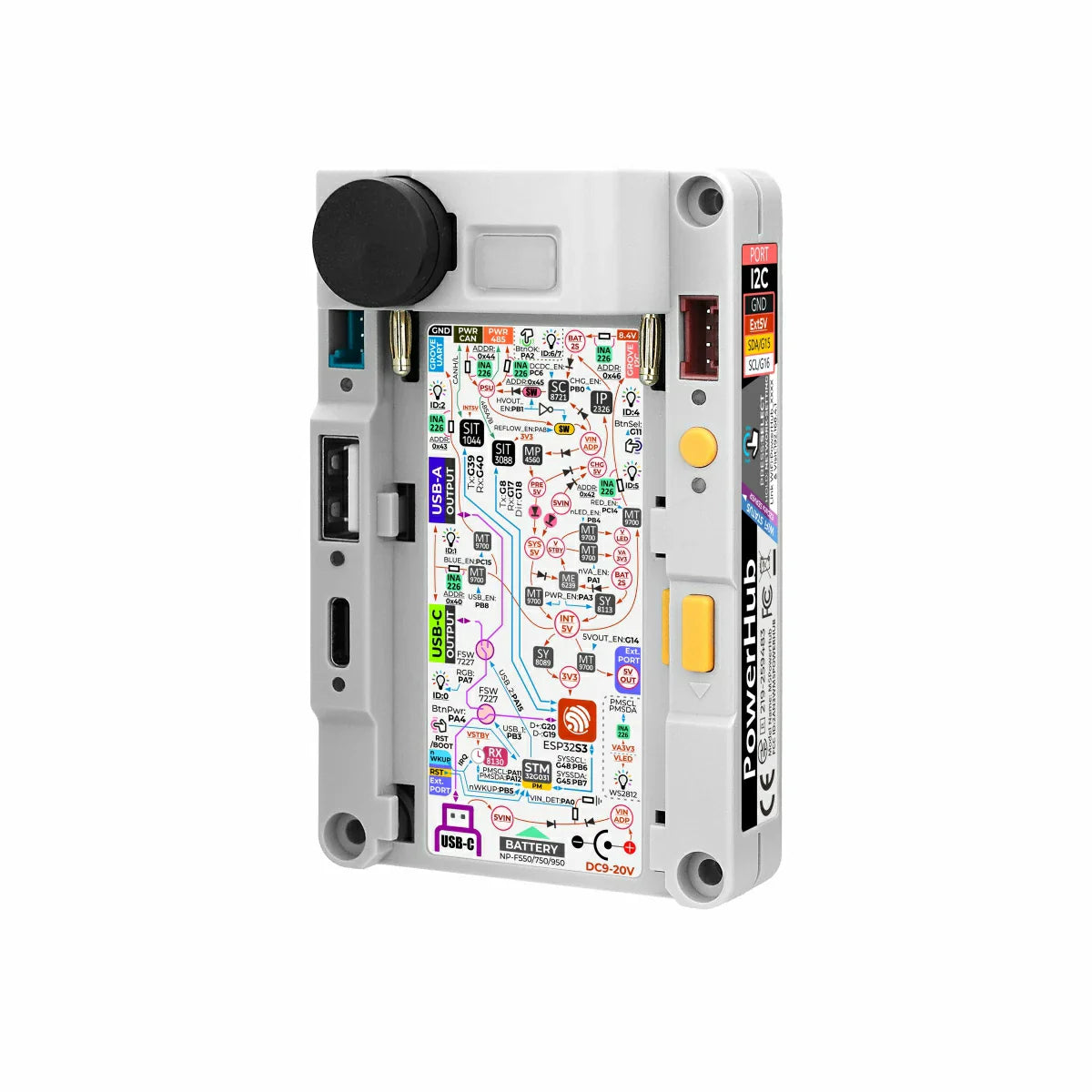

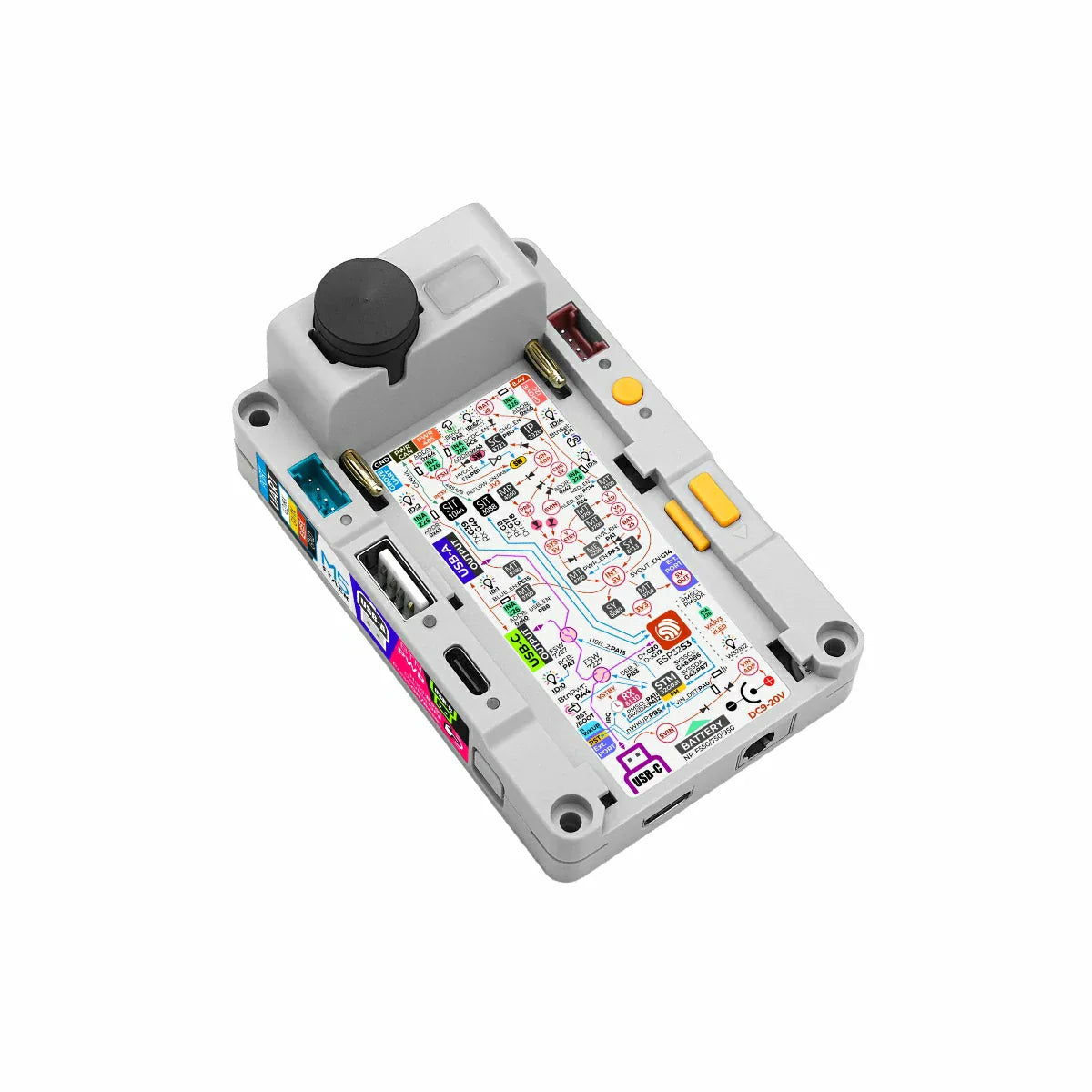

- USB Type-A and Type-C expansion ports

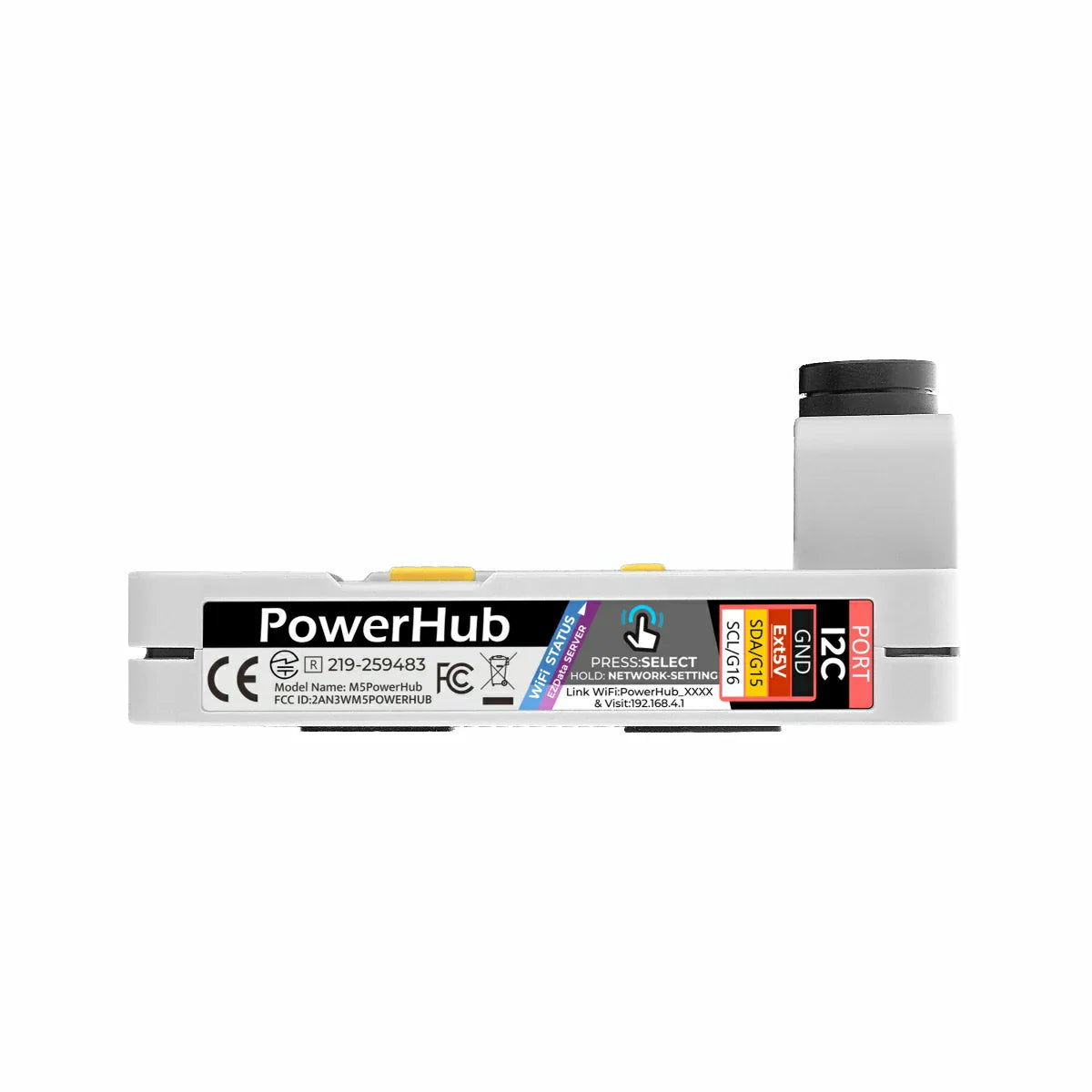

- 2 x HY2.0-4P Grove-compatible expansion ports
- 2.54-16P expansion bus interface

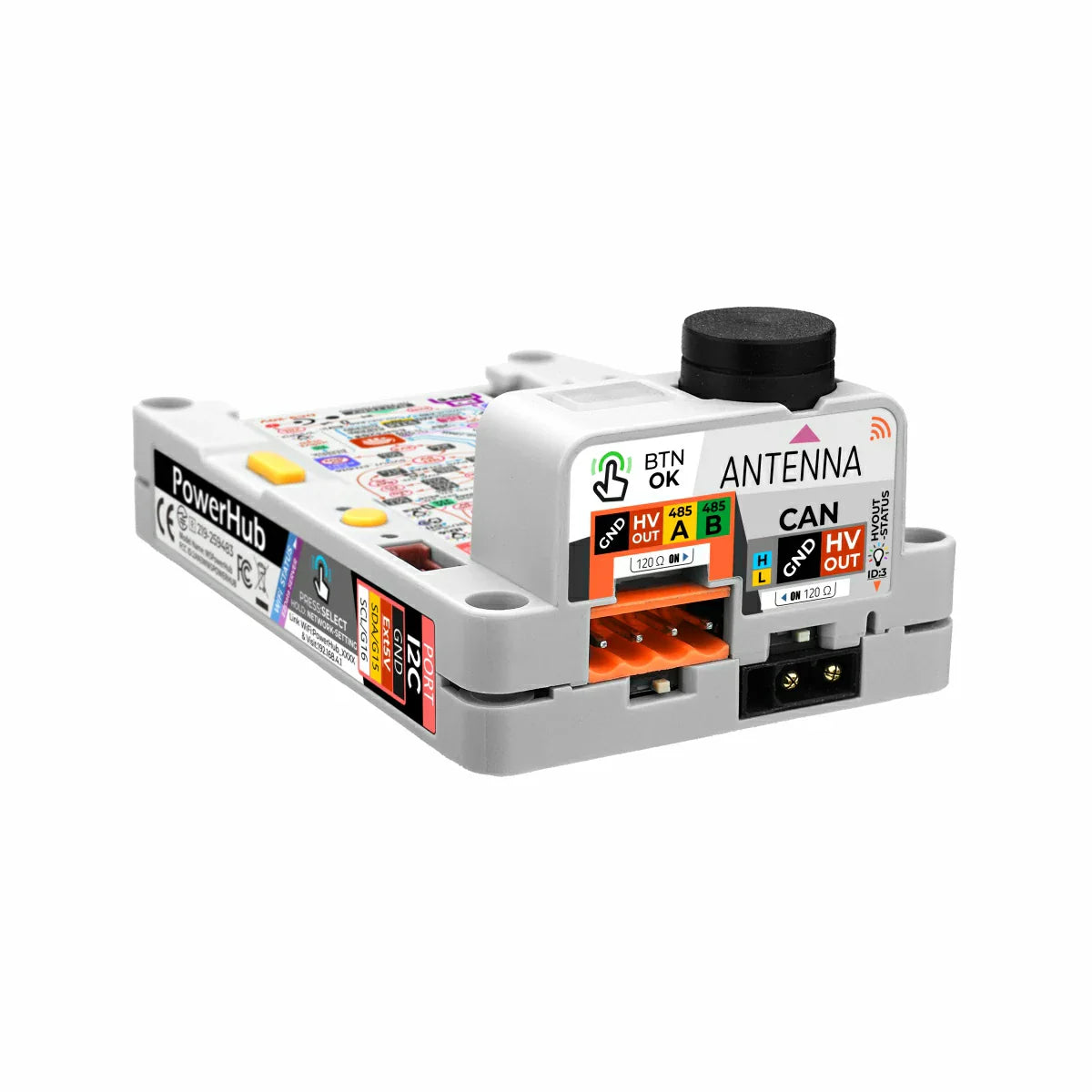

- RS485 and CAN communication interfaces with 120Ω termination switches
- 2.4 GHz SMA mini antenna
- Flexible power input options:
- PWR485 / PWR CAN
- 2S lithium battery
- DC 7–20V
- Human-machine interface:
- Multi-channel status LEDs
- 3 x tactile buttons

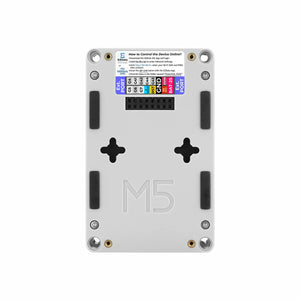

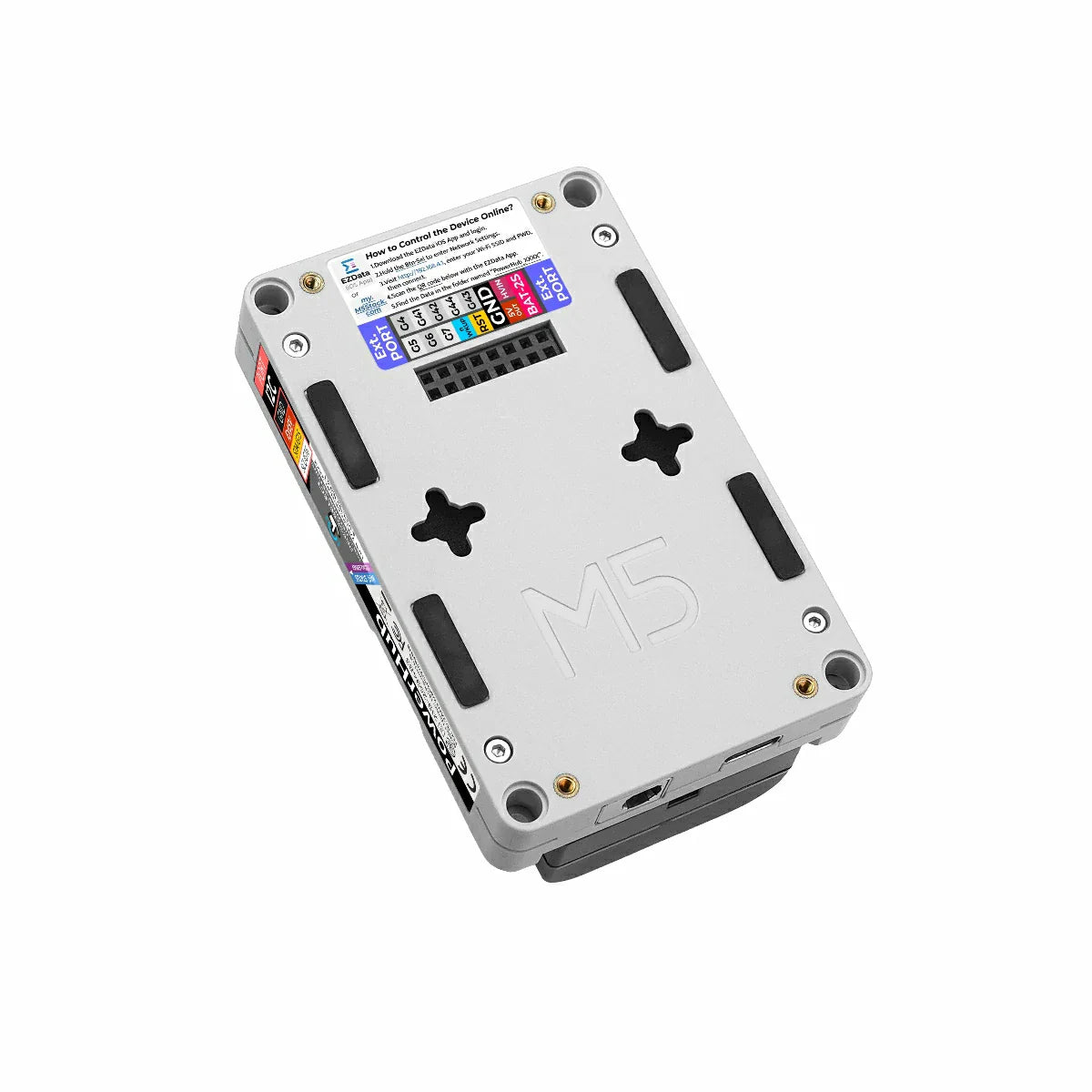

- Multiple mounting options:
- Magnetic base for metal surfaces
- Cross mounting holes for wall installation
- LEGO-compatible holes
- M2 screw holes

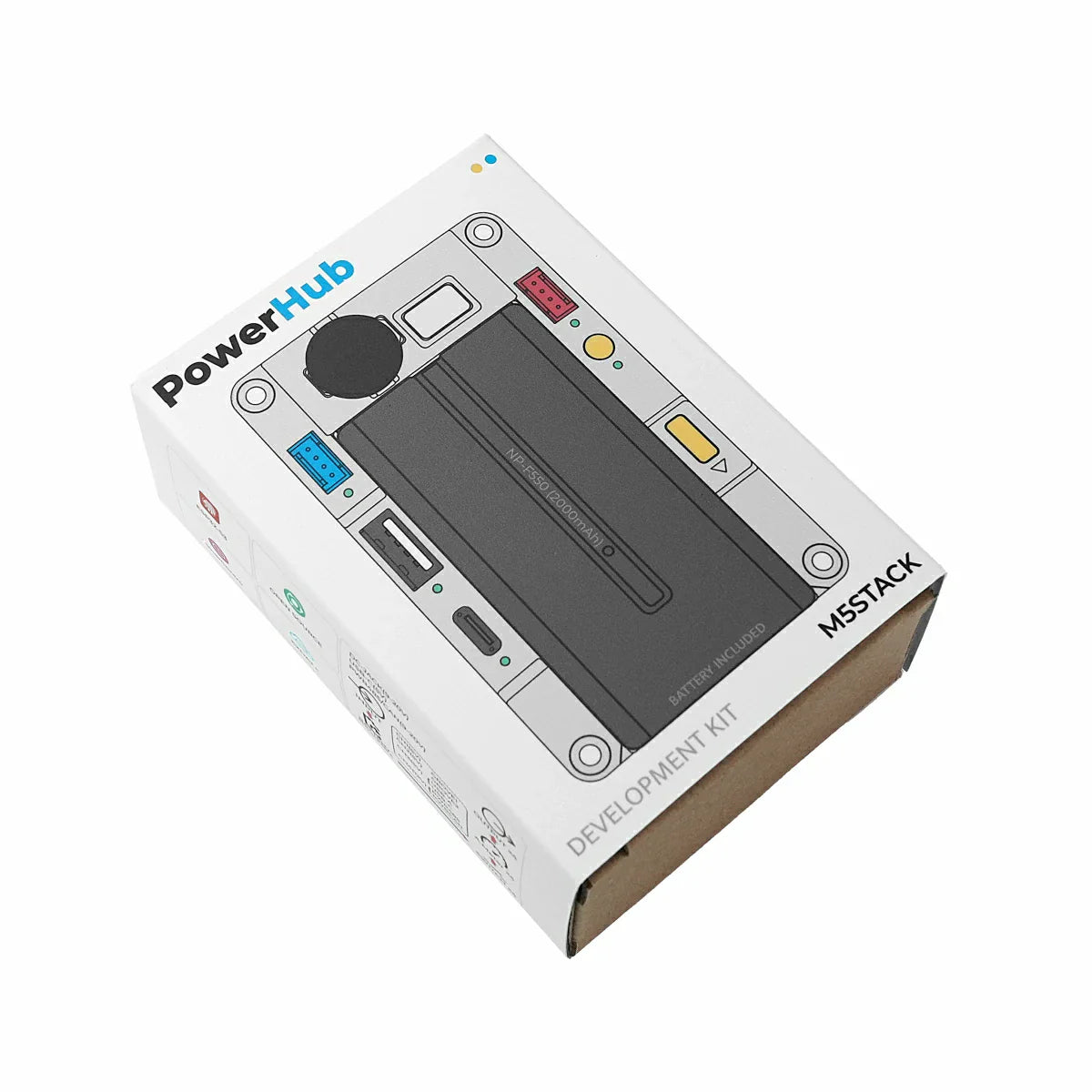

Package Contents
- 1 x PowerHub

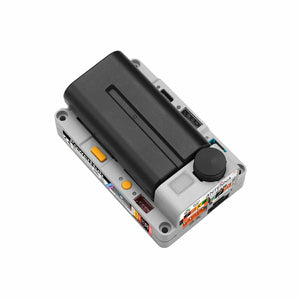

- 1 x NP‑F550 2000mAh removable battery (optional)
Application Scenarios
- Industrial automation systems
- Smart home integration
Technical Specifications
| Specification | Details |
|---|---|
| SoC | ESP32-S3-WROOM-1U-N16R8, Dual-core Xtensa LX7 @ 240MHz |
| MCU | STM32G031G8U6 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz |
| Expansion Ports | 2 x HY2.0-4P + EXT 2.54-16P |
| RS485 Interface | VH3.96-4P, 120Ω termination switch, DC 9–20V reverse input |
| CAN Interface | XT30 (2+2), 120Ω termination switch, DC 9–20V reverse input |
| USB Ports | 1 x USB Type-A, 2 x USB Type-C |
| RGB LEDs | 8 x WS2812 |
| Antenna | 15 x 14mm, SMA (inner thread/hole), 2.4 GHz, 2dB gain, VSWR ≤ 1.8 |
| Battery Compatibility | NP-F550/750/950, 2S lithium @ 7.4V |
| DC Input | DC 9–20V, 5.5 x 2.1mm, center-positive |
| Operating Temperature | 0–40°C |
| Dimensions | 88.0 x 56.0 x 38.5mm |
| Weight | PowerHub: 71.0g With battery: 170.7g |
| Package Size | 110.0 x 73.0 x 42.0mm |
| Gross Weight | PowerHub: 105.5g With battery: 208.2g |
