1.54-inch IPS Color Screen ST7789 SPI Connector 240x240
Bring vivid color and sharp detail to your embedded projects with the 1.54‑inch IPS Color Screen (ST7789, SPI, 240×240). Designed for makers, engineers, and hobbyists, this compact display combines high‑quality visuals with versatile connectivity options, making it an ideal choice for DIY electronics, wearable devices, and professional prototyping.
Stunning Visuals in a Compact Form
With a 240×240 resolution packed into a 1.54‑inch IPS panel, this display delivers crisp graphics and vibrant colors from any viewing angle. The IPS technology ensures wide visibility, so your UI elements, icons, and data remain clear and readable even in multi‑user or portable scenarios. A white LED backlight provides consistent brightness, enhancing usability in both indoor and outdoor environments.
Flexible Connectivity with SPI Interface
The screen uses a SPI serial interface, ensuring compatibility with popular microcontrollers such as ESP32, Arduino, STM32, and Raspberry Pi. Whether you’re building a smartwatch, a handheld device, or a control panel, the SPI connection offers reliable communication with minimal wiring complexity.
Multiple Connector Options
To suit different project needs, the display is available in three variants:
-

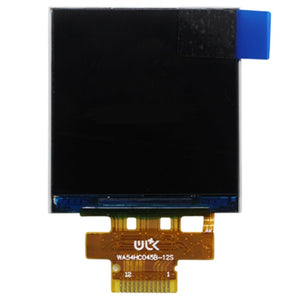

12‑Pin bare screen: Ideal for advanced users who prefer soldering and maximum flexibility.
-

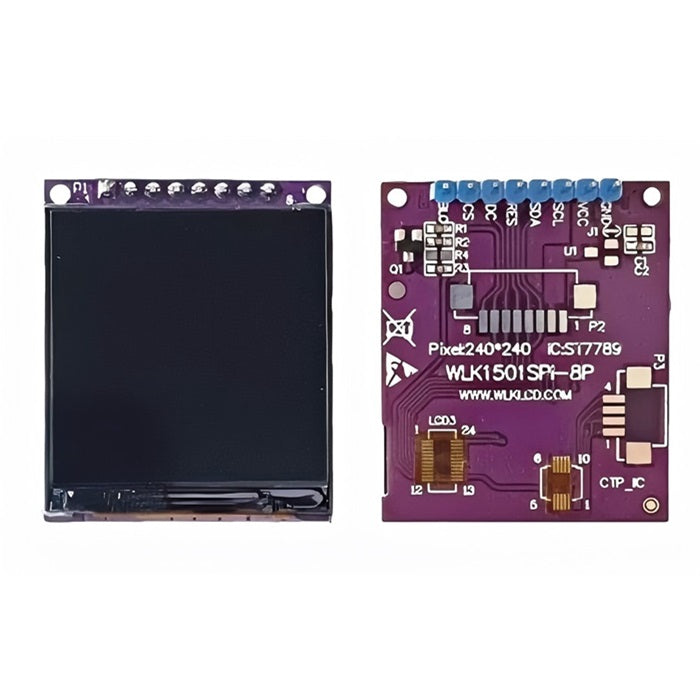

8‑Pin with baseboard: Beginner‑friendly, plug‑and‑play design for quick prototyping.
-

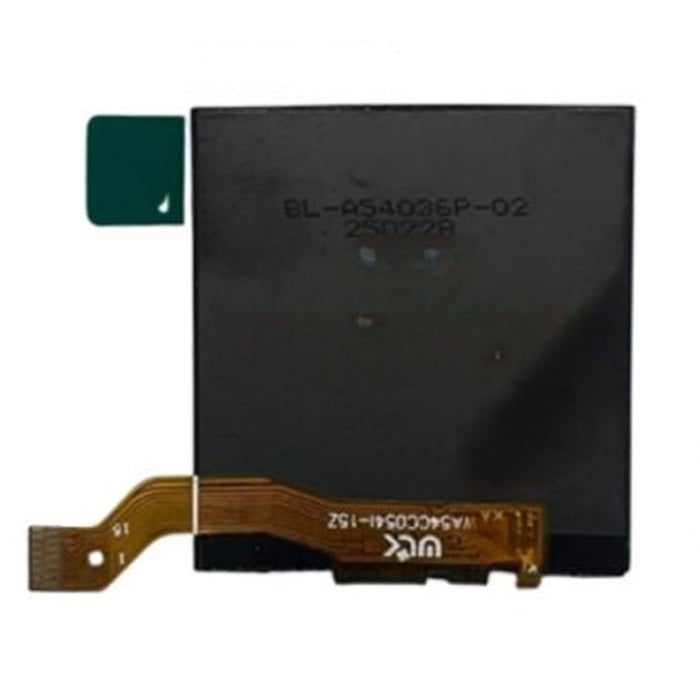

15‑Pin side connector: Slim profile for compact or modular projects, perfect for wearables.
Built for Makers and Professionals
Each unit is manufactured with high‑quality materials and tested for durability. Whether you’re experimenting in a classroom, designing consumer electronics, or validating industrial prototypes, this display provides the reliability you need. Its small footprint makes it easy to integrate into enclosures, while the multiple connector options ensure adaptability across diverse applications.
Applications
-
DIY electronics and maker projects 🛠️
-
Wearable devices and smart gadgets ⌚
-
Embedded system development 🔌
-
Industrial control panels ⚙️
-
Educational prototyping and teaching tools 🎓
Why Choose This Display?
Unlike generic modules, this screen offers a balance of performance, flexibility, and usability. The IPS panel guarantees superior color reproduction, while the choice of connectors allows you to tailor the display to your workflow. Whether you’re a beginner or an experienced developer, this module adapts to your needs.
📊 Variant Comparison Table
| Feature | 12‑Pin (Bare Screen) | 8‑Pin (With Baseboard) | 15‑Pin (Side Connector) |
|---|---|---|---|
| Connector Type | 12‑Pin solder pads | 8‑Pin header + baseboard | 15‑Pin side plug connector |
| Assembly Method | Requires soldering | Plug‑and‑play with baseboard | Easy side insertion |
| Material Options | Taiwan raw material / Domestic raw material | Hancai panel with baseboard | Side‑exit connector |
| Ease of Use | For advanced users (DIY soldering) | Beginner‑friendly, ready to use | Convenient for modular projects |
| Applications | Custom embedded projects, prototyping | Quick integration with ESP32/Arduino | Compact designs, wearable or portable devices |
| Durability | Depends on soldering quality | Stable with reinforced baseboard | Reliable mechanical connection |
| Best For | Makers needing flexible wiring | Hobbyists and students | Projects requiring slim side connection |
✨ Summary
The 1.54‑inch IPS Color Screen (ST7789, SPI, 240×240) is a versatile display module that adapts to your project requirements. With three connector options, wide compatibility, and crisp IPS visuals, it’s the perfect solution for makers, educators, and professionals alike. Whether you’re building your first prototype or refining a commercial product, this display is ready to bring your ideas to life.
