Waveshare ESP32-S3 1.69inch Touch Display 240×280 Gyroscope Sensor Micro LCD
Compact development board featuring 1.69inch touch display with 240×280 pixels, 262K color, ESP32-S3 dual-core processor, accelerometer and gyroscope sensor for smart device development
Embedded with ST7789V2 Display Driver and CST816T Capacitive Touch Chip
Version Options
ESP32-S3-LCD-1.69
without touch control
ESP32-S3-Touch-LCD-1.69
with touch control
Features
ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.69inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures
- Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
- Onboard RST, BOOT and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header
- Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- High touch screen transmittance, fast response and long lifetime
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

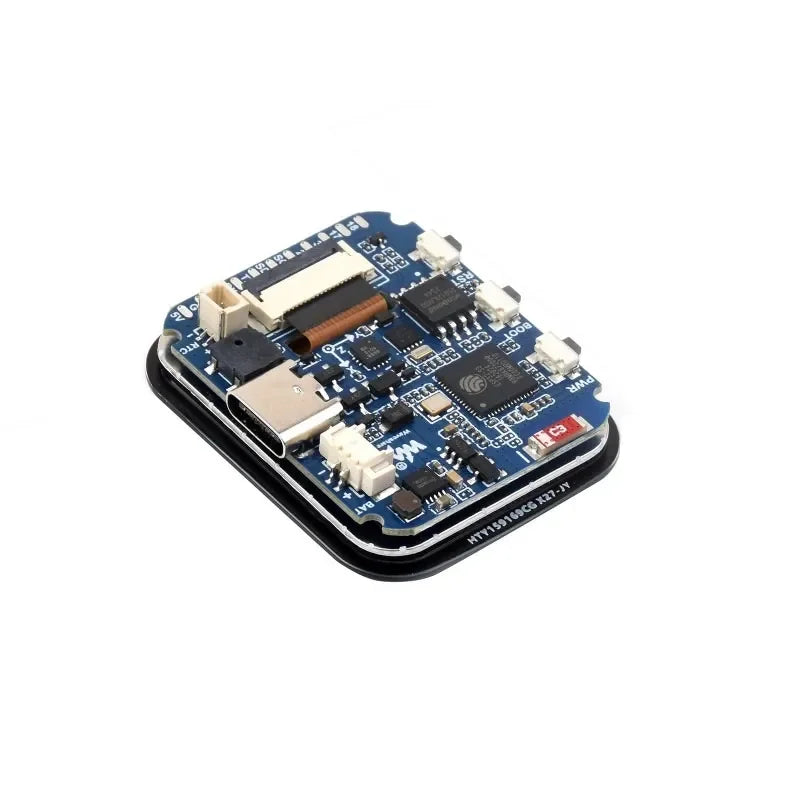

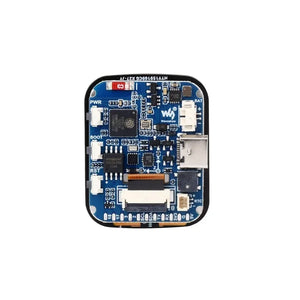

What's On Board
-
ESP32-S3R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM -
W25Q128JVSIQ
16MB NOR-Flash -
PCF85063
RTC chip -
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer -
ETA6098
high-efficiency Lithium battery recharge manager -
MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
-
USB Type-C connector
for programming and log printing -
Buzzer
sound-producing peripheral -
RTC battery header
for connecting rechargeable RTC battery, supports charging and discharging -
Onboard antenna
supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) -
PWM button
supports battery power supply control, single-press, double-press, multi-press and long-press operations - BOOT button
- RST Reset button
Pin Definition
Outline Dimensions
