Ai-Thinker UWB BU03 DW3000 Plan Kit Positioning Accuracy 10cm

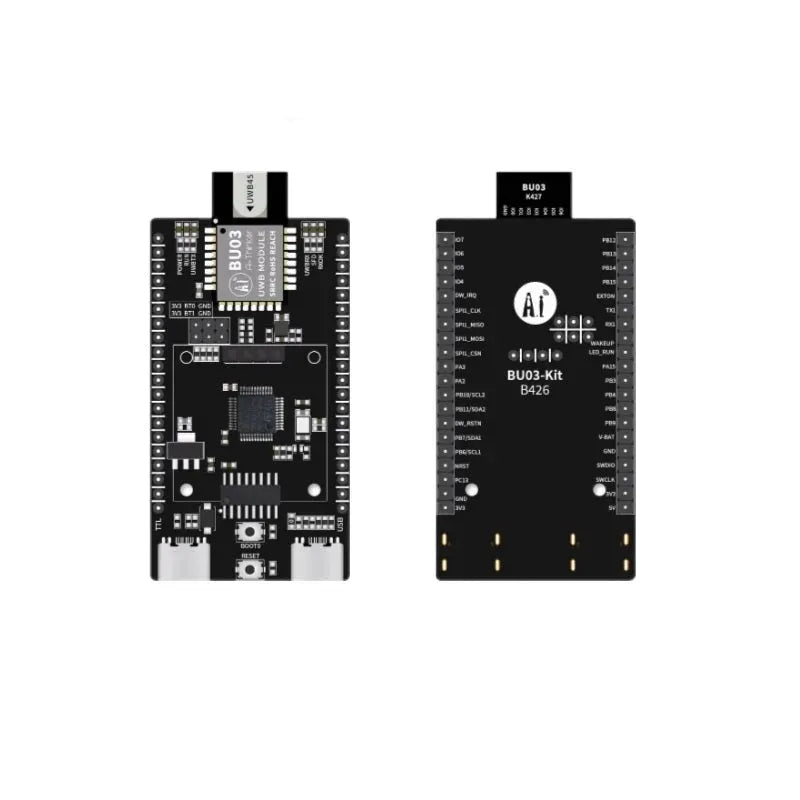

๐ง BU03-Kit: High-Precision UWB Technology Development Board by Ai-Thinker
The BU03-Kit is a cutting-edge Ultra-Wideband (UWB) development board designed by Ai-Thinker Co., Ltd., offering a powerful foundation for positioning and ranging applications.
ย
๐ Built for Performance
- Powered by the BU03 transceiver module and an ST microcontroller, this board is engineered for reliable testing and evaluation.
- Fully integrated with an onboard antenna, RF circuit, and power management for streamlined setup.
ย
๐ Pinpoint Accuracy

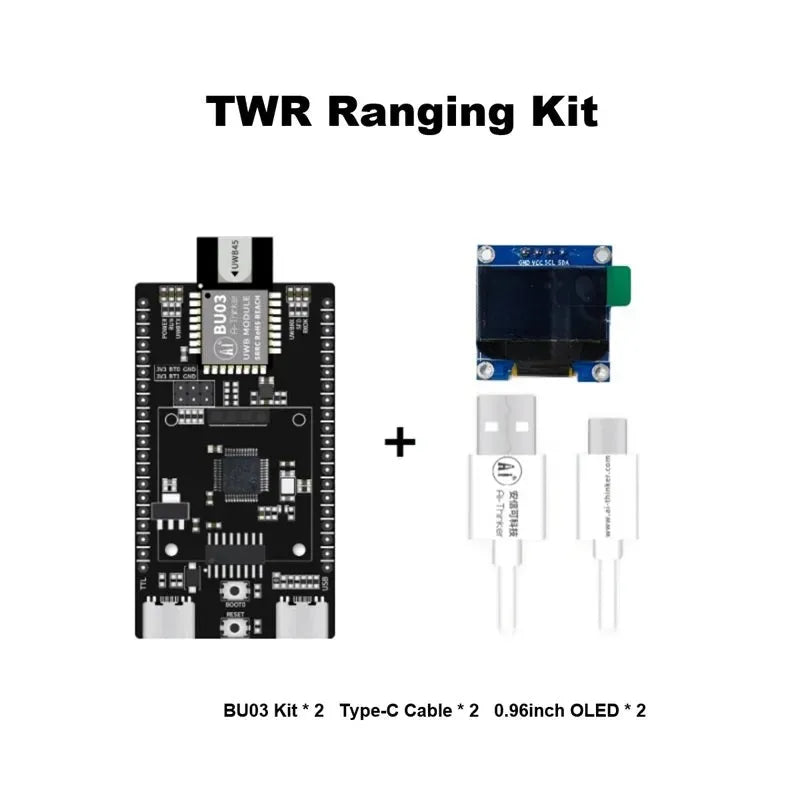

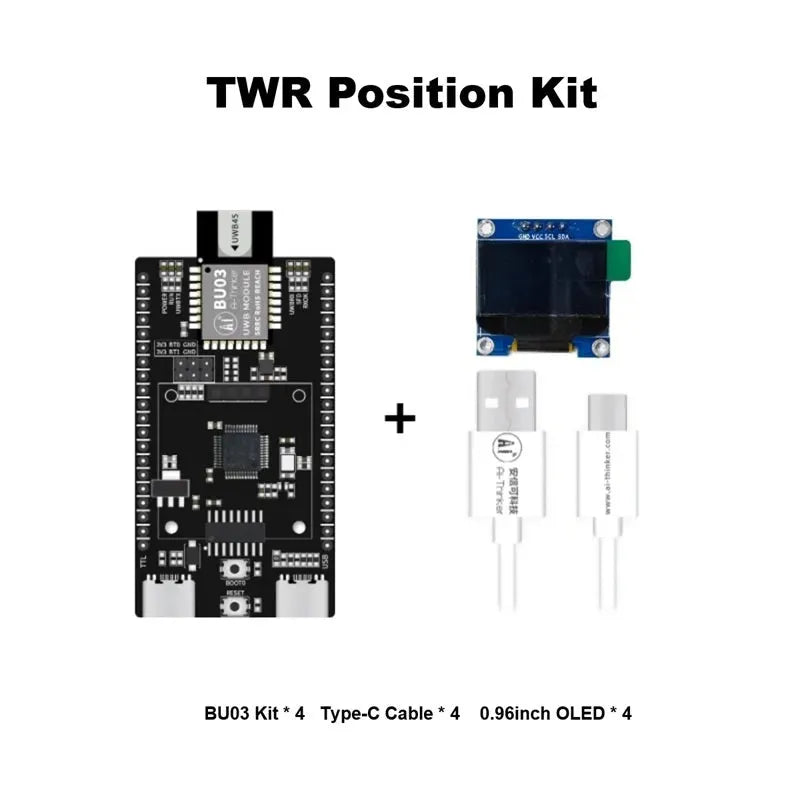

- Supports bidirectional ranging and TDOA positioning systems.
- Achieves localization precision of up to 10 cmโideal for sensitive tracking scenarios.
ย
๐ก Fast Data Rates
- Communicates at speeds up to 6.8 Mbps, ensuring responsive and real-time data flow.
๐ Versatile Applications โ Perfect for a wide range of fields including:
- Internet of Things (IoT) ๐
- Mobile and wearable devices ๐ฑโ
- Smart home systems ๐ โฆand much more!
๐ฆ SMD-40 Package UWB Module Highlights
ย
โจ Standards & Compatibility
- โ Complies with IEEE 802.15.4-2015 UWB standard
- โ Complies with IEEE 802.15.4z (BPRF mode)
- ๐ก Supports Channel 5 and Channel 9
ย
๐ Integration & Connectivity
- ๐ง Easy integration without RF design
- ๐ Integrated MAC support
- ๐ RTLS infrastructure extends communication range
ย
โก Performance & Positioning
- ๐ Data rates: 850 Kbps and 6.8 Mbps

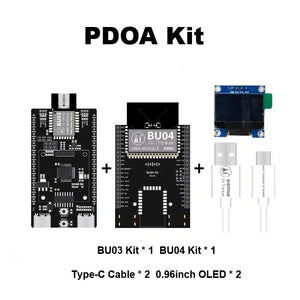

- ๐ Supports bidirectional ranging, TDOA, and PDOA schemes
- ๐ฏ Positioning accuracy up to 10 cm
ย
๐ Security & Flexibility
- ๐ท๏ธ Supports high label density
- ๐ Integrated HW AES256 encryption
- ๐ Supports SPI interface
- ๐งฒ Offers 9 GPIO pins
- ๐ถ Programmable transmit power adjustment
ย
๐ Power Efficiency
- ๐ค Power consumption < 1 ยตA in sleep mode
- ๐ Ideal for button battery applications
ย
๐ Main Parameters
| ๐ฆ Model | BU03-Kit |
| ๐ Package | DIP-40 |
| ๐ Size | 35.56 ร 55.00 mm (ยฑ0.2 mm) |
| ๐ก Antenna | Onboard ceramic antenna |
| ๐ถ Center Frequency | CH5 (6489.5 MHz) / CH9 (7987.2 MHz) |
| ๐ก๏ธ Operating Temperature | -40โ ~ 85โ |
| ๐ง Storage Temperature | -40โ ~ 125โ, < 90% RH |
| โก Power Supply Voltage | USB Type-C or pin 3.3V / 5V |
| ๐ Power Supply Current | โฅ 500 mA |
| ๐ Interface | UART, I2C, SPI |
| ๐ฒ๏ธ I/O Pins | 20 GPIO |
ย
๐ Documentation
Ai-Thinker UWB BU03 Kit Datasheet
ย
๐ Secondary Development SDK Link
๐ https://pan.baidu.com/s/1XkuUz2MGfJGSZ8XwtHzBHA?pwd=oh0s
Extraction code: oh0s
