Ai-Thinker Rd 03 24G Millimeter Wave Radar V1 & V2
Introducing the Ai-Thinker Rd-03 Radar Module, an advanced solution for precise human presence and motion detection. This powerful module is built around the innovative S3KM1110 chip, an integrated single-chip millimeter-wave sensor SoC. It leverages FMCW radar transceiver technology, operating within the 24 GHz K-band, and offers a modulation bandwidth of up to 1 GHz for each single-frequency scan. This enables it to detect targets within a defined space using continuous FMCW waves, combining sophisticated radar signal processing for highly sensitive motion and micro-motion detection.
The Rd-03 module excels at sensing the presence of both moving and subtly moving human bodies within its detection area, providing real-time feedback. Developers will appreciate the intuitive visual configuration tools that simplify customization. These tools allow for easy adjustment of sensing distance ranges, fine-tuning of sensitivity across different zones, and setting unmanned delay times, making it incredibly adaptable for various smart applications.
Product Resources

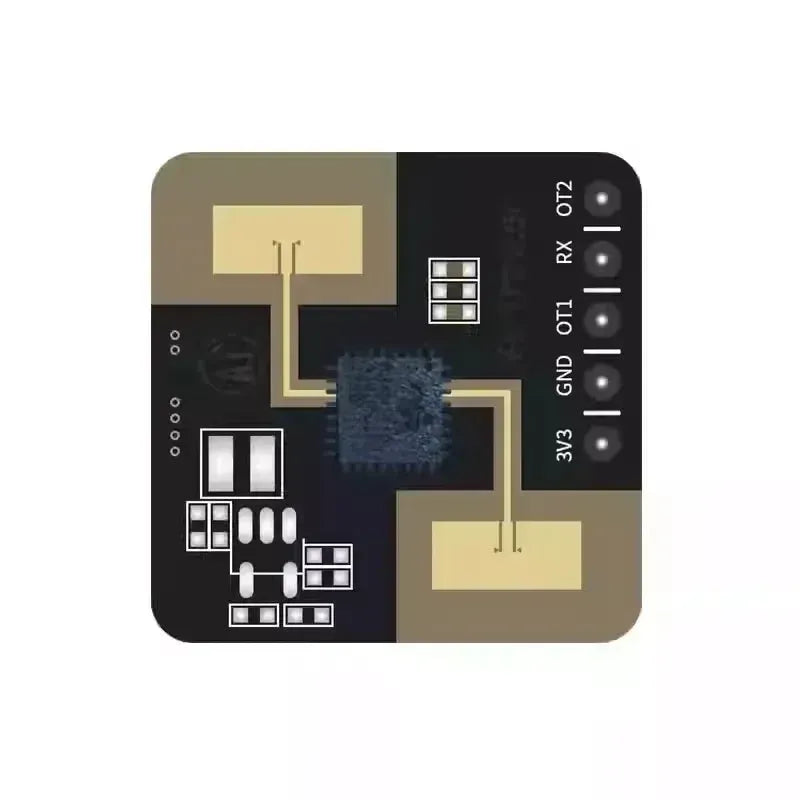

Pinout Description
| Pin Number | Name | Function Description |
|---|---|---|
| 1 | 3V3 | Input power supply |
| 2 | GND | Ground |
| 3 | OT1 | UART_TX |
| 4 | RX | UART_RX |
| 5 | OT2 | Detection result output. Outputs a high level when sensing, and outputs a low level when not sensing. |
| Parameter | Rd-03_V2 | Rd-03_V1 |
|---|---|---|
| Chip Model | Silicon Micro S3KM1110 | Silicon Micro S3KM1110 |
| Sensing Range | Up to 10m | Up to 6.5m |
| Power Supply | 3.0V - 3.6V / Current greater than or equal to 200mA | 3.0V - 3.6V / Current greater than or equal to 200mA |
| Detection Features | Human presence detection (motion & static) | Motion detection, micro-motion detection |
| Application Scenarios | Smart home, security monitoring, energy efficiency | Smart lighting, basic motion-triggered automation |
The Rd-03_V2 offers superior sensing capabilities with an extended detection range and comprehensive human presence detection, making it an excellent choice for advanced security and energy-saving applications. In contrast, the Rd-03_V1, while highly effective for basic motion detection, is better suited for simpler automation needs such as smart lighting.

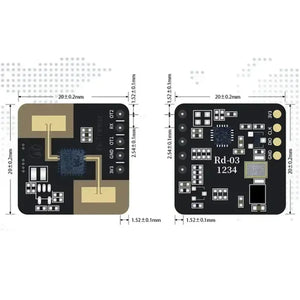

Product Dimensions
