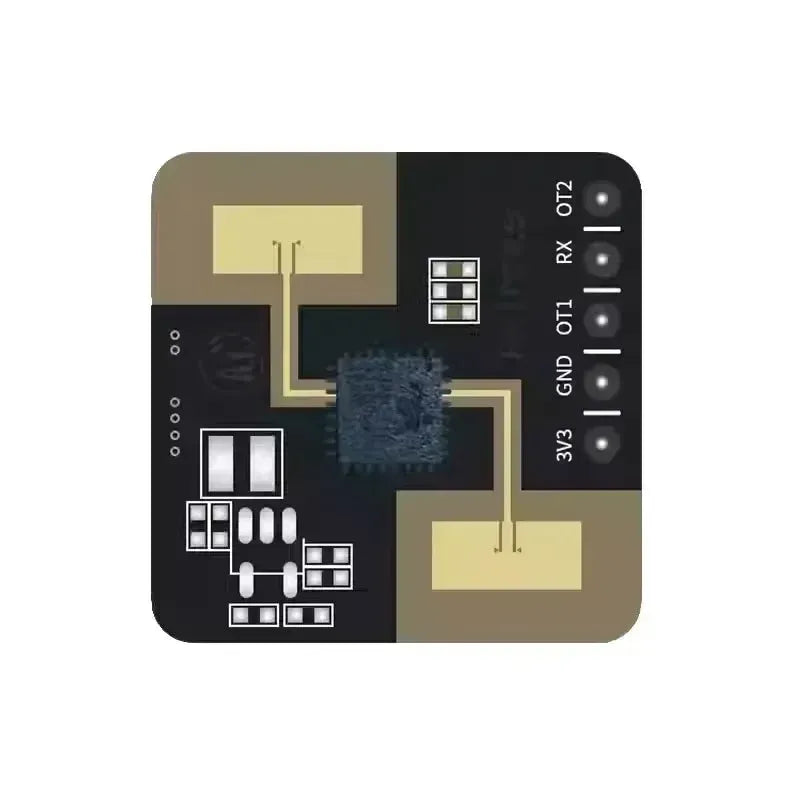

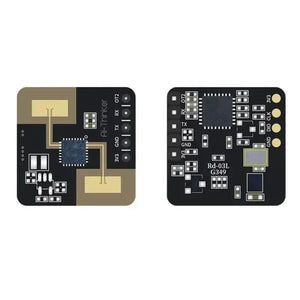

Ai-Thinker Rd-03L V2 24G Human Presence sensor
Discover the Ai-Thinker RD-03L V2, a cutting-edge, compact radar module engineered for ultra-low-power human presence detection. This advanced device combines sophisticated 24GHz millimeter-wave hardware with intelligent sensing firmware, making it an ideal solution for a variety of indoor smart applications that demand precision and efficiency.
At the core of the RD-03L V2 is the high-performance ICL1112 millimeter-wave SoC. This single-transmitter-receiver chip operates in the 24GHz K-band, offering robust range-finding capabilities. With an incredibly low power consumption of just 55µA, it employs FMCW continuous wave technology to detect even subtle human motion in real-time, providing unparalleled accuracy for occupancy sensing.
The module offers an impressive detection range of up to 8 meters, with fully customizable thresholds to fine-tune its performance. You can configure parameters such as:
- Adjustable trigger and hold distances for precise activation
- Configurable presence status updates for dynamic responses
- Flexible reporting frequencies to match application needs
- Customizable unoccupied timeout settings for energy efficiency
Featuring both GPIO and UART interfaces, the RD-03L V2 ensures effortless, plug-and-play integration into a broad spectrum of smart devices and IoT systems. Whether you're innovating smart lighting solutions, enhancing security systems, or developing advanced occupancy-aware automation, this module provides a flexible, developer-friendly platform with precise sensing and minimal power draw.
Applications
- Smart Home Integration: Accurately detect human presence and distance to enable intelligent control of household appliances and report monitoring data.
- Enhanced Smart Security: Integrate with access control and alarm systems, linking with cameras for automated and responsive security measures.
- Intelligent Lighting Systems: Precisely recognize human presence and location for public spaces or home lighting, including motion-sensing lamps, bulbs, desk lights, and mirror lights.
- Smart Retail & Commercial Environments: Detect customer approach or departure within specific zones, activating screens and maintaining device activity when people are nearby.
- New Energy & Parking Solutions: Automate EV charging station screen activation, monitor parking space occupancy, and prevent unauthorized human access near wireless charging areas.
Product Details
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | RD-03L V2 |
| Package Type | DIP-5 (2.54mm pitch) |
| Dimensions | 17.5 × 19.0 mm ±0.2 mm |
| Frequency Band | 24.00 GHz – 24.25 GHz (ISM band) |
| Operating Temperature | –40°C to +85°C |
| Storage Conditions | –40°C to +125°C, less than 90% RH |
| Power Supply Voltage | 3.0V – 3.6V (Recommended: 3.3V) |
| Power Supply Current | greater than or equal to 200 mA |
| Communication Protocol | UART (Default baud rate: 256000 bps) |
| Sensing Range | Up to 8 meters (±60° coverage) |
| Typical Current Consumption | approximately 80 µA at 1Hz reporting frequency |
| Radar Technology | FMCW continuous wave, single TX/RX antenna |
| Detection Targets | Moving, slightly moving, and stationary humans |
| Available Interfaces | UART, GPIO |
| Recommended Mounting | Wall-mounted |
| Customization Options | Configurable thresholds, reporting intervals |
| Firmware Features | Supports IAP online upgrade |

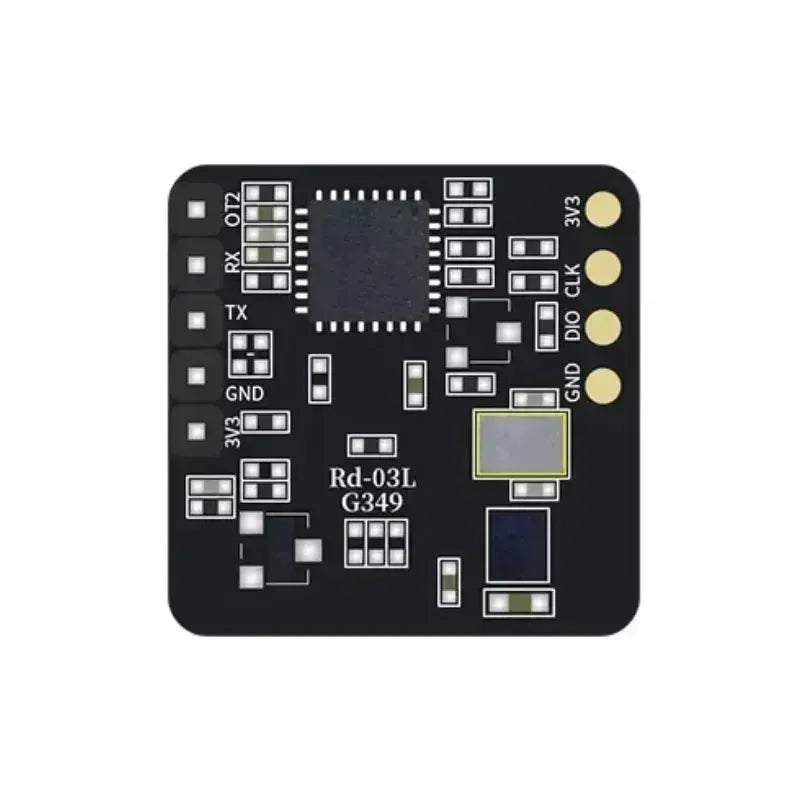

Pinout Description
| No. | Name | Function |
|---|---|---|
| 1 | 3V3 | Input Power |
| 2 | GND | Ground |
| 3 | TX | UART_TX – Transmit Data via UART |
| 4 | RX | UART_RX – Receive Data via UART |
| 5 | OT2 | Detection Result Output: High level when sensing, Low level when idle |

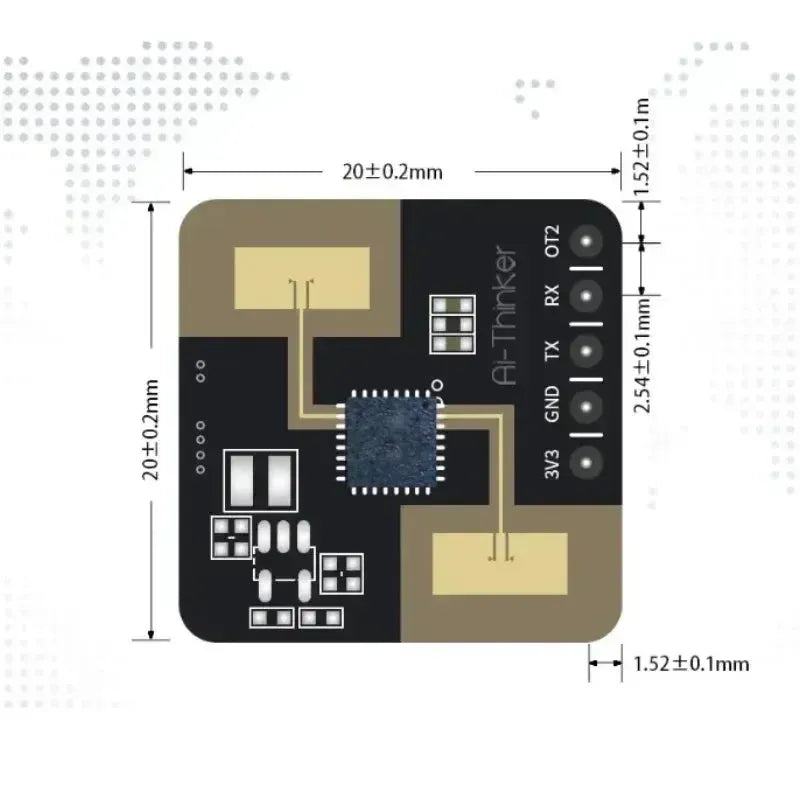

Module Dimensions
