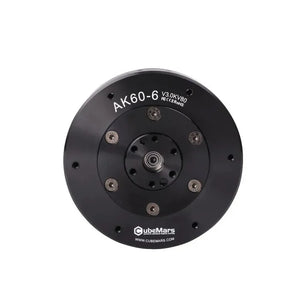

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-1

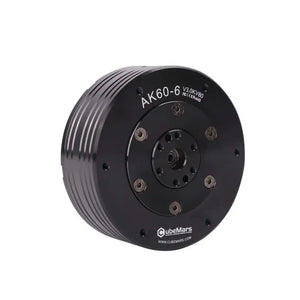

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-2

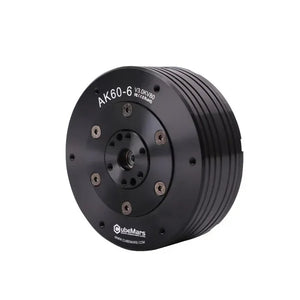

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-3

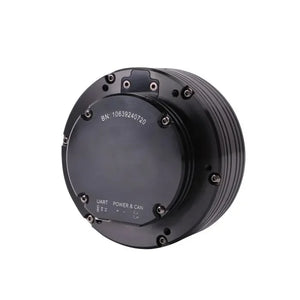

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-4

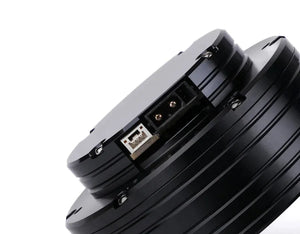

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-5
CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-1
CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-2
CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-3
CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-4
CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-5

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor

Sale price $399.00
SKU: CubeMars-AK60-6-V3.0

📦 Location of the warehouse: China

Free Shipping from $50 in the US, $70 for non-continental US

- US Delivery Time: 2~7 Business days.

- Non-Continental US Delivery Time: 3~9 working days.

- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.

- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.

Visa
PayPal
Mastercard
American Express
Shop Pay
CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor-1

CubeMars AK60-6 V3.0 AK Series Actuator BLDC Motor

$399.00

CubeMars AKSeries Module Driver User Manual

⚙️The AK60-6 actuator combines a high-performance brushless DC motorproprietary planetary gearboxencoder, and integrated driver for smooth, high-torque output. Its compact power module supports both servo and MIT modes, enabling real-time, synchronized control of position, velocity, and acceleration. With automatic PID adaptation, the AK60-6 streamlines setup and delivers precise performance with minimal effort. CubeMars also offers versatile customization options to meet diverse application needs.

One-click driver upgrade — instant setup for Servo & MIT modes ⚙️. Clear status monitoring and reliable connectors for robotic actuators & exoskeletons 🤖🦾.

Specification

Parameter Value / Description
Application Foot Robots, Exoskeleton Robots, AGV
Control Method FOC
Temperature Range -20℃ ~ 50℃
Winding Type star
Insulation Level C
Insulation Voltage Withstand 500V 5mA / 2s
Insulation Resistance 500V 10MΩ
Pole Pairs 14
Reduction Ratio 6:1
Number of Slots 24
Temperature Sensor NTC MF51B 103F3950
Back-drive Torque (Nm) 0.2
Rated Voltage (V) 24 / 48
No-load Speed (rpm) 320 / 640
Rated Torque (Nm) 3
Rated Speed (rpm) 233 / 490
Rated Current (ADC) 3.8
Rated Power (W) 60 / 125
Peak Torque (Nm) 9
Peak Current (ADC) 10.3 / 11.2
Kv (rpm/V) 80
Kt (Nm/A) 0.135
Ke (V/krpm) 12.5
Phase-to-phase Resistance (mΩ) 595
Phase-to-phase Inductance (µH) 676
Rotor Inertia (g·cm²) 243.5
Motor Constant (Nm/√W) 0.15
Mechanical Time Constant (ms) 0.81
Electrical Time Constant (ms) 0.69
Motor Weight (g) 380
Maximum Torque Density (Nm/kg) 23.68
Inner Ring Encoder Type Magnetic
Inner Ring Encoder Resolution 21 bit
