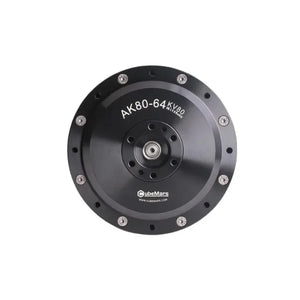

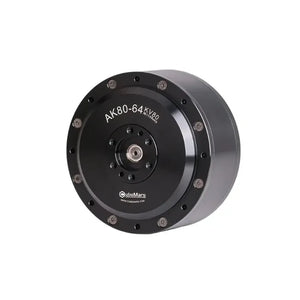

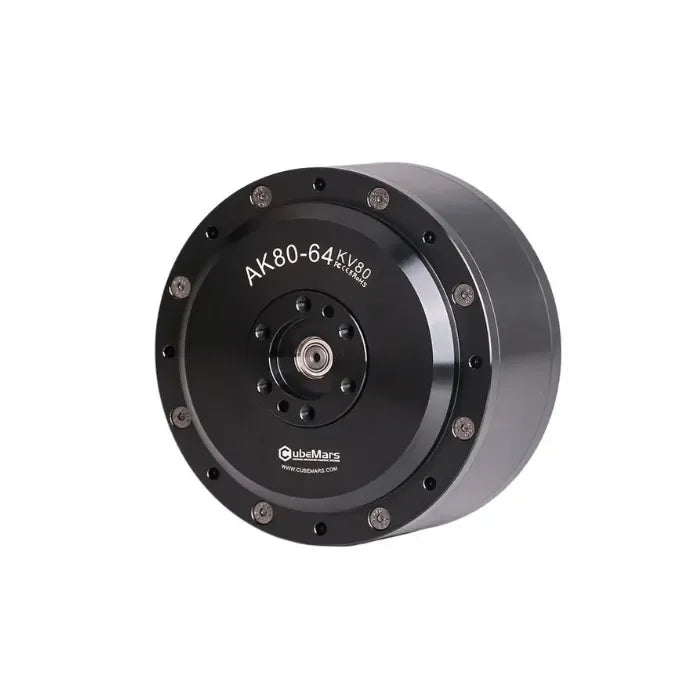

CubeMars AK80-64 KV80 Actuator BLDC Motor Compact High-Torque Power

CubeMars AK80-64 KV80 Actuator BLDC Motor Compact High-Torque Power

CubeMars AKSeries Module Driver User Manual

✨ The CubeMars AK80-64 KV80 robotic actuator integrates: ⚡ Brushless DC motor ⚙️ Proprietary planetary gearbox 🎛️ Encoder 🔌 Driver

—all packed into a compact, easy-to-install unit 📦👌.

🔄 With a 64:1 gear reduction, it shines in low-speed, high-torque applications 💪🐢 while keeping control precise 🎯 and performance responsive ⚡.

🛠️ The module supports both servo 🔄 and MIT hybrid control modes 🤖, features adaptive PID parameter identification 🧠, and includes built-in protection 🛡️ against:

  • 🔥 Overheating

  • ⚡ Overcurrent

  • 🔋 Overvoltage/Undervoltage

✅ Ensuring reliable operation even in tough environments 🌍🔧.

📐 Dimensions: Ф98 × 61.9 mm

⚖️ Weight: 850 g

💪 Peak Torque: 120 Nm

🏎️ No-load Speed: 75 rpm



Features

💪 High Torque Density: Delivers up to 120 Nm peak torque in a compact package, perfect for heavy loads 🏋️♂️

🔗 Fully Integrated Design: Combines BLDC motor + gearbox + driver + encoder to cut wiring and mechanical complexity 🧩

🎛️ Flexible Control: Supports servo 🔄 and MIT hybrid control modes 🤖 with auto-tuning PID 🧠 for rapid deployment 🚀

🛡️ Comprehensive Protection: Built-in safeguards against ⚡ overcurrent, 🔋 over/undervoltage, and 🔥 overheating for reliable operation 🌍

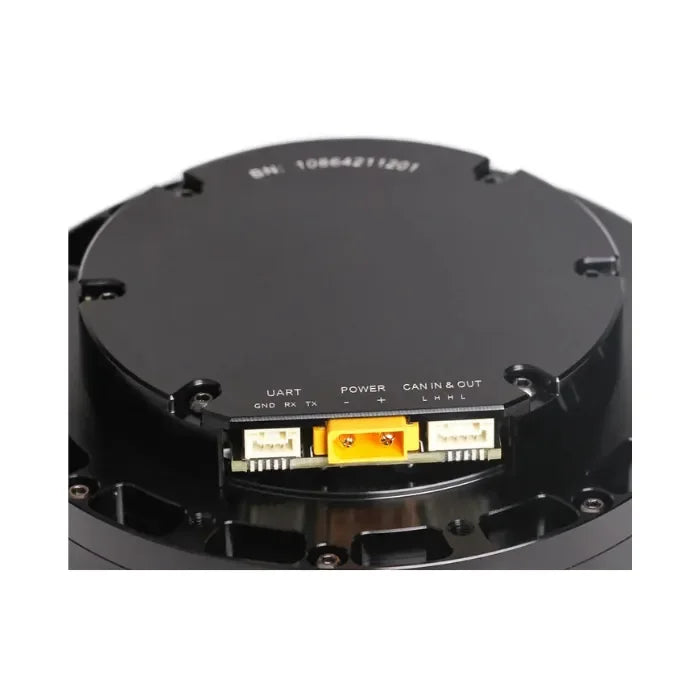

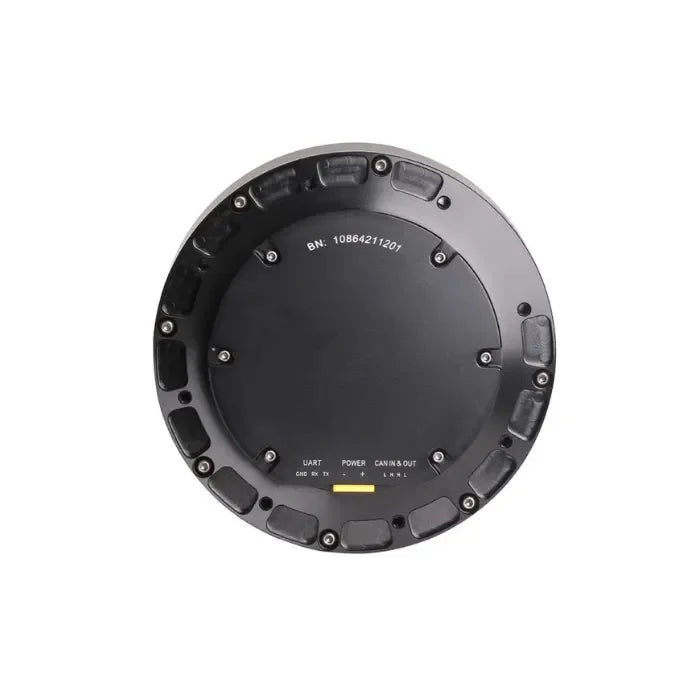

🔌 Optimized Connector: Plug-in interface 🔧 replaces traditional wire harnesses, making installation & maintenance simple 🛠️

🤖 Wide Application Range: Ideal for robot hip joints, 🦾 exoskeletons, 🤝 collaborative arms, and other high-load limb applications 🏗️



    Technical Specifications

    🔋 Operating Voltage: 24-48 V

    💪 Rated Torque: 48 Nm

    🏎️ Rated Speed: 360 RPM

    ⚙️ Gear Ratio: 64:1 (planetary gearbox)



    Applications

    🏭 Industrial Automation – Streamline processes with precision and power

    🤖 Robotics Systems – Enable smooth, controlled motion for advanced robots

    💪 Heavy-Duty Applications – Deliver reliable high torque for demanding tasks



    Installation

    The AK80-64 features a user-friendly plug-and-play design, making installation straightforward and efficient.

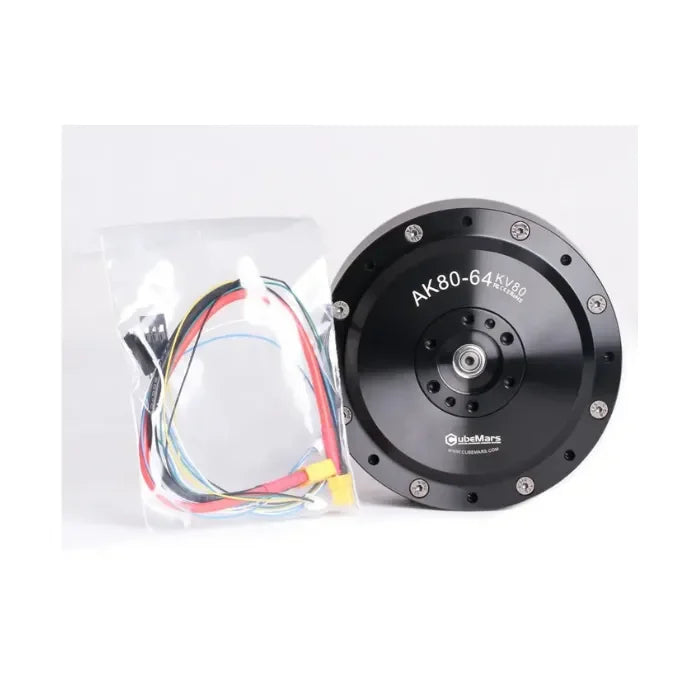

    Packaging Contents


    • AK80-64 KV80 Actuator (Comes standard with a driver board)x1

    • Power Cable x1

    • Serial CAN Cable x1

    • Certificate of Conformance x1


    Related Accessories




    Why Choose CubeMars AK80-64?

    • High Integration: Combines multiple functionalities in a compact unit for enhanced performance.
    • Lightweight & Durable: Engineered for high strength while maintaining a lightweight design.
    • Precision Control: Offers high resolution and feedback for demanding applications, ensuring reliability and performance.
