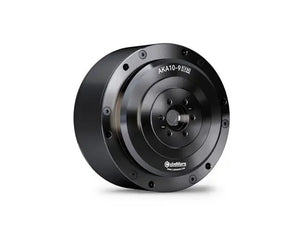

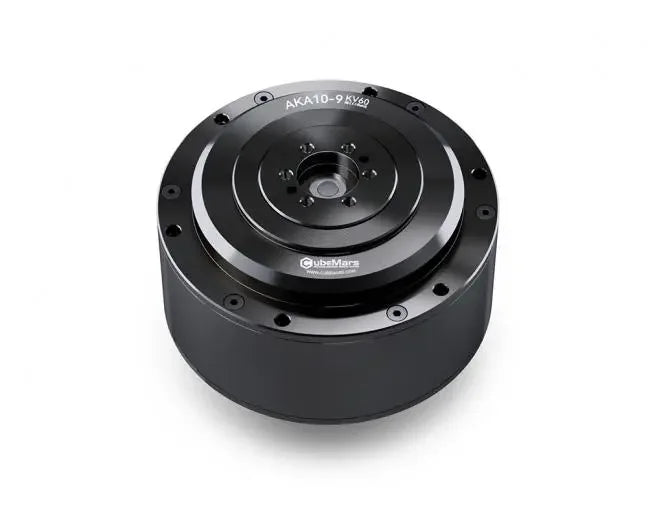

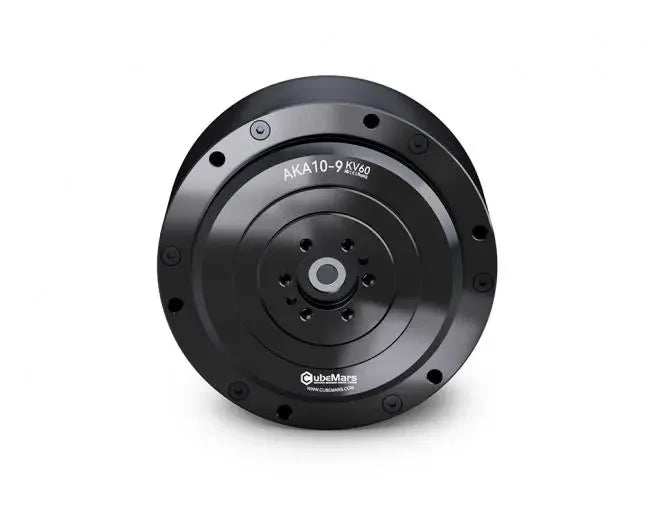

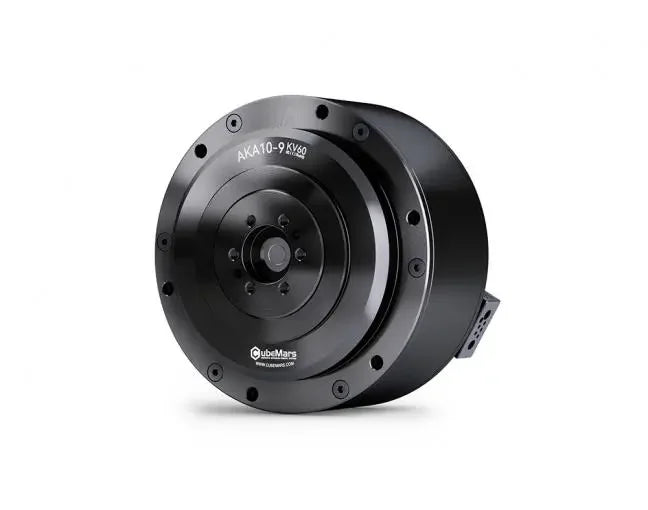

⚙️ CubeMars AKA Series – Heavy-Duty Actuator for AGVs & Wheeled Robots 🚗🤖
Built for Strength. Engineered for Reliability.
The CubeMars AKA Series is purpose-built for high radial load applications like wheeled robots, AGVs, and mobile platforms. Featuring a new structural design, it delivers over 120% higher radial load capacity than previous models—capable of withstanding up to 50kg of radial force 💪.
To enhance durability and simplify integration, the series uses a robust 2+5PIN plug 🔌 that combines signal and power lines in one secure connector—reinforced with screws for long-term reliability. With one-click motor parameter recognition and upgraded driver functionality, the AKA Series makes debugging and maintenance faster and easier 🛠️.
🌟 Features
-
🧲 High Radial Load Capacity – Supports up to 50kg, ideal for heavy-duty motion systems
-
🚗 Optimized for AGVs & Wheeled Robots – Designed for mobile platforms and industrial automation
-
🔧 Upgraded Drive System – Enables one-click motor recognition for fast setup
-
🔌 Durable 2+5PIN Plug – Combines signal + power, secured with screws for rugged use
-
🛠️ Easy Maintenance – Simplified debugging and parameter tuning
-
🆕 New Structural Design – Reinforced for high-load endurance
-
⚙️ AKA Planetary Reduction Module: AKA10-9 – Compact, powerful, and efficient
-
🔩 New Plug Design – Sturdy, vibration-resistant, and built for industrial environments
New Design For Enhanced Radial Load Capacity
The motor structure is redesigned to increase the radial load to 50KG,120% improvement compared to AK10-9.

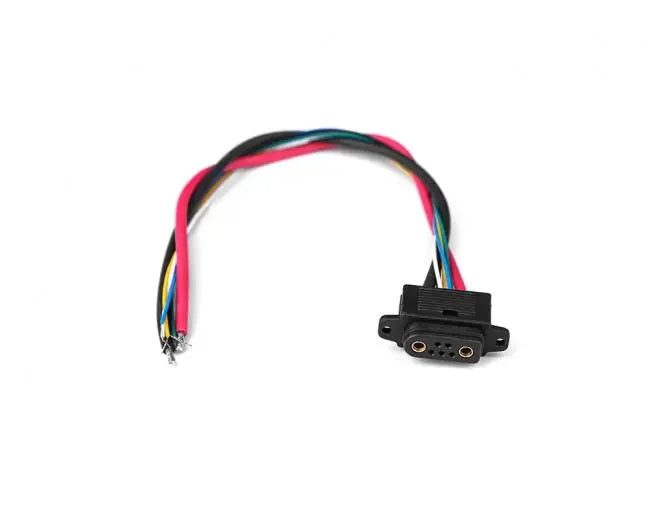

Custom Plugs Safe & Reliable
The power plug, CAN signal plug, and UART signal plug
are integrated into a brand-new 2+5 pin plug.
The new plug is fixed with M2 screws, ensuring safety and reliability
Upgrade The Driver For Easy Debugging
Open current loop parameters & UART port baud rate settings
One-click for motor parameter recognition
Update selected motor without firmware import necessary
Specification
| Application |
AGV、Wheeled Robot |
Insulation Class |
C |
| Driving Way |
FOC |
Insulation High-Voltage |
1000V 5mA/2s |
| Operation Ambient Temperature℃ |
-20℃~50℃ |
Insulation Resistance |
1000V 10MΩ |
| Winding Type |
star |
Back drive |
0.8 Nm |
| Pole Pairs |
21 |
Backlash |
0.15° |
| Phase |
3 |
Reduction Ratio |
9∶1 |
| Temperature sensor |
NTC MF51B 103F3950 |
Noise dB
Distance from motor: 65CM
(Environment: 45dB@1200rpm) |
50 |
| Rated Radial Load |
50kg |
Weight |
1060g |
| Electric Parameters |
| Rated Voltage |
48V |
Ke |
0.0167V/krpm |
| No-Load Speed |
320rpm |
Phase To Phase Resistance |
248mΩ |
| Rated Torque |
18Nm |
Phase To Phase Inductance |
235μH |
| Rated Speed |
109rpm |
Km |
0.32Nm/√W |
| Rated Current |
10.6ADC |
Mechanical Time Constant |
1.90ms |
| Peak Torque |
53Nm |
Electrical Time Constant |
0.94ms |
| Peak Current |
32ADC |
Kt |
0.16Nm/A |
| Inertia |
1002gcm² |
Kv |
60rpm/V |
| Maximum torque weight ratio |
53Nm/kg |
|
|
| Wiring Instructions (with Driver) |
| Outer ring encoder type |
Magnetic encoder |
Outer ring
encoder resolution |
16bit |
