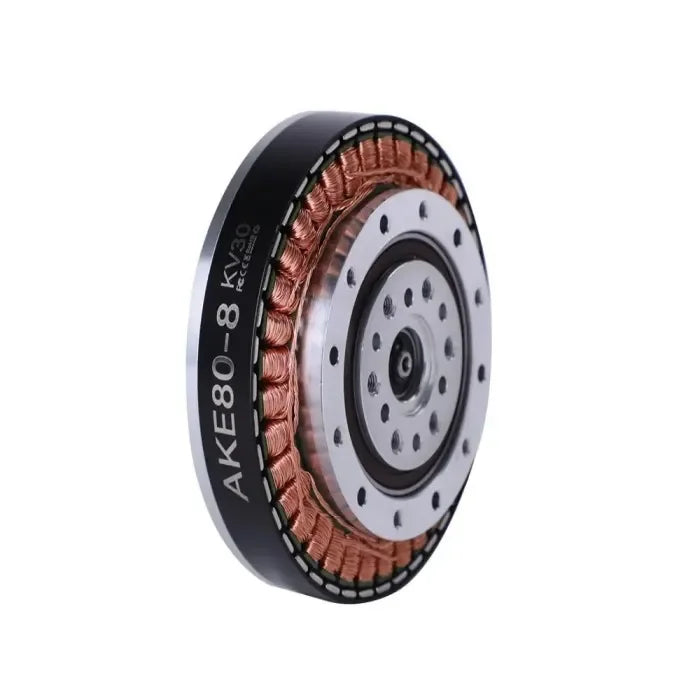

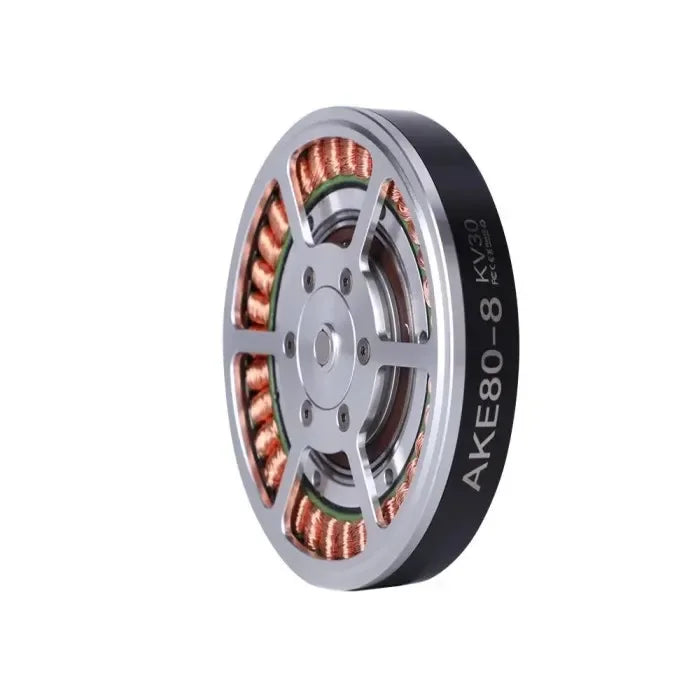

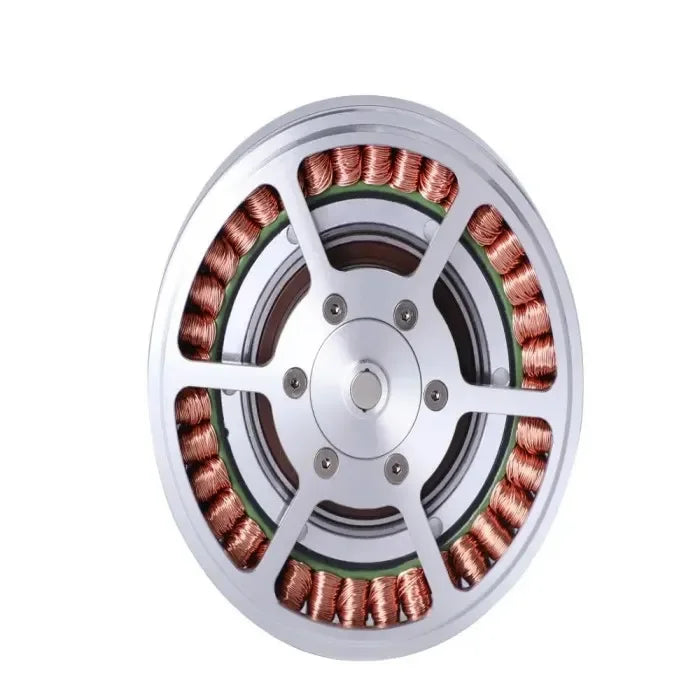

CubeMars AKE80-8 Actuator MotorĀ delivers cutting-edge performance forĀ industrial automation and robotics.Ā Integrating a high-performance motor and a precision planetary gearbox, the AKE80-8 is expertly engineered for demanding applications such asĀ exoskeletons, bipedal robots, robotic arms, and collaborative industrial robots.
WithĀ optimized core gearbox components, this actuator achieves aĀ peak torque of 30 Nm,Ā ultra-low backlash of 9 arcminutes, and anĀ exceptional torque density of 52 NĀ·m/kgāall while maintaining aĀ compact, lightweight designĀ (570 g). TheĀ modular constructionĀ allows forĀ quick installation and straightforward maintenance, and the motor base is equipped withĀ threaded and through holes for flexible, bi-directional mounting, seamlessly meeting diverse integration needs.
Engineered withĀ grade 5 precision gearsĀ and anĀ enhanced winding process, the AKE80-8 featuresĀ quiet, efficient operation, increased slot fill factor (boosted by 10% over previous generations), andĀ superior torque output with reduced thermal rise. These innovations guaranteeĀ consistent, precise, and reliable performance.
Ā
Features
ā¢ Robotic Actuator with a Planetary Gear
ā¢Ā Flexible Installation with Bi-directional Mounting
ā¢Ā Modular Design
ā¢Ā low Arcmin Backlash for High Precision
ā¢Ā Constantly Powerful Performance
ā¢Ā Specially for Exokseleton
Highlights
QUASI DIRECT DRIVE
Robotic Actuator with Planetary Gear
Light and Compact,Precise and Powerful
PRECISION TRANSMISSIONĀ WITH HEAVY LOAD CAPACITY
Achieve higher transmission accuracy within 9 arc backlash;
optimized reducer increases load capacity,reaching peak torque density of 52N.m/kg.
Ā QUIET OPERATION WITH PRECISIONĀ EXCELLENCE
Utilizing grade 5 precision gears and optimized core componentsĀ in the reducer significantly reduces operational noise while extending motor lifespan
Ā WINDING UPGRADING FORĀ EFFICIENCY BOOST
Enhanced winding process increases slot fill factor by 10% compared to AK seriesĀ reducing copper losses and temperature rise for superior torque output
LIGHT AND COMPACT FOR VERSATILE APPLICATIONS
Lightweight design and compact structure with bi-directionalĀ mounting for diverse application
MODULAR DESIGN FOR HASSLE-FREE MAINTENANCE
Motor and reducer feature separate modular design forĀ easy and quick disassembly and maintenance
Specification
| Application |
Exoskeleton |
Peak torque (Nm) |
30 |
| Driving way |
FOC |
Peak current (ADC) |
12 |
| Operation ambient temperature |
-20ā~50ā |
Kv (rpm/V) |
30 |
| Winding type |
star |
Kt (Nm/A) |
0.32 |
| Insulation class |
F |
Ke (V/krpm) |
33 |
| Insulation High-voltage (V) |
500 |
Phase to Phase resistance (mĪ©) |
870 |
| Insulation resistance (MĪ©) |
10 |
Phase to Phase inductance (Ī¼H) |
990 |
| Pole pairs |
21 |
Inertia (gcmĀ²) |
1471.75 |
| Backlash (arcmin) |
9 |
Km (Nm/āW) |
0.34 |
| Rated voltage (V) |
48 |
Mechanical time constant (ms) |
2.3 |
| No-load speed (rpm) |
195 |
Electrical time constant (ms) |
1.13 |
| Rated torque (Nm) |
12 |
Weight (g) |
570 |
| Rated speed (rpm) |
150 |
Maximum torque weight ratio (Nm/kg) |
52 |
| Rated current (ADC) |
4.8 |
|
|
