CubeMars AKE90-8 Actuator Motor Compact High-Torque Power Module

CubeMars AKE90-8 Actuator Motor Compact High-Torque Power Module

$1,028.29

CubeMars' AKE90-8 KV35 Quasi Direct DriveĀ is a top-tier solution forĀ industrial automation and robotics, integrating aĀ high-performance motor and precision planetary gearbox.Ā Designed for demanding applicationsĀ like exoskeletons, bipedal robots, robotic arms, and industrial collaborative robots, it featuresĀ optimized gearbox components, deliveringĀ higher load capacityĀ andĀ lighter weight.

The actuator achieves a remarkably low backlash of just 9 arcminutesĀ and anĀ outstanding torque density of 121 NĀ·m/kg. ItsĀ modular designĀ allows forĀ easy installation and maintenance, while the motor base includesĀ threaded and through holes for flexible, bi-directional mounting, meeting diverse installation needs.

CubeMarsā€™ commitment to innovation and qualityĀ ensures each product meets the highest standards, supported by advanced manufacturing and rigorous quality control.

Ā

Features

ā€¢ Robotic Actuator with a Planetary Gear

ā€¢Ā Flexible Installation with Bi-directional Mounting

ā€¢Ā Modular Design

ā€¢Ā low Arcmin Backlash for High Precision

ā€¢Ā Constantly Powerful Performance

ā€¢Ā SpeciallyĀ forĀ Exokseleton

Ā

Highlights

QUASI DIRECT DRIVE

Robotic Actuator with Planetary Gear

Light and Compact,Precise and Powerful

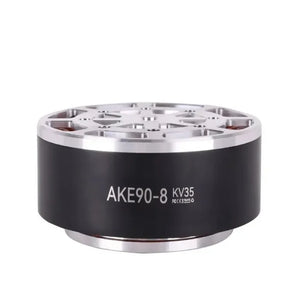

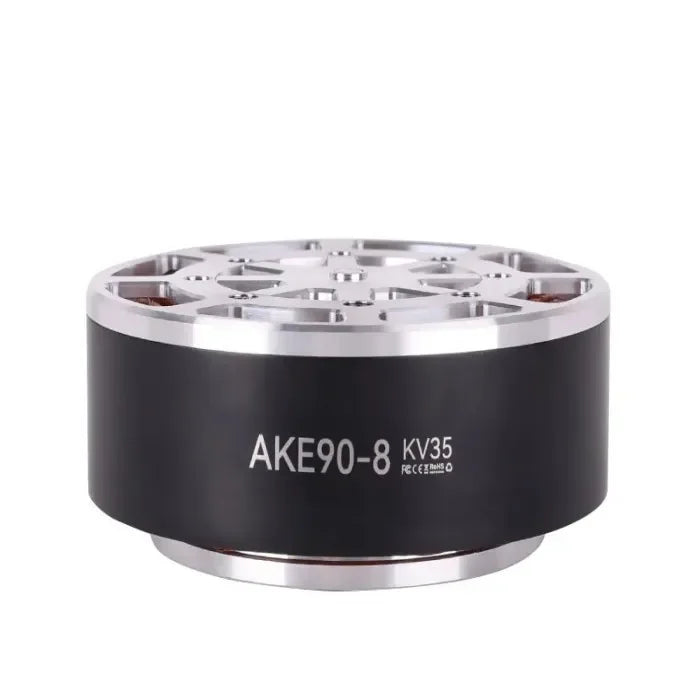

AKE90-8

PRECISION TRANSMISSIONĀ WITH HEAVY LOAD CAPACITY

Achieve higher transmission accuracy within 9 arc backlash; optimized reducer increases load capacity,reaching peak torque density ofĀ 121N.m/kg.

AKE90-8

Ā

QUIET OPERATION WITHĀ PRECISION EXCELLENCE

Utilizing grade 5 precision gears and optimized core components in the reducer significantly reduces operational noise while extending motor lifespan

AKE90-8

Ā

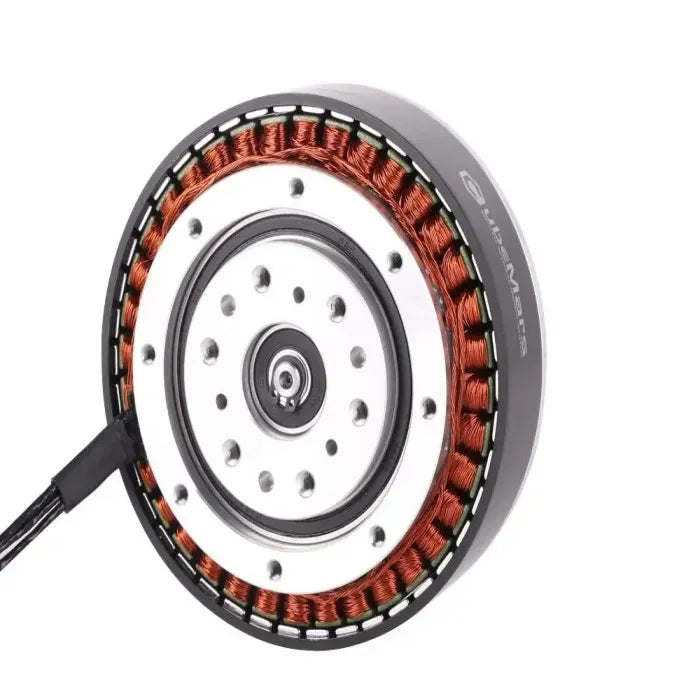

WINDING UPGRADING FORĀ EFFICIENCY BOOST

Enhanced winding process increases slot fill factor by 10% compared to AK series reducing copper losses and temperature rise for superior torque output

AKE90-8

Ā

MODULAR DESIGN FORĀ HASSLE-FREE MAINTENANCE

Motor and reducer feature separate modular design for easy and quick disassembly and maintenance

AKE90-8

Technical Drawing

Specification

Application Exoskeleton Ke (V/krpm) 0.0285
Driving way FOC Phase to Phase resistance (MĪ©) 164
Operation ambient temperature -20~50 Phase to Phase inductance (Ī¼H) 235
Winding type delta Inertia (gcmĀ²) 3377.08
Insulation class H Km (Nm/āˆšW) 0.67372
Insulation High-voltage (V) 1000V 5mA/2s Mechanical time constant (ms) 2.18
Insulation resistance (MĪ©) 1000V 10MĪ© Electrical time constant (ms) 1.4329
Pole pairs 21 Weight (g) 1400
Backlash (arcmin) 9 Maximum torque weight ratio (Nm/kg) 121.4
Rated voltage (V) 48 Peak torque (Nm) 170
No-load speed (rpm) 210 Peak current (ADC) 72
Rated torque (Nm) 55 Kv (rpm/V) 35
Rated speed (rpm) 120 Kt (Nm/A) 0.272
Rated current (ADC) 21


Analysis Chart
