DFRobot LattePanda IOTA M.2 M-Key Expansion Board

DFRobot LattePanda IOTA M.2 M-Key Expansion Board

$16.01

⚡ The LattePanda IOTA M.2 M-Key Expansion Board is a purpose-built adapter that maximizes the capabilities of the LattePanda IOTA single-board computer. It transforms the native 16-pin FPC PCIe interface into a standard M.2 M-Key slot. 🚀 This conversion enables two major upgrades: adding high-speed M.2 NVMe SSDs for expanded storage 💾 or installing M.2 AI accelerator modules for advanced edge computing 🤖. Key highlights include PCIe 3.0 ×1 transfer speed (8 GT/s), support for 2230 and 2280 form factors, and a plug-and-play design 🔌 for quick setup.

Seamless LattePanda IOTA Integration 🔗

Designed exclusively for LattePanda IOTA, this expansion board ensures precise alignment and electrical compatibility. Its tailored design eliminates instability issues common with generic adapters. ✅ Developers benefit from a stable, reliable connection, allowing them to focus on building projects instead of troubleshooting hardware.

Specifically Designed for LattePanda IOTA

High-Performance Expansion 🚀

This M.2 board opens the door to powerful peripherals. By connecting an NVMe SSD, users gain faster read/write speeds and larger storage capacity, perfect for desktop OS or big data workloads 📊. Alternatively, an M.2 AI accelerator card can handle machine learning and vision tasks, enabling efficient real-time AI inference at the edge.

Flexible M.2 Compatibility 🔧

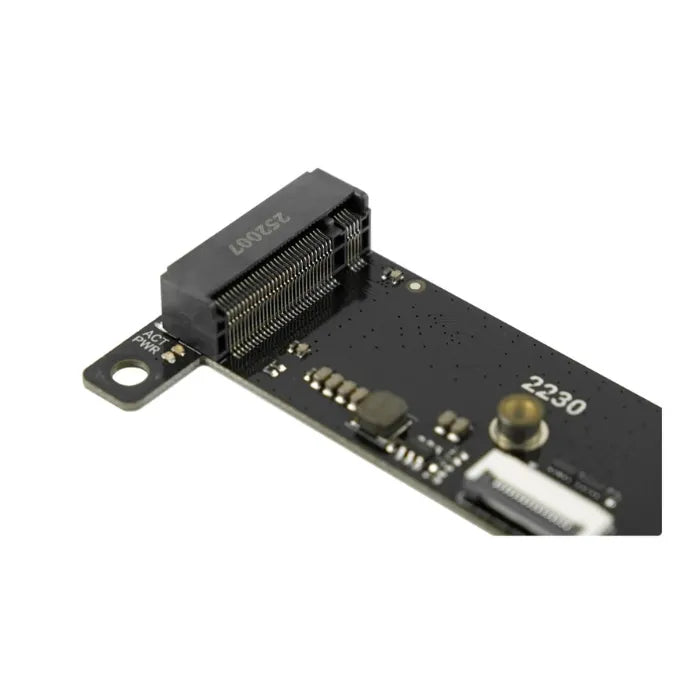

Supporting both 2230 and 2280 form factors, the board offers deployment flexibility. Users can choose from a wide range of NVMe SSDs and AI modules based on performance, capacity, or size needs 📐. This adaptability is ideal for custom embedded solutions or projects with unique constraints.

Supports Standard M.2 2230 / 2280 Form Factors

Simple Plug-and-Play Setup ⚙️

Installation is straightforward. The board connects via an FPC flex cable, and the M.2 device is automatically detected at startup 🔌. No complex drivers or manual configuration are required, making advanced hardware expansion accessible to all skill levels.

Important Notes 📢

  • Works exclusively with LattePanda IOTA
  • Supports NVMe SSDs only; SATA SSDs ❌ are not compatible
  • Max Data Rate: PCIe 3.0 ×1 (8 GT/s)



📌 Applications

  • Compact NAS or Home Server 🖥️: Build a small server with fast NVMe storage
  • Edge AI Development 🤖: Real-time object detection, facial recognition, or automation
  • High-Performance Embedded Systems ⚡: Responsive OS with large local storage
  • Advanced Robotics 🤖: Robots requiring low-latency data and on-device AI



📊 Specification

  • Compatible Board: LattePanda IOTA only
  • Expansion Interface: M.2 M-Key (PCIe x1)
  • Host Interface: 16-Pin FPC (0.5mm pitch)
  • Supported Devices: M.2 NVMe SSD, M.2 AI Accelerator Card
  • Supported Sizes: 2230 / 2280
  • Data Rate: PCIe 3.0 ×1 (8 GT/s)

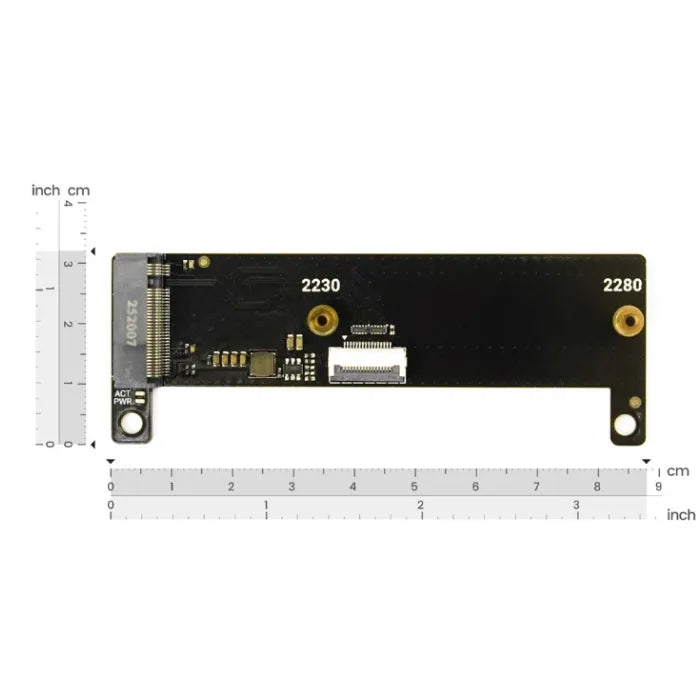

  • Board Dimensions: 88mm × 31.5mm 📏
  • Installation: FPC flex cable connection



📑 Documents



📦 Shipping List

  • M.2 M-Key Expansion Board x1
  • 16-Pin FPC Cable x1
  • M3 Hex Standoff x2
  • M3 Screw x2
  • M2 Screw (for M.2 2280 device mounting) x1
  • M2 Screw and Hex Standoff set (for M.2 2230 device mounting) x1
  • User Manual 📖 x1
