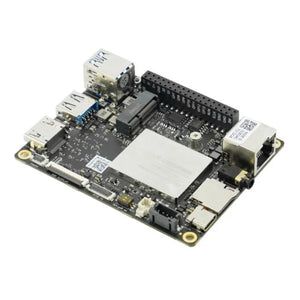

DFRobot LattePanda IOTA Palm-sized x86 Single Board Computer
💻 The LattePanda IOTA is a compact, high-performance x86 single-board computer (SBC) built to bridge rapid prototyping with commercial-grade deployment. As the evolution of the original LattePanda V1, it combines an Intel N150 processor with an RP2040 co-processor, delivering powerful computing in a small footprint 🚀. Highlights include fast LPDDR5 memory with IBECC for reliability, compatibility with Windows and Ubuntu, and multiple hardware options to suit different budgets. Ideal for industrial automation, smart gateways, robotics, and interactive digital projects.
🔄 Easy Upgrade: Same form factor as LattePanda V1
With its identical 88mm x 70mm size and interface layout, LattePanda IOTA makes upgrading simple—no enclosure redesign needed. This saves development time and ensures smooth project migration.
⚡ Performance Boost: 8x Faster
Equipped with the Intel Twin Lake N150 quad-core CPU (up to 3.6GHz) and LPDDR5 memory, LattePanda IOTA delivers up to 8x the speed of LattePanda V1, ensuring smooth multitasking and responsiveness for demanding workloads.
📏 Compact Palm-Sized Design
Measuring only 88mm x 70mm, LattePanda IOTA fits into tight spaces such as robots 🤖, smart terminals 📲, and portable inspection devices 🔍, expanding possibilities for embedded edge computing.
⚙️ Adjustable Power & Performance
LattePanda IOTA supports configurable TDP from 6W to 15W, allowing you to balance efficiency and performance:
- 🔇 6W mode: Silent, fanless operation for noise-sensitive environments.
- 💨 15W mode: With active cooling, full performance for heavy computing tasks.
🔌 Extensive I/O Connectivity
LattePanda IOTA comes with 3× USB 3.2 Gen2 (10Gbps), Gigabit Ethernet 🌐, HDMI 2.1 and eDP dual video outputs, plus M.2 E-Key and PCIe FPC expansion. Perfect for connecting multiple peripherals on one board.
🤝 Dual-Processor Setup
Alongside the Intel N150, LattePanda IOTA integrates an RP2040 co-processor with dual-core Arm Cortex-M0+, rich GPIOs, and real-time control features. Ideal for sensor data, motor control, or custom HID emulation, reducing CPU load and boosting responsiveness.
📦 Expansion Options
Boost LattePanda IOTA with dedicated expansion boards:
- UPS Expansion Board 🔋: Up to 8 hours runtime, auto power-on, safe shutdown.
- 51W PoE Expansion Board 🌐: Power and Gigabit data via one Ethernet cable.
- M.2 M-Key Expansion Board 💾: Add NVMe SSD storage or AI accelerator for edge computing.
- M.2 4G LTE Expansion Board 📡: Enable cellular connectivity for remote monitoring and mobile robots.
🎁 Recommended Accessories
For a complete setup, we suggest the LattePanda IOTA Accessories Kit, which includes heatsink, Wi-Fi modules, and essential components.
⚠️ Important Notice
- ❄️ Heatsink Required: Must be installed before first use to prevent overheating.
- 💻 No OS Included: Install your own licensed operating system (Windows, Ubuntu).
✨ Features
- Compact size and interface layout identical to LattePanda V1
- Intel N150 processor (up to 3.6 GHz, 4 cores / 4 threads)
- 16GB LPDDR5 memory with IBECC
- 128GB onboard eMMC storage
- Configurable TDP: 6W–15W
- Supports Windows 10, Windows 11, Ubuntu
- Interfaces: 3× USB 3.2 Gen2, Gigabit Ethernet, HDMI 2.1, eDP, M.2 E-Key, PCIe FPC
- Expansion options: NVMe/AI via M.2 M-Key, PoE, UPS, 4G LTE
📊 Specifications
- CPU: Intel® N150, quad-core / four threads, speeds up to 3.60 GHz ⚡
- Memory: 16GB LPDDR5 running at 4800MT/s with IBECC reliability 💾
- Internal Storage: 128GB eMMC 5.1 📦
- Video Outputs:
HDMI 2.1 supporting resolutions up to 4096 × 2160 @60Hz 🎥
eDP 1.4b, dual-lane, up to 1920 × 1080 @60Hz 🖥️ - USB Ports:
3× USB 3.2 Gen2 Type-A (10Gbps) 🔌
1× USB 2.0 header
1× USB Type-C PD 15V (power input only) - Networking: Gigabit RJ45 port with Wake-on-LAN support 🌐
- Expansion Interfaces:
M.2 E-Key 2230 slot
TF card slot
PCIe FPC connector - Secondary Processor: RP2040 MCU 🤝
- GPIO & Extra Features:
Up to 3 analog inputs 🎛️
Up to 16 digital I/O pins
1× UART
1× USB 2.0
PH2.0 4-pin connector for power
RTC battery connector 🔋
DIP switch
Power management connector
Fan header ❄️ - Audio: 3.5mm combo jack for microphone/headphones 🎧
- Supported OS: Windows 10, Windows 11, Ubuntu 22.04 & 24.04 💻
- Operating Environment: 0–60°C 🌡️; 0–80% relative humidity
- Power Options:
USB Type-C PD 15V

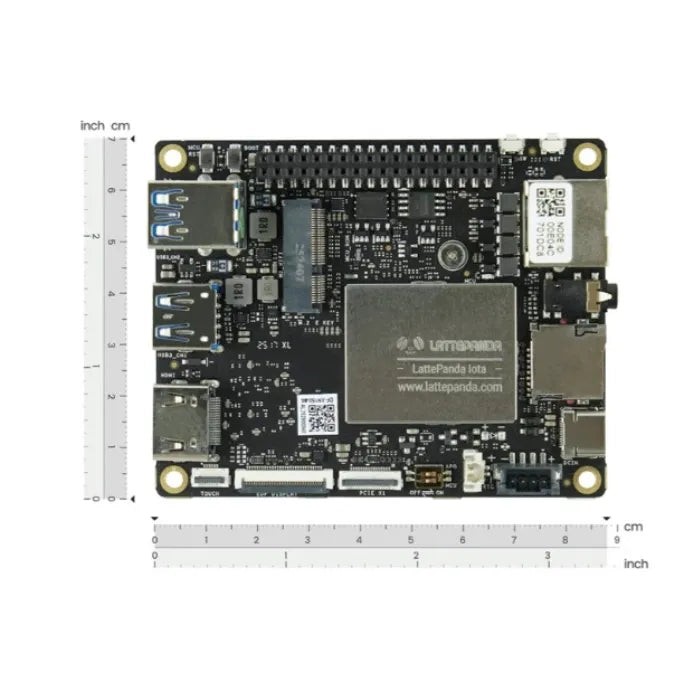

PH2.0 4-pin DC input (10–15V) - Dimensions: 88mm × 70mm × 19mm 📐
📑 Documents

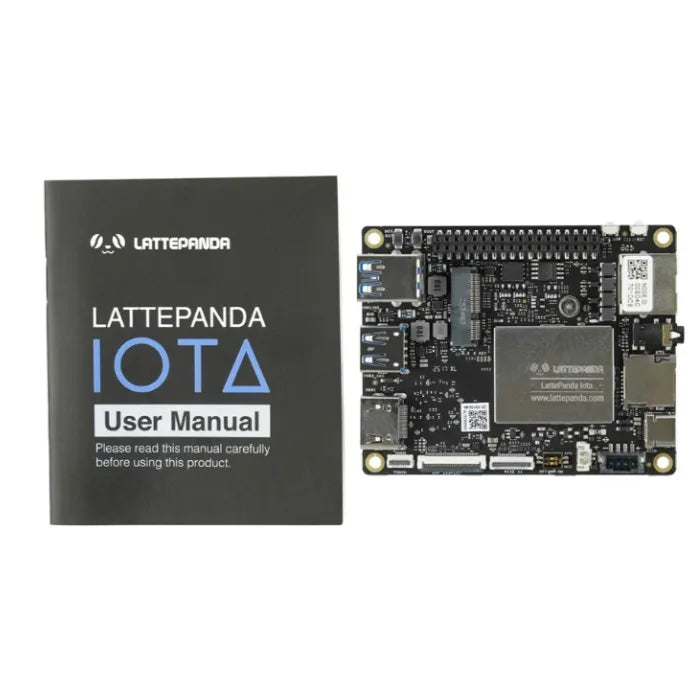

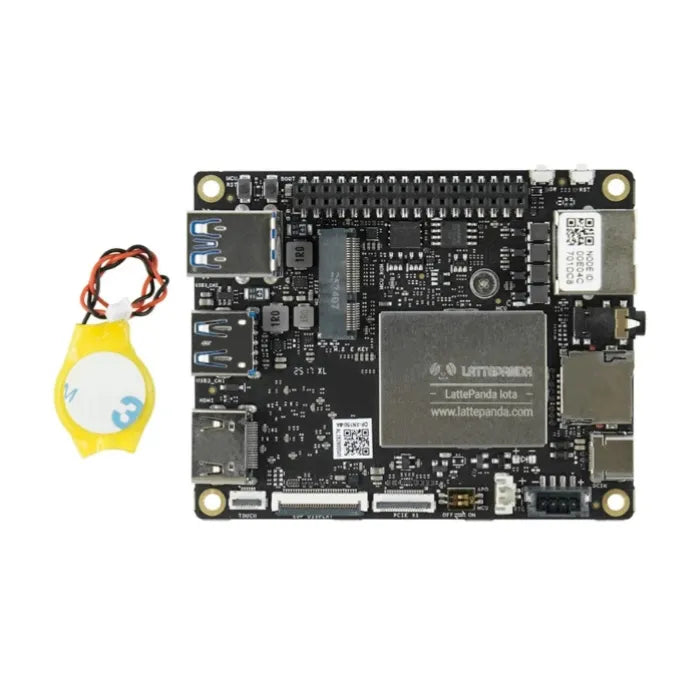

📦 Included in the Box
- LattePanda IOTA (N150 16GB/128GB) x1 💻
- CR2032 3V RTC Battery x1 🔋
- User Guide x1 📖
