Elecrow CrowPanel Advance 3.5"HMI AI Display for Meshtastic Without Case
Elecrow CrowPanel Advance 3.5"-HMI AI DisplayĀ is a powerful HMI touch display withĀ aĀ 480*320 resolution IPS screen. This Elecrow CrowPanel Advance uses theĀ ESP32-S3 chipĀ as the core processor. This chip is equipped with anĀ Xtensa 32-bit LX7 dual-core processorĀ with a main frequency of up toĀ 240MHz, equipped withĀ 512KB SRAM, 8M PSRAM and 16M Flash, providing the device with powerful data processing capabilities. The integratedĀ 2.4GHz Wi-Fi and BLEĀ functions, combined with theĀ built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 3.5-inch Elecrow CrowPanel Advance HMI AI Display ideal for HMI applications that need strong wireless connectivity. It supports theĀ Arduino IDE, Espressif IDF, and PlatformIO. This CrowPanel Advance is compatible with theĀ LVGLĀ graphics library and supportsĀ C++.
This 3.5-inch Elecrow CrowPanel Advance AI Display screen uses an IPS panel, and theĀ 178Ā°wide viewing angleĀ allows you to enjoy a vivid visual experience at any angle.Ā Capacitive touchĀ technology enables smooth, responsive interactions. It makes every touch accurate and intuitive.
A notable feature of the Elecrow CrowPanel Advance 3.5-inch AI Display is itsĀ integrated AI function. Users can interact by using the microphone and speaker. This includesĀ voice recognition and speech synthesis. They can have seamlessĀ conversations with smart assistantsĀ to get information.
With the SX1262 wireless module, this Elecrow CrowPanel Advance HMI AI Display can support access to theĀ Meshtastic networkĀ (An open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices). This Elecrow CrowPanel Advance is the Meshtastic version of the CrowPanel Advance display. The included SX1262 LoRa module allows this Elecrow CrowPanel Advance to access the Meshtastic network and talk to other Meshtastic devices.
This Elecrow CrowPanel Advance HMI AI Display integrates the latest Meshtastic technology,Ā optimized port layout, excellent display touch performance, andĀ larger storage space. These improvements enhance the flexibility and reliability of connectivity for the Elecrow CrowPanel Advance, provide users with more diverse choices and widerĀ application possibilities, and meet the stringent requirements of modern intelligent systems for remote monitoring and control. This 3.5" Elecrow CrowPanel Advance AI Display also supportsĀ tactility.Ā Click hereĀ to learn more.
Ā
Feature of Elecrow CrowPanel Advance HMI AI Display
- Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance for the Elecrow CrowPanel Advance;
- Main frequency up toĀ 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;
- 480*320 3.5ā for the Elecrow CrowPanel Advance, with driver IC ILI9488;
- IPS panel, 178Ā°wide viewing angle, supports capacitive touch;
- Intelligent AI function, equipped with speaker port and high-performance microphone, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis, making it an excellent AI Display;
- Built-in LVGL demonstration interface and Arduino examples, plug and play;
- The SX1262 wireless module supports access to theĀ Meshtastic network;
- Real-time clock function, ensuring the continuity and accuracy of system time in the event of power failure;
- The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.
Ā
CrowPanel Basic Series Compare With Elecrow CrowPanel Advance Series
Ā
Application scenarios for Elecrow CrowPanel Advance
- Industrial automation
- Smart city
- Smart home
- Medical equipment
- Agricultural technology
- Environmental monitoring
- Environmental monitoring
- Energy management
- Logistics and warehousing
- Retail and catering
- Education and research
Ā
Target Group for Elecrow CrowPanel Advance HMI AI Display
Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.
Ā
Specification for Elecrow CrowPanel Advance HMI AI Display
|
Main Chip-ESP32-S3-WROOM-1-N16R8 (Powering the Elecrow CrowPanel Advance) |
|
|
CPU/SoC |
high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz |
|
System Memory |
512KB SRAMć8M PSRAM |
|
Memory |
16M Flashļ¼384KB ROM |
|
Development Language |
C/C++ |
|
Development Environment |
ESP-IDFćArduino IDEćPlatformIOćLVGL |
|
Screen for Elecrow CrowPanel Advance |
|
|
Size |
3.5 inch |
|
Diver IC |
ILI9488 |
|
Resolution |
480*320 |
|
Display Panel |
IPS Panel |
|
Touch Panel |
Capacitive Single Touch |
|
Viewing Angle |
178Ā° |
|
Brightness |
400 cd/mĀ²(Typ.)Ā |
|
Color Depth |
16-bit |
|
Wireless Communication - Onboard Antenna for Elecrow CrowPanel Advance |
|
|
WiFi |
Support 2.4GHz, 802.11a/b/g/n |
|
Bluetooth |
Support Bluetooth 5.0 and BLE |
|
Other |
LoRa (Meshtastic capable) |
|
Interface/Function for Elecrow CrowPanel Advance |
|
|
Interface |
USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. |
|
Function |
RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc. |
|
Button/LED Indicator for Elecrow CrowPanel Advance |
Ā |
|
Reset Button |
Yes, press to reset the device |
|
Boot Button |
Yes, press and hold the power button to burn the program |
|
PWR |
Power indicator |
|
CHG |
Lithium battery charging status, completion indication |
|
Other features of Elecrow CrowPanel Advance |
|
|
Installation method |
Back hanging, fixed hole |
|
Operating temperature |
-20~70 Ā°C |
|
Storage temperature |
-30~80 Ā°C |
|
Power Input |
5V/2A, USB or UART terminal |
|
Dimensions |
101.4*63.3*15.8mm |
Ā
Wireless Module Details for SX1262(LoRa) for the Elecrow CrowPanel Advance
|
Pin |
Pin Direction |
Note |
|
DIO1 |
Input/Output |
Configurable general purpose IO ports |
|
SCK |
Input |
SPI Data Pin |
|
MISO |
Input |
SPI Data Pin |
|
MOSI |
Output |
SPI Data Pin |
|
3V3 |
Ā |
Power supply |
|
GND |
Ā |
Ground wire, connected to the power reference ground |
|
NRESET |
Output |
Chip reset trigger input pin, low level is effective |
|
DIO2 |
Input |
RF switch send/receive control pin, low level is receiving, high level is sending |
|
BUSY |
Output |
Used for status indication |
|
NSS |
Input |
Module chip select pin, used for SPI communication |
|
DIO3 |
Input/Output |
Configurable general purpose IO ports |
Ā
Antenna Performance for Elecrow CrowPanel Advance
|
Gainļ¼dBiļ¼ |
3.5dBi |
|
VSWR |
<=1.9 |
|
Input impedanceļ¼Ī©ļ¼ |
50 |
|
Polarization |
Vertical |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Wire Spec |
RF1.13 |
|
Wire length(cm) |
10cm |
|
Input connector type |
IPEX-1 |
|
Antenna weight(kg) |
0.01 |
|
Operating temperature |
-40ā~85ā |
Ā

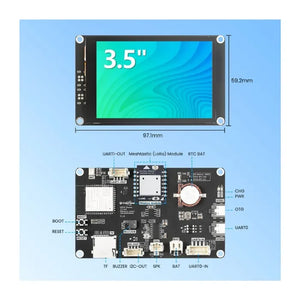

Display Pin Definition for Elecrow CrowPanel Advance
|
Pin |
Description |
Connector Type |
|
SPK |
Output audio signal and connect to speakers. The mainboard has a power amplifier chip circuit. |
PH2.0-2P |
|
PWR |
Power LED |
Ā |
|
RST |
Reset button. Press it to reset the system. |
Ā |
|
BOOT |
Ā |
Ā |
|
UART0-OUT |
Build communication between Logic modules, including serial communication module and printing module. |
HY2.0-4P |
|
UART0-IN |
Ā |
XH2.54-4P |
|
I2C-OUT |
Establish communication between the microcontroller and peripheral devices. |
HY2.0-4P |
|
BAT |
Connect lithium battery. (With battery charging circuit) |
PH2.0-2P |
For more pin functions, seeĀ Wiki for Elecrow CrowPanel Advance.
Ā

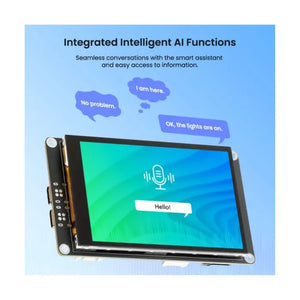

Integrated Intelligent AI Functions on Elecrow CrowPanel Advance HMI AI Display
Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information, making it a powerful AI Display.

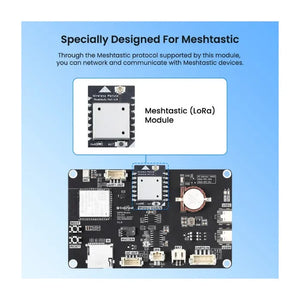

Elecrow CrowPanel Advance Screen + MUI = Instant Meshtastic Messaging Device
Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options for Elecrow CrowPanel Advance
By replacing the module, the Elecrow CrowPanel Advance supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6. One Elecrow CrowPanel Advance screen can meet various wireless communication requirements, including Meshtastic functionality.
Note:Ā PleaseĀ click hereĀ if you need to buy the display with other wireless modules.
IPS Panel With 178Ā°Wide Viewing Angle on Elecrow CrowPanel Advance
The 178Ā°wide viewing angle allows you to enjoy a vivid visual experience at any angle on the Elecrow CrowPanel Advance HMI AI Display.
Support Multiple Development Environments for Elecrow CrowPanel Advance
It supports multiple development environments, such as Arduino IDE, Espressif IDF, and PlatformIO, and development languages, such as C++, to meet the needs of different developers and make every project possible with the Elecrow CrowPanel Advance.

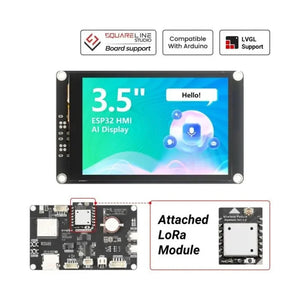

Support Open Source Graphics Library - LVGL on Elecrow CrowPanel Advance
It supports the LVGL graphics library, and you can design various UIs for the Elecrow CrowPanel Advance.
Design And Build UI Easily With SquareLine Studio for Elecrow CrowPanel Advance
Easily design and build your own LVGL UI with SquareLine Studios, simplifying design and development on the Elecrow CrowPanel Advance HMI AI Display.
Squareline Vision has entered BETA, sign up now to get 40% off all licenses.Ā https://vision.squareline.io/
Connect With More Than 150+ Crowtail Sensors with Elecrow CrowPanel Advance
Ā
Application Scenario for Elecrow CrowPanel Advance
It is suitable for various scenes such as automotive HMI, medical equipment, drone control, camera control, smart home, home automation, industrial control, civil electronics,Ā Ā smart agriculture, environmental monitoring and IoT application devices, making the Elecrow CrowPanel Advance highly versatile.
Ā

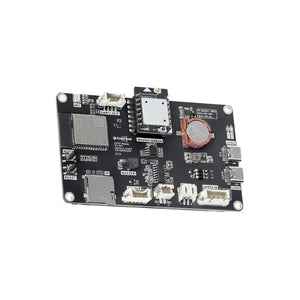

Hardware Overview of Elecrow CrowPanel Advance
Ā
Package List for Elecrow CrowPanel Advance
- 1x Elecrow CrowPanel Advance ESP32 Display-3.5 inch
- 1x Wireless Module-Meshtastic( with 868Mhz/915MHz Copper Tube Spring antenna) Optional
- 1x USB-A to Type-C Cable
- 1x Crowtail/Grove 4pin DuPont cable
- 1x Antenna
