Elecrow LR1302 LoRaWAN Gateway Module SPI US915 SX1302 Long Range

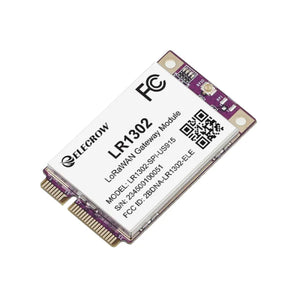

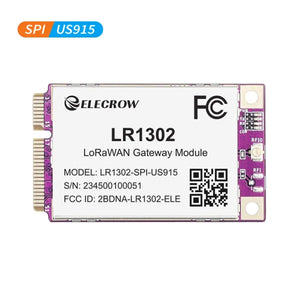

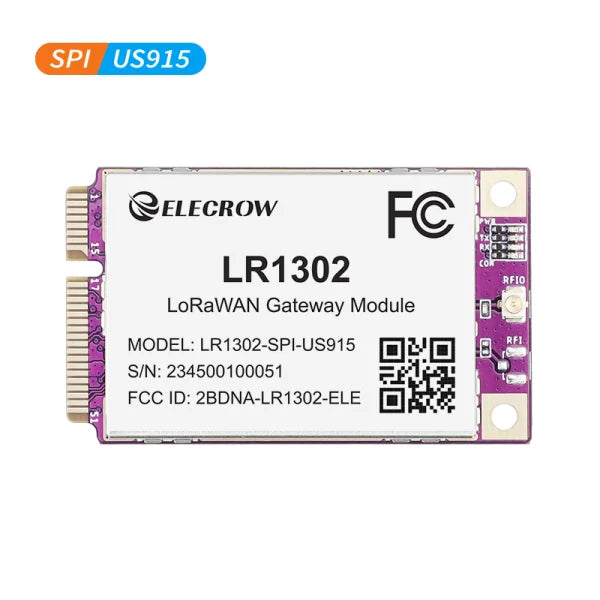

This LR1302 module is a next-generation LoRaWAN® gateway module. It adopts a mini-PCIe form factor design and features low power consumption combined with high performance. Based on the Semtech SX1302 LoRaWAN® baseband chip, the LR1302 gateway module provides gateway products with massive capacity for long-distance wireless transmission. Compared to previous SX1301 and SX1308 chips, the SX1302 chip offers higher sensitivity, lower power consumption, and lower operating temperatures. It supports 8-channel data transmission, significantly improving communication efficiency and capacity while supporting the simultaneous connection of more IoT devices.
The module reserves two antenna interfaces: one dedicated to transmitting and receiving LoRa signals and one U.FL (IPEX) interface for independent transmission. It also features a metal shield to protect against external interference and provide a highly reliable communications environment.
The LR1302 LoRaWAN® gateway module is available in both SPI and USB versions, covering the US915 and EU868 frequency bands, giving you a versatile range of LoRaWAN® frequency solutions.
Designed specifically for the IoT space, the LR1302 is suitable for a wide variety of IoT applications. Whether utilized in smart cities, smart agriculture, industrial automation, or other specialized fields, the LR1302 module provides reliable connections and efficient data transmission.

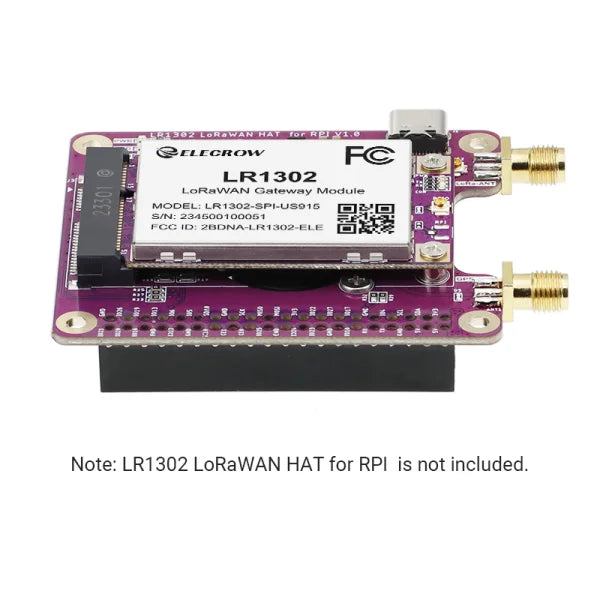

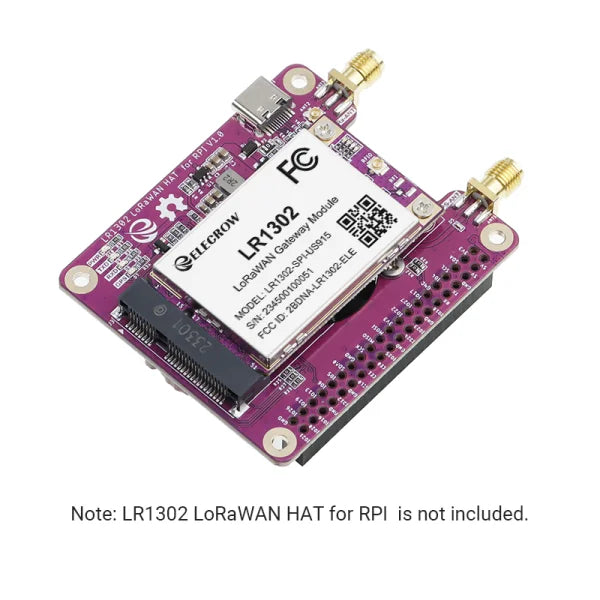

Application Example
Note: This package does not include Raspberry Pi, GPS module, Gateway HAT, IPEX cables, or antennas.
Features
- Uses Semtech® SX1302 baseband LoRa® chip with extremely low power consumption and excellent performance;
- Mini-PCIe form factor and compact design make it easier to integrate into various gateway devices, ideal for space-constrained IoT application scenarios;
- 8-channel support for data transmission, providing higher communication efficiency and network capacity;
- Ultra-low operating temperature removes the need for additional cooling solutions and reduces the overall size of the LoRaWAN® gateway;
- Integrates SX1250 TX/RX front end with sensitivity reaching -139 dBm @SF12; TX power up to 26 dBm @3.3V;
- FCC certified, simplifying the certification process for final commercial products.
Technical Specifications
|
Region |
EU868 |
US915 |
|
Frequency |
863-870MHz |
902-928MHz |
|
Chipset |
Semtech SX1302 Chip |
|
|
Sensitivity |
-125dBm @125K/SF7 |
-125dBm @125K/SF7 |
|
TX Power |
26 dBm (with 3.3V power supply) |
25 dBm (with 3.3V power supply) |
|
Bandwidth |
125/250/500 kHz |
|
|
Channels |
8 channels |
|
|
LED Indicators |
Power: Green | Config: Red | TX: Green | RX: Blue |
|
|
Form Factor |
Mini PCIe, 52-pin Golden Finger |
|
|
Power Consumption (SPI) |
Standby: 7.5 mA |
|
|
Power Consumption (USB) |
Standby: 20 mA |
|
|
LBT (Listen Before Talk) |
Supported |
|
|
Antenna Connector |
U.FL |
|
|
Operating Temp |
-40°C to 85°C |
|
|

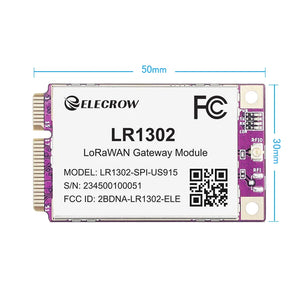

Dimensions |
30 mm (W) × 50.95 mm (L) |
|

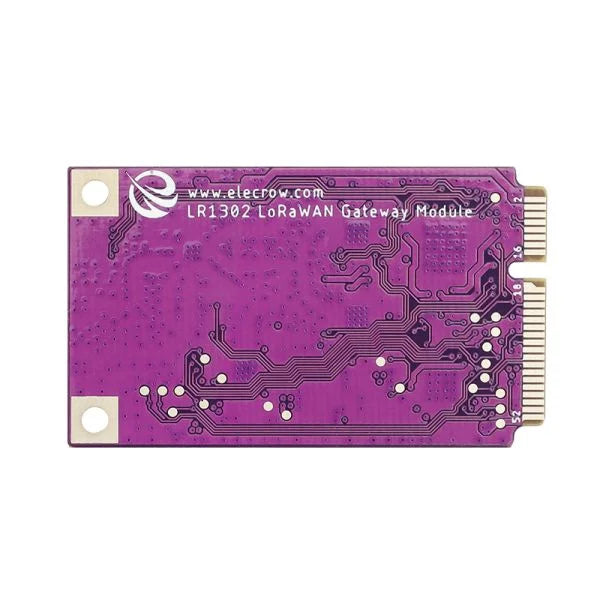

Hardware Overview
Interface Functions
Package List
- 1x LR1302 LoRaWAN Gateway-US915
