Home ELEGOO Saturn 4 Ultra 16K SLA Resin 3D Printer 150mm/h 5.5s Each Layer (Pre-sale)

ELEGOO Saturn 4 Ultra 16K SLA Resin 3D Printer 150mm/h 5.5s Each Layer (Pre-sale)

New
Sale price $668.99
SKU: Elegoo-S4U16K

📦 Location of the warehouse: China

Free Shipping from $50 in the US, $70 for non-continental US

- US Delivery Time: 2~7 Business days.

- Non-Continental US Delivery Time: 3~9 working days.

- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.

- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.

Visa
PayPal
Mastercard
American Express
Shop Pay
ELEGOO Saturn 4 Ultra 16K SLA Resin 3D Printer 150mm/h 5.5s Each Layer (Pre-sale)

ELEGOO Saturn 4 Ultra 16K SLA Resin 3D Printer 150mm/h 5.5s Each Layer (Pre-sale)

$668.99

The ELEGOO Saturn 4 Ultra 16K is a next‑generation MSLA resin 3D printer featuring a 10‑inch 16K monochrome LCD, delivering exceptional detail with 15120 × 6230 resolution and 14 × 19 µm XY precision. With Tilt Release Technology, the printer achieves speeds up to 150 mm/h, enabling 5.5‑second layer times under fast‑mode settings.

The upgraded AI camera provides real‑time monitoring, empty‑plate detection, warp detection, and timelapse recording, improving reliability and workflow visibility. Additional smart features include auto‑leveling, smart 30 °C resin tank heating, resin shortage alarm, residue detection, LED over‑temperature protection, power‑loss resume, and dual‑band Wi‑Fi for multi‑printer management.

适用于 Saturn 4 Ultra 16K 10英寸单色液晶屏 全新自动USB/WiFi断电恢复打印 倾斜释放技术 3D模型适用于 Saturn 4 Ultra 16K 10英寸单色液晶屏 全新自动USB/WiFi断电恢复打印 倾斜释放技术 3D模型适用于 Saturn 4 Ultra 16K 10英寸单色液晶屏 全新自动USB/WiFi断电恢复打印 倾斜释放技术 3D模型适用于 Saturn 4 Ultra 16K 10英寸单色液晶屏 全新自动USB/WiFi断电恢复打印 倾斜释放技术 3D模型适用于 Saturn 4 Ultra 16K 10英寸单色液晶屏 全新自动USB/WiFi断电恢复打印 倾斜释放技术 3D模型适用于 Saturn 4 Ultra 16K 10英寸单色液晶屏 全新自动USB/WiFi断电恢复打印 倾斜释放技术 3D模型

Features

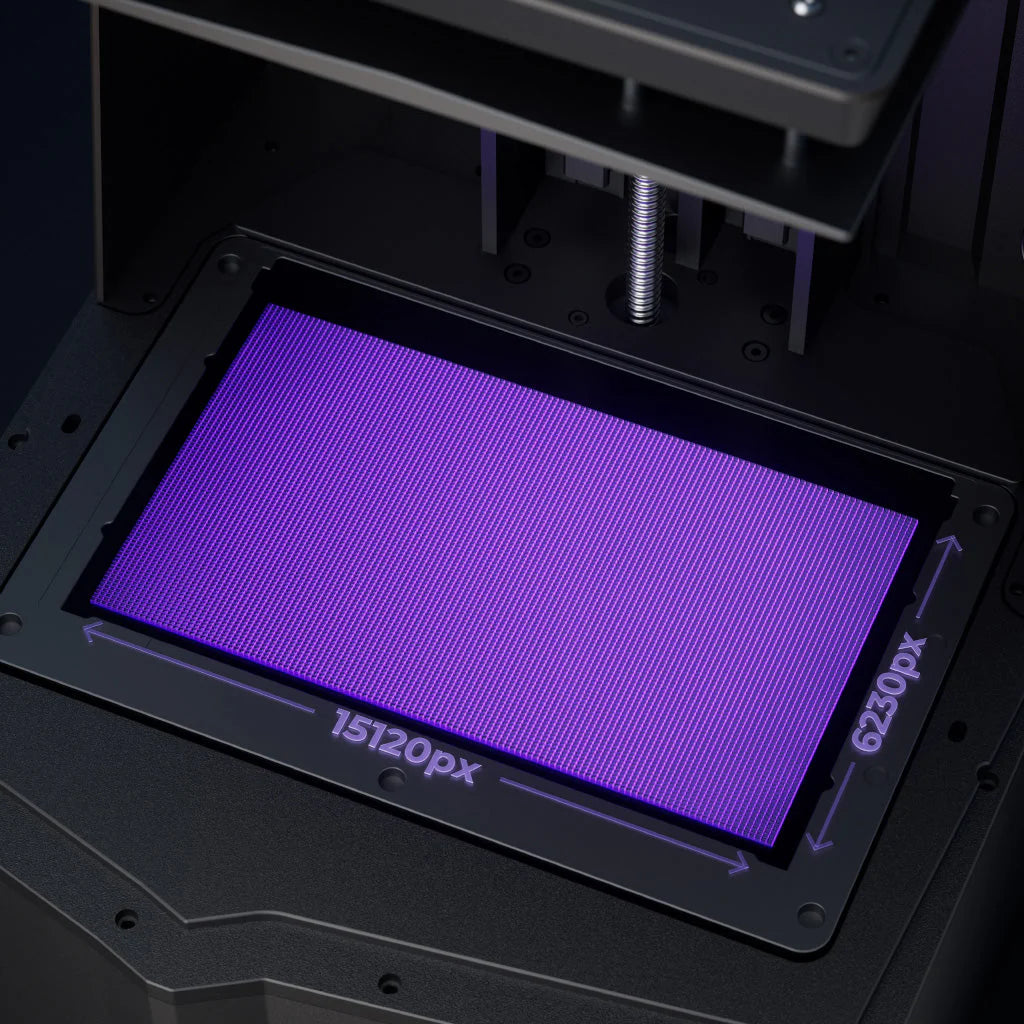

  • 10‑inch 16K mono LCD for ultra‑high precision

  • 15120 × 6230 resolution, 14 × 19 µm XY accuracy

  • 150 mm/h max speed with Tilt Release Technology

  • 5.5 s per layer (fast‑mode)

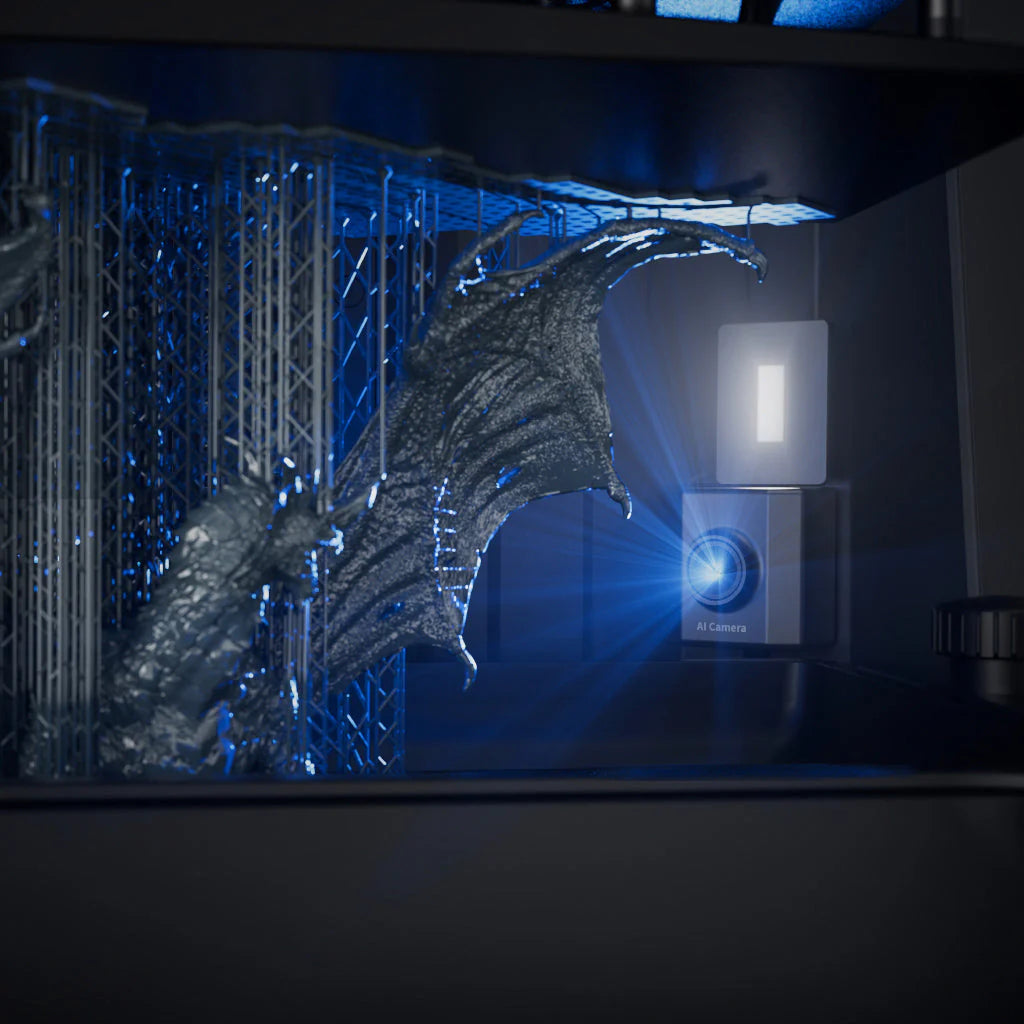

  • AI camera with monitoring, alerts & timelapse

  • Auto‑leveling, plug‑and‑play operation

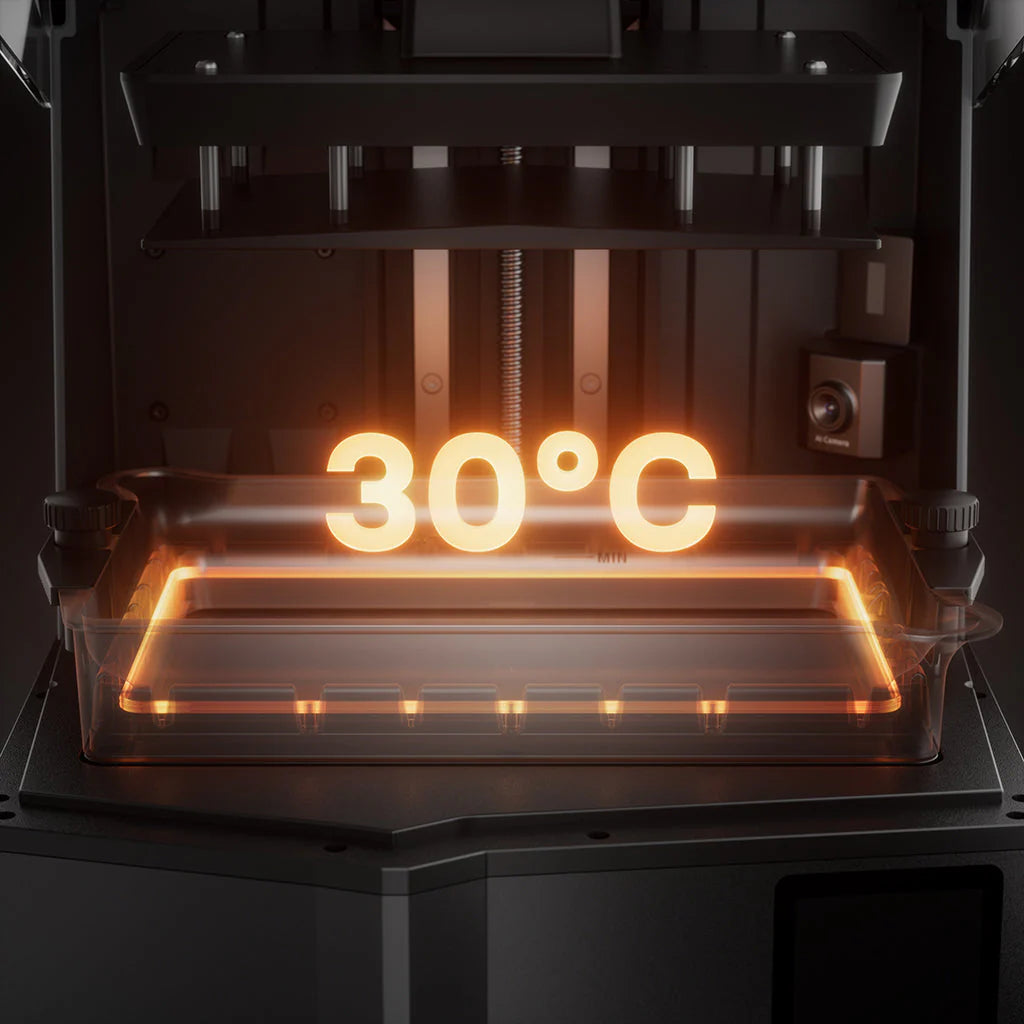

  • Smart resin tank heating (30 °C)

  • Resin shortage / residue / leveling failure alarms

  • LED over‑temperature protection

  • Power‑loss resume

  • Dual‑band Wi‑Fi, OTA firmware updates

  • Smart UI, 12‑language support



Saturn 4 Ultra Series Comparison

Category Saturn 4 Ultra 16K Saturn 4 Ultra
LCD Screen 10‑inch 16K Mono LCD 10‑inch 12K Mono LCD
Resin Tank Smart Heating Tank Standard Tank
AI Camera New AI Camera with Light AI Camera
Light Source COB Light Source + Fresnel Collimating Lens COB Light Source + Fresnel Collimating Lens
Operating Screen 4.0‑inch Capacitive Touch Screen 4.0‑inch Capacitive Touch Screen
Build Plate Laser‑Engraved Laser‑Engraved
Release Film PFA PFA
Build Volume 211.68 × 118.37 × 220 mm 218.88 × 122.88 × 220 mm
Printing Technology MSLA MSLA
XY Resolution 14 × 19 μm (15120 × 6230) 19 × 24 μm (11520 × 5120)
Z‑axis Accuracy 0.02 mm 0.02 mm
Layer Thickness 0.01–0.2 mm 0.01–0.2 mm
Printing Speed 150 mm/h Max Speed
Fast/Slow Modes
150 mm/h Max Speed
Fast/Slow Modes
Release Technique Tilt Release Tilt Release
Leveling Method Auto Leveling Auto Leveling
Exposure Setting Section‑Based Section‑Based
System EL3D‑4.0 EL3D‑4.0
Connectivity USB & Built‑in Wi‑Fi USB & Wi‑Fi Antenna
OTA Firmware Upgrade Supported Supported
Language Support Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese Same
Slicing Software SatelLite & Chitubox SatelLite & Chitubox
Heat Dissipation 4 Copper Heat Pipes + Single Fan 4 Copper Heat Pipes + Single Fan
Air Purifier USB Unavailable; Compatible with Mars Mate USB Unavailable; Compatible with Mars Mate
Power Requirements 100–240 VAC, 50/60 Hz, 24V 6A 100–240 VAC, 50/60 Hz, 24V 6A
Printer Dimensions 327.4 × 329.2 × 548 mm 327.4 × 329.2 × 548 mm
Net Weight 16.1 kg 14.5 kg
Gross Weight 18.7 kg 19.3 kg



Specifications

Item Details
LCD Screen 10‑inch 16K Mono LCD
Resolution 15120 × 6230 (14 × 19 µm XY)
Build Volume 211.68 × 118.37 × 220 mm
Printing Speed Up to 150 mm/h
Layer Time 5.5 s (fast mode)
Leveling Auto‑leveling
Release Technology Tilt Release
Camera AI camera with light
Connectivity USB & dual‑band Wi‑Fi
System OTA updates, smart UI, 12 languages
Safety Resin shortage alarm, residue detection, LED temp alarm
Power‑loss Recovery Supported
