Elephant Robotics Mercury B1 Dual Arm 7-DOF Semi Humanoid Robot
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.

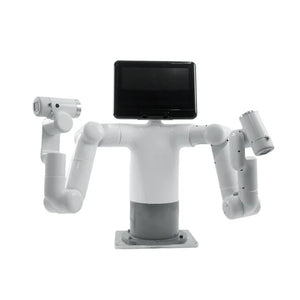

Elephant Robotics Mercury B1 Dual Arm 7-DOF Semi Humanoid Robot
🌐 Product Introduction: Elephant Robotics Mercury B1 Dual Arm 7-DOF Semi-Humanoid Robot
The Mercury B1 is a dual-arm semi-humanoid robot developed by Elephant Robotics, featuring two 7-degree-of-freedom collaborative arms. It is designed for advanced research, industrial applications, and interactive scenarios where human-like dexterity and coordination are required. With powerful AI computing, precision mechanics, and an open-source ecosystem, the Mercury B1 represents a new generation of embodied intelligence.
🔧Features
-
Dual 7-DOF Arms: Enables complex bimanual tasks, precise coordination, and human-like manipulation.
-
“Power-Spring” Harmonic Joint Module:
-
Integrated brakes and hollow cable routing.
-
Maximum torque output: 20 Nm.
-
Lightweight yet high precision for smooth motion.
-
-
NVIDIA Jetson Orin Nano (8GB) Control Module:
-
Delivers 40 TOPS AI performance, nearly double the previous generation.
-
Supports advanced perception, navigation, and planning algorithms.
-
Enhanced connectivity with CAN FD and multiple UART channels.
-
-
Carbon Fiber Arm Shell: Reduces weight while optimizing strength and efficiency.
-
Multi-Sensor Fusion: Combines vision, lidar, ultrasonic radar, and voice sensors for 3D machine intelligence.
-
Mobile Base Integration (Optional): Compatible with wheeled platforms for extended mobility and endurance.
POWER SPRING” Robot Joint
All Mercury Robots now feature Elephant Robotics' newly developed Power-Spring" harmonic module. This innovative modular design comes standard with brakes and hollow cable routing, offering high precision, high inertia, and low weight. It delivers a maximum output torque of 20 Nm. The carbon fiber robotic arm shell further reduces overall weight and optimizes power performance.

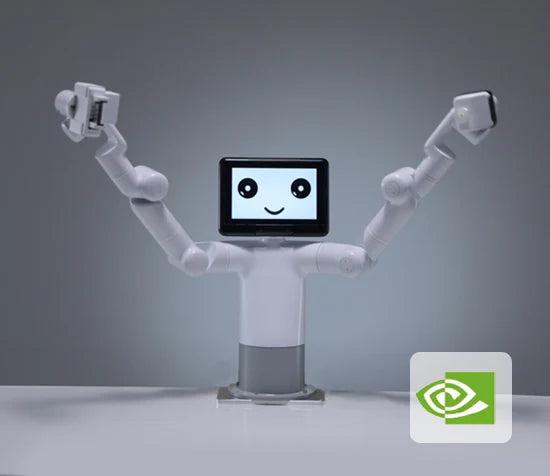

NVIDIA Computing Power
Mercury B1 and X1 humanoid robots now feature the NVIDIA Jetson Orin Nano (8GB core) as their main control module. This upgrade significantly boosts AI performance to 40 TOPS, nearly double the previous 21 TOPS, thanks to its 7nm process and Ampere architecture. This powers advanced perception, navigation, and planning algorithms. The Orin Nano offers greater computational flexibility with versatile Tensor Cores for complex, multi-modal AI tasks. Its CAN FD and more UART channels also improve robot motion control and industrial connectivity, unlocking endless possibilities for embodied intelligence.
Wheeled Humanoid Robot
Mercury Robot X1 is equipped with a high-efficiency wheeled mobile base for its high-performance arms. The mobile platform includes lidar, ultrasonic radar and visual guidance systems. The entire machine has a motion endurance of up to 8 hours, which can truly complete reliable mobile operations.
Diverse Software Ecosystem
The Mercury robot series adheres to the open source tradition of Elephant software and supports a rich software ecosystem and mainstream programming languages. It also supports mainstream simulation software including ROS, Moveit, Gazebo and Mujoco to improve the autonomous learning and rapid iteration capabilities of machine intelligence.
Support secondary development
Pymycobot is a general-purpose Python control library designed to support several elephant robots The robot provides a simple and flexible interface to facilitate developers to enter the robot Line control.
C++ API - Mercury
The Mercury API is a C++ control interface designed specifically for the Mercury robot. Simple and easy to use, it provides flexible control of robot joints, attitude and actuators, helping developers quickly implement different systems Robot-like applications.
7 Integrated Algorithms To Create
For the first time, the Mercury robot product series integrates seven intelligent algorithms to overall improve the kinematics and dynamics performance of the robotic arm, suppress vibration, and ensure smooth coordination of both arms. Deep integration with vision, laser and voice sensors creates three-dimensional machine intelligence in an all-round way with the support of LLM.
Unleash The Power Of Mercury Effortlessly
myPanel
The built-in "myPanel" of the Mercury A1 robotic arm is paired with a two-inch touch screen to enable rapid teaching, programming, deployment and debugging of the robotic arm without any additional hardware equipment.
myBlockly
The new myBlockly innovatively develops a dual editing column function, which can be used to quickly program the left and right arms with preset shortcut commands, achieving efficient collaboration of 1+1>2.
Real-Time Exoskeleton Controller Manipulation
Paired with the myController S570 exoskeleton controller, it achieves 1:1 motion replication for precise control. This frees robot movements from the constraints of code, making actions smoother and more fluid. It meets the needs of various scenarios, such as embodied intelligence data collection and remote robot operation.
Expands Unlimited Scenarios
Education
Scientific Research
Commercial
📊 Technical Specifications — Mercury B1
| Feature | Specification |
|---|---|
| Product Model | Mercury B1 |
| Product Size | 200 × 192.5 × 537 mm |
| Working Voltage | 24 V |
| Degrees of Freedom | 17 DOF |
| Maximum Working Radius | 450 mm |
| Maximum Load | 1 kg |
| Net Weight | 8 kg |
| Repeatability | ± 0.05 mm |
| Reduction Mechanism | Harmonic Reducer |
| Joint Brake | Electromagnetic Friction Plate |
| CPU | 6-Core Arm®v8.2 64-bit CPU |
| GPU | 384-Core Volta™ Architecture GPU |
| AI Performance | 21 TOPS |
| Screen | 9-inch Touchscreen |
| Material | Carbon Fiber, Aluminum Alloy, Engineering Plastics |
| 3D Camera | Orbbec Deeyea |
| Microphone | Line Array (4 microphones), 5 m / 180° pickup |
| I/O | 24 V — 6 Inputs, 6 Outputs |
| Communication | CAN Bus / Wi-Fi / Network Port / Bluetooth / USB Serial Port |
