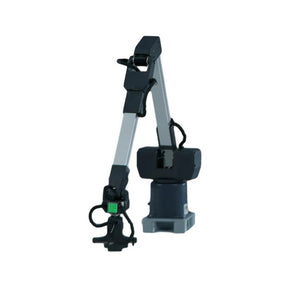

Elephant Robotics myArm C650 Universal 6 DOF Robot
Experience precision motion capture with the myArm C650, an advanced 6-degree-of-freedom teach pendant engineered for comprehensive motion data acquisition. Featuring ergonomic fingertip controls and dual smart buttons, this controller transmits endpoint coordinates and joint angles at an impressive 50Hz refresh rate. Perfect for academic institutions, research laboratories, and industrial data gathering applications, its adaptable modular architecture enables sophisticated multi-task operations. Expandable to 7-DOF configuration for enhanced functionality.
Key Applications:
- Educational Platform: Remote operation and control of standard, advanced, and industrial-grade robotic systems.
- Academic Research: Algorithm verification and validation for robotic kinematics and motion planning.
Advanced Sensing and Precision Control
Built with integrated sensors for continuous monitoring of motion parameters including position tracking and velocity measurement, this robotic controller features intelligent anomaly detection for operational safety. The innovative 6+1-axis configuration replicates natural human arm movements, delivering exceptional control across multiple angles and directions for complex manipulation tasks.
Versatile Task Management
With an extended 750mm reach optimized for object manipulation and a robust load capacity supporting 500g continuous operation with 1000g peak capability, the myArm M750 excels at everyday applications. From textile folding and library organization to beverage preparation, this system handles a wide spectrum of household and light industrial operations.
Cross-Platform Compatibility Hub

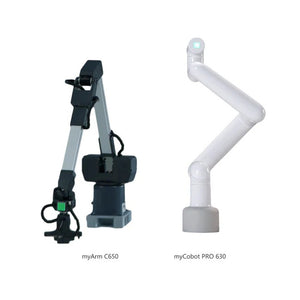

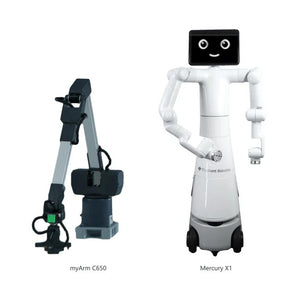

The myArm C650 serves as a universal interface compatible with multiple robotic platforms including the myArm M750, myCobot 630 featuring full harmonic drive motors, and Mercury X1 with synchronized dual-arm coordination. This versatile control solution unlocks limitless automation possibilities across diverse applications.
Software Development Integration
The myArm product line delivers exceptional value for educational curricula and research projects, offering seamless integration with industry-standard Python and ROS frameworks. These powerful development platforms provide comprehensive toolsets, empowering researchers and developers to implement advanced applications in machine learning, AI experimentation, sophisticated motion algorithms, and computer vision processing.
Core Capabilities

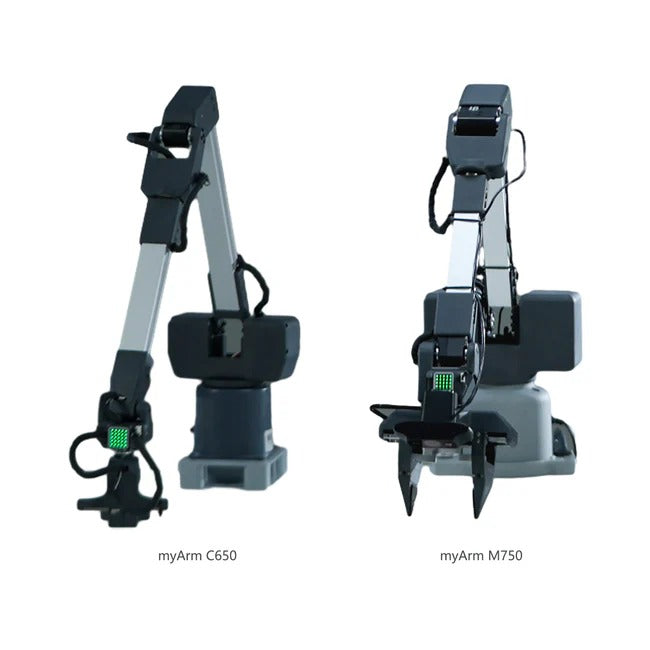

Technical Comparison
| Specification | myArm C650 | myArm M750 |
|---|---|---|
| Degree of Freedom | 6+1 | 6+1 |
| Payload | - | 500g |
| Working Load | - | 500g Load Capacity, 1000g Maximum Load |
| Working Radius | 650mm | 750mm |
| Total Span | 1300mm | 1500mm |
| Positioning Accuracy | ±1mm | ±1mm |
| Accuracy | 5 – 8mm | 5 – 8mm |
| Weight | 1.95kg | 4.5kg |
| Number of Steering Gears | 8 | 8 |
| Steering Gear Type | High precision digital servo motor | Industrial grade high-precision digital servo motor |
| Power Specifications | 12V5A | 24V9.2A |
| Joint Maximum Rotation | +/- 180° | +/- 180° |
| End Effector | Dual-finger touch control + dual-button operation | Parallel gripper compatible with optional camera |
| USB Connection | Type-C | Type-C |
| Atom Tip | 5x5 LED matrix | 5x5 LED matrix |
| Communication Frame Rate | >50Hz | >50Hz |
| Programming | Python + ROS | Python + ROS |
Package Contents
| myArm C650 | myArm C650 X1 |
|---|---|
| USB Data Cable X1 | |
| 12V 5A Power Adapter X1 | |
| myArm M750 | myArm M750 X1 |
| USB Data Cable X1 | |
| 24V 5A Power Adapter X1 | |
| J6 Joint Lego Interface Adapter X1 | |
| Mercury X1 | myArm C650 X2 |
| Mercury X1 Humanoid Robot X1 | |
| Product Manual X1 | |
| 24V 5A Power Adapter X1 | |
| Screw Kit X1 | |
| myCobot Pro 630 | myCobot Pro 630 Robotic Arm X1 |
| myArm M750 X1 | |
| 48V Power Adapter X1 | |
| Mounting Base Plate X1 | |
| Emergency Stop Switch X1 | |
| Fixed Base Plate G-clamp X2 | |
| M8 Air Plug Cable X1 | |
| 24V 5A Power Adapter X1 | |
| Back Head M6 Screws X8 | |
| M5 Wrench X1 | |
| M2 WrenchX1 | |
| 8Pin Plug-in Terminal Block X2 | |
| 4Pin Plug-in Terminal Block X1 |
