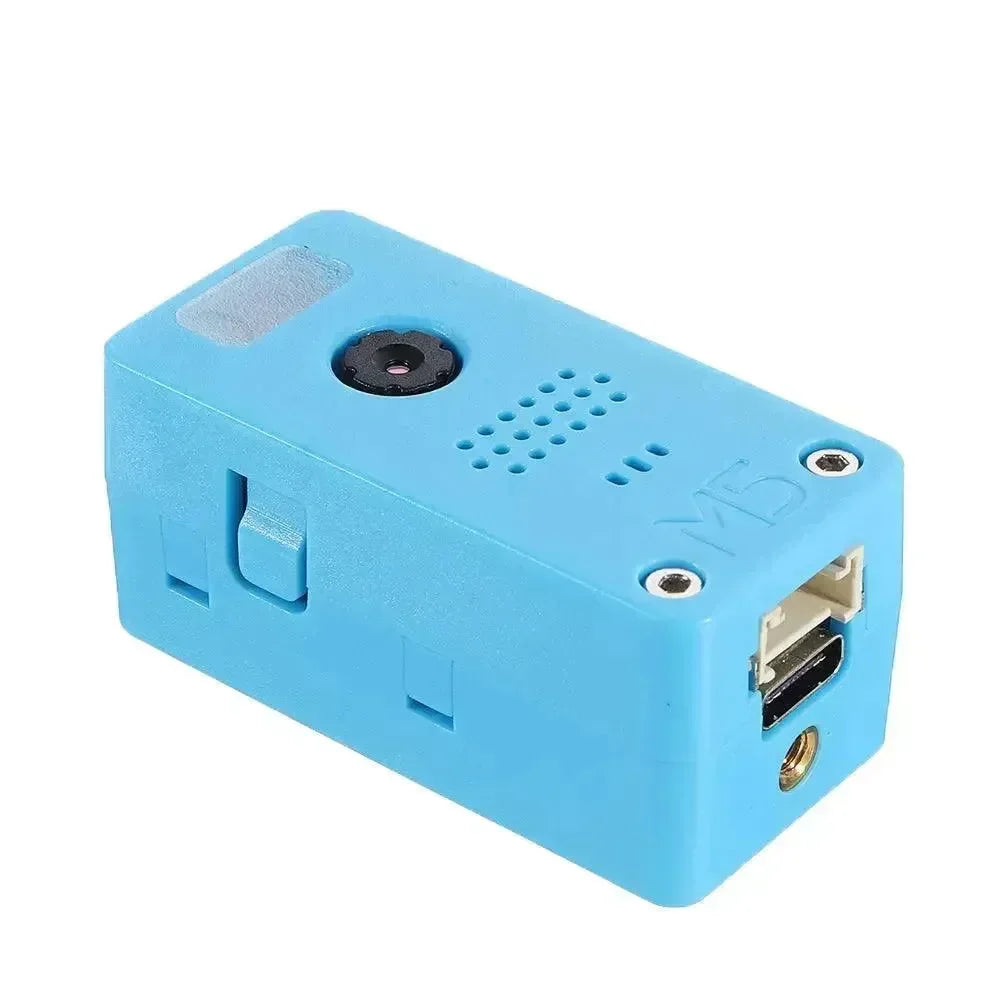

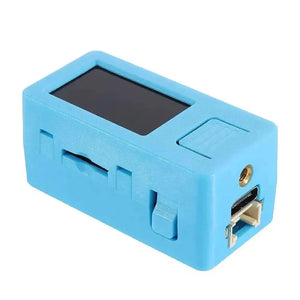

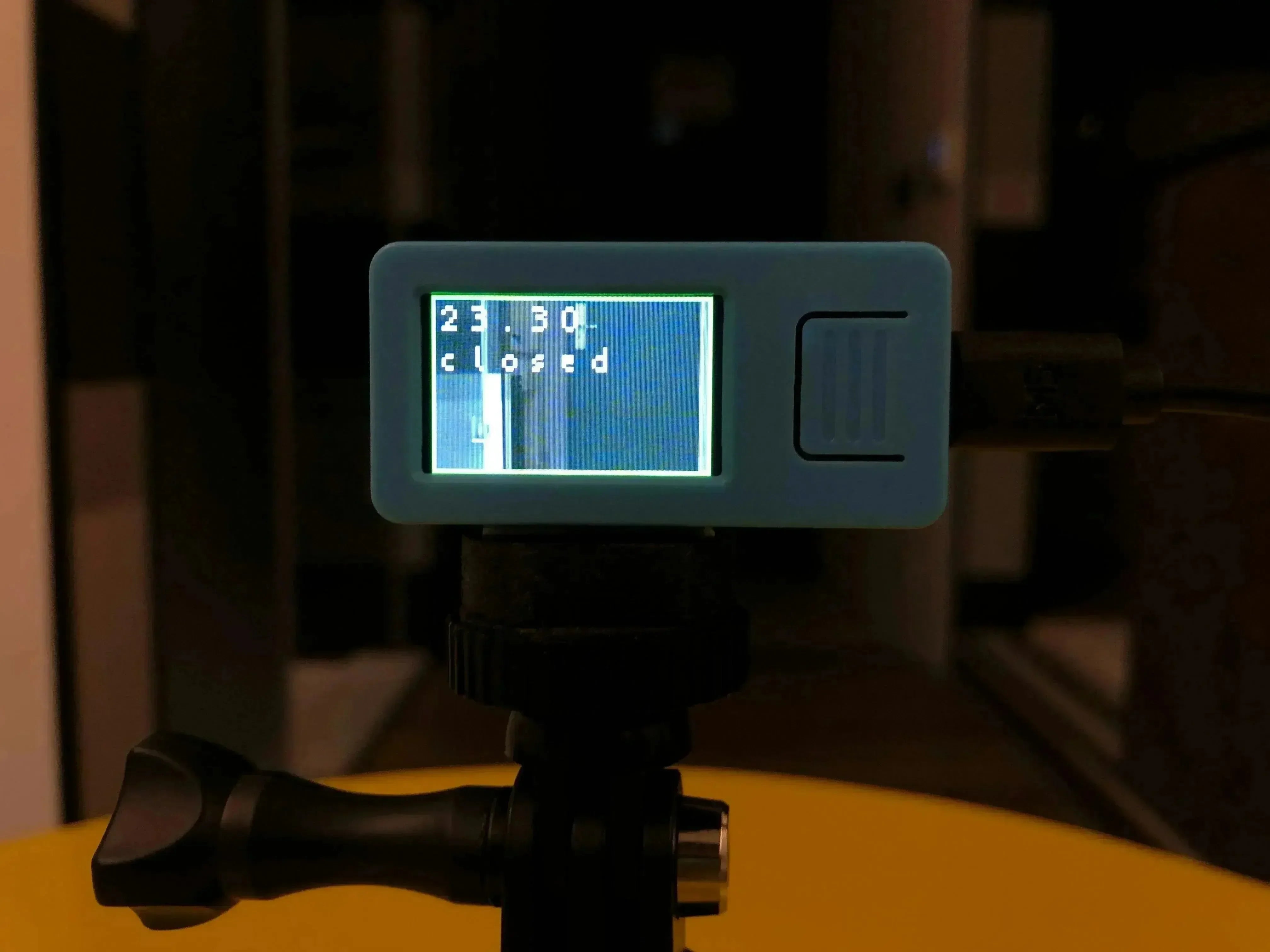

(EOL) M5Stack M5StickV K210 AI Camera (Without Wifi)
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
(EOL) M5Stack M5StickV K210 AI Camera (Without Wifi)
📸 M5StickV AI Camera: Smart Vision at the Edge
Say hello to the M5StickV, our latest AIoT camera module powered by the Kendryte K210 — a cutting-edge edge computing SoC featuring a dual-core 64-bit RISC-V CPU and a built-in neural network processor. 🚀
👁️ Machine Vision That Sees It All
This tiny powerhouse is equipped with:
-
🎥 OmniVision OV7740 image sensor
-
🌌 OmniPixel®3-HS technology for low-light vision
-
🎯 Real-time tracking of target size, type, and coordinates
Whether you're building a smart robot or a vision-based IoT device, the M5StickV delivers robust identification capabilities with ease. 🧠
🔊📺 Packed with Features
-
🔈 Speaker with I2S Class-D DAC
-
🖥️ IPS screen for clear visuals
-
🧭 6-axis IMU for motion sensing
-
🔋 200mAh Li-Po battery for portable power
-
🧩 Compact and modular design for easy integration
🐍 MicroPython Compatible
The M5StickV supports MicroPython, making your code cleaner, faster, and easier to write — perfect for rapid prototyping and embedded vision applications. 💡
🌟 Why Choose M5StickV?
-
✅ Low-power CNN processing
-
✅ Zero-threshold machine vision solution
-
✅ Ideal for AIoT, robotics, and smart devices
Download
M5StickV_Firmware_v5.1.2.kfpkg
Guide
How to Use Kflash_GUI to Burning Firmware for M5Stick V?
Switching operations:
Power on: Press the power button for 2 seconds
Power off: Press the power button for 6 seconds
Product Features
- Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
- Dual Independent Double Precision FPU
- Neural Network Processor(KPU) / 0.8Tops
- Field-Programmable IO Array (FPIOA)
- Dual hardware 512-point 16bit Complex FFT
- SPI, I2C, UART, I2S, RTC, PWM, Timer Support
- AES, SHA256 Accelerator
- Direct Memory Access Controller (DMAC)
- Micropython Support
- Firmware encryption support
- Case Material: PC + ABS

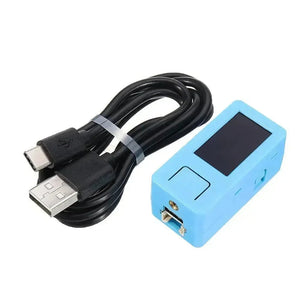

Include
- 1x M5StickV
- 1x USB Type-C(100cm)

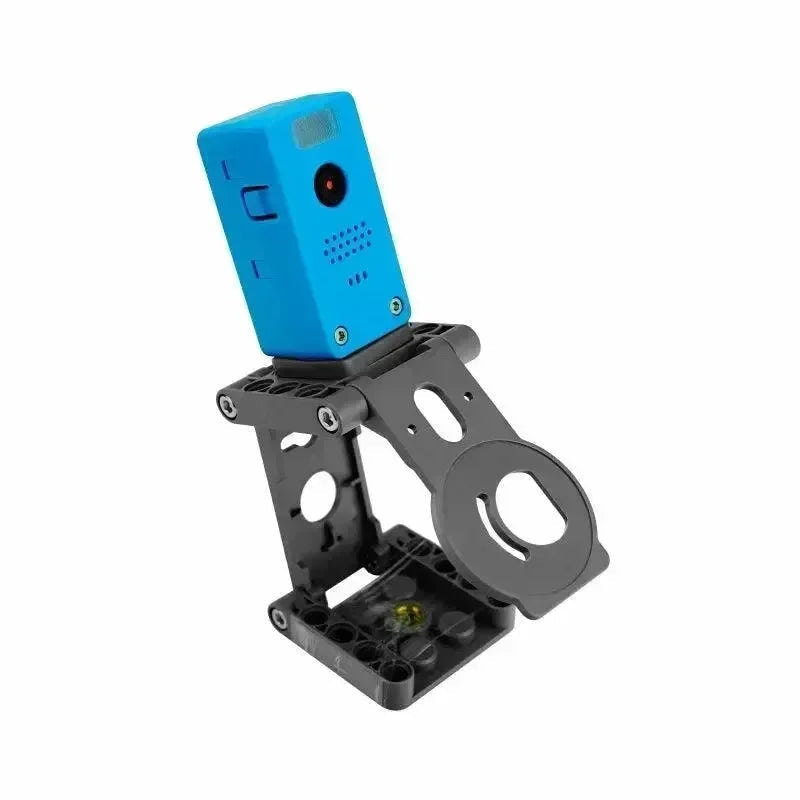

- 1x Bracket
- 1x HEX KEY
Applications

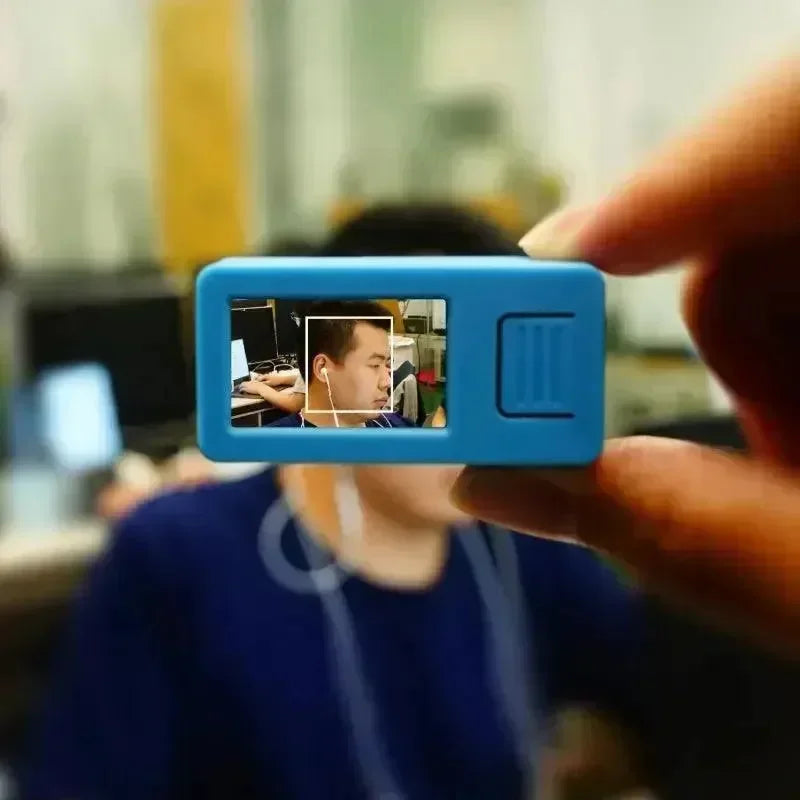

- Face recognition/detection
- Object detection/classification
- Obtaining the size and coordinates of the target in real-time
- Obtaining the type of detected target in real-time
- Shape recognition
- Video/Display
- Game simulator

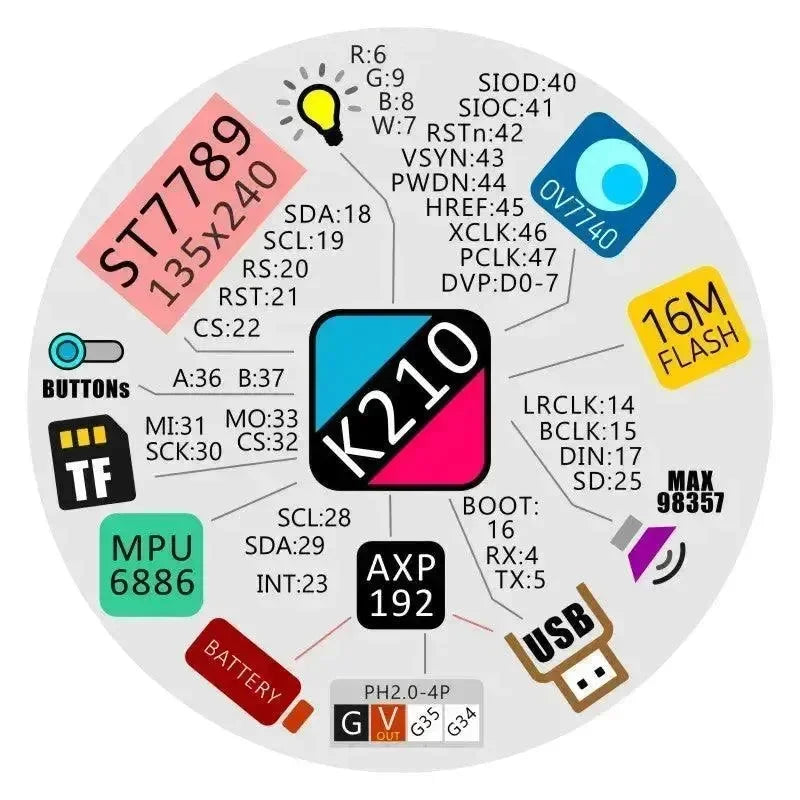

Specification
| Resources | Parameter |
|---|---|
| Kendryte K210 | Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) |
| SRAM | 8MiB |
| Flash | 16M |
| Power input | 5V @ 500mA |
| KPU Parameter size of neural network | 5.5MiB - 5.9MiB |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| RGB LED | RGBW x 1 |
| Button | Custom button x 2 |
| IPS screen | 1.14 TFT, 135*240, ST7789 |
| Camera | OV7740(30W pixels) |
| FOV | 55deg |
| PMU | AXP192 |
| Battery | 200mAh |

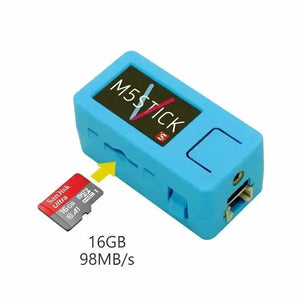

| External storage | TF-card(microSD) |
| MEMS | MPU6886 |
| Net weight | 23g |
| Gross weight | 82g |
| Product Size | 48*24*22mm |
| Package Size | 144*44*43mm |
| Case Material | Plastic ( PC ) |
Download Windows Version Easyloader
KENDRYTE K210
The Kendryte K210 is a system-on-chip (SoC) that integrates machine vision. Using TSMC’s ultra-low-power 28-nm advanced process with dual-core 64-bit processors for better power efficiency, stability, and reliability. The SoC strives for ”zero threshold” development and to be deployable in the user’s products in the shortest possible time, giving the product artificial intelligence
- Machine Vision
- Better low-power vision processing speed and accuracy
- KPU high-performance Convolutional Neural Network (CNN) hardware accelerator
- Advanced TSMC 28nm process, temperature range -40°C to 125°C
- Firmware encryption support
- Unique programmable IO array maximizes design flexibility
- Low voltage, reduced power consumption compared to other systems with the same processing power
- 3.3V/1.8V dual voltage IO support eliminates the need for level shifters
CPU
The chip contains a high-performance, low-power RISC-V ISA-based dual-core 64-bit CPU with the following features:
- Core Count: Dual-core processor
- Bit Width: 64-bit CPU 400MHz
- Frequency: 400MHz
- ISA extensions: IMAFDC
- FPU: Double Precision
- Platform Interrupts: PLIC
- Local Interrupts: CLINT
- I-Cache: 32KiB x 2
- D-Cache: 32KiB x 2
- On-Chip SRAM: 8MiB
OV7740
- support for output formats: RAW RGB and YUV
- support for image sizes: VGA, QVGA, CIF, and any size smaller
- support for black sun cancellation
- support for internal and external frame synchronization
- standard SCCB serial interface
- digital video port (DVP) parallel output interface
- embedded one-time programmable (OTP) memory
- on-chip phase lock loop (PLL)
- embedded 1.5 V regulator for the core
- Sophisticated Edge Rate Control Enables Filterless Class D Outputs
- 77dB PSRR at 1kHz
- Low RF Susceptibility Rejects TDMA Noise from GSM Radios
- Extensive Click-and-Pop Reduction Circuitry
- array size: 656 x 488
- power supply: – core: 1.5VDC ± 5% – analog: 3.3V ± 5% – I/O: 1.7 ~ 3.47V
- temperature range: – operating: -30° C to 70°C – stable image: 0° C to 50° C
- output format: – 8-/10-bit raw RGB data – 8-bit YUV
- lens size: 1/5"
- input clock frequency: 6 ~ 27 MHz
- max image transfer rate: VGA (640x480): 60 fps – QVGA (320 x 240): 120 fp
- sensitivity: 6800 mV/(Lux-sec)
- maximum exposure interval: 502 x tROW
- pixel size: 4.2 μm x 4.2 μm
- image area: 2755.2 μm x 2049.6 μm
- package/die dimensions: – CSP3: 4185 μm x 4345 μm – COB: 4200 μm x 4360 μm
MAX98357
- Single-Supply Operation (2.5V to 5.5V).
- 3.2W Output Power into 4Ω at 5V
- 2.4mA Quiescent Current
- 92% Efficiency (RL = 8Ω, POUT = 1W)
- 22.8µVRMS Output Noise (AV = 15dB)
- Low 0.013% THD+N at 1kHz
- No MCLK Required
- Sample Rates of 8kHz to 96kHz
- Supports Left, Right, or (Left/2 + Right/2) Output
- Sophisticated Edge Rate Control Enables Filterless Class D Outputs
- 77dB PSRR at 1kHz
- Low RF Susceptibility Rejects TDMA Noise from GSM Radios
- Extensive Click-and-Pop Reduction Circuitry
AXP192
- Operation Voltage: 2.9V - 6.3V(AMR:-0.3V~15V)
- Configurable Intelligent Power Select system
- Current and voltage limit of adaptive USB or AC adapter input
- The resistance of the internal ideal diode lower than 100mΩ
MPU6886
GYROSCOPE FEATURES
- Digital-output X-, Y-, and Z-axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps and integrated 16-bit ADCs
- Digitally-programmable low-pass filter
- Low-power gyroscope operation
- Factory-calibrated sensitivity scale factor
- lens size: 1/5"
- Self-test
ACCELEROMETER FEATURES
- Digital-output X-, Y-, and Z-axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit ADCs
- User-programmable interrupts
- Wake-on-motion interrupt for low power operation of applications processor
- Self-test
