Genmitsu CFL55-33 5.5W Compressed FAC Laser Module
The CFL55-33 5.5W Compressed FAC Laser Module is a cost-effective, high-performance CNC laser upgrade designed for makers who need precision engraving and cutting without the high price tag. Featuring a built-in control board, 0.1 × 0.1 mm compressed laser spot, fixed 30 mm focal length, and a protective focus-assist shield, this module delivers exceptional accuracy for small to mid-sized CNC routers. Its lightweight, compact design requires no external power supply and installs cleanly in minutes. Fully compatible with Genmitsu 4040 Series, 3018 Series, and 3020-PRO Series CNC machines.
Features
- Affordable high performance comparable to premium laser modules.
- Integrated control board for a cleaner, lighter, and more reliable setup.
- Easy installation — powered directly from the CNC controller (12V), no external power brick required.

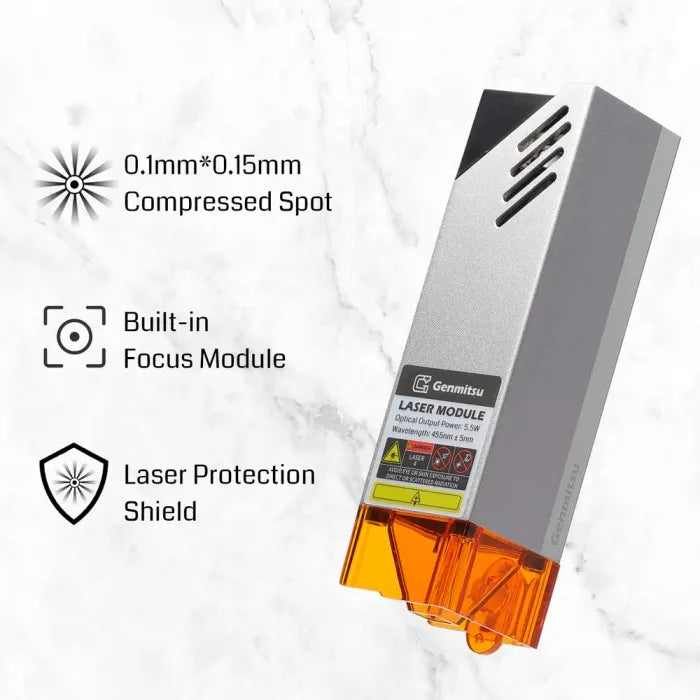

- Compressed FAC spot (0.1 × 0.1 mm) for ultra-fine engraving detail.
- Fixed-focus 30 mm design with included calibration tool for fast focusing.

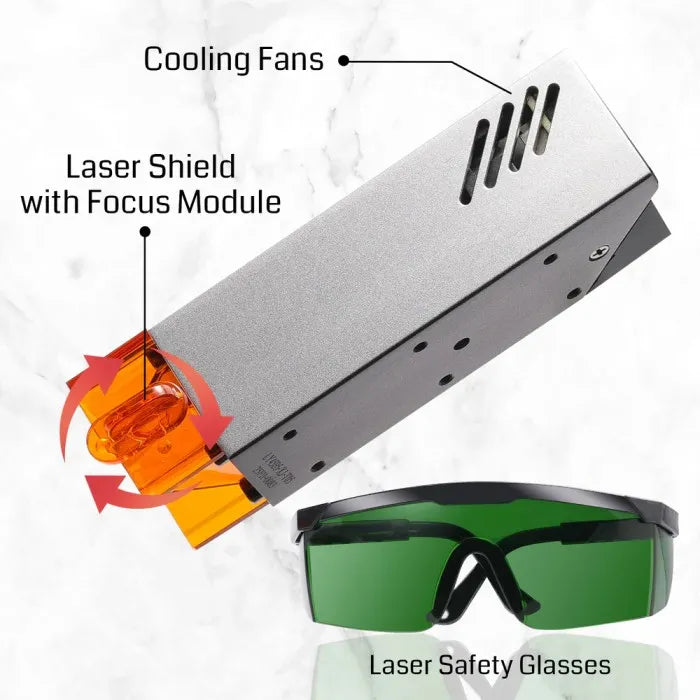

- Protective laser shield with built-in focus assistance for safer operation.
- Wide CNC compatibility including Genmitsu Cubiko, 3018-PROVer, 3018-PRO, 3020-PRO MAX, and 4040 Series.
Technical Specifications
| Category | Details |
|---|---|
| Laser Power | 5.5W |
| Spot Size | 0.1 × 0.1 mm (Compressed FAC) |
| Focal Length | 30 mm (Fixed) |
| Wavelength | 455 ± 5 nm |
| Input Power | 12V / 2.5A |
| Interface | XH2.54-3 Pin (PWM+, GND, 12V) |
| Shield | Movable laser protective shield |

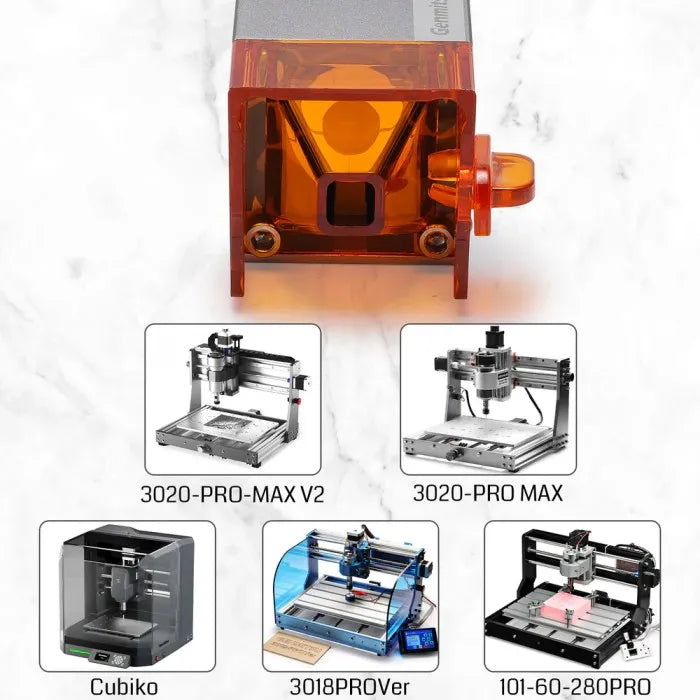

System Compatibility
- Genmitsu Cubiko
- Genmitsu 3018-PROVer (V1 & V2)
- Genmitsu 3018-PRO
- Genmitsu 3020-PRO / PRO MAX / PRO Ultra
- Genmitsu 4040 Series
Versatile Application Scenarios

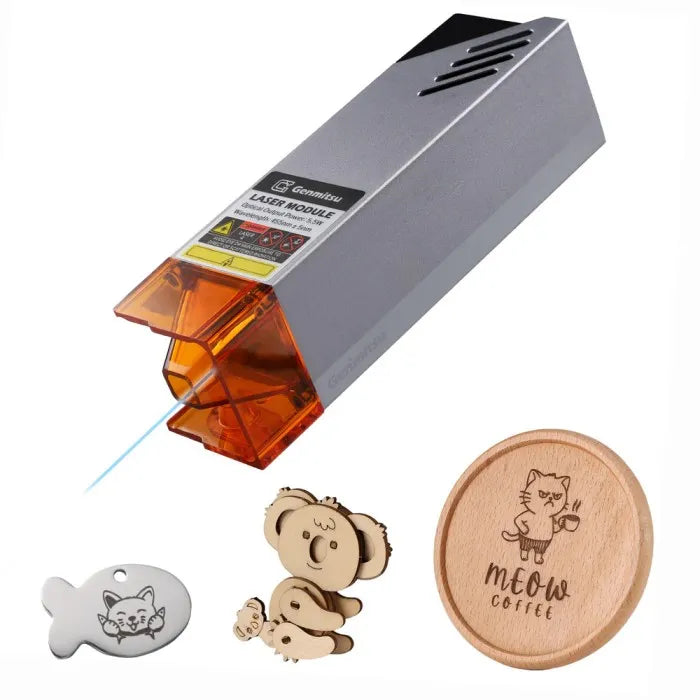

- CNC laser engraving for DIY and maker projects.
- Precision laser cutting for hobbyists and workshops.
- Industrial PCB marking and component labeling.
- Engraving on wood, acrylic, leather, bamboo, cardboard.
- Light-duty metal marking (blackened surface recommended).
Material Compatibility

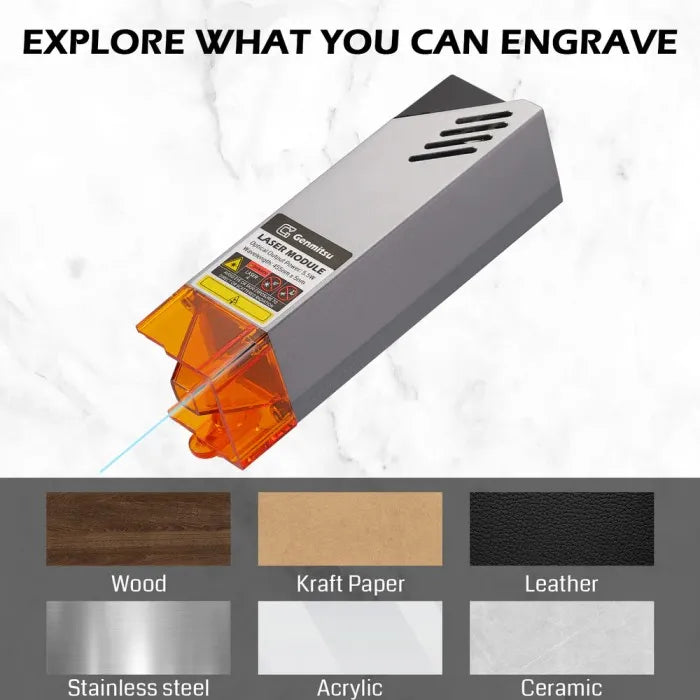

Engravable Materials
- Cardboard, plastic, PCB
- Aluminum alloy, stainless steel, black metal (blackened surface recommended)
- Bamboo, wood, leather
Cuttable Materials
- Wood, acrylic, cardboard
- Non-woven fabric, bamboo
- Laser-safe plastics
Packing List
- 1 × CFL55-33 Laser Module
- 1 × Connection Cable (12V / GND / PWM)
- 1 × 30 mm Focus Calibration Tool
- 1 × User Manual
FAQ
Does the laser module require an external power supply?
No. It is directly powered from the CNC controller using the included 12V interface for a plug-and-play experience.
What spindle mount size does it support?
It supports standard 42 mm spindle mounts. For 52 / 65 / 69 mm mounts, 3D-printable adapters are available.
How do I engrave reflective materials?
Blacken the surface of stainless steel or aluminum to reduce reflection and improve engraving quality.
How should I clean the lens?
Use a cotton swab with alcohol to gently remove smoke residue, especially after engraving oily woods.
Reference Parameters
CNC Laser Module - Engraving Parameters
| Material | Power | Speed (mm/min) | Interval (mm) |
| Kraft paper | 80% | 2000 | 0.12 |
| Plywood | 80% | 2000 | 0.10 |
| Solid wood | 80% | 2000 | 0.10 |
| Bamboo board | 80% | 2000 | 0.10 |
| Cork | 50% | 2000 | 0.10 |
| Transparent acrylic (blackened) | 30% | 2000 | 0.10 |
| Frosted glass (blackened) | 40% | 2000 | 0.10 |
| Leather (white, blackened) | 40% | 2000 | 0.10 |
| Silicone | 70% | 2000 | 0.10 |
| Pebble | 40% | 2000 | 0.10 |
| Ceramic (blackened) | 100% | 1500 | 0.10 |
| Aluminum plate (blackened) | 40% | 2000 | 0.10 |
| Stainless steel | 100% | 1000 | 0.10 |
| White felt (blackened) | 70% | 2000 | 0.10 |
CNC Laser Module - Cutting Parameters
| Material | Power | Speed (mm/min) | Number of cuts |
| Plywood 3 mm | 100% | 200 | 1 |
| Plywood 5 mm | 100% | 100 | 1 |
| Plywood 8 mm | 100% | 150 | 6 |
| Plywood 10 mm | 100% | 80 | 10 |
| Solid wood 5 mm | 100% | 80 | 3 |
| Solid wood 12 mm | 100% | 80 | 4 |
| Black acrylic 10 mm | 100% | 80 | 12 |
| Black acrylic 15 mm | 100% | 80 | 15 |
| Felt (blackened) 3.5 mm | 100% | 80 | 20 |
| Leather 1 mm | 100% | 800 | 1 |
| MDF 4.3 mm | 100% | 150 | 6 |
