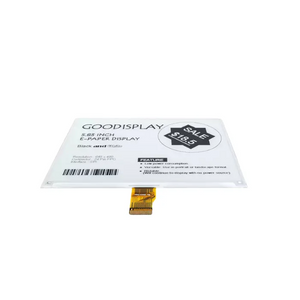

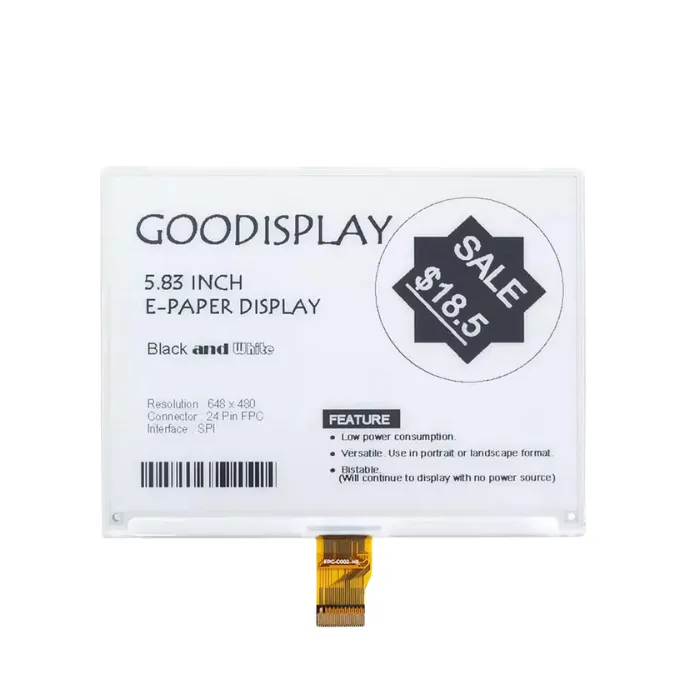

GooDisplay 5.83inch E-Paper Display Module GDEY0583T81
Discover the GooDisplay GDEY0583T81, a cutting-edge 5.83-inch electronic paper module engineered for exceptional power efficiency. Leveraging innovative E-Ink technology, this display delivers crisp, paper-like visual quality that remains stable without continuous power supply. Its bistable nature ensures content persistence even when disconnected, making it an outstanding choice for battery-dependent devices and mobile implementations. The superior resolution combined with expansive viewing capabilities positions this module as an excellent solution for electronic shelf labels, static information panels, and embedded display systems.
Core Capabilities
- Ultra-Wide Viewing Angle: Exceeding 170 degrees ensures excellent readability from virtually any position.
- Reflective Display Technology: Zero light emission provides comfortable viewing without eye fatigue, mimicking traditional paper.
- Minimal Energy Requirements: Consumes power only during screen updates, maintaining displayed information indefinitely without drain.
- Bistable Screen Technology: Content remains permanently visible after refresh cycles with zero ongoing power requirements.
- SPI Connectivity: Standard serial interface ensures straightforward integration with microcontrollers and embedded platforms.
- Eco-Conscious Design: Extremely low energy profile makes this an environmentally responsible display solution.
- Comprehensive Documentation: Full technical specifications and integration guides facilitate seamless implementation in custom designs.
Technical Parameters
| Specification | Details |
|---|---|
| Model | GooDisplay GDEY0583T81 |
| Size | 5.83 inches |
| IC | UC8179C |
| Type | Dot Matrix |
| Resolution | 648 x 480 |
| Outline Dimensions | 125.40 x 99.5 x 1.2mm |
| Viewing Area | 118.78 x 88.22mm |
| Dot Pitch | 0.1833 x 0.1833mm |
| Working Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Interface | SPI |

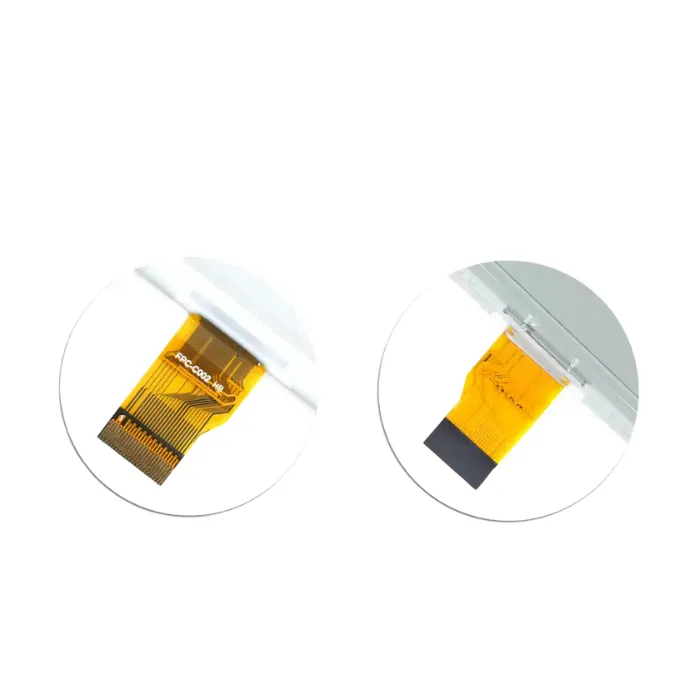

| Pins | 24 Pins 0.5mm |
| Color | Black and White |
| Refresh Power | 33mW |
| Standby Power | 0.003mW |
| Full Refresh Time | 3s |
| Fast Refresh Time | 1.5s |
| Partial Refresh Time | 0.3s |
| Grade 4 Refresh Time | 2s |
Practical Use Cases
- Electronic Shelf Labels: Ideal for retail pricing systems and inventory management displays requiring minimal power.
- Static Information Boards: Outstanding for applications displaying schedules, announcements, or reference data with infrequent updates.
- Battery-Operated Equipment: Superior energy profile makes it perfect for handheld instruments and remote monitoring devices.
- Sensor Data Visualization: Excellent for weather stations, industrial monitoring, and environmental data presentation systems.
Package Contents
- 1 x GooDisplay 5.83 inch E-Paper Display GDEY0583T81
- 1 x 24-pin connector
The GooDisplay GDEY0583T81 represents a sophisticated electronic paper solution combining remarkable energy efficiency with stable visual performance. Its unique bistable characteristics eliminate battery drain during idle periods, establishing it as the premier choice for electronic labeling systems, portable instrumentation, and permanent information displays. With outstanding contrast ratios and environmentally conscious operation, this module provides a sustainable alternative to conventional display technologies for embedded applications and IoT devices.
