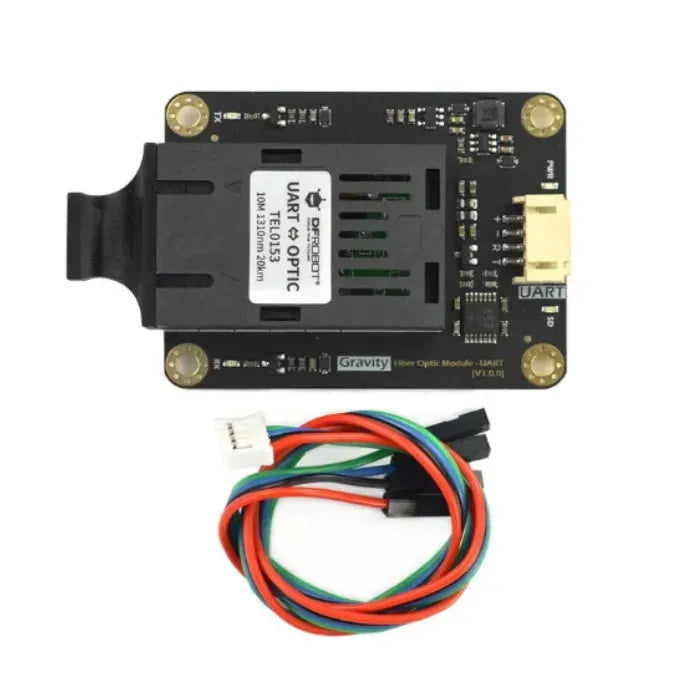

Gravity: UART Fiber Optic Transceiver Module
Break free from the limitations of traditional cabling with the **Gravity: UART Fiber Optic Transceiver Module** from DFRobot. Say goodbye to bulky shielded twisted pairs and unstable, slow data rates over long distances. This innovative module redefines long-range communication, offering unparalleled speed, stability, and immunity to interference.
Experience robust and reliable data transmission up to **10 kilometers**, thanks to its **complete electrical isolation**. This crucial feature eliminates electromagnetic interference, ensuring your communication remains crystal clear, even in the most challenging industrial environments. Supporting baud rates of up to **2,000,000 baud**, this transceiver maintains full speed performance regardless of the transmission distance. Built for resilience, it includes **lightning protection** and seamlessly integrates with **shared cable trunking**. Furthermore, its versatile design allows for the creation of **one-to-many star networks** using passive optical splitters, expanding your connectivity options.
Explore Our Projects
Project 1. How UART Protocol Works - Gravity: UART Fiber Optic Transceiver Module
Introduction:
In this video, we will talk about the UART protocol. We're using Gravity: UART Fiber Optic Transceiver Module, which runs at 2000000 baud at any time within a distance of up to 10km, to make a weather station.
Make a Weather Station Using Environmental Sensor
Project 2. Make a Weather Station Using Environmental Sensor
Introduction:
However, it only tells temperature in a relatively large range. Sometimes we need environmental parameters in a specific place like a fishpond, greenhouse, an open field, etc. Here I want to know the exact temperatures during a day on my terrace. So I decide to make a weather monitoring station that outputs the real-time data I need.
ย
Key Features
- **Complete electrical isolation** to prevent electromagnetic interference
- Supports **up to 2,000,000 baud** data rate
- **Communication distance up to 10km** using **single-mode fiber**
- **SC fiber-optic interface** with 1310nm operating wavelength
- Includes **lightning protection**, ideal for industrial applications
- Compatible with **3.3V or 5V signal systems**
- Suitable for **fiber-optic communication** and **one-to-many star networking**
- **Compact and cost-effective** alternative to traditional shielded twisted pair
Specifications
- **Supply Voltage**: 3.3V to 5V
- **Signal Voltage**: 3.3V to 5V
- **Max Baud Rate**: 2,000,000
- **Communication Distance**: Up to 10km
- **Operating Wavelength**: 1310nm
- **Fiber Optic Type**: Single Mode
- **Interface**: SC Fiber Optic
- **Operating Temperature**: 0โ to 70โ

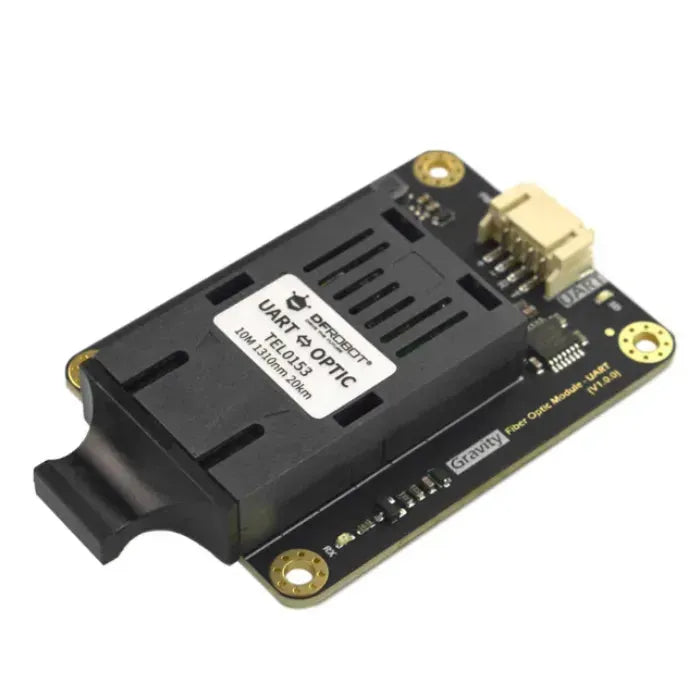

Interface & Indicators
- **Gravity: UART Connector** โ Connects to MCU or sensor
- **PWR LED** โ Power indicator (lights when powered)
- **SD LED** โ Indicates fiber disconnection
- **TX LED** โ Blinks when transmitting fiber-optic signal
- **RX LED** โ Blinks when receiving fiber-optic signal
- **SC Fiber Optic Interface** โ Connects to SC fiber cable
Note: The SD LED does not detect all fiber disconnections or unstable transmissions. For accurate troubleshooting, use tools like a red pen or optical power meter.
Typical Application Diagram
Connect one transceiver to your **MCU** and the other to a **sensor or second MCU** using a single-mode fiber optic cable. The UART connectors allow simple interfacing with most standard microcontrollers.
