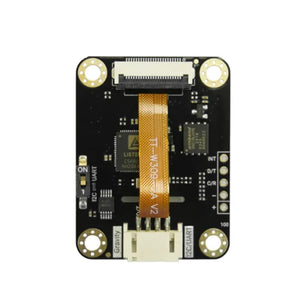

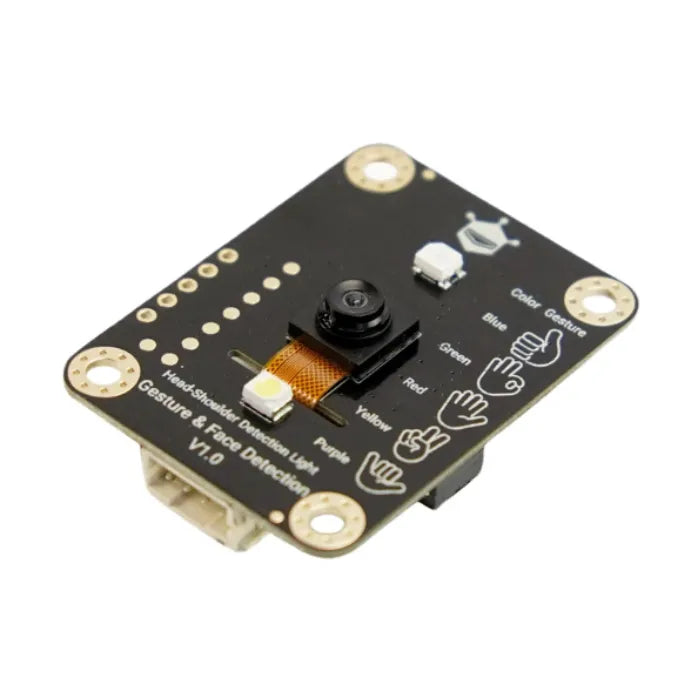

Gravity: Offline Edge AI Gesture & Face Detection Sensor 10 Faces 3m
The Gravity: Offline Edge AI Gesture & Face Detection Sensor offers gesture control without touch and multi-person detection, crafted for privacy-aware and real-time Internet of Things (IoT) applications. With its integrated AI chip and camera, this device can identify five distinct hand gestures and detect up to 10 faces or upper-body positions within a 3-meter range—all while functioning without cloud connectivity.
Key Features
-
Edge AI processing operates offline, requiring no cloud services
-
Detects five user-friendly gestures (e.g., thumbs up, peace sign)
-
Recognizes and tracks up to 10 faces or upper-body positions in real time
-
Detection range: from 0.5 to 3 meters with a field of vision of 85°
-
Supports dual communication via I2C and UART
-
Compatible with both 3.3V and 5V systems
-
Works seamlessly with Arduino, Raspberry Pi, ESP32, MakeCode, and Mind+
-
Energy-efficient operation with a typical current draw of only 100mA
Edge AI Processing – Real-Time and Fully Offline
The onboard AI processor handles all gesture and presence recognition, ensuring maximum privacy by not storing or transmitting any data externally. This feature makes it ideal for use in public restrooms, hospitals, children's applications, and privacy-conscious smart devices.
Gesture Recognition – Touchless and Contact-Free
The sensor recognizes five predefined hand gestures within a distance of 0.5 to 3 meters:
-
Thumbs up
-
Open palm
-
Peace sign (index and middle fingers)
-
Shaka sign (thumb and pinky extended)
-
Three-finger gesture (middle, ring, and pinky extended)
Each gesture activates a unique RGB indicator, providing clear visual feedback and aiding in development.
Multi-Person Detection with Face and Upper-Body Recognition
The sensor can simultaneously identify up to 10 faces or upper-body outlines. It outputs real-time positioning data and presence counts, making it perfect for:
-
Smart HVAC and lighting control
-
People counting in commercial or public spaces
-
Interactive kiosks or displays in public areas
Wide Field of View and Flexible Mounting Options
-
85° diagonal field of view for an extensive detection area
-
Reliable operation on walls, ceilings, desks, and inside enclosures
-
Ideal for classrooms, conference rooms, hallways, or interactive installations
Applications
-
Wireless Smart Home Gesture Controller
-
Touchless Control Systems for Healthcare or Public Spaces
-
Interactive Art and Educational Displays
-
Smart People Counting Devices for Offices and Retail
-
Privacy-Conscious IoT Automation Systems
Specifications
Electrical
-
Operating Voltage: 3.3V – 5V
-
Logic Voltage Level: 3.3V
-
Typical Current Consumption: 100mA
Communication
-
Interface: PH2.0-4P / 2.54mm header
-
Protocols: I2C / UART
-
I2C Address: 0x72
-
UART Baud Rate: 9600bps (Modbus protocol)
-
Interrupt Output: 2.54mm pin header
Recognition Capabilities
-
Supported Gesture Types: 5
-
Face / Upper-body Count: Up to 10
-
Recognition Distance: 0.5m – 3m
-
Field of View: 85° diagonal
-
Camera Focal Length: 1.56mm
-
Confidence Score Output: 0 – 100
-
Position Coordinate Output: Supported
Indicators
-
Gesture RGB Indicators:
-
Blue: Thumbs up
-
Green: Three-finger gesture
-
Red: Open palm
-
Yellow: Peace sign
-
Purple: Shaka sign
-
-
Presence LED: Lights up when presence is detected

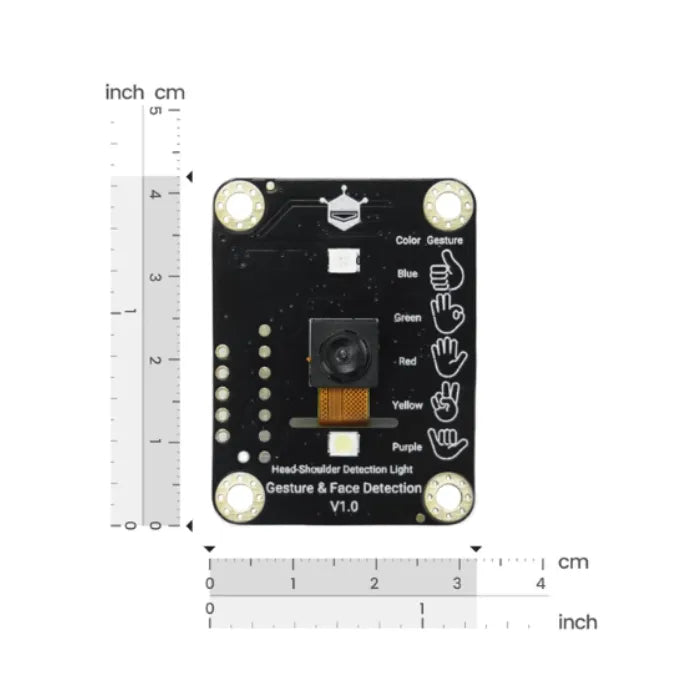

Mechanical
-
Dimensions: 42mm × 32mm
-
Mounting Holes: 25mm × 35mm, Ø 3.1mm

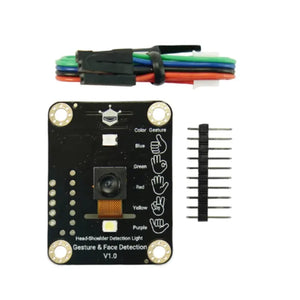

Package Includes
-
1 × Gravity: Offline Edge AI Gesture & Face Detection Sensor
-
1 × PH2.0 - 4P Cable
