Gravity: Offline Language Learning Voice Recognition Sensor

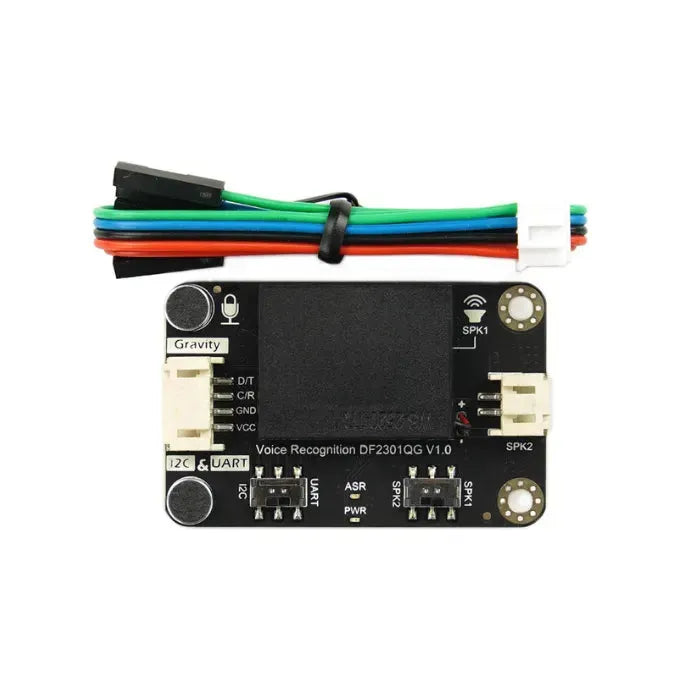

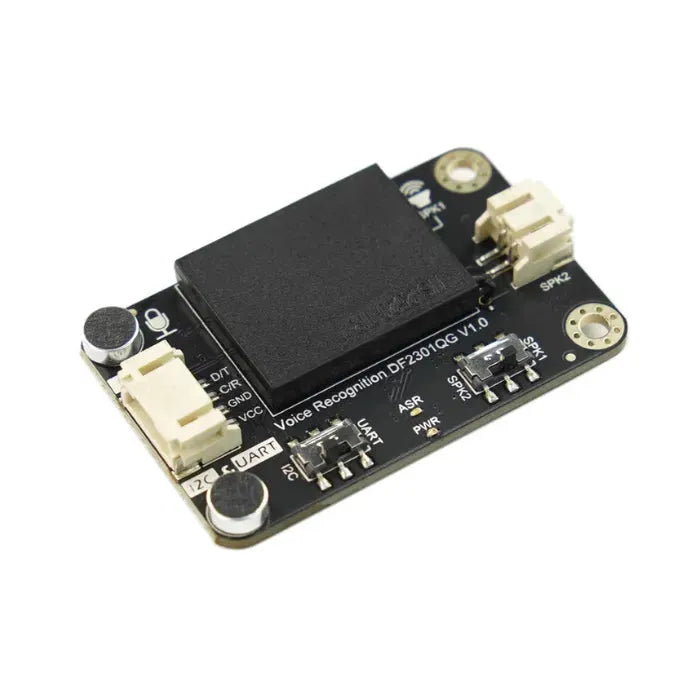

The Gravity Offline Language Learning Voice Recognition Sensor is an effective plug-and-play solution for speech interaction, tailored for human-computer interaction, voice assistants, smart home automation, and educational projects. It operates entirely offline without any need for an internet connection, ensuring complete data privacy and security. Fully compatible with popular development platforms such as Arduino UNO, micro:bit, and ESP32, it also includes detailed tutorials to help you get started quickly.
Key Features
-
Simplified Plug-and-Play Integration: Effortlessly connects with Arduino UNO, micro:bit, and ESP32. Easy setup using I2C/UART communication protocols.
-
121 Pre-Configured Voice Commands: Instantly available for use without prior setup, ideal for applications in smart homes and educational settings.
-
17 User-Customizable Commands with Self-Learning: Enable the module to recognize new voice commands, accommodating any language or sound that you teach it.
-
Functionality Offline: Operates without requiring an internet connection, enhancing both data privacy and utility in low-connectivity environments.
-
Streamlined and Integrated Design: Features a compact design with an onboard microphone and speaker to minimize wiring and optimize space.
-
Instant Voice Feedback: Receive quick audio responses immediately after command recognition for improved interaction and user engagement.
Applications
-
Smart home devices controlled by voice
-
Projects for educational purposes and STEM learning
-
Interactions between humans and machines
-
Prototyping for technology and hardware competitions
-
Automated solutions for pet care and environmental monitoring
Technical Specifications
-
Operating Voltage: 3.3V - 5V
-
Maximum Operating Current: < 370 mA (5V)
-
Communication Interface: I2C / UART
-
I2C Address: 0x64
-
Fixed Commands: 121
-
Fixed Wake Word: 1
-
Custom Commands: 17
-
Learning Activation Command: 1
-
Microphone Sensitivity: -28dB
-

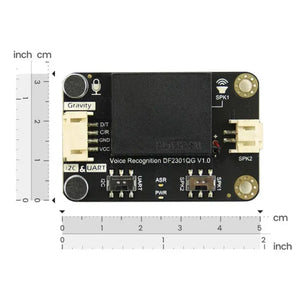

Module Dimensions: 49 × 32 mm / 1.93" × 1.26"
-
Operating Temperature: 0°C to 70°C
Self-Learning Feature
This sensor features an intuitive self-learning mode. To teach it a new word or sound, activate the learning mode, speak the command three times, and it will automatically recognize and store it. It supports multilingual or even sound-based custom commands. Example use cases include:
-
“Meow” – triggers a pet feeder
-
“Limpia” – controls a cleaning robot (Spanish for “clean”)
-
“Snap” – activates a camera
Secure Offline Usage
No data is sent to the cloud. Unlike online voice assistants, this module ensures complete user privacy and reliability in offline or restricted environments such as schools or outdoor settings.
Real-Time Feedback
Users receive instant audio or visual confirmation after issuing commands, enhancing interaction and debugging throughout development or real-world deployment.
Package Includes
-
1× Gravity Offline Language Learning Voice Recognition Sensor
-
1× Jumper wire set
-
Access to online tutorials and documentation
Real-World Applications & Tutorials
Project: Build a Voice-Activated SOS Alert System
Discover how to create a voice-activated SOS alert system utilizing the Gravity Voice Recognition Sensor in combination with M5StickC. This project is ideal for improving safety in smart homes, particularly for elderly individuals. It showcases how voice commands can instantly send Telegram alerts in emergency situations.
Review: Exploring the Gravity Voice Recognition Module
Discover why this offline voice module is praised for its reliability and performance in automation projects. It enables seamless voice control without relying on any internet connection.
Project: Mastering Voice Commands with Arduino
Engage in an in-depth tutorial that guides you through the integration of the voice recognition sensor with Arduino. Discover how to configure custom voice commands and create dynamic, interactive projects that operate completely offline.
Project: Raspberry Pi Pico Voice Control Tutorial
Harness the capabilities of the Raspberry Pi Pico by integrating it with the Gravity Voice Recognition Sensor. This detailed guide takes you through the entire process, from setting up the hardware to designing and implementing custom voice commands for smart control applications.
