HELTEC HT-CT62 ESP32C3 SX1262 LoRa Node Meshtastic LoRaWAN 915Mhz
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
HELTEC HT-CT62 ESP32C3 SX1262 LoRa Node Meshtastic LoRaWAN 915Mhz

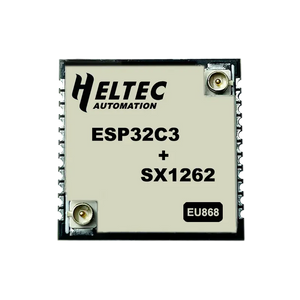

Introducing the HT-CT62, an advanced LoRa/LoRaWAN node module engineered to deliver exceptional long-range wireless connectivity with minimal power consumption. Built around the ESP32-C3FN4 processor featuring RISC-V 32-bit architecture and the high-performance Semtech SX1262 LoRa transceiver, this dual-mode communication module seamlessly combines 2.4 GHz Wi-Fi and LoRa capabilities. Its compact footprint and integrated stamp hole packaging make it perfectly suited for diverse applications including urban infrastructure monitoring, agricultural automation, residential IoT systems, Meshtastic mesh networking, and commercial IoT deployments. Compatible with both LoRaWAN protocol standards and proprietary LoRa configurations, this module delivers professional-grade performance for developers and system integrators.
Core Capabilities
- Central Processing Unit: ESP32-C3FN4 featuring RISC-V 32-bit architecture with clock speeds reaching 160 MHz
- Built-in Wi-Fi connectivity with onboard antenna interface featuring IPEX connector
- Full compatibility with Arduino integrated development environment
- Complete LoRaWAN 1.0.2 protocol implementation
- Advanced power management delivering just 10uA consumption during deep sleep mode
- Compact 1.27mm pitch stamp hole footprint optimized for surface mount assembly
- Precision-tuned impedance matching ensuring maximum transmission distance
Technical Parameters
| Parameters | Description |
|---|---|
| Master Chip | ESP32-C3FN4 (32-bit @ RISC-V architecture) |
| WiFi | 802.11 b/g/n, up to 150Mbps |
| LoRa Chipset | SX1262 |
| Frequency | 470~510MHz, 863~928MHz |
| Max. TX Power | 21±1dBm |
| Max. Receiving Sensitivity | -134dBm |
| Hardware Resource | 5*ADC1+1*ADC2; 2*UART; 1*I2C; 3*SPI; 15*GPIO; etc. |
| Memory | 384KB ROM; 400KB SRAM; 8KB RTC SRAM; 4MB SiP Flash |
| Interface | 2.4G ANT (IPEX1.0); LoRa ANT(IPEX1.0); 2*11*1.27mm spacing Stamp hole |
| Power Consumption | Deep Sleep 10uA |
| Operating Temperature | -40~85 ℃ |
| Dimensions | 17.78 * 17.78* 2.8mm |
Key Advantages
- Surface Mount Ready: The precision-engineered 1.27mm stamp hole layout enables seamless integration into custom PCB designs through standard SMT manufacturing processes.
- Developer-Friendly Platform: Comprehensive Arduino IDE support with extensive libraries ensures rapid prototyping and reliable LoRaWAN network integration for your projects.
- Superior RF Performance: Optimized antenna matching combined with the industry-leading SX1262 transceiver delivers exceptional range and link reliability in challenging environments.
- Energy Efficient Operation: With deep sleep current consumption of merely 10uA, this module excels in battery-operated deployments requiring extended field operation.

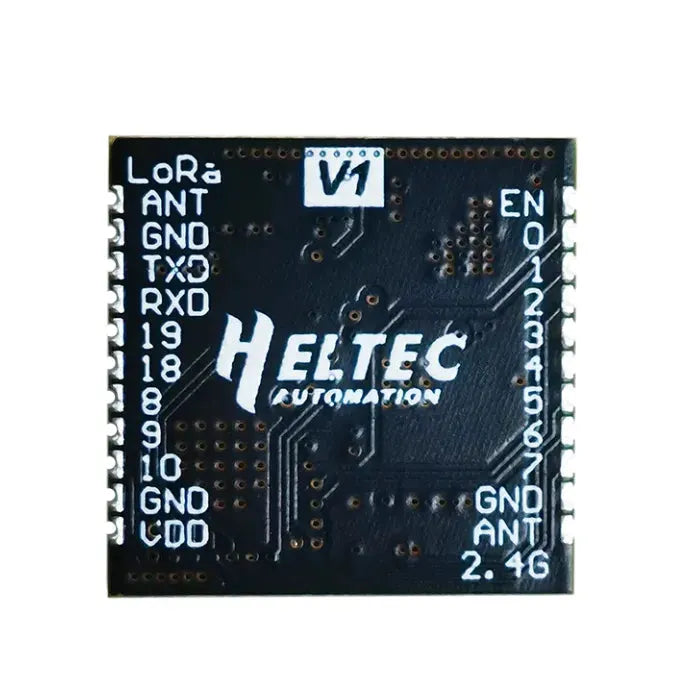

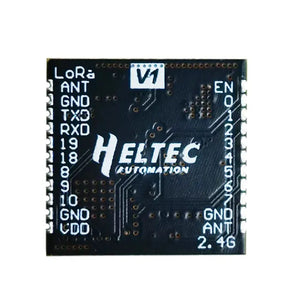

Pin Configuration
Frequently Asked Questions
- Serial output shows no data: For USB-to-Serial adapters, establish connections to device pins 20/21; when using direct USB connection, utilize pins 17/18 instead.
- RF performance degraded after soldering: Excessive reflow temperatures may cause the electromagnetic shielding to shift position, potentially creating short circuits that impact signal quality.
- Board selection unavailable in Arduino IDE: Navigate to the board manager and select Wireless Mini Shell from the available options.
Package Contents
Standard package includes the following components:
| Item | Quantity |
|---|---|
| HT-CT62 | x1 |
