HELTEC WiFi HaLow Module 902-928MHz 32.5Mbps 1-2KM

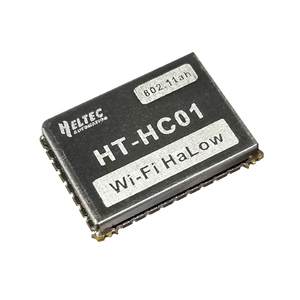

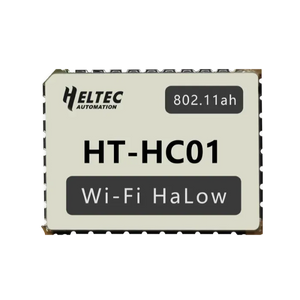

HT-HC01 is a compact, high-performance Wi-Fi HaLow module designed for long-range, low-power IoT applications. Operating in the 902–928 MHz sub-1 GHz band and compliant with the IEEE 802.11ah standard, it delivers data rates up to 32.5 Mbps @ 8 MHz and supports transmission distances of 1–2 km. Featuring a small LLC package with 38 header pins, it integrates easily into various PCBs. The module includes an ultra-long-range PA, high-linearity LNA, T/R switch, and a 32 MHz crystal oscillator, simplifying Wi-Fi HaLow connectivity for external hosts. Its low-power design supports hibernate modes and is ideal for battery-operated devices, extending battery life. With interfaces like SDIO 2.0 and UART, and an integrated DC-DC converter supporting 3.0V to 3.6V, HT-HC01 is a versatile solution for applications in smart homes, industrial automation, asset tracking, and more.
Main Features
- Long-range transmission, up to 1km or and further within the visual distance.
- Channel bandwidth options of 1/2/4/8 MHz.
- Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
- Max output power:21dBm.
- Hibernate mode (internal / external wake).
- 802. 11ah OFDM PHY supporting WFA HaLow certification.
- 802. 11ah MAC supporting WFA HaLow certification.
- High data rate, single-stream max. data rate of 32.5 Mbps @ 8 MHz or 15 Mbps @ 4 MHz channel.
- Wide spectrum of security features.
- Support for various interface options, include SDIO 2.0, 2* UART.
- 1.27mm stamp hole design, easy to integrate.
- Integrated DC-DC converter supporting a voltage supply from 3.0V to 3.6V.
Specifications
| Parameters | Description |
|---|---|
| Main Chip | MM6108IQ |
| Power Supply | 3.0~3.6V |
| HaLow Standard | IEEE 802.11ah |
| Band Width | 1/2/4/8MHz |
| Interface | 38 Header Pins |
| Pin Package | LLC |
| Operating temperature | -40 ~ 85℃ |
| Operating humidity | 10%～90%, no-condensing |
| Dimensions | 18.5*14*26mm |
| Data Rate | 32.5 Mbps @ 8 MHz |
| Display | onboard 1.14 inch TFT-LCD display |
Application
Wi-Fi HaLow can seamlessly integrate with traditional Wi-Fi or Ethernet networks and is suitable for most IoT scenarios, especially those requiring long-range high-speed transmission.
- Smart Home and City
- Industrial automation control
- Asset management and tracking
- WiFi-HaLow Gateway and Proximity sensors
- Old device Information upgrade
- Wi-Fi/Ethernet/Wi-Fi_HaLow extension and bridging
- Rural internet access and LAN construction
- WiFi HaLow device development
- Remote camera monitoring and Network blind spot coverage
- Digital transformation of legacy equipment
Description

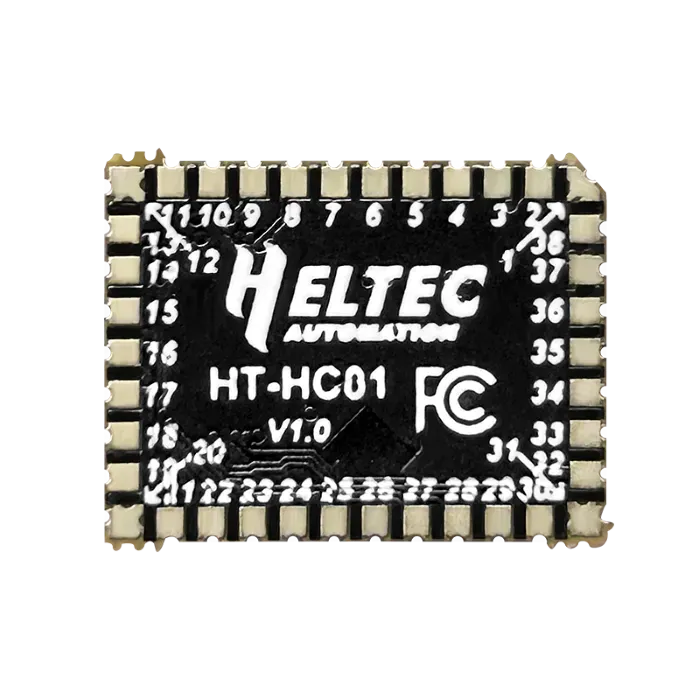

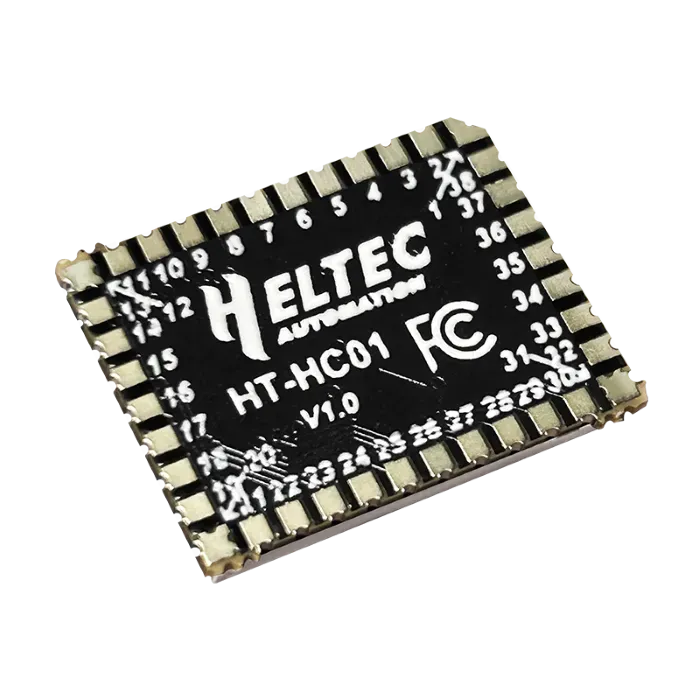

Pin Map
High light
powerful hardware
Dimensions
FAQ
- The host should support SDIO v2.0 with SDIO clock speeds of up to 50 MHz. Slower clock speeds will impact the maximum achievable throughput.
- At a minimum, 2 x GPIOs are required as a CMOS output to drive the RESET and WAKE signals. If power save is used, a third GPIO is needed, set as a CMOS input to receive the BUSY signal from the module.
- The SDIO data and command lines should be pulled up with 10k-100k resistors as per the SDIO 2.0 specification.
When selecting a CPU host to interface via SPI to the MM6108-MF08551 module, consider the following recommendations to achieve the best throughput:
- The host should support level-triggered interrupts.
- The host should support full-duplex SPI mode.
- The host should support DMA backed transactions on the SPI bus.
All unused digital IO pins must be pulled up or down to ensure they do not float. Failure to do so will result in a higher leakage current on the VDDIO supply.
Docs & Resource
- [Docs] — User Manual
- [Attachment] — Schematic diagram
- [Attachment] — Datasheet
- [Resource] — Related Resources
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| HC01 Module | x1 |
