Hi-Link 24G Low Power mmWave Radar Human Body Sensing Module HLK-LD2410S
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
Hi-Link 24G Low Power mmWave Radar Human Body Sensing Module HLK-LD2410S
Important Notice: This product ships from China to our Munich warehouse before final dispatch. Estimated processing time: 2 weeks. Thank you for your patience!
The HLK-LD2410S is a cutting-edge, battery-powered, and ultra-low-power millimeter-wave sensor from the Hi-Link LD2410S series, specifically designed for highly accurate human presence detection. This compact module seamlessly integrates a simplified 24 GHz mmWave sensor hardware platform with intelligent low-power sensing firmware.

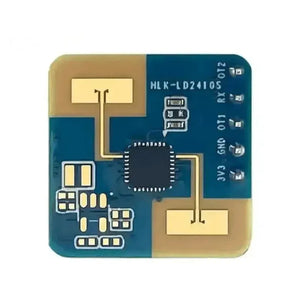

The LD2410S hardware features an AIoT-enabled mmWave sensor, a high-performance 24 GHz 1T1R antenna, and essential peripheral circuitry.
Powered by the ICL1112 chip, its smart human presence detection algorithm combines distance measurement technology, advanced radar signal processing, and innovative low-power control mechanisms. This powerful combination enables precise detection of both micro-movements and stationary presence with exceptional accuracy.
Optimized for indoor environments, the firmware operates in a low-power mode to reliably sense whether a human is present, detect motion or subtle movements, and provide real-time updates on detection status. This makes it ideal for applications in smart homes, offices, and various energy-efficient automation systems.
The HLK-LD2410S can detect moving human bodies at distances up to 8 meters. It includes adjustable trigger and hold thresholds, supports real-time human presence status updates, and reports target distance at various intervals, including unmanned states.

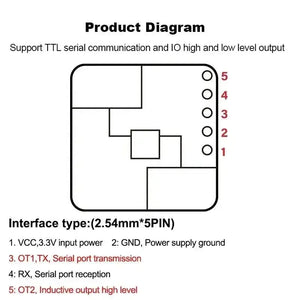

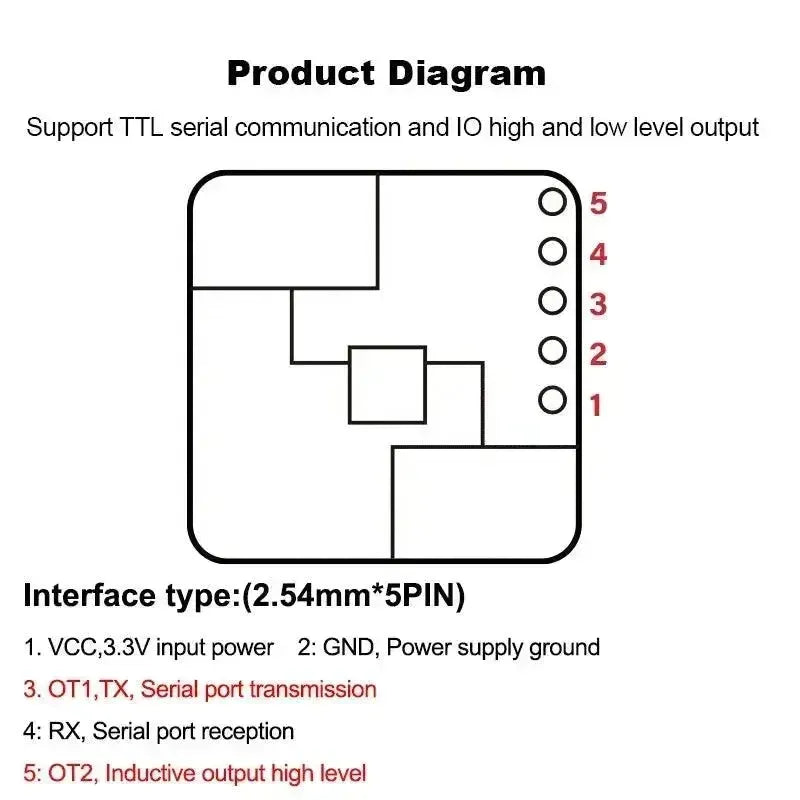

With support for both GPIO and UART interfaces, the module offers plug-and-play convenience for a wide array of intelligent devices. Its flexible design facilitates easy integration into scenario-driven applications and terminal products across smart homes, offices, and diverse IoT systems.
Product Features Overview
- Smart Millimeter Wave Sensor SoC & Algorithm Firmware: Equipped with a single-chip intelligent mmWave sensor SoC and advanced firmware for human presence detection.
- Ultra-Compact Size: Measures just 20 mm × 20 mm, making it ideal for space-constrained applications.
- Plug & Play Ready: Comes preloaded with default sensing configurations for immediate use.
- 24 GHz ISM Band Operation: Operates in the globally recognized 24 GHz ISM band, compliant with FCC and CE requirements, eliminating the need for additional frequency spectrum certification.
- Flexible Voltage Support: Runs on 3.3V, with a compatible range of 3.0V–3.6V.
- Ultra-Low Power Consumption: Achieves an average working current of only 0.1 mA at a 1 Hz data reporting frequency, perfect for battery-powered devices.
- Versatile Detection Targets: Accurately detects moving human bodies, micro-movements, and stationary presence.
- Real-Time Reporting: Continuously refreshes detection results for fast, responsive performance.
- Customizable via Visualization Tools: Provided tools allow for setting detection distance intervals and configuring target disappearance delay times.
- Precision Sensing Range Control: Supports full-range partitioning with interference shielding, ensuring accurate detection within designated zones.
- Zero Blind Spots: Detects at close range starting from 0.2 m, suitable for tight indoor placements.
- Extended Range & Wide Angle: Offers a maximum detection distance for motion of 8 m and a horizontal coverage of ±60°, optimized for wall-mounting setups.
- IAP Online Firmware Upgrade: Supports In-Application Programming (IAP) for hassle-free remote upgrades and feature enhancements.
Application Scenarios
- Smart Home: Detects human presence and distance to enable central controllers to intelligently manage household appliances.
- Intelligent Business: Senses human proximity and distance, automatically activating display screens and keeping devices active when someone is nearby, ideal for kiosks and smart signage.
- Smart Security: Integrates seamlessly with intelligent door locks, induction-based access control systems, building intercoms, and electronic peepholes.
- Smart Lighting: Accurately identifies human bodies and their locations for use in public lighting systems, including motion-sensing lights and ambient fixtures.
Technical Parameters
- Operating Frequency: 24.00 – 24.25 GHz
- Modulation Type: FMCW (Frequency-Modulated Continuous Wave)
- Detection Range: Motion detection up to 8 m; Presence sensing up to 4 m.
- Detection Angle: ±60° (Wide coverage)
- Power Supply: Typical 3.3V
- Current Consumption: Approx. 0.12 mA (Ultra-low power)
- Output Level: 3.3V / 0V logic via Serial Port (high-low voltage signaling)
- Sweep Bandwidth: 250 MHz
- Compliance: Complies with CE / FCC certification standards
- Max EIRP: 10 dBm
- Data Refresh Cycle: Typical 40 ms, configurable
- Output Format: Serial ASCII output or 3.3V / 0V high-low voltage signaling

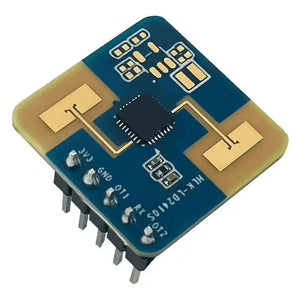

- Package Type: Default with mounting pins
