KST X08 Plus V2.0 Micro Servo 5.3Kgf.cm 0.09sec 9.0g 8mm
The X08 Plus is a plus version of the KST X08 servo, making it suitable for use in wings and other flying surfaces. The KST X08 Plus is a very light (9.0g) low/medium/high voltage metal cased servo. It is based on the well-regarded KST X08 servo but with a larger motor fitted. KST X08 Plus takes it another step forward by not only further improving the gearset to minimize potential slop.
It is especially good for ailerons on F5J gliders, electric racers, and all models with thin flying surfaces. Despite being only 8 mm thick the powerful coreless DC motor and gearing provide good torque and high speed. The X08 Plus can be operated from a voltage as low as 3.8V (1S LiPo) or as high as 8.4V (2S LiPo). KST servos have excellent geartrain machining tolerances, and this servo is completely slop-free and equal to products costing twice as much. Despite not having an -MG moniker this servo has metal gears and is very tough.
The KST X08 Plus's high torque, good speed, and 8mm thinness make it suitable for many high-performance gliders, pylon racers, and EDF applications. With up to 5.3Kgf.cm torque the KST X08 is appropriate for F5J, F5D, F3J and many types of high-performance models.
The extreme reliability and performance of these servos also make them very suitable for use in film and motion picture industry special effects departments. They are also used in robotics, RC models, and other highly demanding applications.
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high performance RC Gliders
- Excellent heat dissipation
Specification
- Item: X08 Plus Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC3.8V-8.4V
- Torque: 2.4Kgf.cm@3.8V, 3.85Kgf.cm@6.0V, 4.85Kgf.cm@7.4V, 5.3Kgf.cm@8.4V
- Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.12sec/60°@7.4V, 0.09sec/60°@8.4V
- Working Frequency: 1520μs/333Hz

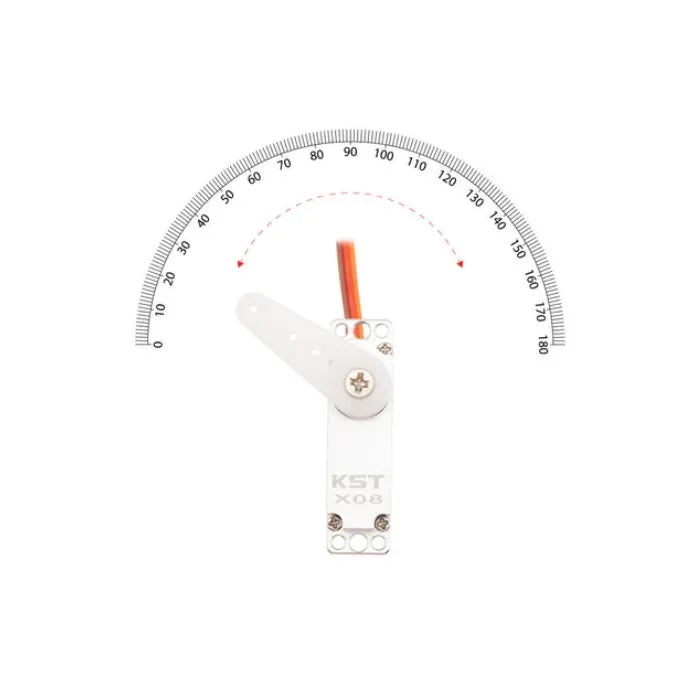

- Default Travel Angle: ±60° = 120° Total
- Temperature Range: -10℃……+65℃
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

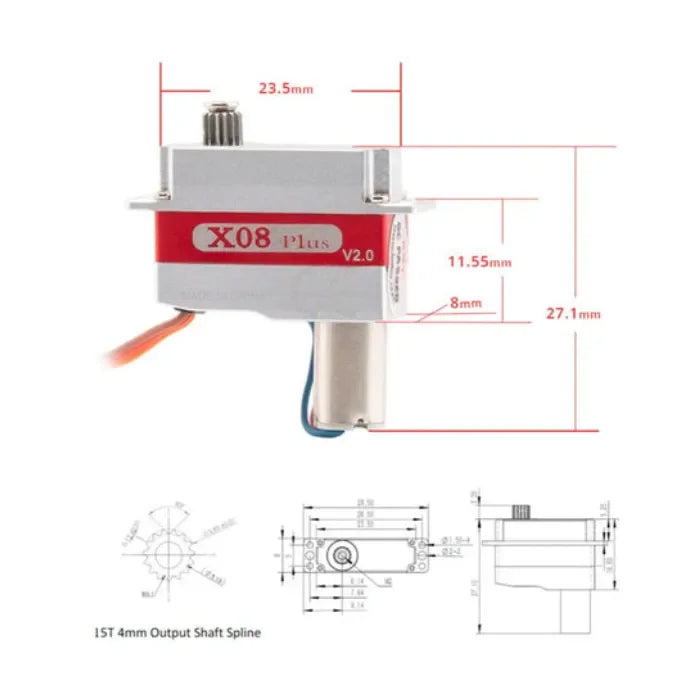

- Case Dimensions: 23.5*8*16.8mm±0.2mm
- Weight: 9g±10%
Size

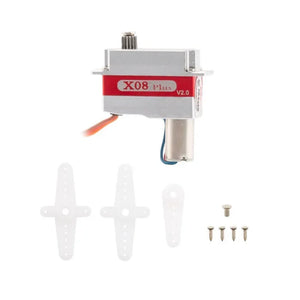

Package Includes
- 1 * X08 Plus Micro Servo
- 3 * Plastic Servo Horn
- 4 * Mounting Screw
- 1 * Servo Horn Screw
