LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 915MHz nRF52840
The LILYGO T-ECHO offers enhanced features compared to the LILYGO T-BEAM, providing better compatibility for Meshtastic. Special attention has been paid to refining the Bluetooth performance and achieving low power consumption. The chosen nRF52840 Advanced Bluetooth 5 SoC enables strong performance, supporting Thread and Zigbee multi-protocol communication, ideal for diverse wireless applications.
The LILYGO T-ECHO retains the LORA features of the T-BEAM through integration of the LILYGO SX1262 wireless transceiver module. Utilizing the Semtech SX1262 LORA RF transceiver chip, it operates on the 915 MHz ISM frequency band. A high-stability TCXO 32 MHz crystal oscillator ensures excellent performance in transmission and reception. With a maximum output power of +22dBm and a receiving sensitivity of -139dBm, the LILYGO T-ECHO guarantees long-range communication in challenging environments. Its automatic transceiver switching and advanced LORA spread spectrum communication technology enhance anti-interference capabilities for reliable long-distance data transmission.
Furthermore, the LILYGO T-ECHO BME280 incorporates the BME280 sensor for accurate environmental measurements, including temperature, humidity, and pressure. This feature makes the device perfect for IoT applications that need real-time data alongside strong wireless communication. The BME280 sensor enhances the versatility of the LILYGO T-ECHO, providing a comprehensive solution for environmental monitoring and remote sensing.
Specifications of the LILYGO T-ECHO BME280
| MCU | NRF52840 |
| FLASH | 2MB |
| RAM | 2MB |
| Bus Interfaces | UART, SPI, TWI, PDM, I2S, QSPI |
| Wireless Connectivity |
Bluetooth 5, Thread, Bluetooth Mesh, ANT, 802.15.4, Zigbee With/Without BME280 temperature pressure sensor |
| SX1262 LoRa Transceiver |
Long Range, Low Power Global frequency coverage 433, 868, 915Mhz |
| Enclosure Material | ABS |
| Version | Normal version / BME280 version |
| Battery Capacity | 850mAh |
Featured Articles
1.54-inch SPI E-Paper Display
| Grey level | 2 |
| Resolution | 200x200 |
| Full refresh time | 2S |
L76K Multi-System Positioning GNSS module
| Support System | GPS, GLONASS, BeiDou, QZSS |
| Support Function |
LNA, SAW Filter, AGNSS, 1PPS |
Technology Support [Github]
If you need technical support please check the link to find more details.
Basic Example:
https://github.com/Xinyuan-LilyGO/LilyGO-T-Echo
Application Scenarios
- DIY projects
- LoRa communication networks
- GPS tracking
- IOT device management
- STEM education tools
Highlights of the LILYGO T-ECHO BME280
The LILYGO T-ECHO BME280 features the advanced L76K multi-satellite positioning system, which supports multiple global navigation satellite systems (GNSS) including GPS, BeiDou, GLONASS, and QZSS. This enables joint multi-system positioning and independent single-system positioning, ensuring accurate location data in various environments. Additionally, the LILYGO T-ECHO BME280 includes AGNSS (Assisted GNSS), which reduces the time required for the first positioning fix, providing a fast and reliable experience for users.
In contrast to conventional single-system GPS, the multi-satellite system integrated into the LILYGO T-ECHO BME280 increases the number of visible satellites, greatly enhancing positioning accuracy and stability, even in complex urban settings where GPS signals are often weak. The built-in low-noise amplifier (LNA) and surface filter ensure high sensitivity, allowing for quick signal capture and accurate tracking, even in difficult conditions.
The LILYGO T-ECHO BME280 is also designed with improved anti-interference capabilities thanks to the surface acoustic filter, which enhances performance in electromagnetic noise environments. The module is equipped with an active antenna detection circuit and a protection circuit to safeguard both the module and antenna from potential damage.
To enhance user interaction, the LILYGO T-ECHO BME280 is fitted with a 1.54-inch E-paper display featuring a 200x200 resolution and LED front light. This combination ensures clear visibility in low-light environments, making it suitable for indoor and outdoor applications.

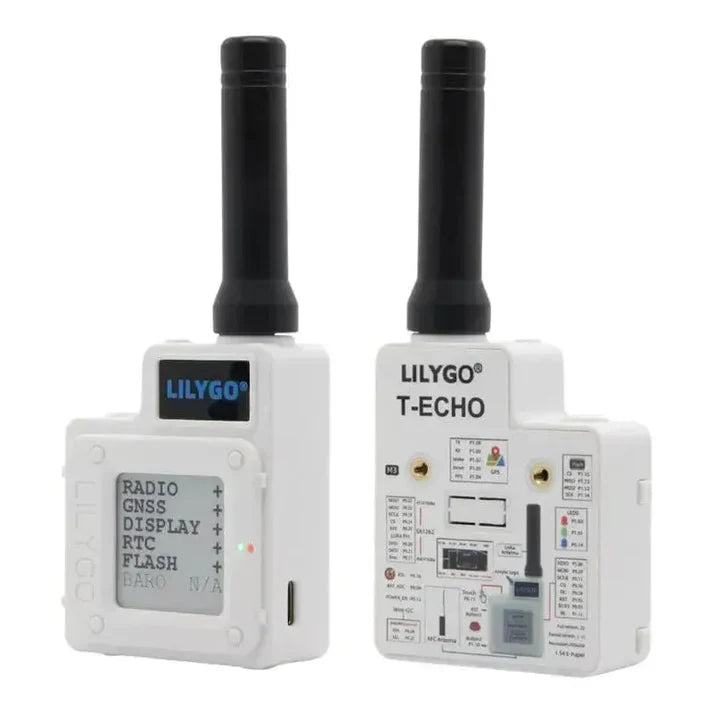

Product Display

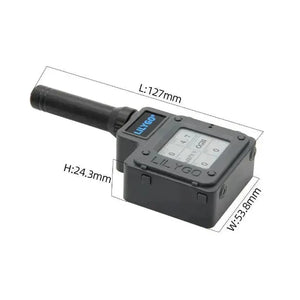

Size
Appearance Details
