LILYGO T-Halow ESP32-S3 Long-range Low-power Dev Board

LILYGO T-Halow ESP32-S3 Long-range Low-power Dev Board

The T-Halow is a development board for wireless communication, built on the ESP32-S3 chip. It supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE) protocols, making it perfect for wireless data transmission, IoT applications, and industrial control. Equipped with 16MB Flash and 8MB PSRAM, it delivers high computing power along with significant storage.

Moreover, the board includes an RJ45 Ethernet port, allowing for stable wired network connections which ensure reliable data transmission. It also features low-power wireless communication capabilities, making it ideal for remote control and data collection applications. Its compact design and versatile functionalities make it an excellent solution for embedded projects, wireless networking, and automation.

This product has been upgraded to a new version, which now includes added switches and buttons. All subsequent shipments will be the new version.

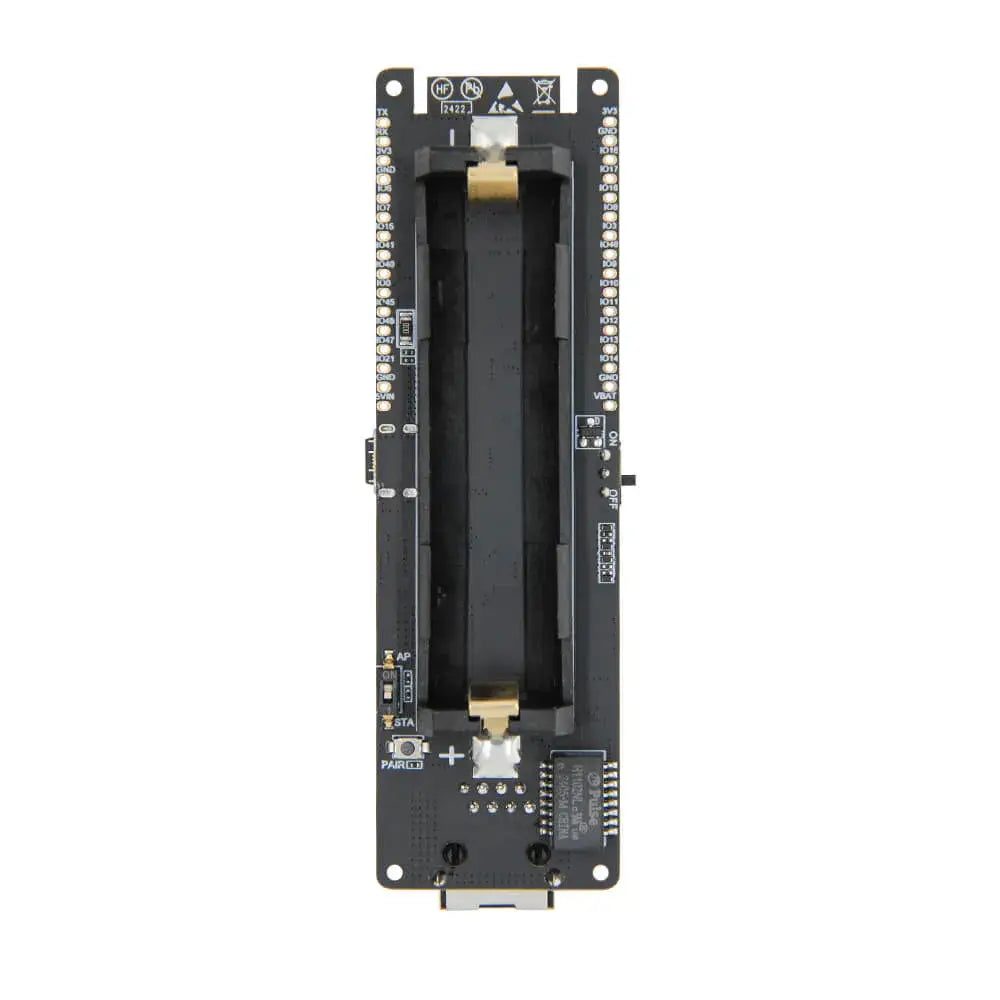

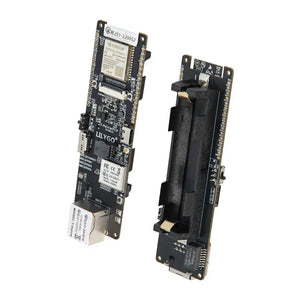

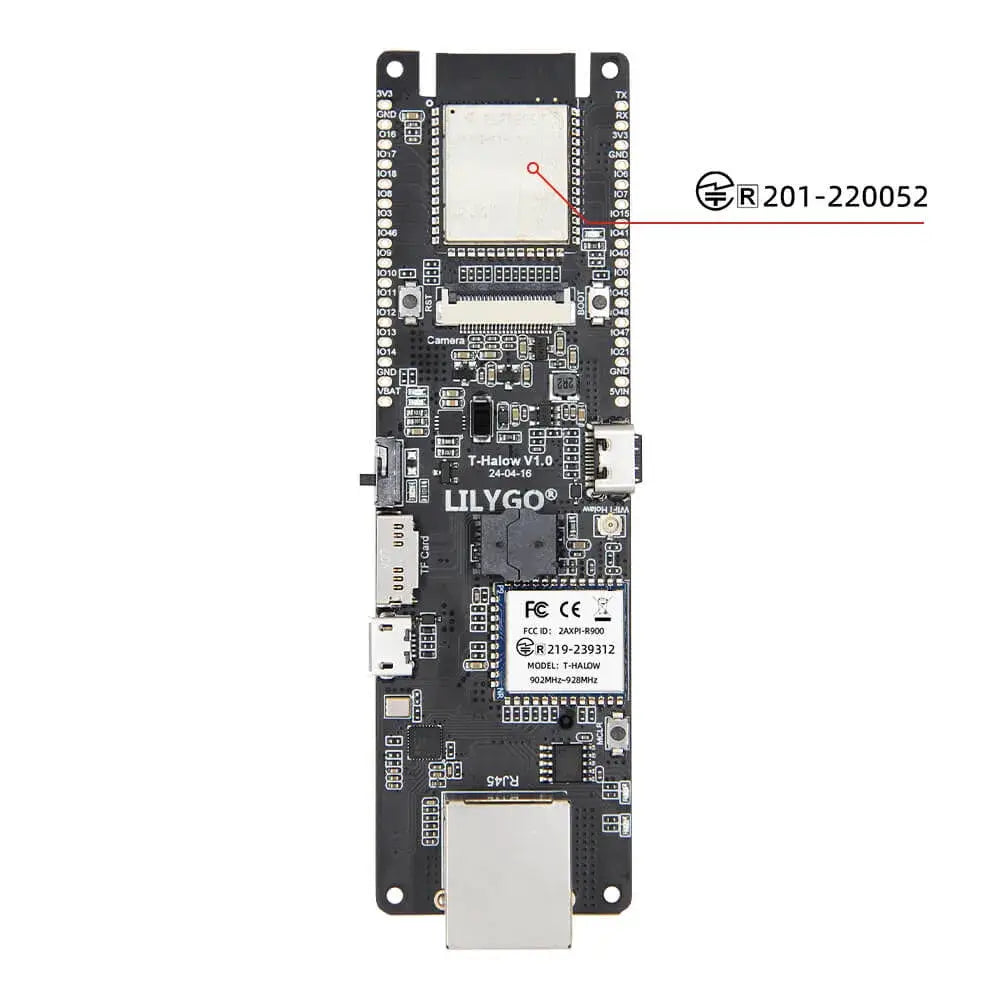

T-Halow Image

Features

  • ESP32-S3 MCU โ€“ A high-performance 32-bit processor with support for Wi-Fi and Bluetooth 5 (LE).
  • 16MB Flash + 8MB PSRAM โ€“ Provides sufficient memory for efficient processing and data storage.
  • Wireless Protocols โ€“ Supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE).
  • Ethernet (RJ45 Port) โ€“ Facilitates stable wired network connections.
  • TF Card Expansion โ€“ Enables external storage options for larger data needs.
  • USB Charging Interface โ€“ Supplies 5V 500mA power via USB.


Included Items

The T-Halow package includes:

  • 1 x T-Halow main board
  • 1 x 868M or 900M Antenna (based on the selected version)
  • 2 x Pin Headers
  • 1 x Flash [25Q32JVS1Q / WINBOND]


Applications

The T-Halow is suitable for a range of wireless communication and IoT applications, including:

  • Industrial Automation โ€“ For wireless control systems and remote monitoring.
  • Drone Communication โ€“ Facilitates long-range data transmission for UAV operations.
  • Smart Home โ€“ Ideal for IoT gateways and remote control devices.
  • Environmental Monitoring โ€“ For sensor data collection and wireless transmission.
  • Remote Data Transfer โ€“ Suitable for IoT devices requiring long-range wireless communication.


Specifications

Parameter Specification
MCU ESP32-S3
Flash 16MB
PSRAM 8MB
Wireless Protocol 2.4 GHz Wi-Fi + Bluetooth 5 (LE)
Programming Platform Arduino IDE, VS Code, ESP-IDF
Expansion Functions TF-Card, BOOT + Reset, 18650 Battery

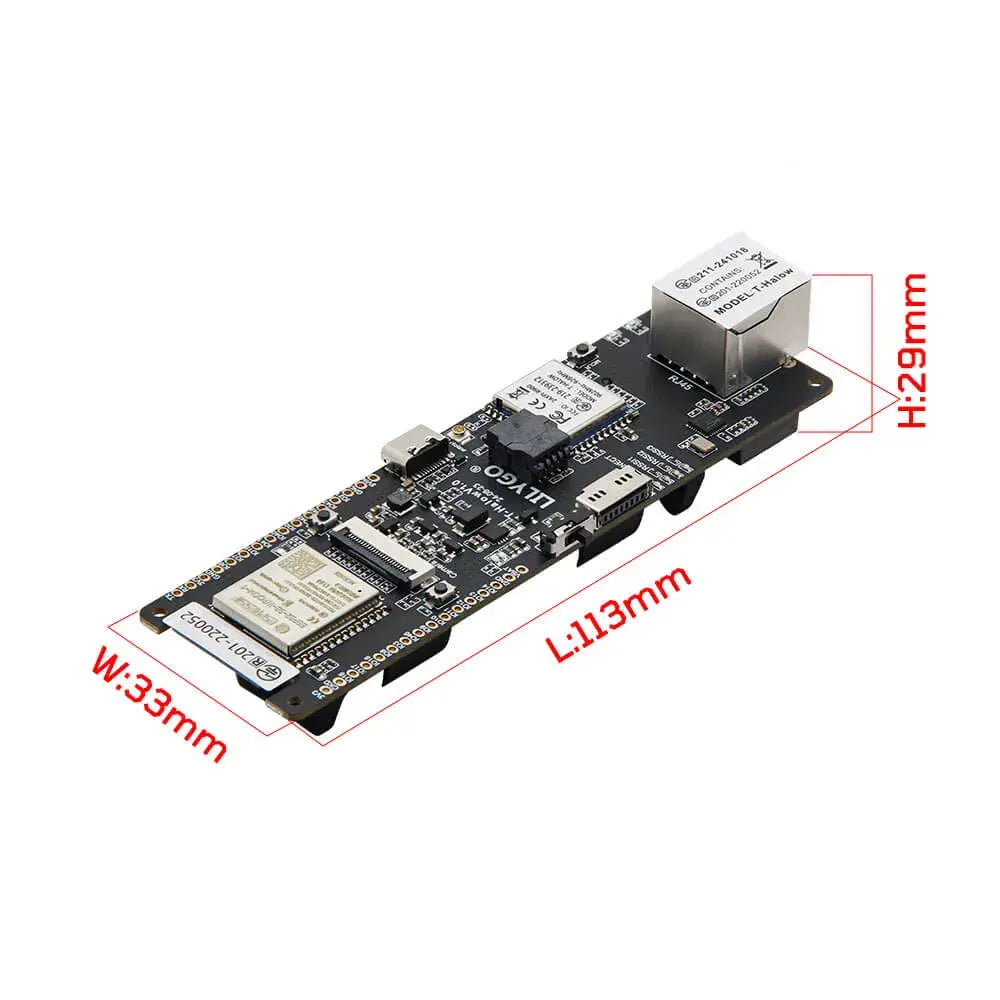

Dimensions 113mm x 33mm
USB Charging 5V 500mA
Ethernet Interface RJ45 Port
Included Accessories 868M / 900M Antenna, Flash Memory Chip
