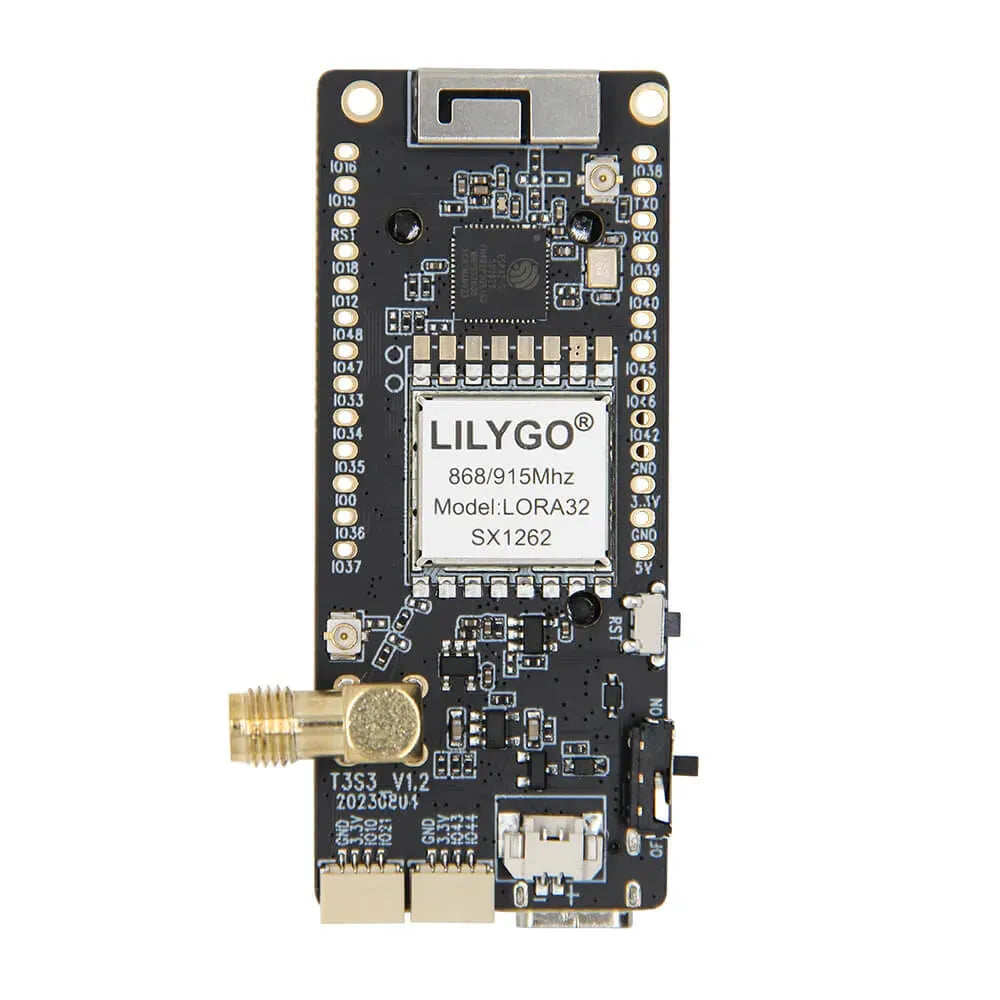

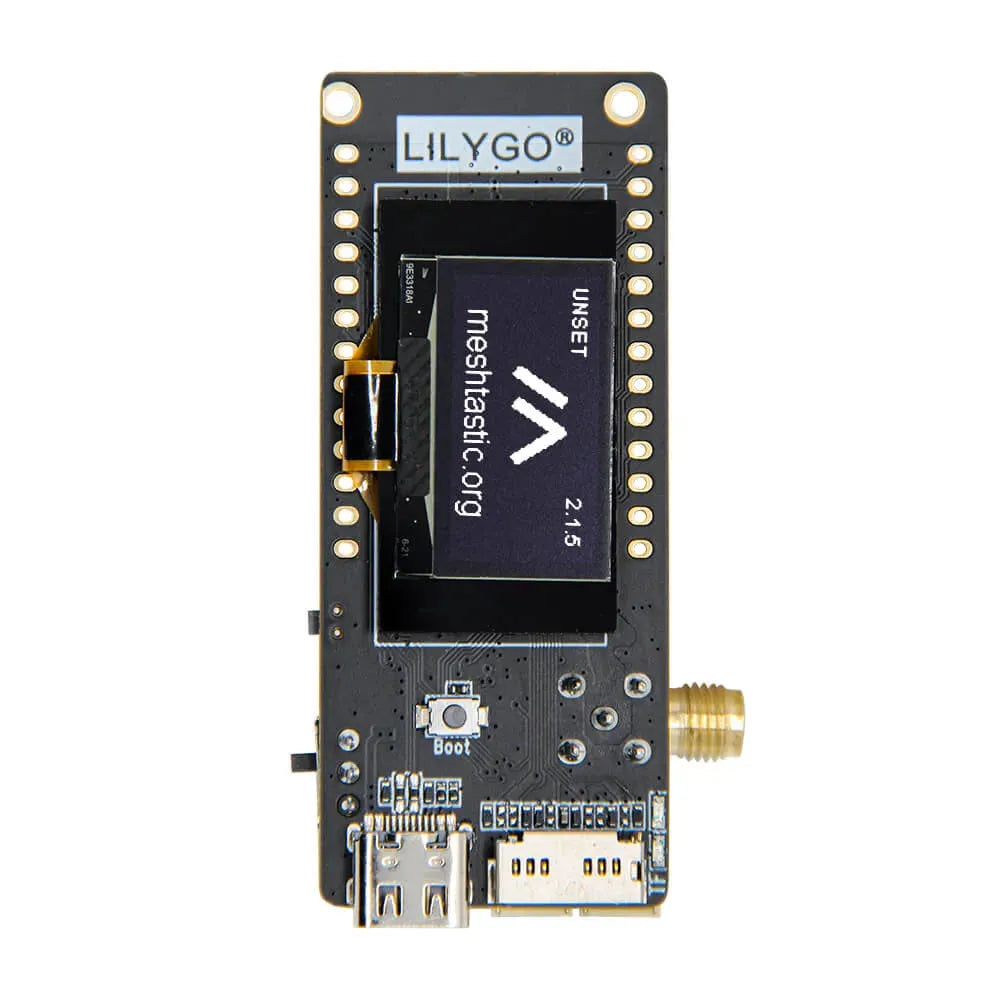

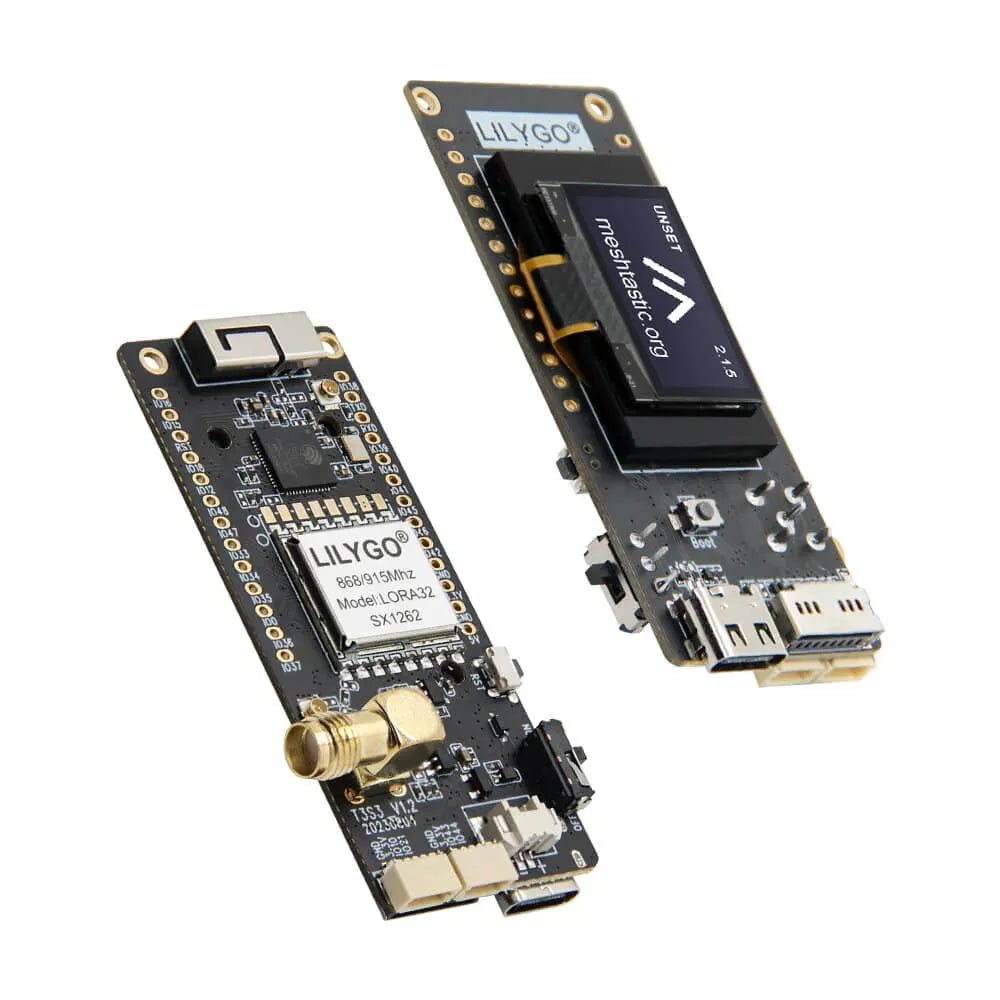

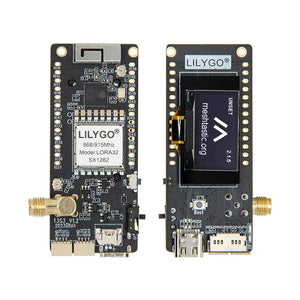

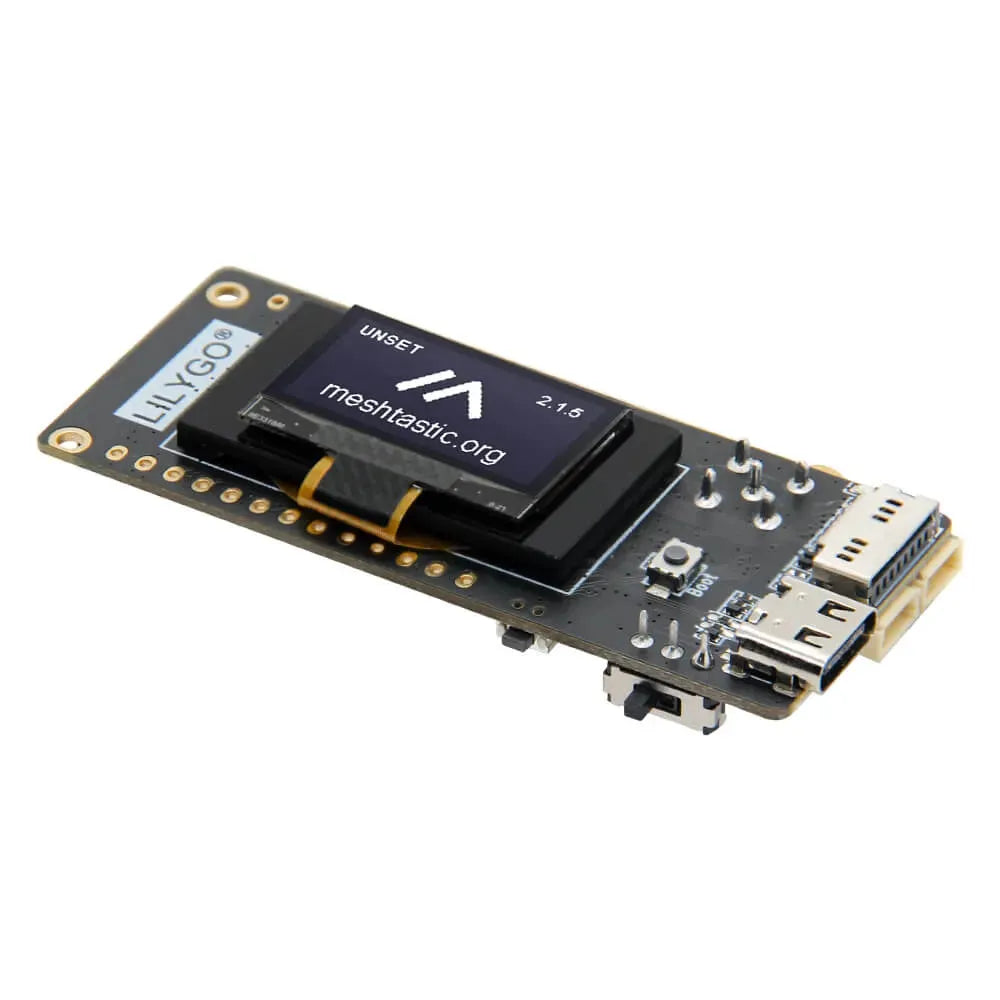

LILYGO T3 S3 Meshtastic ESP32-S3 LoRa 0.96 inch Dev Board with Antenna
📦 Location of the warehouse: US
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
LILYGO T3 S3 Meshtastic ESP32-S3 LoRa 0.96 inch Dev Board with Antenna
T3 S3 LoRa Development Board is a compact and high-performance platform designed for long-range wireless communication projects. It’s built around the ESP32-S3 chip, which integrates both Wi-Fi and Bluetooth 5.0, making it ideal for a wide variety of IoT applications. The board includes a 0.96" OLED screen for live data display and supports multiple LoRa transceiver modules (SX1280, SX1276, and SX1262) covering 2.4GHz, 868MHz, and 915MHz frequency bands.
This board is an excellent choice for rapid prototyping, research, and development of wireless IoT devices. Whether you're building solutions for environmental sensing, smart farming, remote data acquisition, or urban infrastructure, the T3 S3 delivers the connectivity and adaptability needed to bring your ideas to life.
Features
- High-Performance ESP32-S3 Chip: Built with the ESP32-S3, offering Wi-Fi and Bluetooth 5.0 for fast and energy-efficient wireless communication.
- 0.96-inch OLED Display: Uses the SSD1306 driver with 128x64 pixel resolution for clear real-time data output.
- Low-Power LoRa Communication: Compatible with SX1280, SX1276, and SX1262 modules, supporting 2.4GHz, 868MHz, and 915MHz bands for extended range and low power usage.
- Multiple Expansion Options: Supports modular add-ons via HAT and Unit interfaces for scalable development.
- USB-C Connectivity: Equipped with a USB-C port for power and data transfer.
- Battery Powered: Compatible with 3.7V LiPo batteries, making it suitable for mobile and field deployments.
- Compact and Lightweight: Measures just 56mm × 36mm × 24mm, perfect for space-constrained applications.
Included
- 1 × T3 S3 LoRa Development Board
- 1 × USB-C Cable
- 2 × Pin Headers
- 1 × Antenna
- 1 × User Manual
Applications
The T3 S3 LoRa Development Board is suitable for a wide range of use cases that require long-range, low-power wireless communication. Typical applications include:
- Environmental Monitoring: Gather and transmit sensor data from remote locations with limited network access.
- Smart Agriculture: Monitor field conditions like temperature, humidity, and soil moisture for precision farming.
- Smart Cities: Enable intelligent infrastructure such as lighting control and traffic systems.
- Remote Sensing and Data Collection: Ideal for industrial and scientific monitoring over extended distances.
- Home Automation: Integrate into smart home setups for device control, security, and energy management.
Specifications
| Specification | Details |
|---|---|
| Main Chip | ESP32-S3, featuring Wi-Fi and Bluetooth 5.0 |
| Flash Memory | 4MB |
| PSRAM | 2MB |
| Display | 0.96-inch OLED, 128x64 pixels resolution, SSD1306 |
| LoRa Transceiver | Supports SX1280, SX1276, and SX1262, with frequency support for: 2.4GHz, 868MHz, 915MHz |
| Low Power Output | SX1280: 12dBm, SX1276: 14dBm, SX1262: 22dBm output power |
| Power Supply | USB-C or 3.7V LiPo battery (battery not included) |
| Dimensions | 56mm (L) x 36mm (W) x 24mm (H) |
| Interfaces | TF card slot, I2C interface for display/sensors, GPIO pins for extensions |
| Expansion | HAT and Unit interfaces for added customization |
