M5Stack AI Pyramid Computing Box Pro 8GB Version (AX8850)

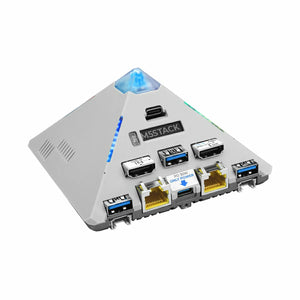

AI Pyramid‑Pro is a uniquely pyramid‑shaped, high‑end AI computer built to handle intensive edge intelligence and local AI inference tasks. At its core is the Axera AX8850 SoC, combining an octa‑core Cortex‑A55 processor with a 24 TOPS @ INT8 NPU. This architecture ensures reliable performance for demanding workloads such as AI vision analytics, multimodal applications, and on‑device LLM execution. Equipped with 8GB LPDDR4x memory and a dedicated video engine, it supports 8K H.264/H.265 encode/decode and 16‑channel 1080p decoding, making it ideal for multi‑stream video processing and AI‑driven media solutions.
Featuring dual HDMI 2.0 ports (1 input + 1 output), dual Gigabit Ethernet, USB 3.0, and USB Type‑C, the AI Pyramid‑Pro provides versatile options for display connections, network integration, and device expansion. Designed as a desktop‑class edge AI platform, it is tailored for deployment in intelligent terminals and field AI computing. Whether powering AI PCs, smart gateways, or interactive systems, the AI Pyramid‑Pro delivers consistent local inference performance for scenarios like smart surveillance, AI vision hubs, and Immich photo servers.
Features
-
Performance Highlights
- Axera AX8850 SoC
- Octa‑core Cortex‑A55 @ 1.7 GHz
- 24 TOPS @ INT8 NPU for accelerated AI workloads
- 8GB (4+4) LPDDR4x 64‑bit, 4266 Mbps memory bandwidth
-

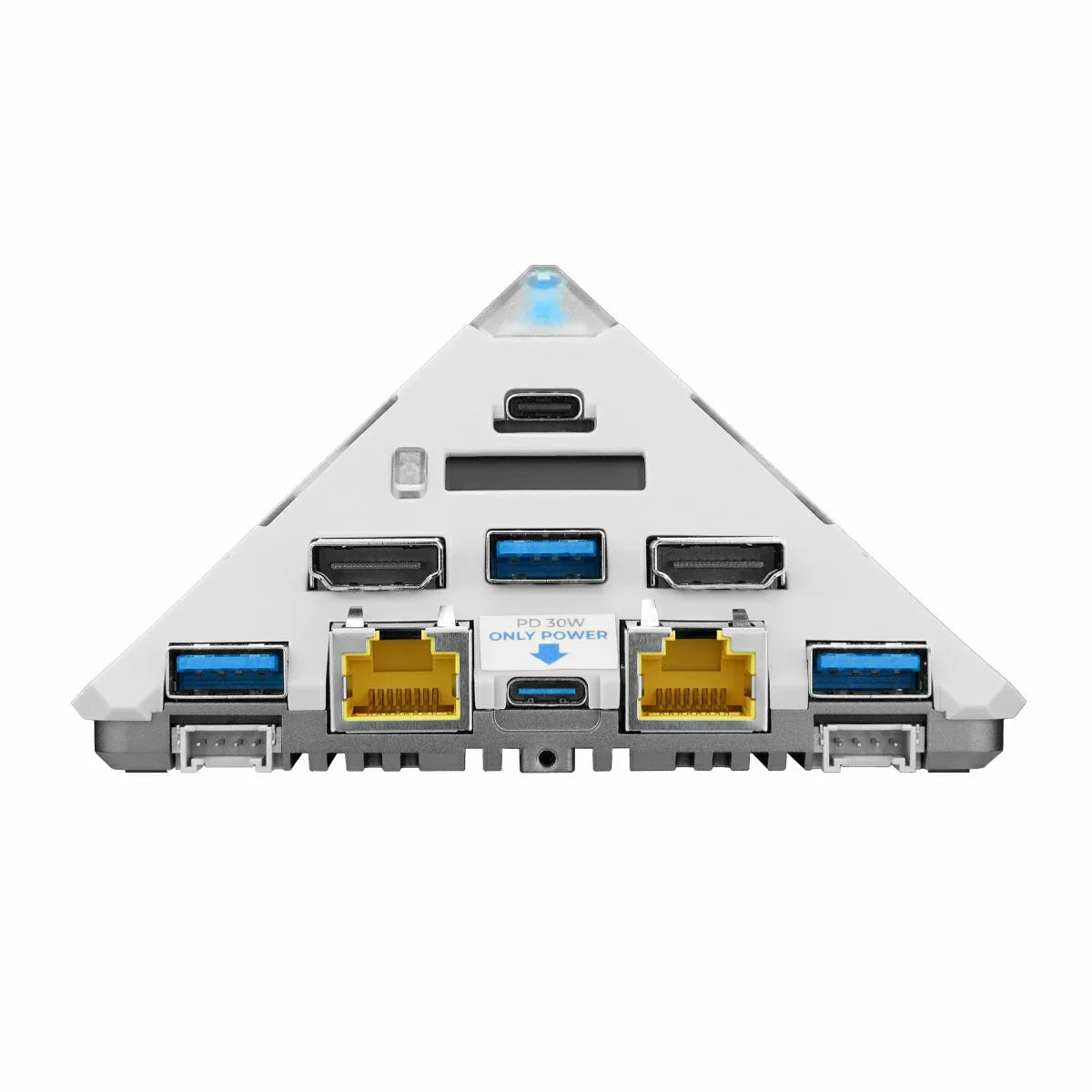

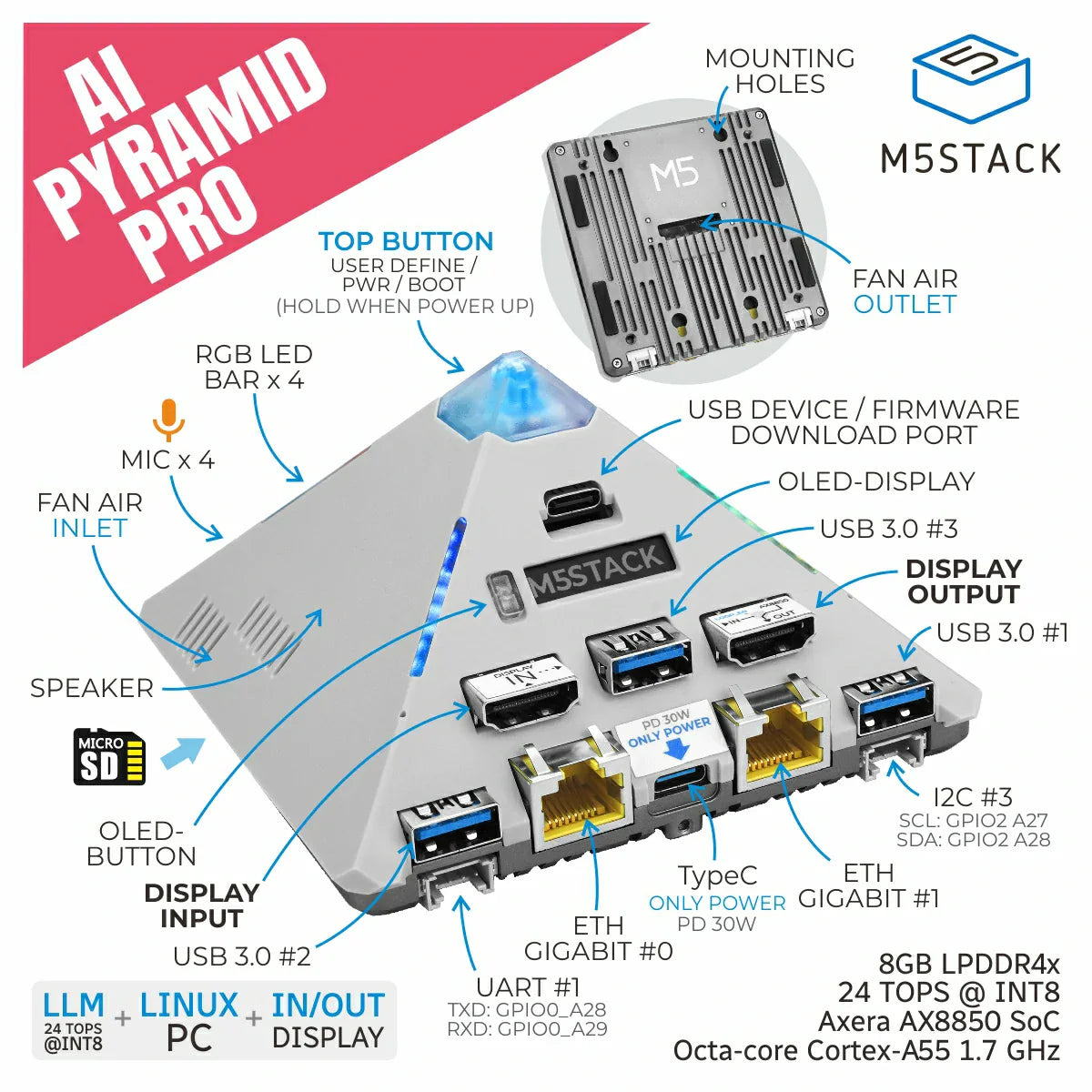

Comprehensive I/O Options
- 2× HDMI 2.0 (1 input + 1 output), supports 4K@60fps
- 4× USB‑A 3.0 ports (including 1 onboard)
- 2× USB Type‑C with USB Host + USB PD 3.0 100W
- 2× Gigabit Ethernet
- 1× microSD slot
- 2× HY2.0‑4P expansion connectors
-
Audio System
- ES8311 codec
- ES7210 four‑mic array
- AW8737A amplifier
- Advanced Video Engine: 8K @ 30 fps H.264/H.265 encode/decode, 16‑channel 1080p decoding
- Security Features: AES/DES/3DES/SHA‑256 hardware encryption
- AXCL Framework Support: One‑click deployment for CNN, Transformer, CLIP, Whisper, Llama 3.2, Qwen 3, InternVL3 and more; simultaneous H.264/H.265 encode/decode/transcode
-
Integrated STM32 Coprocessor for extended utilities
- Power monitoring
- OLED status display
- User control buttons
- RGB LED indicators

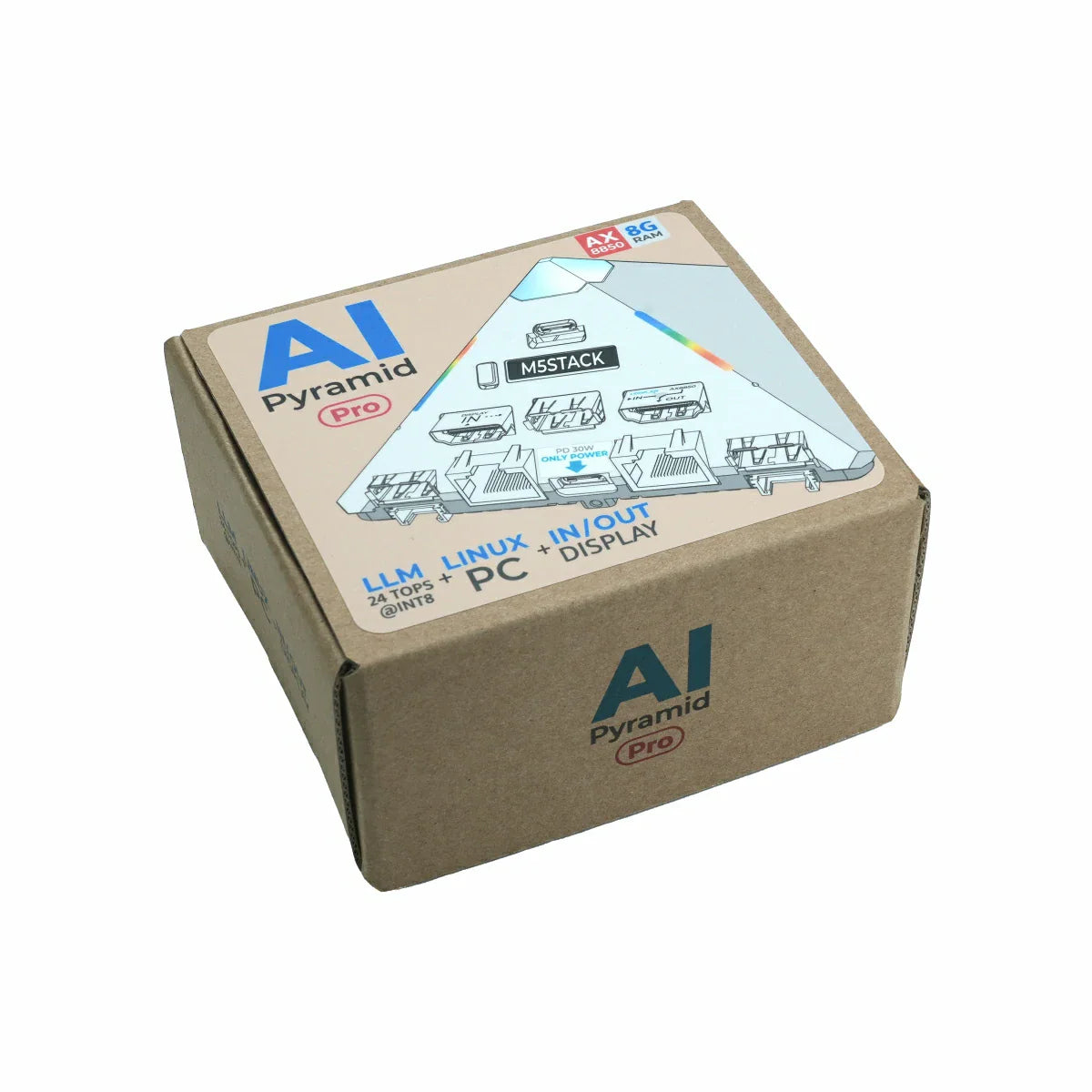

Package Contents
- 1 × AI Pyramid‑Pro
Applications
- AI PC & Edge Intelligent Terminals
- Smart Interactive Devices: Home Assistant, AIGC, voice cloning, meeting transcription
- AI Vision Gateways
- Local AI Smart Photo Album (Immich)
- AI‑Powered Smart Security (Frigate)
Specifications
| Specification | Parameter |
|---|---|
| SoC | Axera AX8850 |
| CPU | Octa‑core Cortex‑A55 @ 1.7 GHz |
| NPU | 24 TOPS @ INT8 |
| Video Encoder | 8K @ 30 fps H.264/H.265 encoding, scaling & cropping supported |
| Video Decoder | 8K @ 30 fps H.264/H.265 decoding, 16‑channel 1080p parallel decoding, scaling & cropping supported |
| Memory | 8GB 64‑bit LPDDR4x, 4266 Mbps (4+4) |
| Storage | 32GB eMMC 5.1 |
| Ethernet | 2× Gigabit Ethernet ports |
| USB‑A Ports | 4× USB‑A 3.0 (3× external + 1× internal onboard) |
| USB Type‑C Ports | 2× USB Type‑C (1× USB Host + 1× USB PD 3.0 100W, DC 9V/12V/20V compatible) |
| Multimedia Interface | 2× HDMI 2.0 digital A/V ports (1× output + 1× input), 4K@60fps supported |
| Cooling | Turbo cooling fan with EC intelligent thermal control |
| Audio Codec | ES8311 audio codec |
| Microphone | ES7210 microphone array input |
| Speaker | AW8737A amplifier, 4Ω 2W 2040 enclosed speaker |
| RGB LED | 48× RGB LEDs |
| SmartIO Status Display | OLED SSD1306 (32×128); supports IP address, system resource, custom text/graphic display Panel dimensions: 28.54 × 8.58 × 1.22mm |
| User Buttons | 2× user buttons (power on/off + OLED page navigation) |
| Power Requirement | PD input rated ≥ DC 9V@3A (27W) |
| Product Weight | 194.9g |
| Package Dimensions | 114.5 × 105.0 × 62.0mm |
| Gross Weight | 255.6g |
Power RequirementThis device requires a PD adapter with a minimum output of DC 9V@3A (27W). The unit will not power on with a DC 5V supply.
Memory AllocationMemory partitioning between the AI Pyramid‑Pro system and hardware acceleration resources is defined below:
8GB variant (4GB + 4GB): 4GB allocated to system memory; 4GB reserved for hardware acceleration tasks including NPU compute and video encode/decode.
This partitioning scheme ensures stable system operation while reserving dedicated memory for AI inference and multimedia processing.
I2C Bus NoticeAvoid accessing the RTC chip during microphone recording, as this may cause unstable behavior on the SYS_I2C bus.
RTC Clock NoticeAfter external power loss, the onboard RTC clock module retains timekeeping for up to approximately 20 hours.
Product Comparison
| Product Comparison | AI Pyramid
|
AI Pyramid-Pro
|
|---|---|---|
| DRAM | 4GB 64‑bit LPDDR4x, 4266 Mbps (2+2) | 8GB 64‑bit LPDDR4x, 4266 Mbps (4+4) |
| HD Digital Audio/Video Interface | 2x Output | 1x Input + 1x Output |
| Enclosure Color | Transparent | Gray |
