M5Stack ATOM Echo Smart Speaker Development Kit
M5Stack ATOM Echo: A Compact and Powerful Smart Speaker Kit – OpenELAB

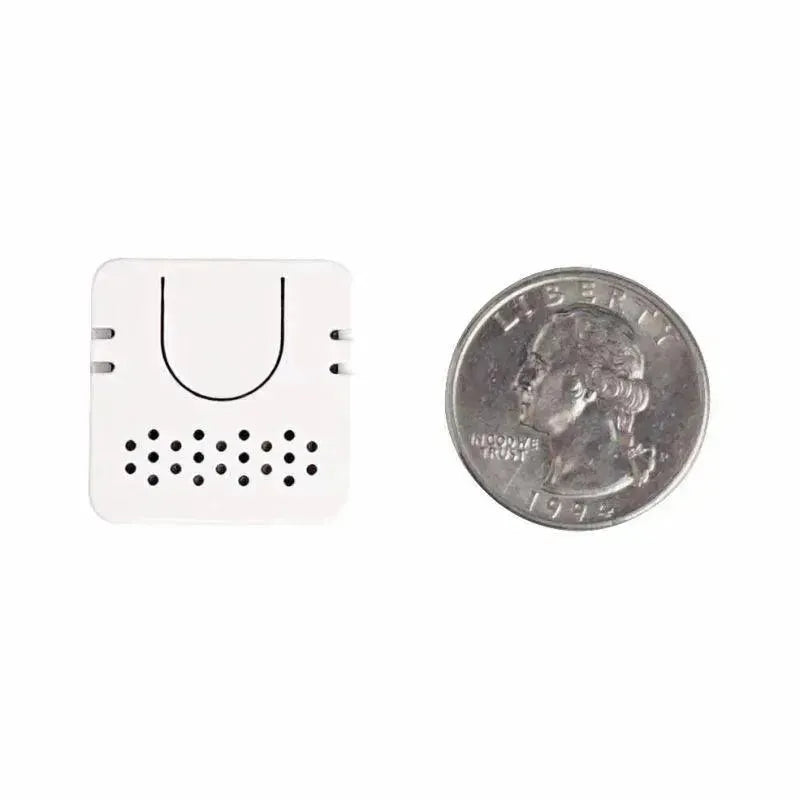

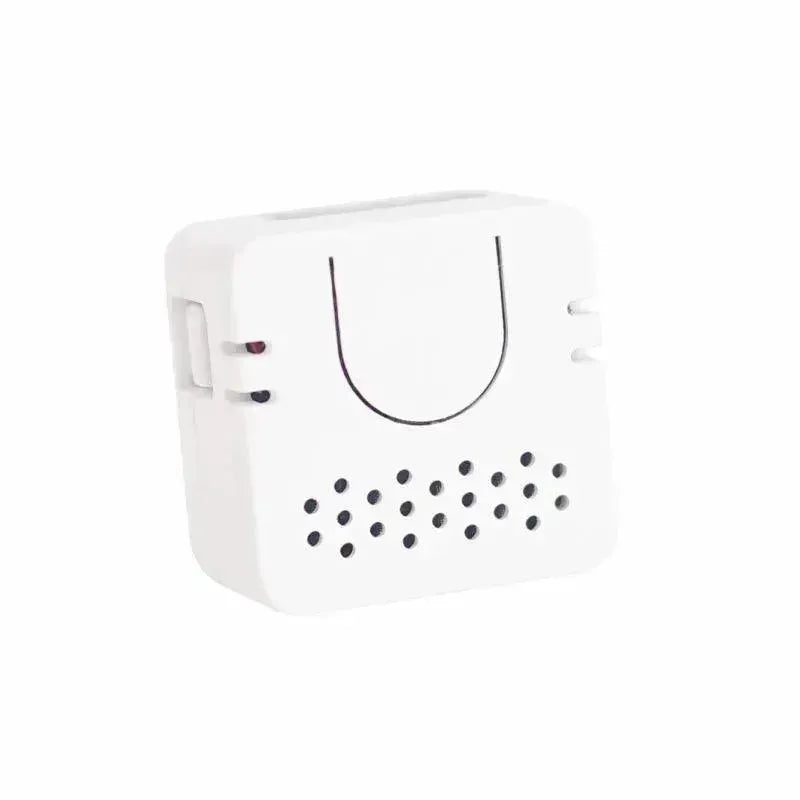

The ATOM ECHO is a smart speaker built on the M5ATOM framework, providing impressive features in a compact size of 24 mm x 24 mm x 17 mm. Wireless music streaming is possible through Bluetooth, utilizing the ESP32, which ensures a stable connection to smartphones and tablets.
One of the standout features of the ATOM ECHO is its programmability, along with its ability to connect with cloud services like Amazon Web Services (AWS) and Baidu. The built-in microphone and speaker facilitate voice interaction, integrating artificial intelligence capabilities. Users can take advantage of voice control, enjoy storytelling features, and achieve smooth integration within the Internet of Things (IoT).

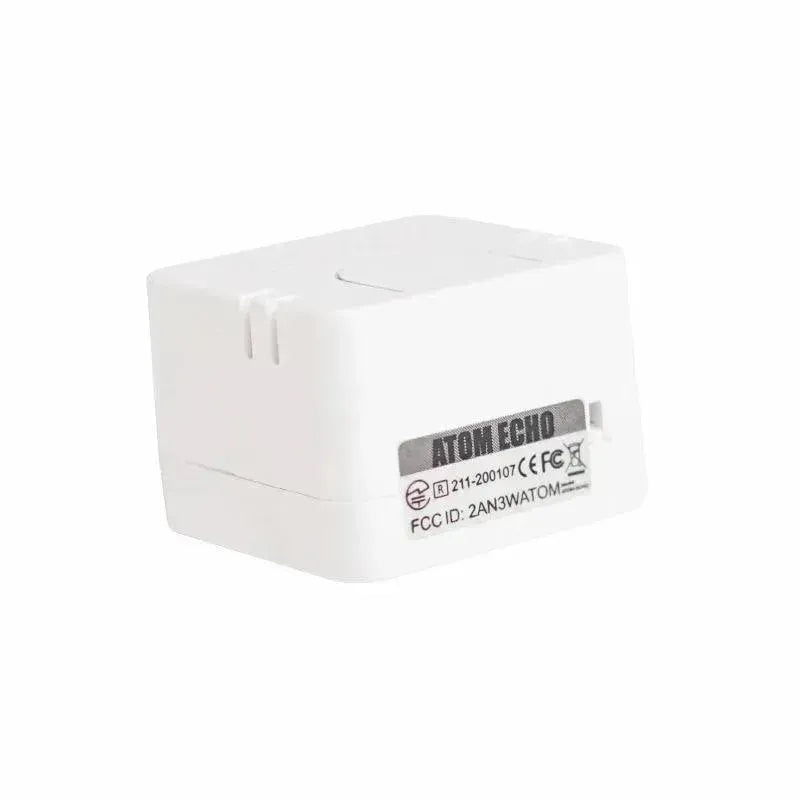

This device includes an integrated RGB LED (SK6812) for visual connection status notifications. Besides its Bluetooth functionality, the ATOM ECHO retains the robust control features common to the Atom series. A conveniently located screw hole on the back simplifies installation for users.
As a cutting-edge, programmable smart speaker, the ATOM ECHO combines compactness with advanced AI functionality and easy IoT integration, enhancing audio engagement in personal and professional settings.
-
Programmable GPIO Pins: ATOM series devices come with a range of General Purpose Input/Output (GPIO) pins that can be customized for numerous functions, including LED control and sensor integration.
-
I²C and SPI Interfaces: These devices support I²C and SPI communication protocols, enabling connections with a diverse array of sensors and modules.
-
PWM Control: Utilize Pulse Width Modulation (PWM) for tasks like LED dimming or motor speed control.
-
Analog Inputs: Analog input pins are available for reading data from sensors such as temperature or light sensors.
-
Wireless Communication: Equipped with built-in Wi-Fi and Bluetooth, the Atom series is suitable for remote control and monitoring applications.
-
MicroPython and Arduino Compatible: Program using either MicroPython or the Arduino IDE, allowing for flexibility in development.
-
Expandable Modules: The Atom series supports various expansion modules, including environmental sensors and displays, enhancing their functionality.
Included Components
- 1 x ATOM ECHO
Product Features
-
Extremely lightweight and compact design
-
Supports Speech-to-Text (STT) functionalities
-
Built on the ESP32 Arduino platform, supporting A2DP
-
2.4G Wi-Fi compliant with IEEE 802.11b/g/n
-
Integrated microphone and speaker
-
RGB LED for status indication
-
Grove interface for additional expansion
-
Record and playback capability
-
Programmable button for custom functions
-
Compatible with Arduino and ESP-IDF/ADF development platforms
Use Cases
-
Bluetooth speaker functionality
-
Voice-controlled systems
-
Home automation solutions

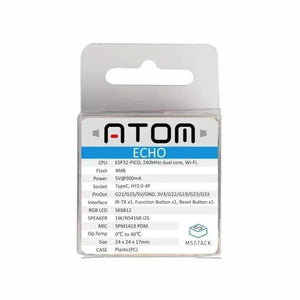

Specifications
|
Resources |
Parameter |
|---|---|
|
SoC |
ESP-PICO-D4, 240MHz, Dual Core, Wi-Fi |
|
Flash Memory |
4MB |
|
Interface |
1x IR-TX, 1x Function Button, 1x Reset Button |
|

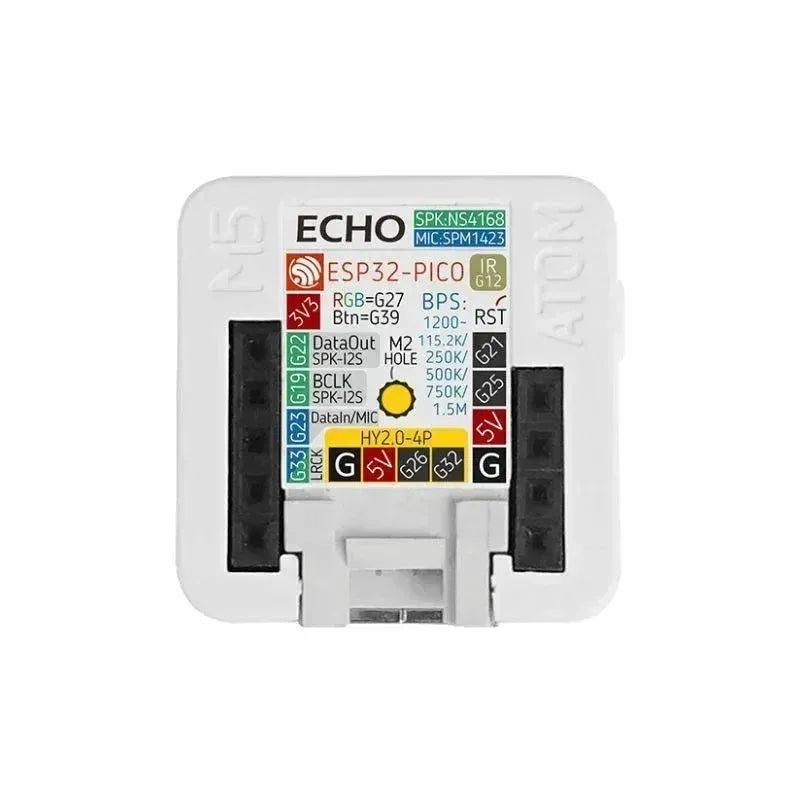

PinOut |
G21, G25, 5V, GND, 3V3, G22, G19, G23, G33 |
|
RGB LED |
SK6812 |
|
Speaker |
0.5W, NS4168 I2S |
|
Microphone |
SPM1423 PDM |
|
Net Weight |
5g |
|
Gross Weight |
10g |
|
Product Size |
24*24*17mm |
|
Package Size |
63*63*12mm |
|
Case Material |
Plastic (PC) |
