M5Stack ATOMIC Motion Base v1.2 with Power Monitor (INA226AIDGSR)

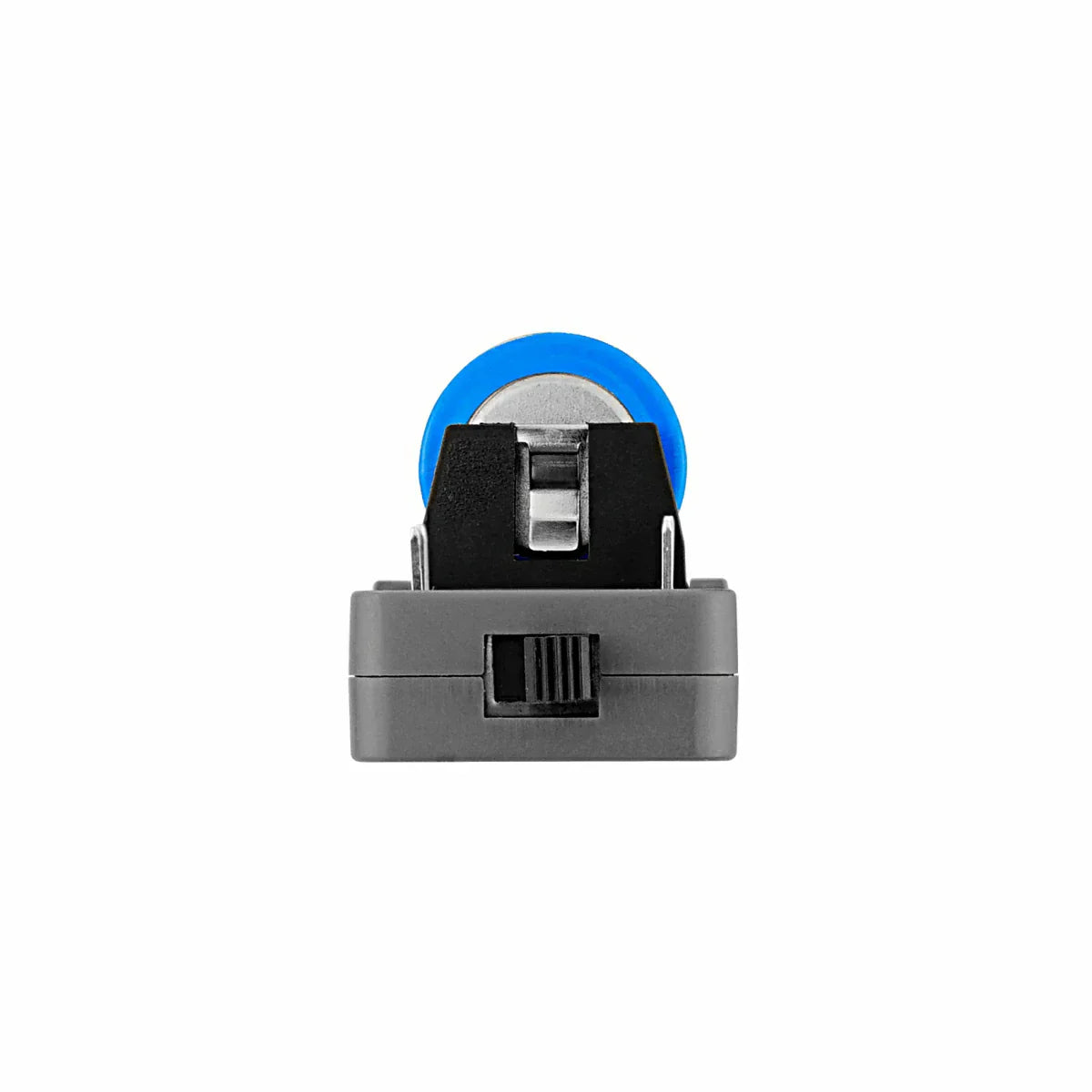

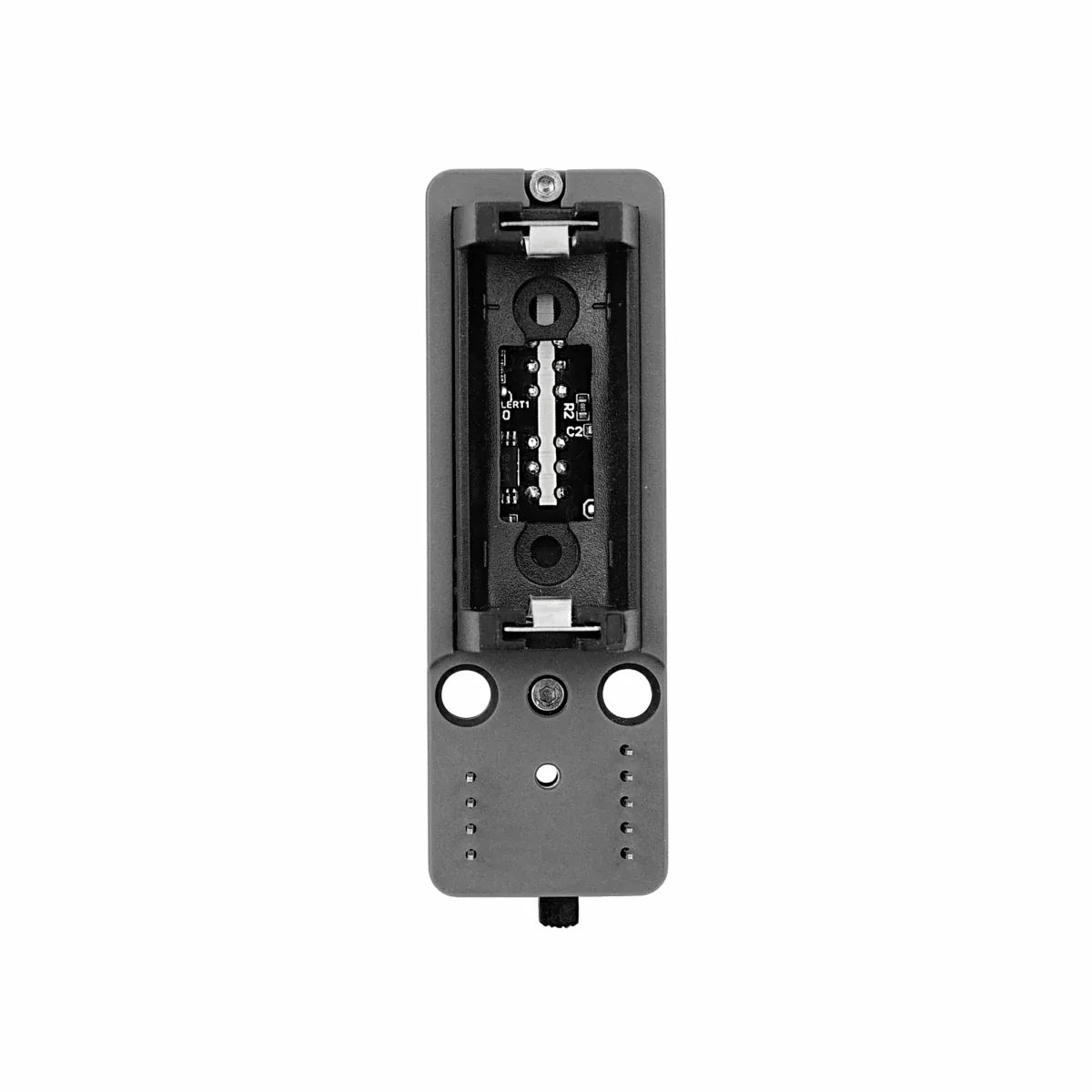

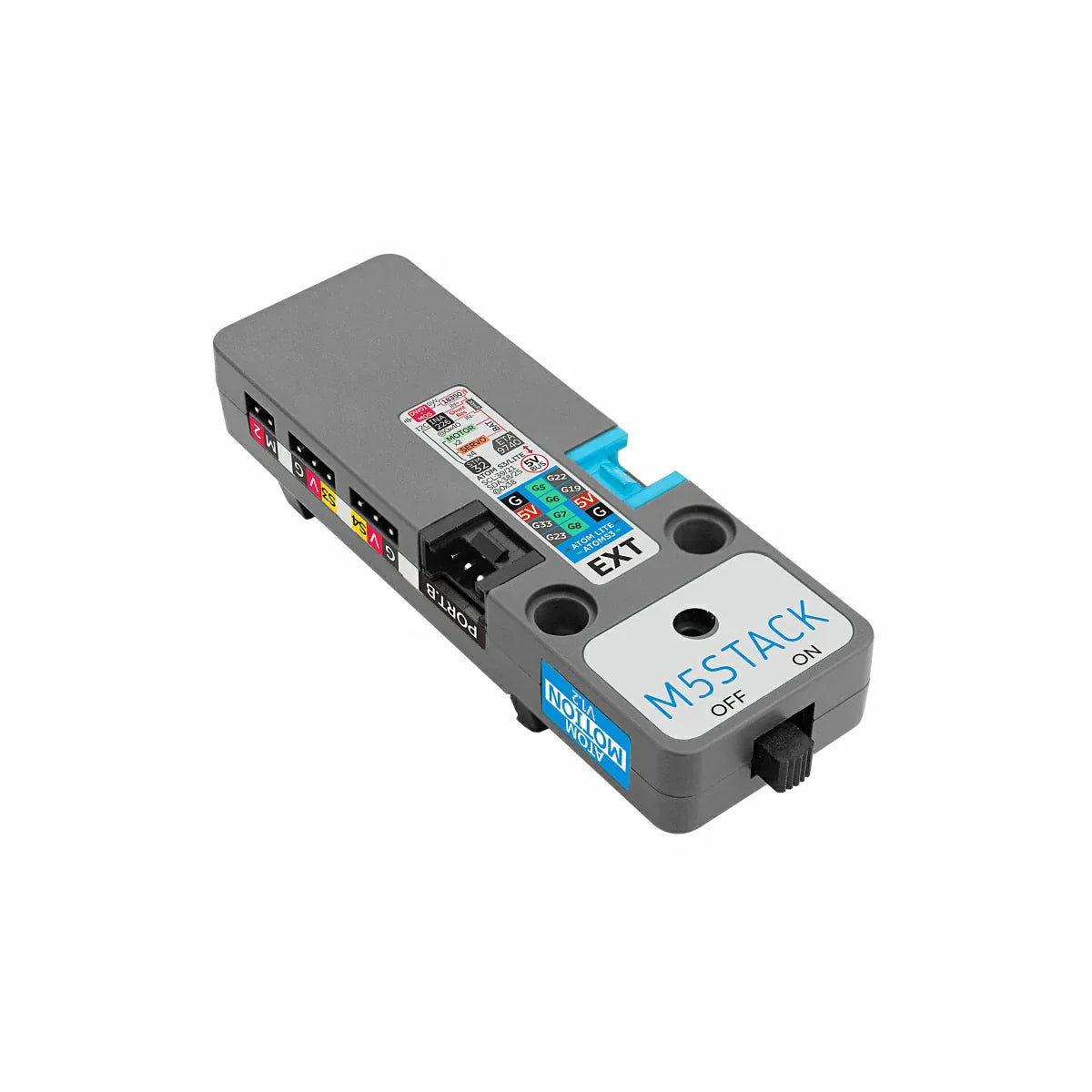

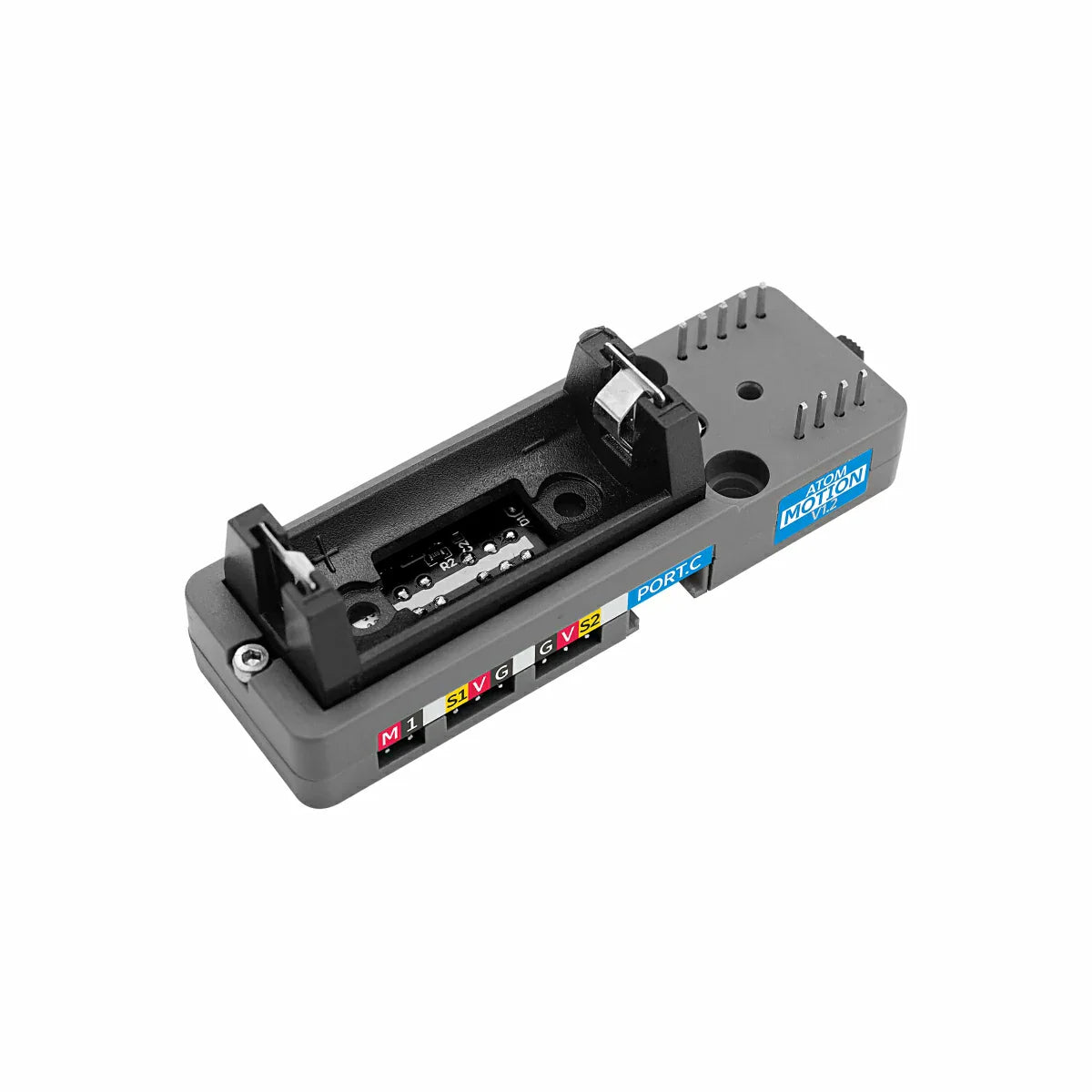

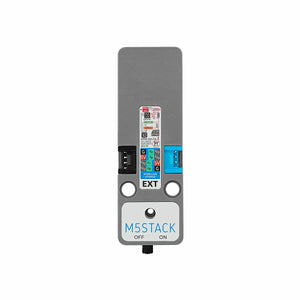

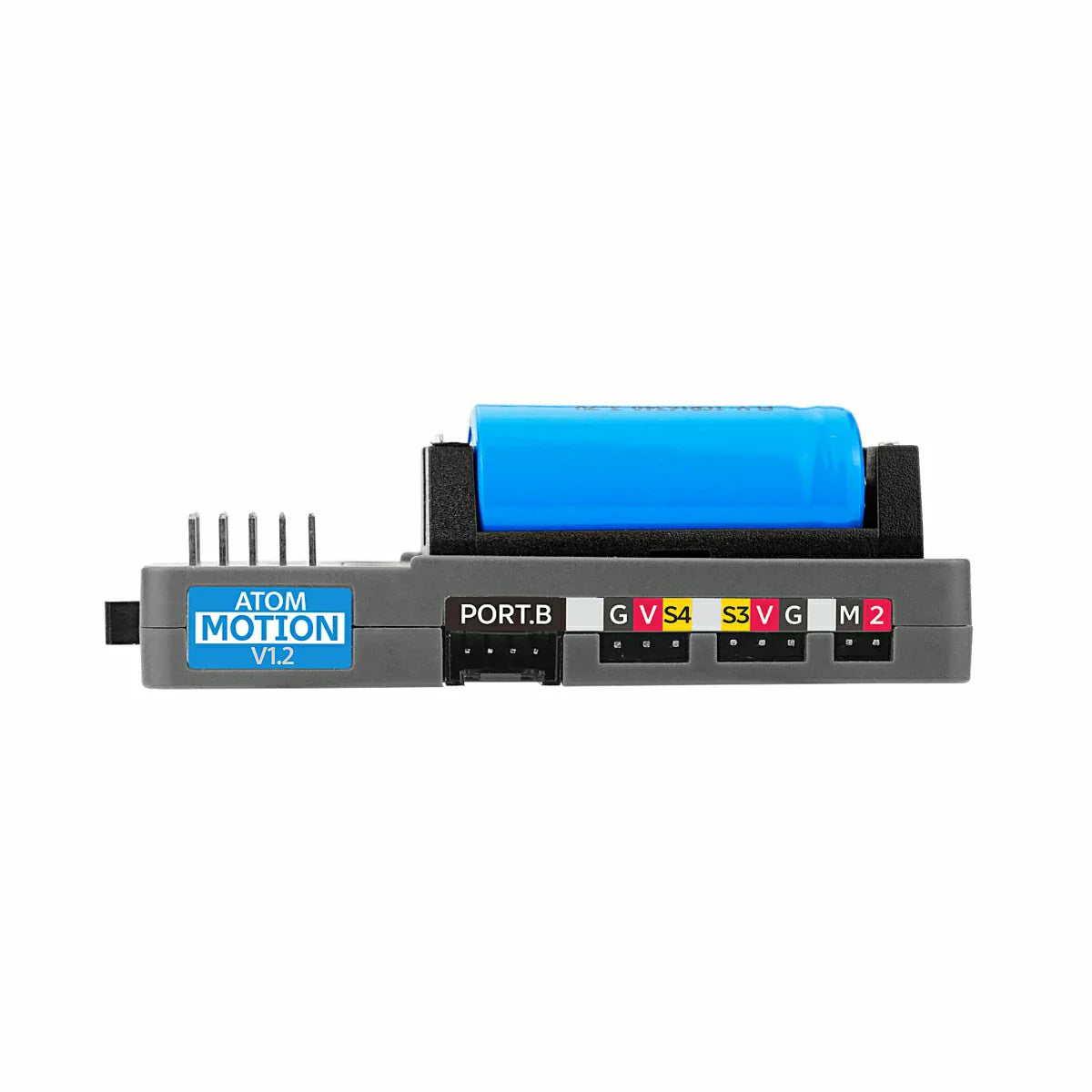

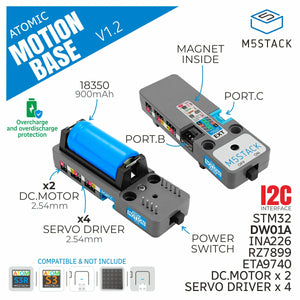

The M5Stack ATOMIC Motion Base v1.2 with Power Monitor (INA226AIDGSR) is an advanced drive base designed specifically for the Atom control series, offering high-performance capabilities for both servo and DC motors. This base is engineered to incorporate power management, intelligent expandability, and safety features that make it an all-in-one solution for diverse development projects. It includes 4-channel servo ports and 2-channel DC motor ports, allowing for precise control of various actuators. Additionally, the two HY2.0-4P interfaces facilitate quick connections to multiple sensors, such as those for measuring temperature, humidity, and light levels, enhancing the functionality of your devices with ease.
The communication protocol is based on stable I2C technology, leveraging STM32 combined with RZ7899 control chips to ensure reliable performance, efficient data transmission, and minimal latency.
For its power supply, the system features a rechargeable 900mAh lithium battery that meets the 18350 specification. It is safeguarded by the DW01-A high-precision lithium battery protection chip, which offers comprehensive safety features including overcharge, overdischarge, and short-circuit protection. The INA226 chip provides real-time monitoring of voltage, current, and power to maintain stable operation. Furthermore, the base includes overload protection and a user-friendly charging mechanism. With an independent power switch and a removable battery design, it ensures both safety and convenience during use.
The M5Stack ATOMIC Motion Base v1.2 is ideal for applications where safety, adaptability, and portability are key requirements.
Features
- Optimized for Atom series controllers
- Utilizes STM32 and RZ7899 chips for enhanced control
- Incorporates DW01-A protection chip for battery safety
- Features INA226 for monitoring current and voltage
- Built-in overload protection
- 4-channel control for servos
- 2-channel control for DC motors
- Dual HY2.0-4P sensor interfaces
- Rechargeable lithium battery included
- Independent power switching mechanism
- Includes back magnetic suction design
Development Platforms
- UiFlow1
- UiFlow2
- Arduino IDE
Package Contents
- 1 x M5Stack ATOMIC Motion Base v1.2
- 1 x 900mAh 18350 lithium battery
Applications
- Control for DC motor vehicles
- Operation of servo robotic arms
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F030F4P6 |
| DC Motor Driver | RZ7899 |
| Power Detection Chip | INA226 |
| Charging/Discharging Chip | ETA9740 |
| Battery Protection Chip | DW01-A |
| Charging/Discharging Cut-off Voltage | Charge Cut-off Voltage 4.14V / Discharge Cut-off Voltage 2.5V |
| Overload Protection | 5V@5A |
| Removable Lithium Battery | 18350@900mAh |
| Motor Interface PIN Spacing | 2.54mm |
| Full Load Steering Current | 3A |
| Single Channel Motor Peak Operating Current | 1A |
| Single Channel Servo Peak Operating Current | 0.4A |
| Standby Current (Switch On) | DC4.04V@40.97uA |
| Charging Current | DC 5V@1.18A |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 75.4 x 24.0 x 20.7mm |
| Product Weight | 41.0g (Including Battery) |
| Package Size | 79.0 x 31.0 x 26.0mm |
| Gross Weight | 45.3g |
Learn
Schematics
Atomic Motion Base v1.2 Schematics PDF
PinMap
I2C Interface
| Atomic Motion Base v1.2 | SDA | SCL |
|---|---|---|
| Atom-Lite / Atom-Matrix | G25 | G21 |
| AtomS3 / AtomS3-Lite | G38 | G39 |
| AtomS3R / AtomS3R-CAM / AtomS3R-M12 | G38 | G39 |
HY2.0-4P
| Atomic Motion Base v1.2 | PORT.B (Black) | PORT.C (Blue) |
|---|---|---|
| Atom-Lite / Atom-Matrix | G33/G23 | G19/G22 |
| AtomS3 / AtomS3-Lite | G8/G7 | G6/G5 |
| AtomS3R / AtomS3R-CAM / AtomS3R-M12 | G8/G7 | G6/G5 |
STM32
| STM32F030F4P6 | PA10 | PA9 | PA4 | PB1 | PA6 | PA7 | PA0 | PA1 | PA2 | PA3 |
|---|---|---|---|---|---|---|---|---|---|---|
| I2C | SDA | SCL | ||||||||
| DC Motor | M1F | M1R | M2F | M2R | ||||||
| Servo | Servo3 | Servo1 | Servo4 | Servo2 |
Model Size
ATOM Series: Compact and Versatile Controllers
