M5Stack ATOMS3 Dev Kit w/ 0.85-inch Screen
📦 Location of the warehouse: US
If an item is currently unavailable, you can place a pre-order. We will ship it as soon as our stock is replenished.
Need it faster? Contact us via email or through our Live Chat Support, and we will arrange an expedited delivery for you.
M5Stack ATOMS3 Dev Kit w/ 0.85-inch Screen
Interested in the features and specifications of M5Stack ATOMS3? OpenELAB has crafted a detailed article about this product. Follow the link to explore its features and discover various functions that will enhance your experience!
For a sneak peek, click the link below
Discover unique insights about M5Stack ATOMS3 – OpenELAB

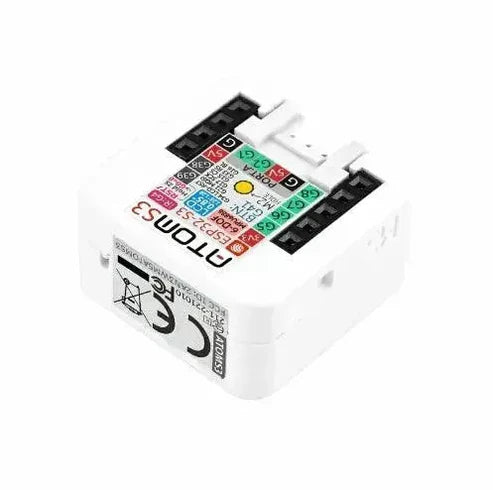

The AtomS3 is a highly efficient programmable controller powered by the ESP32-S3 chip.
This compact device comes with integrated WiFi and 8MB of on-chip FLASH memory. Utilizing the ESP32-S3 processor, the AtomS3 provides outstanding performance and adaptability for a wide range of applications.

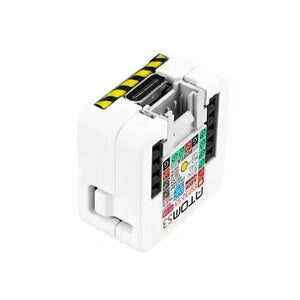

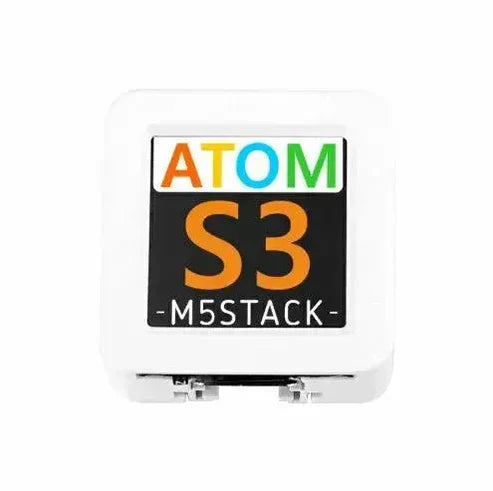

It features a 0.85-inch IPS display for clear visual feedback and user interaction, complemented by programmable buttons at the screen's bottom for tailored functions and improved user control. The built-in circuit that converts 5V to 3.3V ensures a dependable power supply for consistent operation. Additionally, the controller has a 6-axis gyro sensor (MPU6886) for accurate motion detection and orientation tracking. The included Type-C interface allows for both power supply and firmware updates. Furthermore, AtomS3 includes an HY2.0-4P expansion port, six GPIOs, and reserved power pins for effortless integration and expansion of diverse applications.
The AtomS3 has been designed with space efficiency in mind, measuring just 24 * 24 * 13 mm, making it perfect for various embedded smart device applications. Whether in robotics, IoT devices, or other embedded systems, AtomS3 offers a robust and flexible solution to meet project needs.
Note: To upload the firmware, press and hold the reset button (for about 2 seconds) until the internal green LED illuminates, then release it; the device will then enter download mode and await firmware upload.
Features
-
Built on the ESP32-S3FN8 architecture
-
Includes USB download capability
-
Integrated 3-axis gyroscope and 3-axis accelerometer (MPU6886)
-
Customizable programmable keys
-
0.85-inch LCD display
-
Infrared emission capability
-
Expandable pins and connections
-
Development environments: Arduino, UIFlow
Includes
-
1x AtomS3
Applications
-
IoT nodes
-
Microcontroller applications
-
Wearable technology
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-S3FN8 |
| DCDC | SY8089 |
| IMU | MPU6886 |
| LCD | N085-1212TBWIG06-C08 |
| Operating temperature | 0°C ~ 40°C |
| Resolution | 128(H)RGB x 128(V) |
| Support voltage | 5V |
| Power supply mode | TYPE C |
| Output voltage | 3.3V |

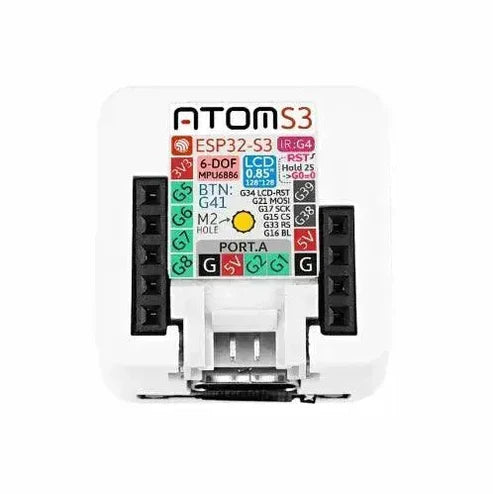

| IO interface × 6 | G5/G6/G7/G8/G38/G39 |
| Screen communication protocol | SPI |
| Product Size | 24mm × 24mm × 13mm |
| Package Size | 65mm × 44.5mm × 14mm |
| Product Weight | 6.8g |
| Package Weight | 10.9g |
