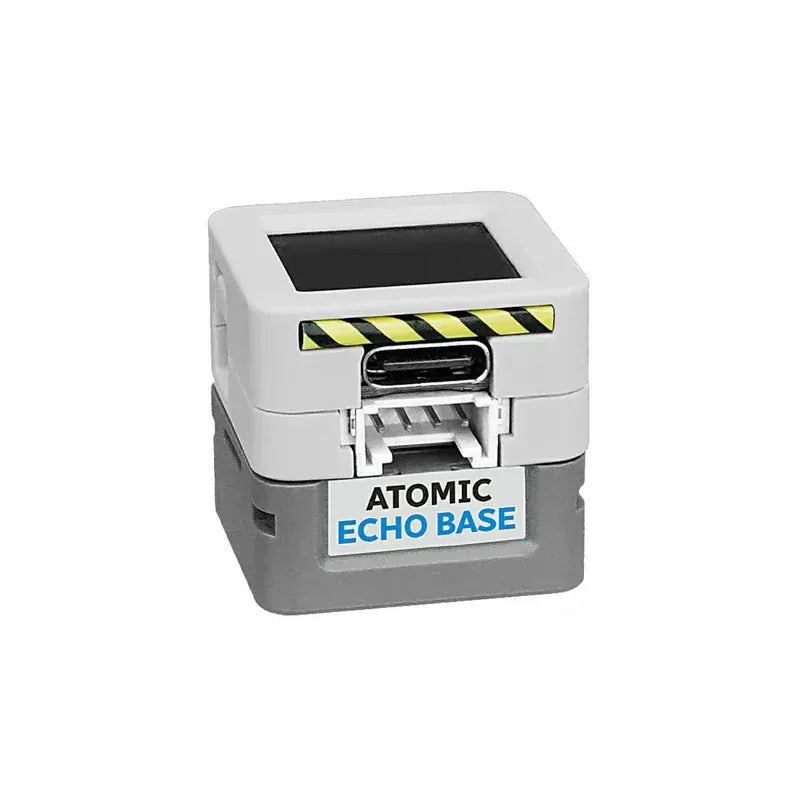

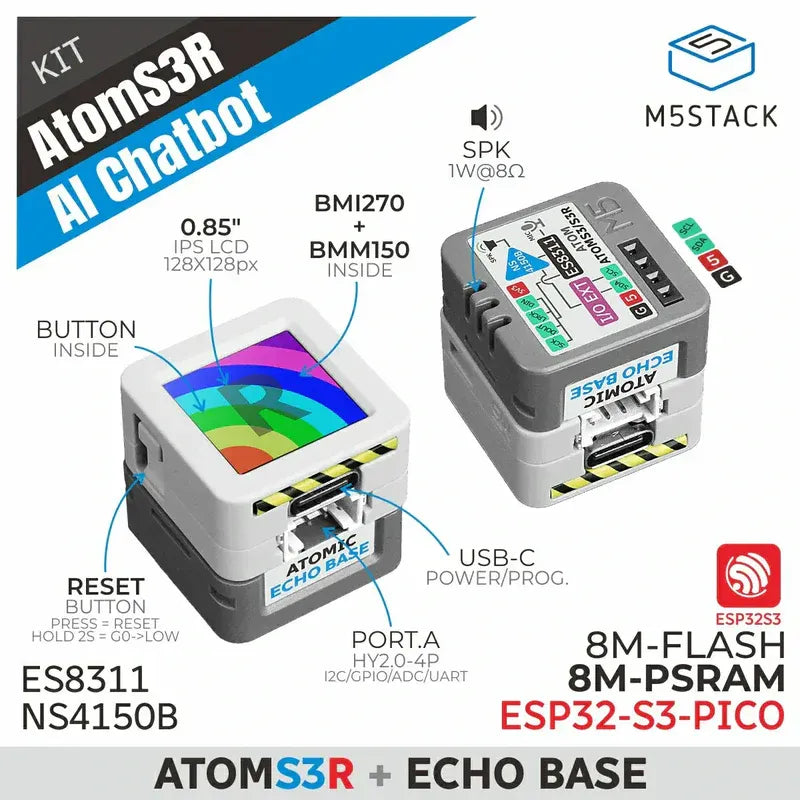

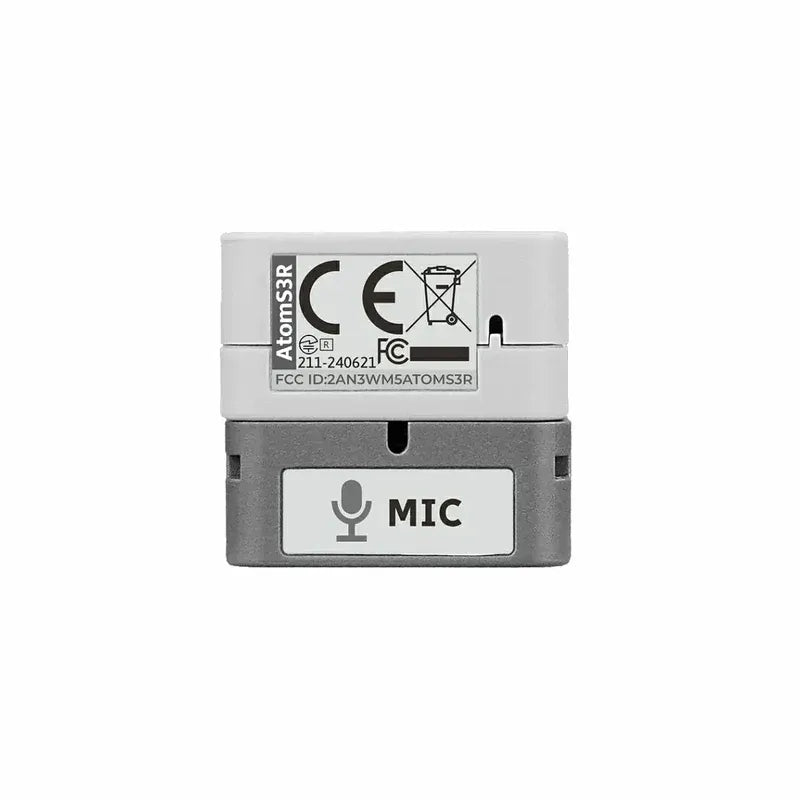

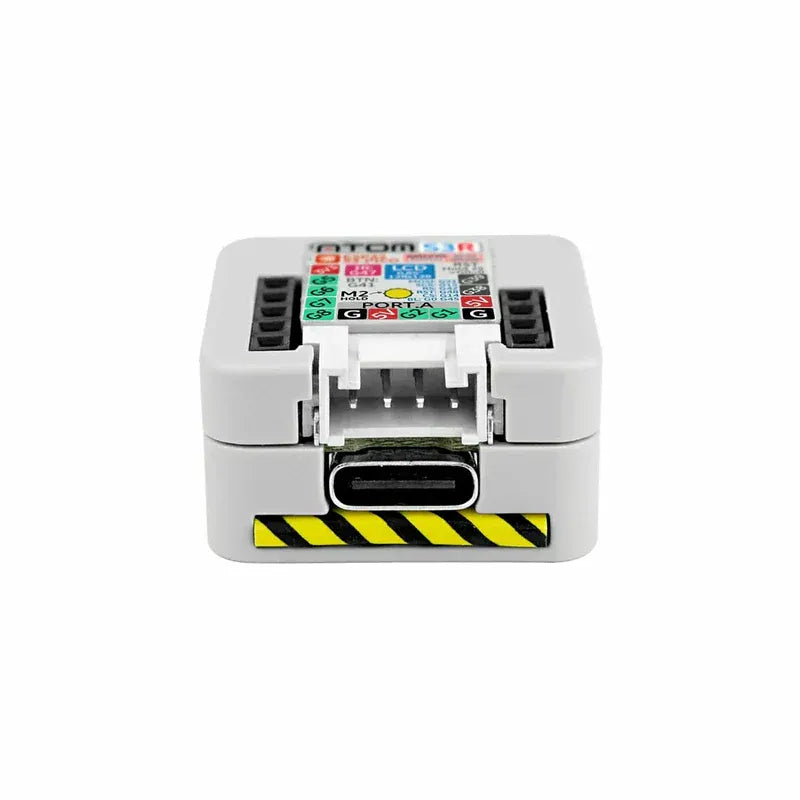

M5Stack AtomS3R AI Chatbot Kit (8MB PSRAM)
The AtomS3R AI Chatbot represents a sophisticated voice-enabled development platform engineered for advanced AI applications. This comprehensive kit combines two essential components: the AtomS3R controller module and the Atomic Echo Base audio subsystem. At its core, the AtomS3R leverages the powerful ESP32-S3 processor, delivering robust performance with an expansive 8 MB Flash and 8 MB PSRAM memory configuration. Enhanced with an integrated 9-axis inertial measurement unit featuring BMI270 and BMM150 sensors, plus infrared transmission capabilities, this kit offers exceptional versatility. The Atomic Echo Base incorporates the ES8311 audio codec, delivering studio-grade audio processing with precision microphone capture and amplified speaker output. Seamlessly compatible with multiple AI platforms including XiaoZhi Voice Assistant, OpenAI Voice Assistant, and Volcengine Voice Assistant, this development kit enables instantaneous voice recognition, customizable activation phrases, and minimal latency response times.
Core Capabilities
- Compatible with XiaoZhi Voice Assistant, OpenAI Voice Assistant, and more
- Advanced AI-powered voice recognition technology
- Hybrid edge-cloud processing with intelligent model management
- ESP32-S3 main controller integration
- Comprehensive 9-axis motion tracking system
- On-device AI inference processing
- Generous 8 MB Flash storage and 8 MB PSRAM memory
- Infrared transmission control functionality
- Flexible GPIO pin expansion and interface connectivity
- Full-duplex I2S audio communication
- High-fidelity 24-bit audio codec
- Precision MEMS digital microphone array
- Class D amplification driving 8 Ohm, 1 Watt speaker
- Multi-platform development support:
ESP-IDF
PlatformIO
Arduino
UiFlow2

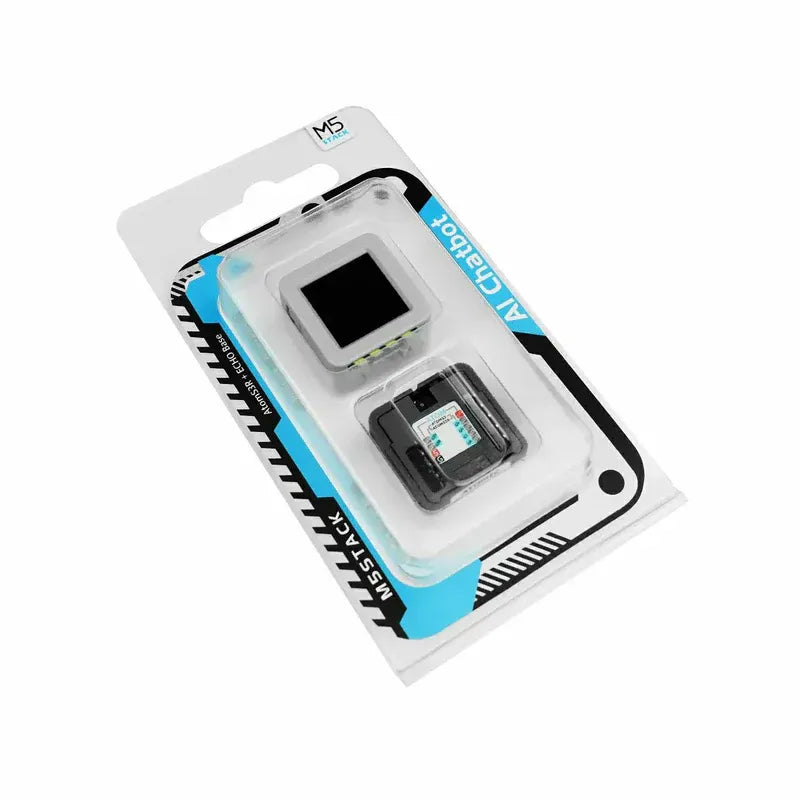

Package Contents

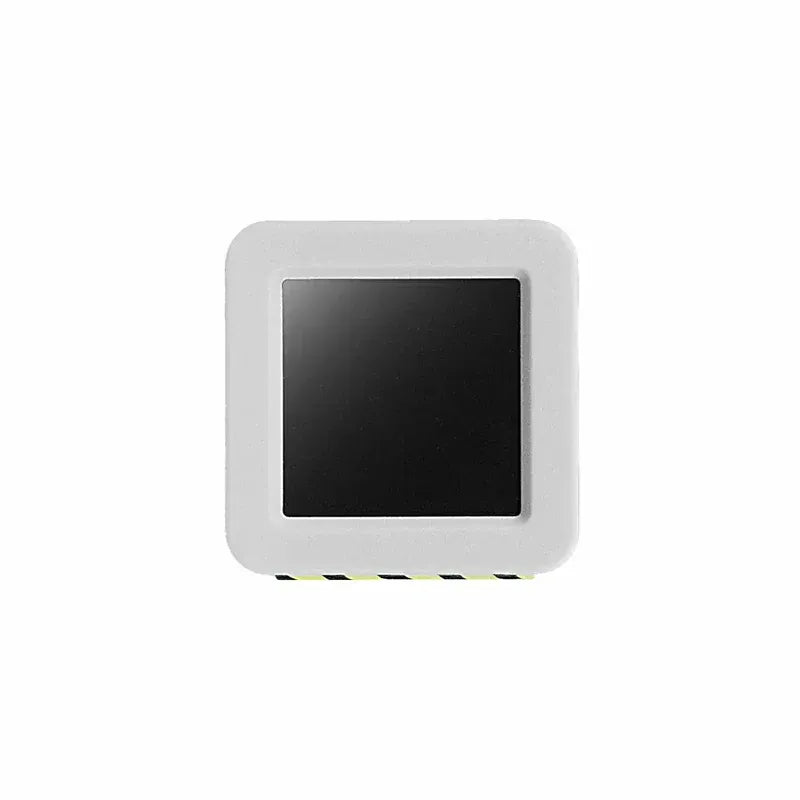

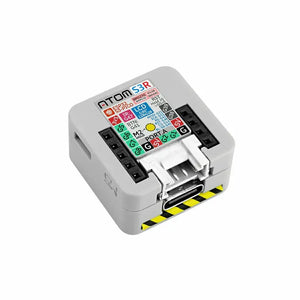

- 1 x AtomS3R controller module

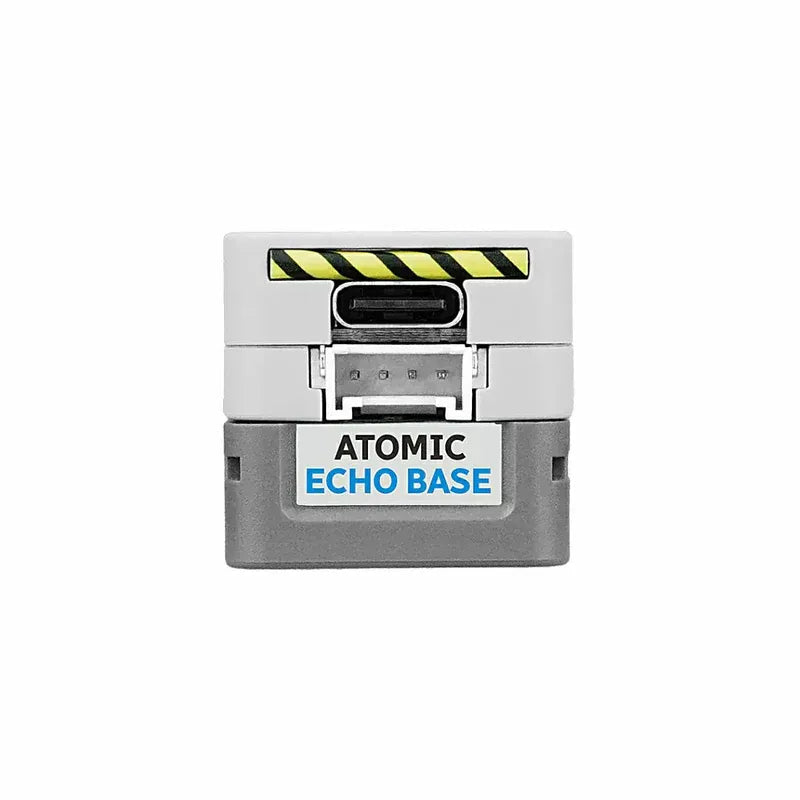

- 1 x Atomic Echo Base audio board
Practical Applications
- Intelligent voice assistant systems
- Smart home automation and control
Technical Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8, dual-core Xtensa LX7 at 240 MHz, USB-OTG |
| PSRAM | 8 MB PSRAM |
| FLASH | 8 MB FLASH |
| TFT Driver | GC9107 |
| Color IPS Resolution | 128 x 128 |
| 6-axis attitude sensor (BMI270) |
Accuracy: 0.05% (acceleration), 0.05 degrees per second (angular velocity) I2C address: 0x68 |
| 3-axis geomagnetic sensor (BMM150) |
Accuracy: 0.3 microTesla Mounted on BMI270, magnetometer data obtained via Sensor Hub |
| Infrared IR | 180 degree emission distance: 12.46 meters (unobstructed) |
| Expansion Interfaces | Bottom GPIO: G5/G6/G7/G8/G38/G39 and HY2.0-4P expansion port |
| Audio Codec | ES8311: 24-bit resolution, using I2S protocol |
| MEMS Microphone | MSM381A3729H9BPC, SNR: greater than or equal to 65 dB |
| Power Amplifier | NS4150B: Class D power amplifier |
| Speaker | 2014 cavity speaker: 1 Watt at 8 Ohms |
| Operating Temperature | 0 to 40 degrees Celsius |
| Product Dimensions | AtomS3R: 24.0 x 24.0 x 12.9 mm Atomic Echo Base: 24.0 x 24.0 x 14.14 mm |
| Product Weight | AtomS3R: 6.6 grams Atomic Echo Base: 6.3 grams |
| Package Dimensions | 120.0 x 65.0 x 16.0 mm |
| Package Weight | 21.6 grams |
Download Mode Instructions
To flash firmware, press and hold the reset button for approximately 2 seconds until the internal green LED illuminates, then release. The device will enter download mode, awaiting flashing.
Schematic Diagrams
Pin Mapping Configuration
RGB and BMI270 and IR and BUTTON
| ESP32-S3-PICO-1-N8R8 | G0 | G45 | G47 | G41 |
|---|---|---|---|---|
| LP5562 (RGB control chip) | SYS_SCL | SYS_SDA | ||
| BMI270 | SYS_SCL | SYS_SDA | ||
| IR | IR_LED_DRV | |||
| BUTTON | USER_BUT |
BMM150
| BMI270 | BMI270_ASDx | BMI270_ASCx |
|---|---|---|
| BMM150 | A_SDA | A_SCL |
SCREEN
| ESP32-S3-PICO-1-N8R8 | LP5562_W | G48 | G42 | G21 | G15 | G14 |
|---|---|---|---|---|---|---|
| 0.85 Inch IPS | LCD_BL | DISP_RST | DISP_RS | SPI_MOSI | SPI_SCK | DISP_CS |
HY2.0-4P
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.CUSTOM | GND | 5V | G2 | G1 |

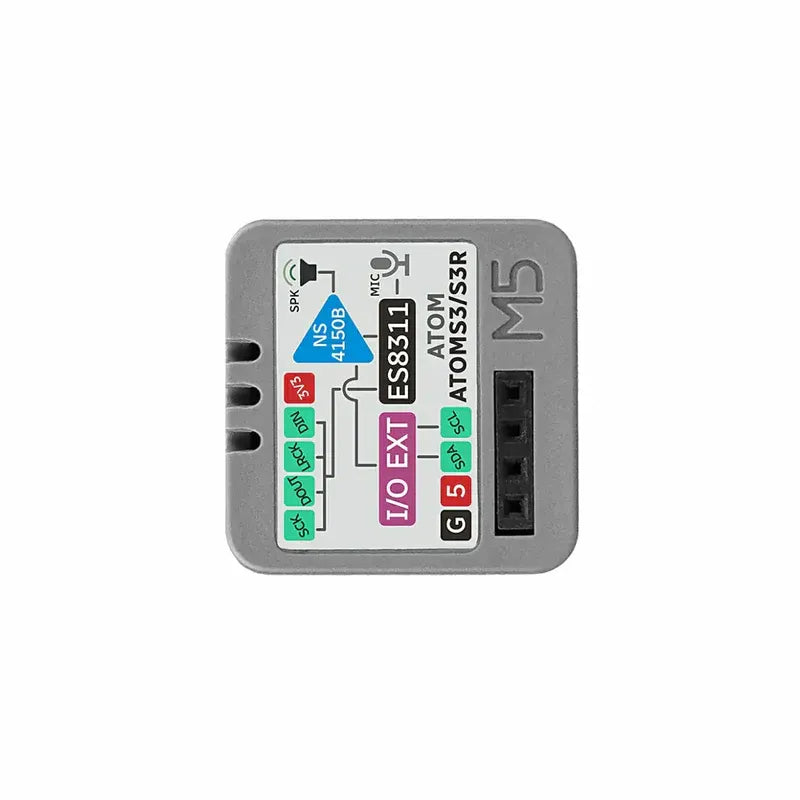

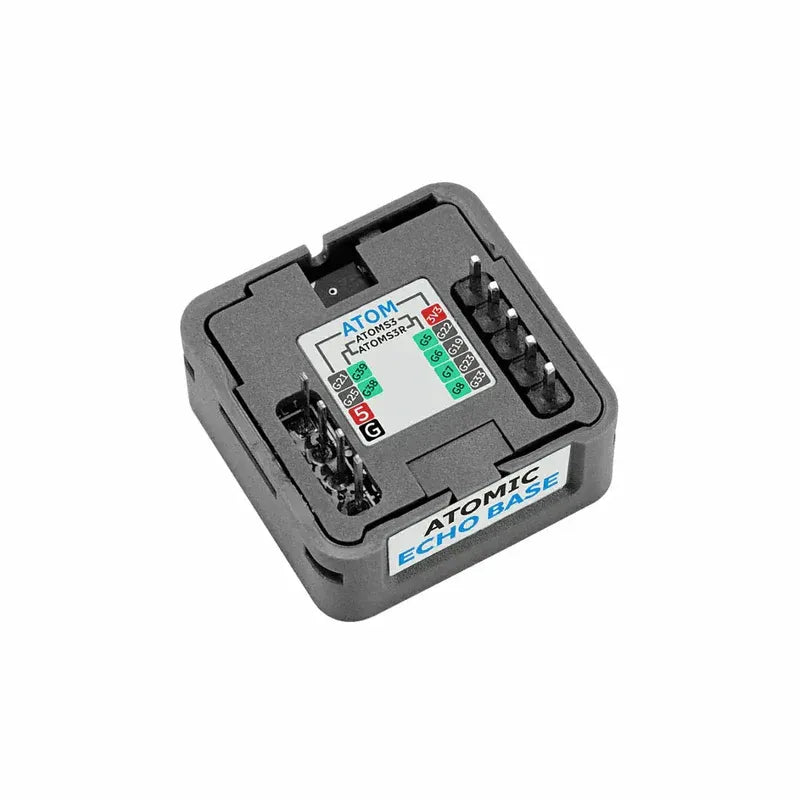

Atomic Echo Base
| Atomic Echo Base | SCL | SDA | SD/DSDIN | WS/LRCK | ASDOUT | SCK/SCLK |
|---|---|---|---|---|---|---|
| AtomS3R | G39 | G38 | G5 | G6 | G7 | G8 |
Physical Dimensions
Component Datasheets
