M5Stack Camera Module 8MP for LLM630 Kit (SC850SL)

M5Stack Camera Module 8MP for LLM630 Kit (SC850SL)

$64.95

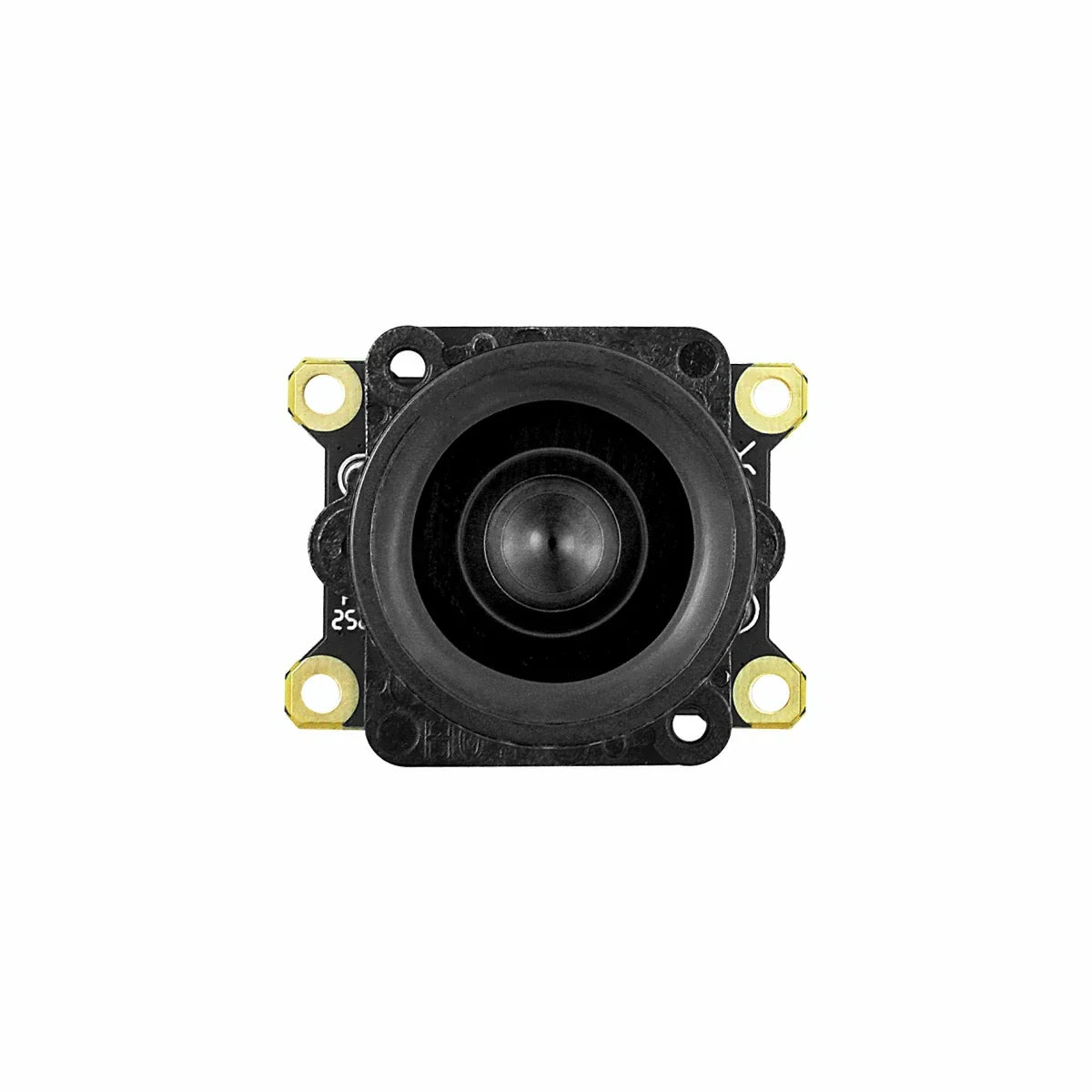

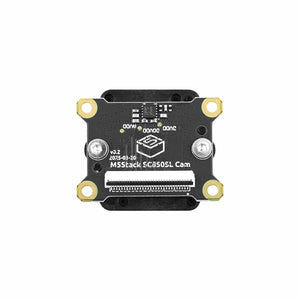

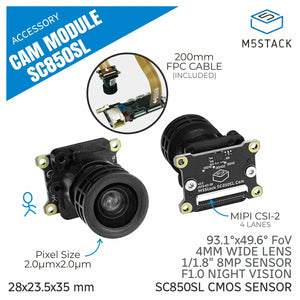

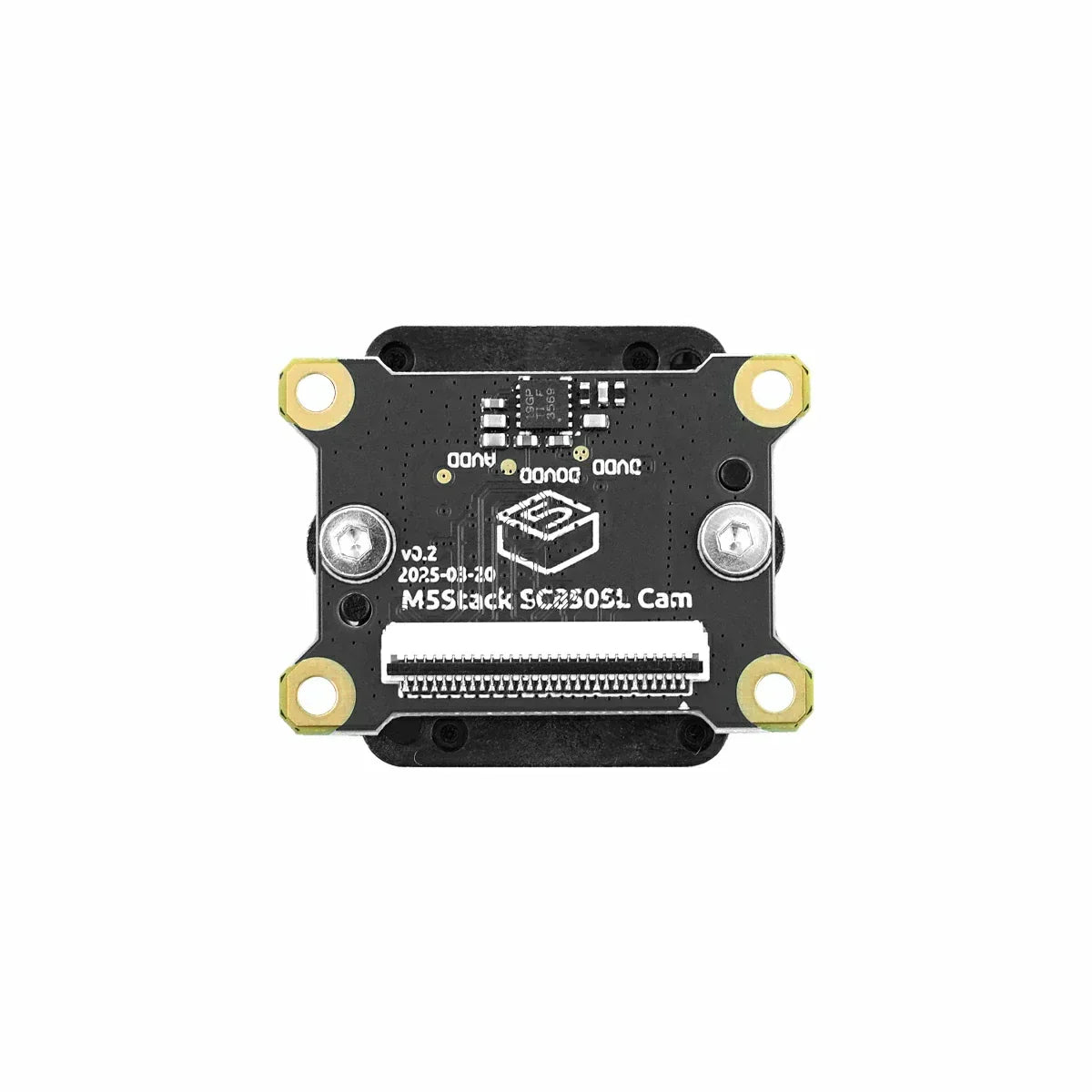

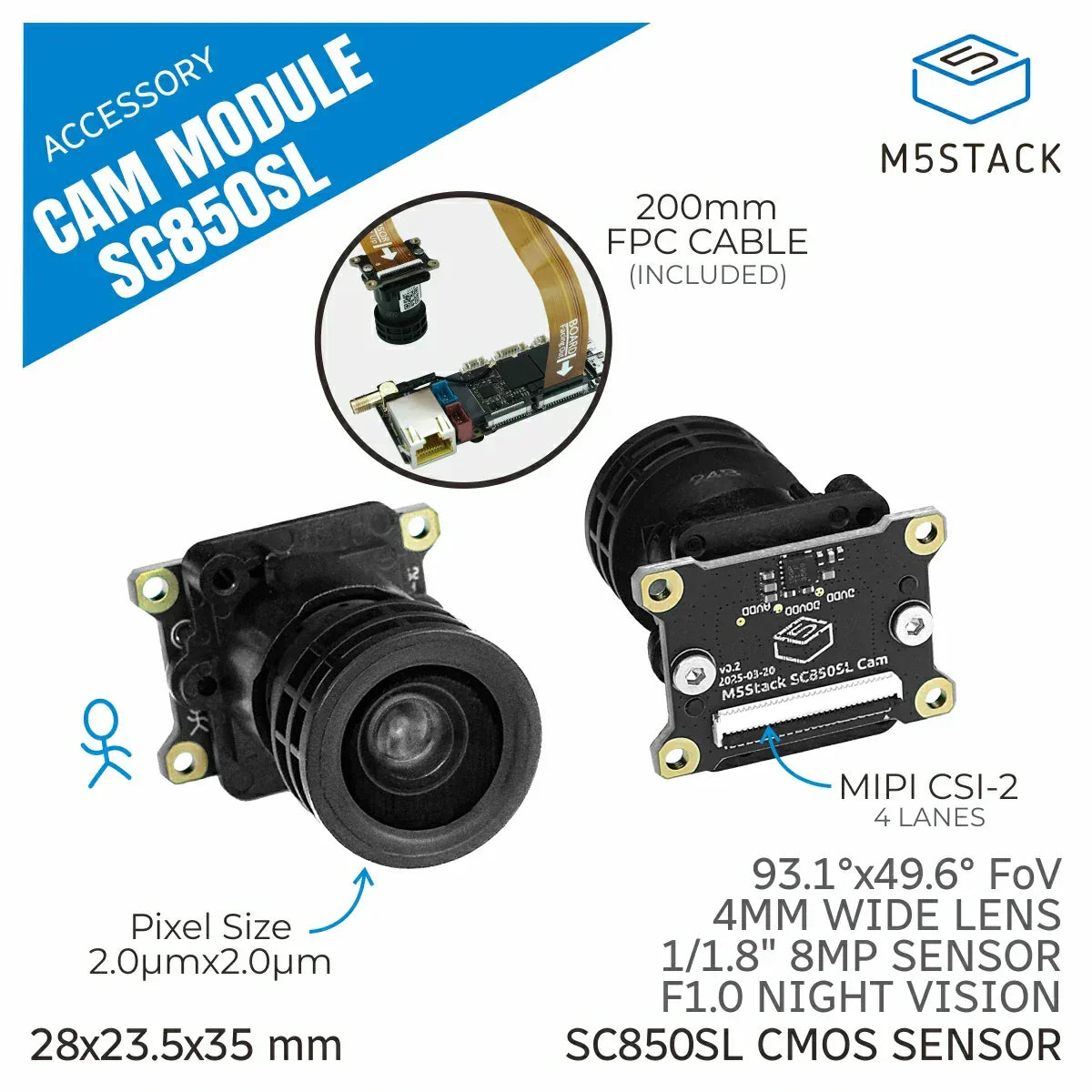

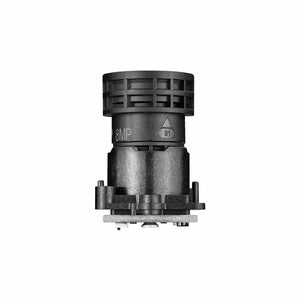

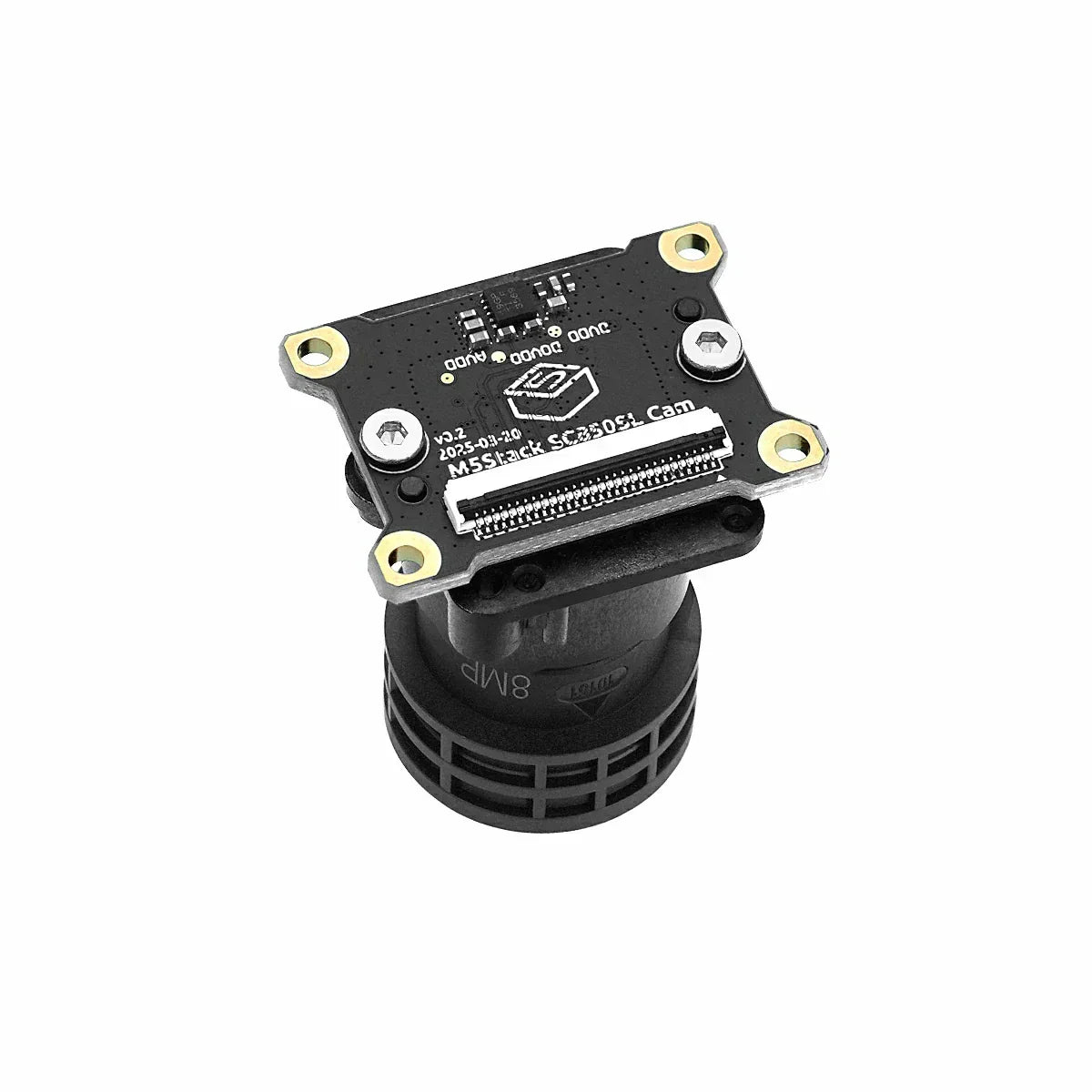

📷 M5Stack CamModule SC850SL – High‑Performance 8MP Camera for AI Vision

The M5Stack CamModule SC850SL is a high‑performance camera module designed specifically for the LLM630 Compute Kit. Powered by the SmartSens SC850SL CMOS sensor (8 MP), it delivers crisp 4K video at 60 fps, supports HDR (wide dynamic range), and excels in low‑light sensitivity.

With low read noise, high signal‑to‑noise ratio (SNR), and energy‑efficient operation, it ensures reliable image capture even in challenging lighting conditions. A 200 mm flexible FPC cable enables versatile installation, while MIPI CSI‑2 (4 lanes) provides high‑speed image transmission for real‑time AI processing.

Ideal for intelligent surveillance, robotic vision, drone inspection, and smart city infrastructure, this module is optimized for AI vision applications such as object detection, image classification, and visual navigation.



Softwares

Quick Start



Features

✅ Compatible with LLM630 Compute Kit

📷 SmartSens SC850SL CMOS sensor

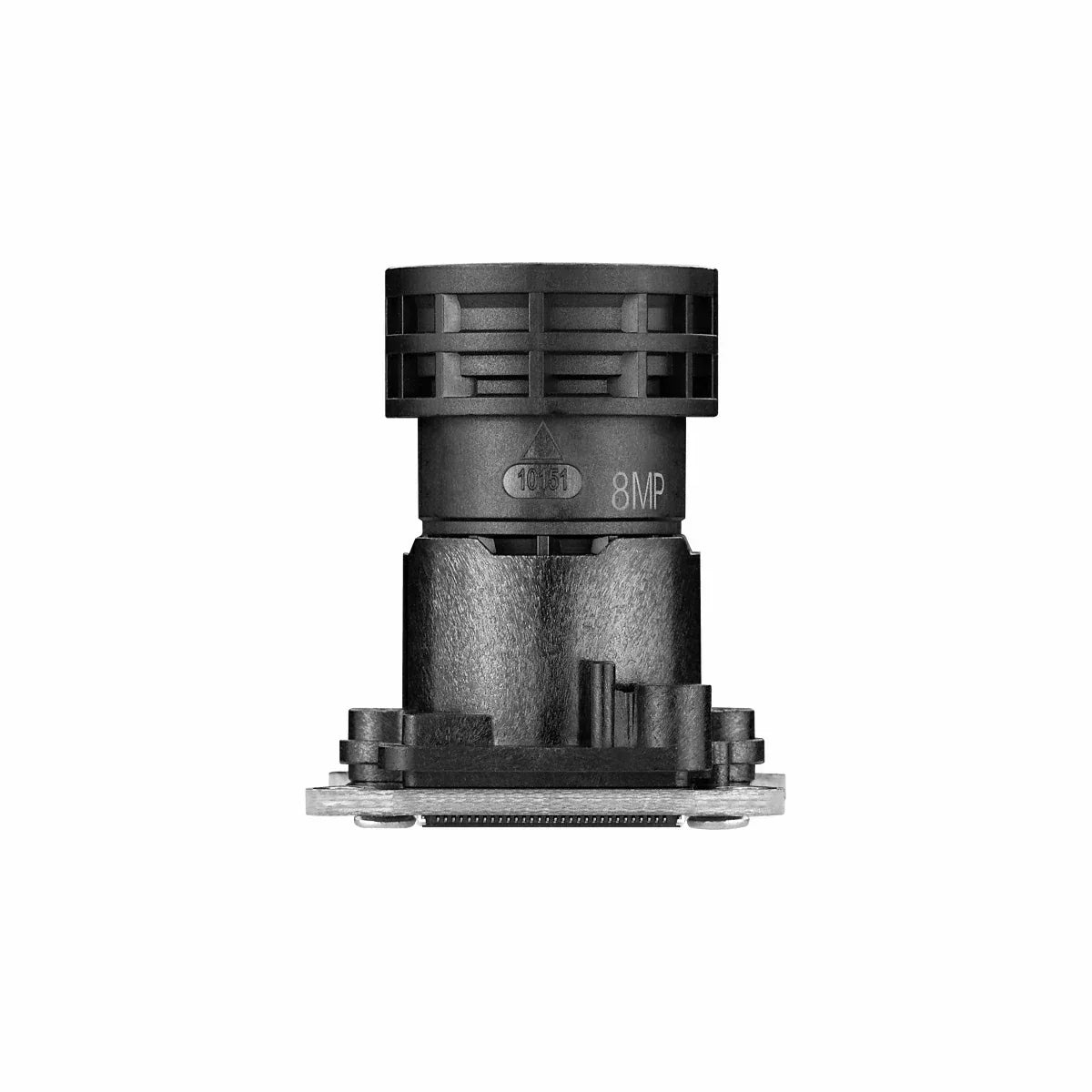

🔍 YT10151-8MP-4mm lens

🏗️ Stacked BSI + Rolling Shutter architecture

🔌 MIPI communication interface 🎥 Supports 4K video capture

📈 High SNR & wide dynamic range

⚡ High-speed DPC (Defect Pixel Correction)

🌙 Excellent low-light & night vision performance

🔧 High sensitivity with fast bad pixel correction



Includes

  • 1 x CamModule SC850SL

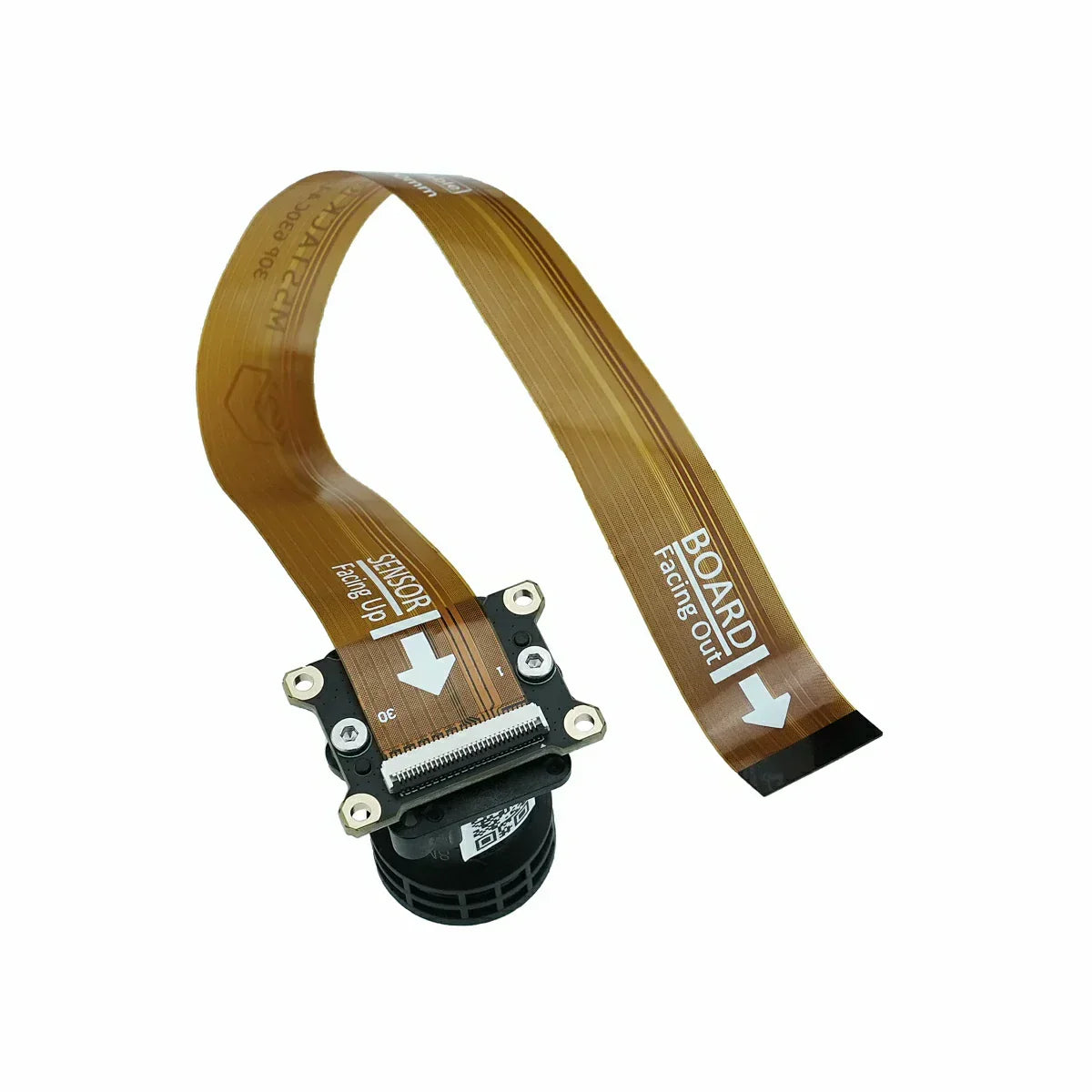

  • 1 x 200 mm FPC cable
  • 1 x Thermal pad



Applications

🧠 Intelligent Monitoring

🤖 Robotic Vision

🚁 Drone Inspection

🌆 Smart Cities



📊Specifications

Specification Parameters
Image Sensor SmartSens SC850SL CMOS
Resolution 8 MP
Pixel Array 3856H × 2176V
Pixel Size 2.0 µm × 2.0 µm
Optical Specs 1/1.8″
Max Frame Rate 3840 × 2160 @ 60 fps
Output Interface MIPI CSI‑2 (4 lanes)
Image Format RAW RGB
Diagonal FoV 93.1° × 49.6°
Photosensitivity 5034 mV/(Lux·s)
Dynamic Range Up to 100 dB (HDR); 75 dB (linear)
Signal‑to‑Noise Ratio 39 dB
Operating Temperature –30 °C ~ +85 °C
Optimal Image Quality –20 °C ~ +60 °C
Lens Specs M16
Interface Method 200 mm FPC cable
Product Size 28.0 × 23.5 × 33.9 mm
Product Weight 13.0 g (single camera)
Package Size 80.0 × 52.0 × 22.0 mm
Gross Weight 27.3 g


Schematics

CamModule SC850SL Schematics PDF

Preview



PinMap

CamModule SC850SL

Pin Number CamModule SC850SL
1-5 NC
6 GND
7 DVDD_1V2
8 DOVDD_1V8
9 AVDD_2V8
10 GND
11 CAM_SDA_1V8
12 CAM_SCL_1V8
13 CAM_RSTN
14 CAM_MCLK
15 GND
16 MIPI_RX0_N
17 MIPI_RX0_P
18 GND
19 MIPI_RX1_N
20 MIPI_RX1_P
21 GND
22 MIPI_RX2_N
23 MIPI_RX2_P
24 GND
25 MIPI_RX3_N
26 MIPI_RX3_P
27 GND
28 MIPI_RX4_N
29 MIPI_RX4_P
30 GND



Model Size

CamModule SC850SL Model Dimensions PDF
