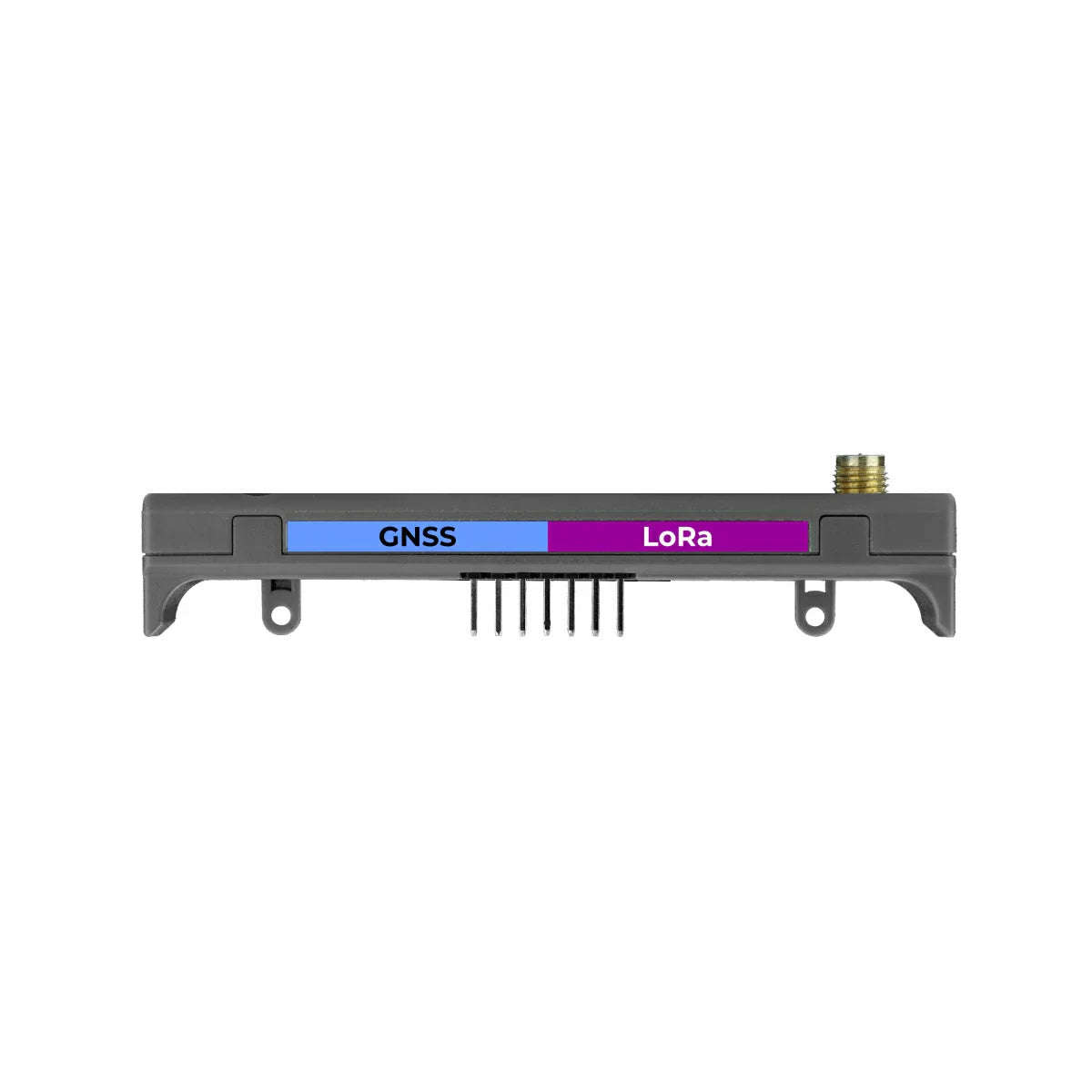

M5Stack Cap LoRa 1262 for Cardputer Adv (SX1262, ATGM336H)

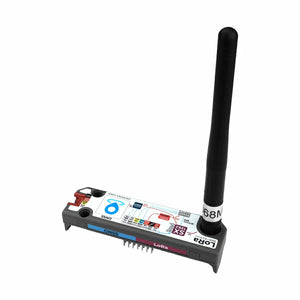

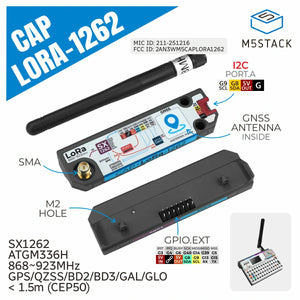

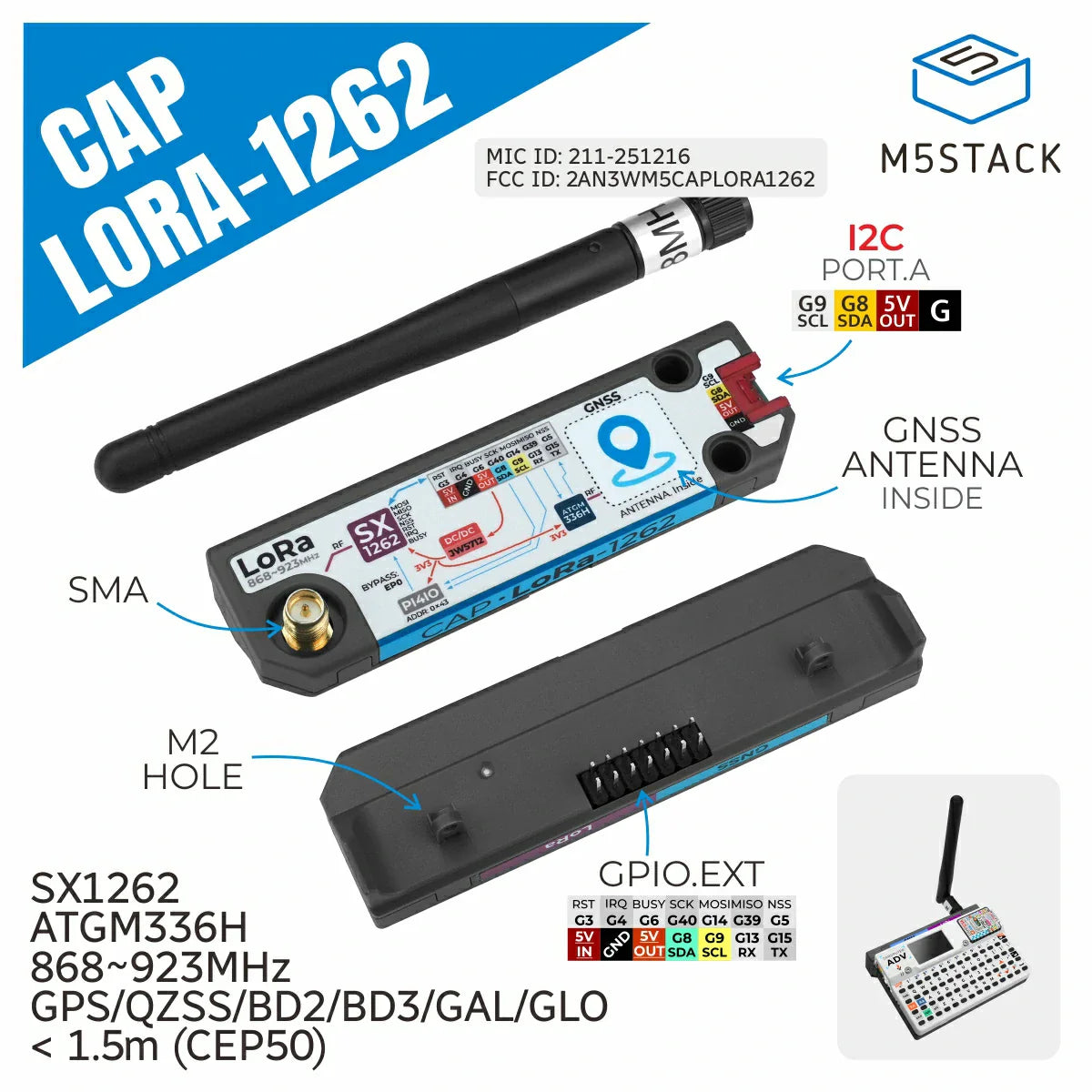

π‘ Cap LoRa-1262Β is an advanced expansion board engineered for long-range LoRa connectivity and precise GNSS positioning, purpose-built to pair with Cardputer-Adv. Outfitted with a π HY2.0-4P connector, it ensures reliable integration and extended functionality with the host device. Powered by the SX1262 chipset, the LoRa section includes a πΆ detachable SMA antenna for enhanced signal strength, reduced interference, and extended communication distance. Operating across the 868MHz ~ 923MHz spectrum, it delivers efficient, low-power wireless networking for IoT deployments π. The GNSS portion leverages the AT6668 solution with a π ceramic antenna to provide accurate satellite-based location services. Supporting multi-band GNSS reception, it can process GPS, BD2, BD3, GLONASS, GALILEO, and QZSS signals. Even in challenging environments, it quickly locks onto satellites for dependable positioning. Ideal for remote monitoring π, urban infrastructure ποΈ, connected homes π , vehicle navigation π, and IoT asset tracking π§.
Β
β¨ Features
- π Combines LoRa wireless technology with GNSS satellite positioning
- π‘ Frequency coverage: 868 ~ 923 MHz
- βοΈ Compatible with FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation
- π― LoRa sensitivity: as low as -147 dBm (low data rate mode)
- π Transmission output: up to +20 dBm
- πΆ SMA antenna port for LoRa, integrated ceramic antenna for GPS
- π GNSS support: GPS / QZSS / BD2 / BD3 / GAL / GLO
- π‘ Multi-band, multi-system satellite reception

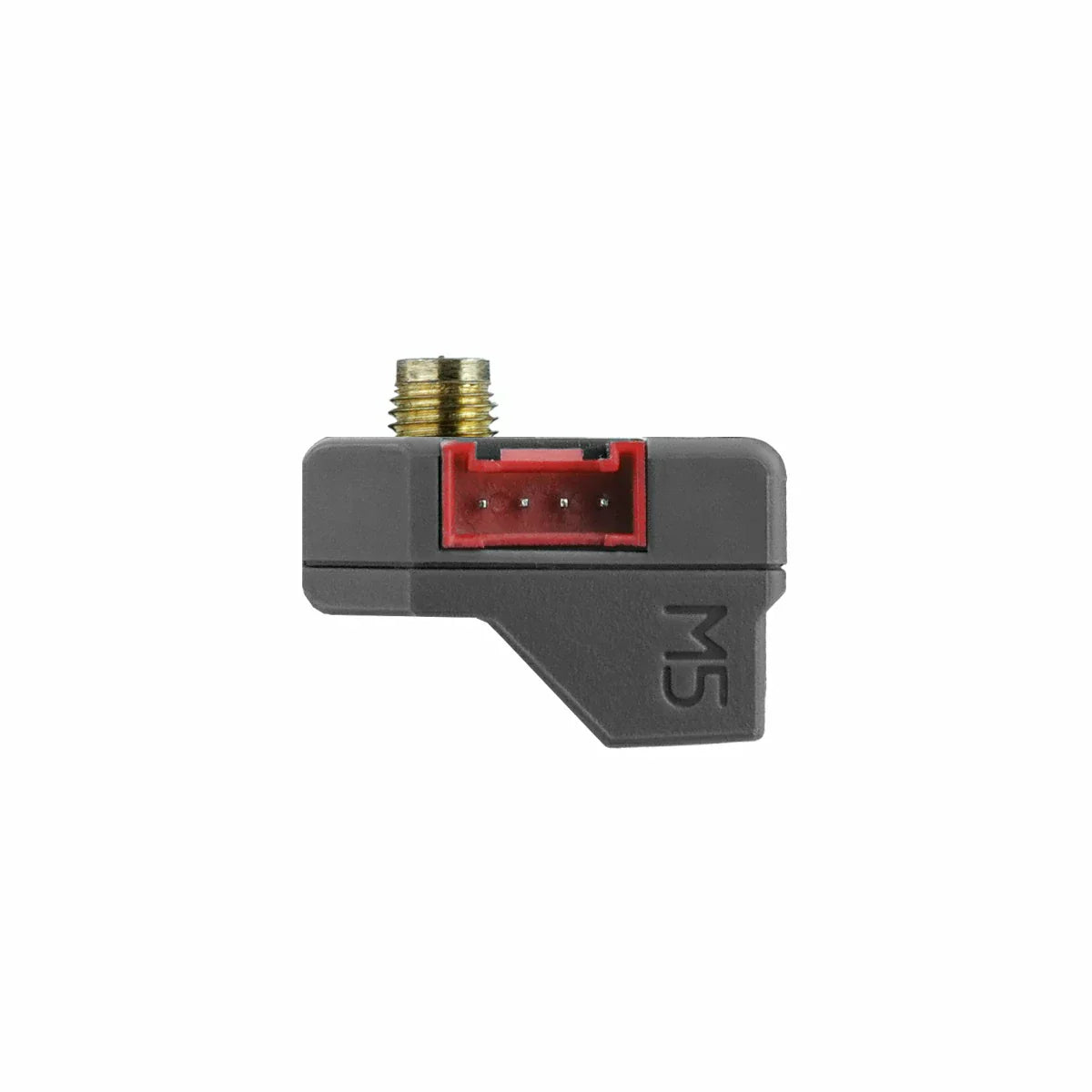

- π HY2.0-4P expansion connector
- π» Development compatibility:
- Arduino
- UiFlow2
Β
π Specifications
| π Specification | βοΈ Parameter |
|---|---|
| LoRa Module | SX1262 |
| LoRa Frequency Range | 868 ~ 923 MHz |
| Programmable Bitrate | Up to 300kbps |
| Communication Interface | SPI |
| Antenna | 108 x 9.3mm, SMA type, Gain 3dBi |
| Transmit Power | +22dBm |
| Receiver Sensitivity | -147dBm |
| Operating Current | DC 5V@163.4mA |
| Supported Modulation | FSK / GFSK / MSK / LoRa / OOK |
| GPS Module | ATGM336H-6N@AT6668 |
| GPS Interface | UART, 115200bps@8N1 |
| GNSS Systems | GPS / QZSS / BD2 / BD3 / GAL / GLO |
| Frequency Bands | BDS: B1I+B1C GPS/QZSS/SBAS: L1 GALILEO: E1 GLONASS: R1 |
| Channels | 50 |
| Accuracy | <1.5m (CEP50) |
| Update Rate | Up to 10Hz |
| Protocol | NMEA 0183 4.1 |
| Sensitivity | Tracking: -162dBm Acquisition: -160dBm Cold Start: -148dBm |
| TTFF | Cold Start: 23s Hot Start: 1s |
| Power Use | 33.1mA |
| Dimensions | 84.0 x 24.0 x 15.2mm |
| Weight | 34.0g |
| Package Size | 170.0 x 120.0 x 17.0mm |
| Gross Weight | 48.6g |
Β
π Product Comparison
| Compare Feature | Cap LoRa-1262 | Cap LoRa868 |
|---|---|---|
| HY2.0-4P Expansion Interface | β Yes | β No |
| Module | Stamp LoRa-1262, compact size | Legacy version, larger footprint |
Β
π Applications
- π Remote monitoring and data collection
- ποΈ Smart city infrastructure
- π Connected home solutions
- π Automotive navigation and tracking
- π§ IoT device localization
Β
π Datasheets
Β

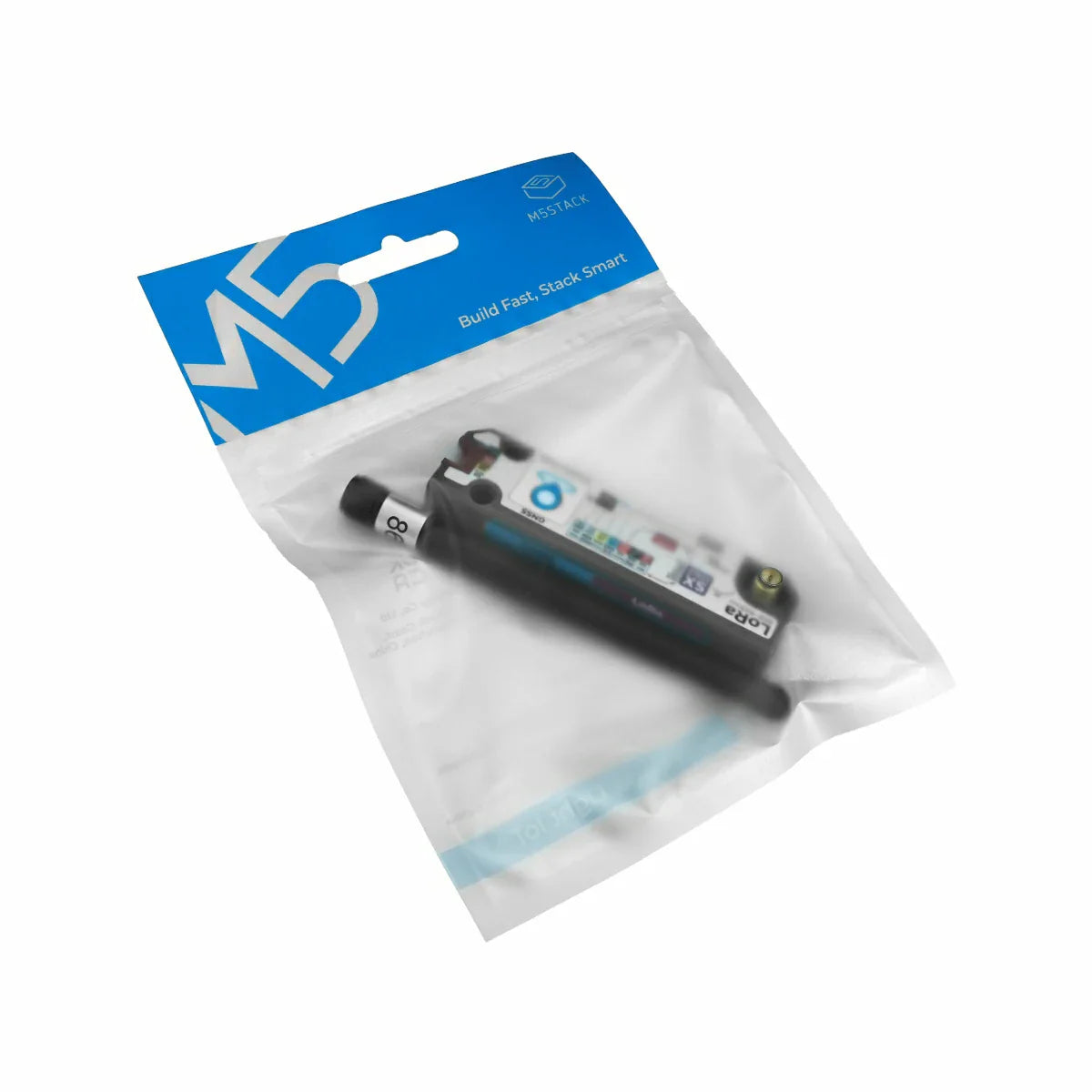

π¦ Includes
- 1 x Cap LoRa-1262
- 1 x LoRa Rubber Antenna
